Case Study:

Scotsman Ice Systems Office and Warehouse DAS Install

RSRF installed a passive DAS to bring 4-5 bars of signal across 90,000 sq ft in just five days.

Building Size

90,000 sq. ft.

System Type

Cellular DAS

Carriers

AT&T, Verizon, T-Mobile

Location

Vernon Hills, Illinois

Building Type

Office, Warehouse, Garage

Industry

Corporate Space, Manufacturing

DAS Vendor

SureCall

Technology

Off-Air Passive DAS

It was a pleasure doing business with RSRF. They are a wonderful partner to work with and stand behind their work 100%. I would not hesitate recommending them as a provider of in-building cellular solutions!

Teri Conner

IT Manager, Scotsman Ice Systems

1. The Problem

Scotsman Ice's new headquarters had unusably weak cell signal.

Scotsman Ice had just finished constructing their new, custom-built global headquarters in Vernon Hills, IL when they reached out to us.

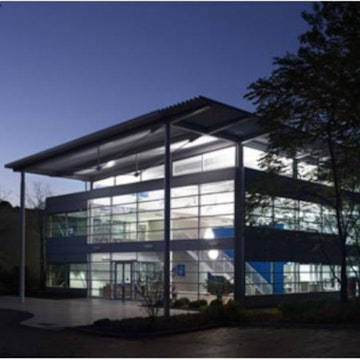

Like most new buildings, their new headquarters utilized modern energy-saving windows. Unfortunatlely, while Low-E glass is great at reducing thermal leakage, it also blocks cell signal.

As employees began to move into the new building, they were entering a dead zone. Making and receiving calls was all but impossible.

Scotsman needed a turnkey solution to improve signal for AT&T, Verizon, T-Mobile, Sprint, US Cellular, and all other US wireless carriers. The solution also needed to be affordable, deployable within a short timeframe, reliable and low- or no-maintenance.

Our Process

Simple, from start to finish

Initial Budgetary Estimate

< 1 week

Price estimate based on floorplans and building materials
Typically accurate to within 10% of final pricing.

System Design and On-Site Visit

1 to 3 weeks

Full iBwave Design and propagation modeling.
On-Site visit to take signal readings and verify design.
Site visit report.

Final Proposal

1 week

Final iBwave design.
Final proposal utilizing recommended DAS technology.
Statement of work.
Final turnkey pricing.

DAS Deployment

4-12 weeks upon approval

Cabling & RF Engineering teams on-site to install system.
Remote monitoring setup and configuration
System provisioning testing, and closeout

1. Initial Budgetary Estimate

< 1 week

2. Design & On-Site Visit

1 to 3 weeks

3. Final Proposal

1 week

4. DAS Deployment

4-12 weeks upon approval

2. The Solution

A passive DAS solution installed in just five days.

Waveform's RSRF division moved rapidly: we dispatched our local team to perform an RF site survey. Once on-site, our technicians discovered that the building was between two AT&T cell towers. As a result, AT&T signal was unstable outdoors; devices intermittently transferred from one tower to another.

The new building required powerful hardware and creative thinking. We needed a solution that could take a very weak donor cell signal and amplify it into a signal that would support all users within the 90,000 square-foot building.

In five days, our team had installed two donor antennas outside of the building. We deployed one yagi directional antenna pointed at an AT&T tower and another omni-directional antenna to capture Verizon and all other carriers. These antennas fed 7 SureCall Force5 cellular amplifiers, 48 indoor panel and dome antennas, and plenum coaxial cabling.

3. The Results

Reliable signal across 90,000 square feet.

When you walk into Scotsman’s headquarters, cell phones on every carrier now receive 4-5 bars in every room.

Calls no longer drop as employees move around the building. The new company building is fit for use as an international headquarters where everybody in the building, on any cell network, knows they have reliable connectivity.
