TravlFi XTR Pro 5G External Antenna Guide

Updated:

Looking to get the best possible data rates from your TravlFi XTR Pro 5G?

You’ll want to purchase and connect external MIMO antennas to the device’s four 4G ports.

In this guide, we'll:

  • Recommend the best external antenna to use.
  • Show where the ports are located.
  • Explain how to aim the antenna for best results.

In this guide

The Best External Antenna For the TravlFi XTR Pro 5G

Using a MIMO antenna outside your building, pointed at the nearest tower, can help you get the fastest LTE data rates possible.

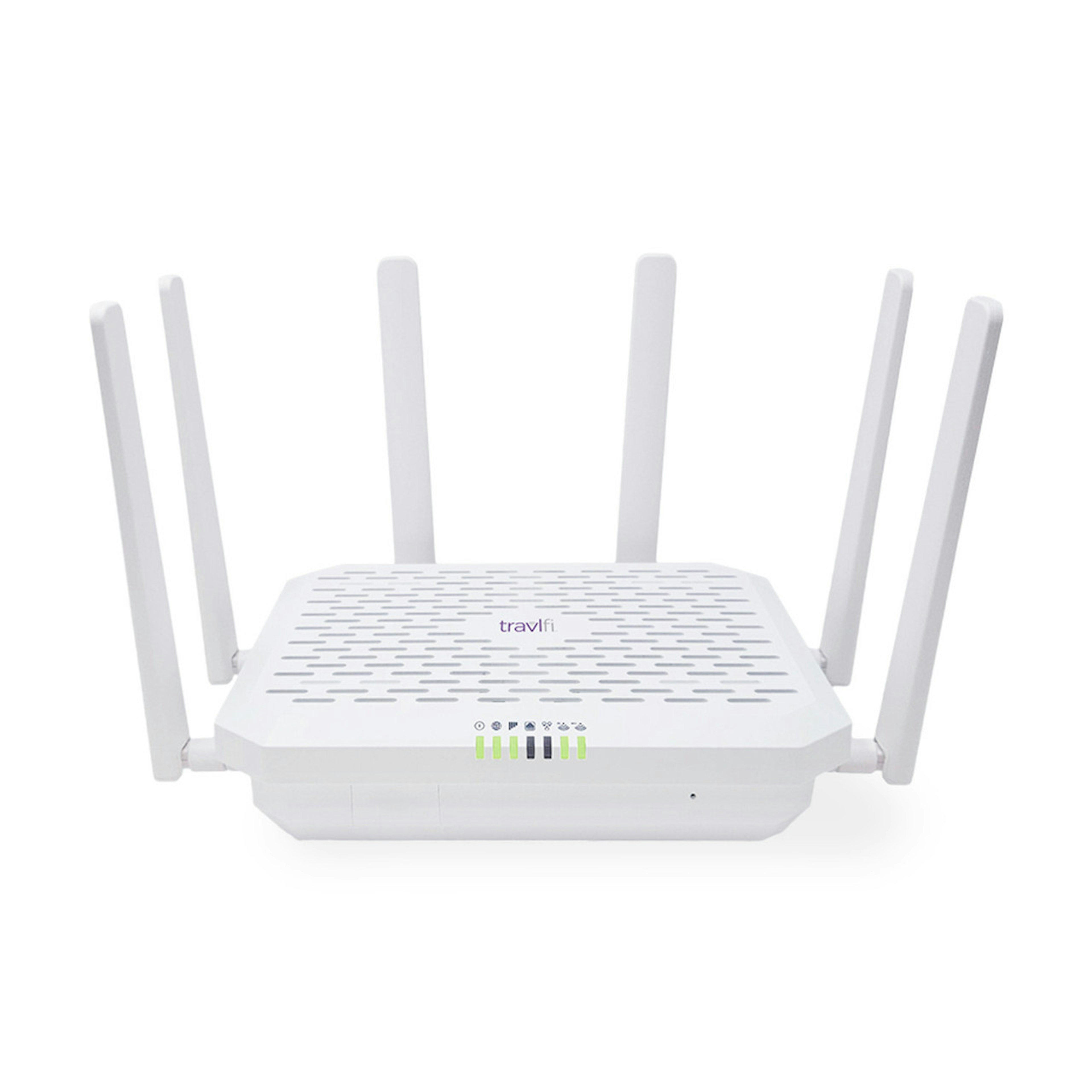

The TravlFi XTR Pro 5G has six ports for cellular in total. Two on each side, and two on the back.

We recommend the following MIMO antenna option for use with the TravlFi XTR Pro 5G:

omniroam 4-in1
No reviews yet

High-performance, omnidirectional all-in-one mobile antenna.

Read more $229.99

There are multiple versions of the OmniRoam. Make sure you choose the 4-in-1 version with four cellular antennas.

Why External Antennas Are Critical for Improving Data Rates

Most people think that external antennas primarily help you increase your data rates by increasing the signal strength. But that's not the case.

An increase in signal strength is often less important than other ways that external mobile antennas help.

Here are the three main ways that mobile antennas help you increase your data rates on the move:

1.They Improve Signal Quality

Vehicle antennas improve SINR (Signal to Interference plus Noise Ratio), allowing higher data rates through better modulation schemes. Proper mounting and positioning on your vehicle is crucial for optimal performance.

2. They Allow You To Connect On More Bands

Modern vehicle routers can use multiple cellular bands simultaneously through carrier aggregation. External antennas help access higher frequency bands that typically can't penetrate vehicle bodies, often providing faster, less congested connections.

3.MIMO Isolation

Vehicle-mounted antennas provide better MIMO (Multiple Input Multiple Output) isolation than internal antennas, enabling cleaner simultaneous data streams. This results in higher bandwidth and more stable connections while driving.

Installing the OmniRoam

We've compiled a detailed instruction manual to accompany the OmniRoam, where we go into depth on the best ways to install the kit.

The OmniRoam has three different mounting options:

  • Magnetic
  • Adhesive
  • Spigot

Choose the positioning that best suits your vehicle's needs. As well as in the manual, you can also find a detailed description of each mounting option in the product video:

Once you're happy with your install, it's time to connect the TravlFi XTR Pro 5G!

Unscrew the four side antennas. The two 5G antennas on the back can remain attached.

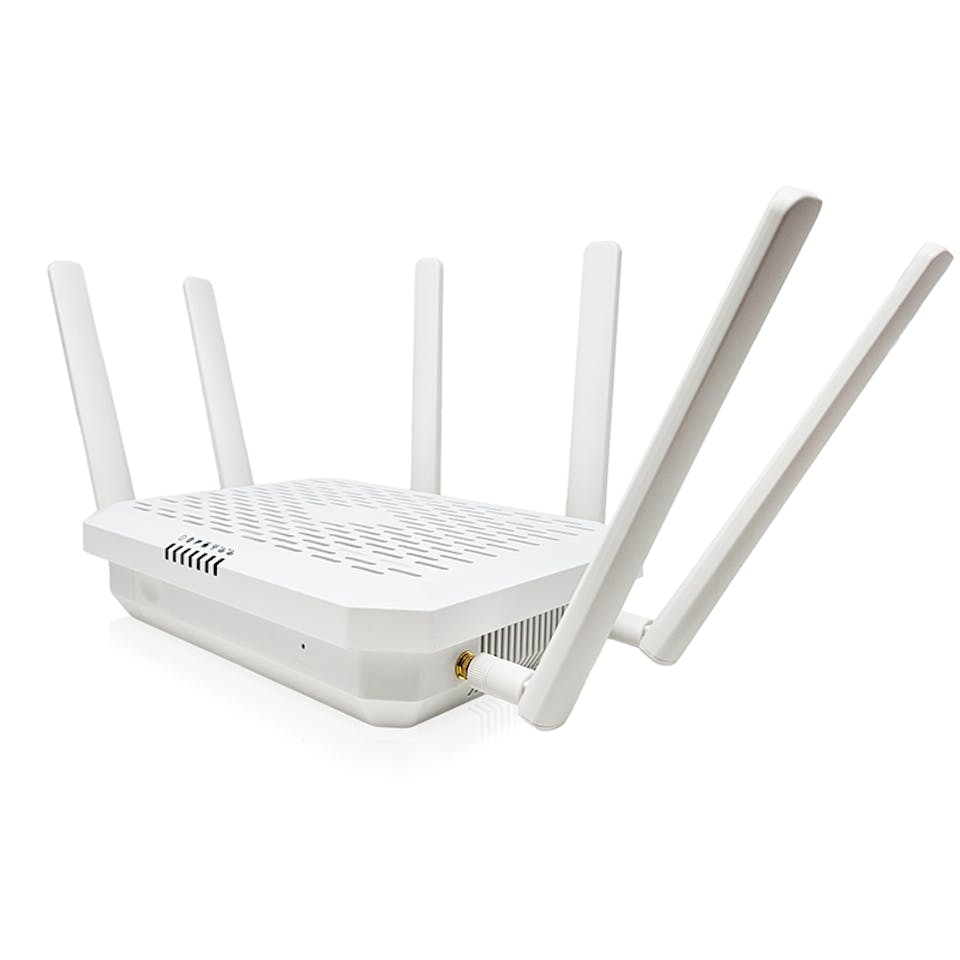

Disconnect the four standard paddle antennas on the sides of the unit. Connect the four OmniRoam antennas to your TravlFi XTR Pro 5G via these side cellular ports shown in the image above.

The cellular cables are purple and the WiFi cables are white. You can connect them in any order. The two 5G antennas on the back of the unit can remain attached.

Once everything is connected, you're ready to enjoy reliable connectivity on the road!
