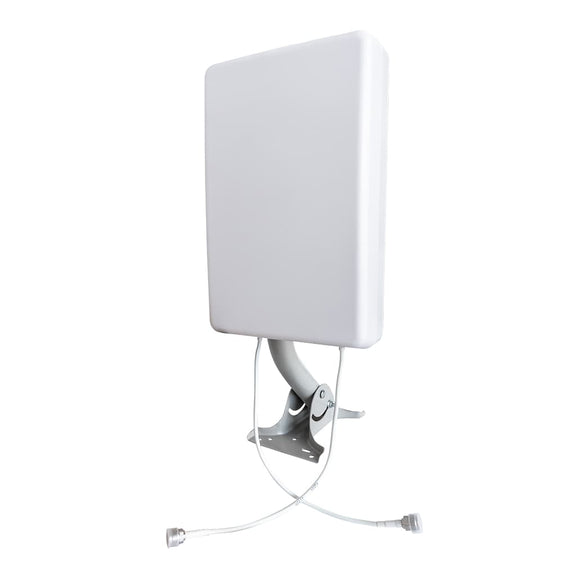

Our +/- 45 degree cross-polarized MIMO panel antenna covers the most common 4G LTE bands in use today, as well as low-band and mid-band 5G frequencies. The antenna has two short pigtails with N-female connectors
This cross-polarized antenna is also available as part of a kit including coax cables, surge protectors, adapters, and an antenna mount here: MIMO Panel Antenna Kit for 4G LTE Routers/Hotspots.
The mounting equipment included with this antenna is intended for use against a pole and is not suitable for indoor use.
Features
- Up to 9 dBi gain between 1710 and 2700 MHz, and 6 dBi gain between 600 MHz and 900 MHz.
- +/- 45 degree cross-polarization.
- 2x N-Type Female connectors
- Includes pole-mounting hardware
Frequency bands support
Our wideband cross-polarized panel antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:
US 4G LTE Bands:
- AT&T: B2, B4, B5, B12, B17, B29, B30, B66
- Verizon: B2, B4, B5, B13, B66
- T-Mobile: B2, B4, B5, B12, B66, B71
- Sprint: B25 B26, B41
All supported US Frequency Bands:
- Band 2 (1900 MHz)
- Band 4 (1700/2100 MHz)
- Band 5 (850 MHz)
- Band 12 (700 MHz)
- Band 13 (700 MHz)
- Band 14 (700 MHz)
- Band 17 (700 MHz)
- Band 25 (1900 MHz)
- Band 26 (850 MHz)
- Band 30 (2100 MHz)
- Band 66 (2100 MHz)
- Band 71 (600 MHz)
All supported LTE Bands: Band 1-10, Band 12-20, Band 23, Band 25-30, Band 33-41, Band 65-71, B85
Supported 5G Bands in use today:
- AT&T: n5
- T-Mobile: n71, n41
All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n14, n18, n20, n25, n26, n28, n29, n30 n34, n38, n39, n40, n41, n65, n66, n70, n71, n80, n81, n82, n83, n84, n86, n89, n90, n95
Warranty
Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.
Read more about Waveform's industry-leading warranty policy here.
