4x4 Cross-Polarized MIMO Outdoor Panel Antenna, 600 - 6000 MHz
by: Waveform
Product discontinued
The 4x4 Cross-Polarized MIMO Outdoor Panel Antenna, 600 - 6000 MHz has been discontinued by the manufacturer.

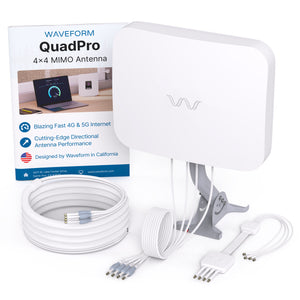

A replacement is available here: Waveform QuadPro: High-Gain Directional 4x4 MIMO Panel Antenna
by: Waveform
4x4 Cross-Polarized MIMO Outdoor Panel Antenna, 600 - 6000 MHz
Discontinued
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
3 Year Warranty
Waveform products come with a 3 year manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

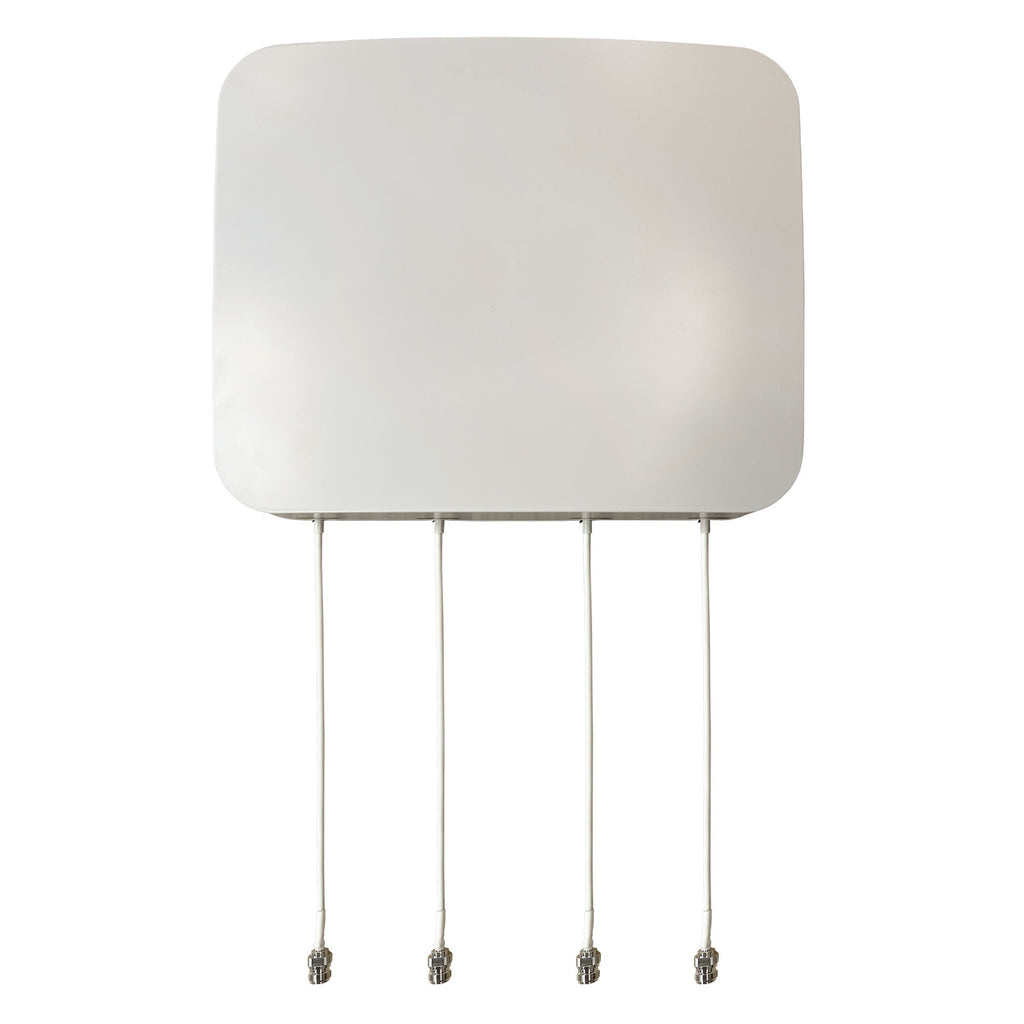

Our +/- 45 degree, 4x4 cross-polarized MIMO panel antenna covers the most common 4G LTE bands in use today, as well as low-band and mid-band 5G frequencies. The antenna has four short pigtails with N-female connectors
This 4x4 cross-polarized antenna is also available as part of a kit including coax cables, surge protectors, adapters, and an antenna mount here: 4x4 MIMO Panel Antenna Kit for 4G LTE Routers/Hotspots.
Due to the pole-mounting hardware included with this antenna, it is not suitable for indoor use.

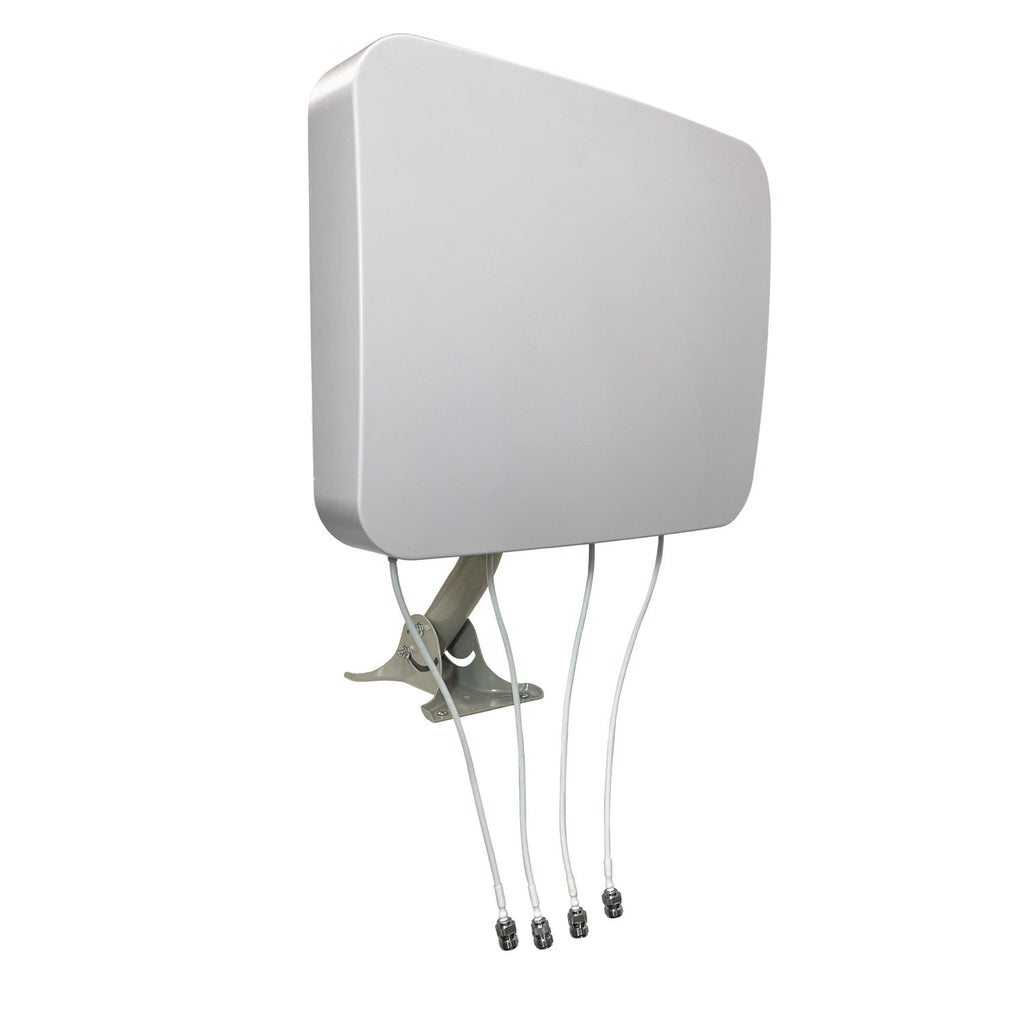

Please note: This antenna is pictured with, but does not include, our Universal J-Mount.
Features
- Up to 6 dBi gain between 600 and 960 MHz, and up to 8 dBi gain between 1700 and 6000 MHz.
- +/- 45 degreee cross-polarization.
- 4x N-Type Female connectors

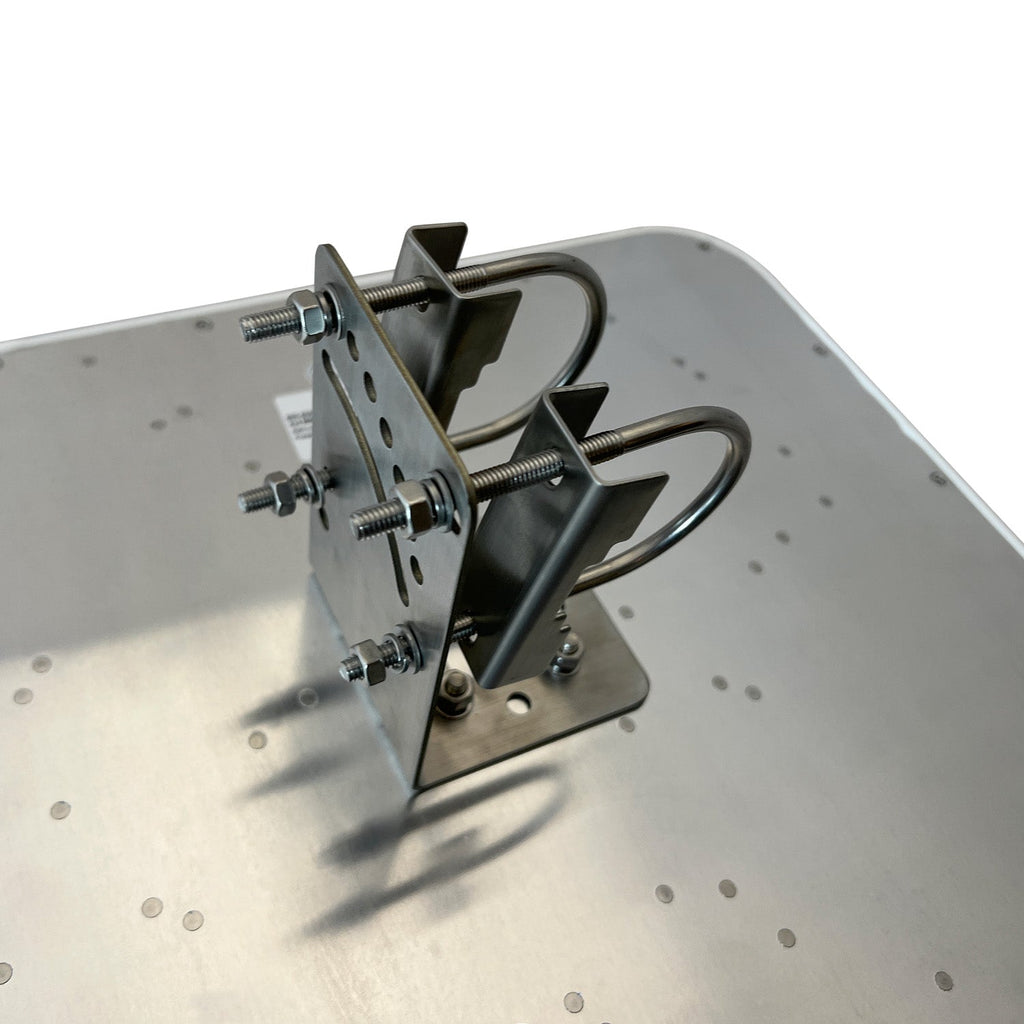

- Includes pole-mounting hardware (but not the J-mount pictured)
Frequency Bands Support
Our wideband 4x4 MIMO panel antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:
Supports all 4G LTE and 5G bands between 600 and 6000 MHz, including:
- AT&T: B2/n2, B4, B5/n5, B12, B17, B29, B30, B46, B66/n66, n77
- Verizon: B2/n2, B4, B5/n5, B13, B46, B48/n48, B66/n66, n77
- T-Mobile: B2, B4, B5, B12, B25, B26, B41/n41, B46, B66, B71/n71, n77
- Private 4G LTE and 5G: CBRS, B48/n48
All supported US Frequency Bands:
- Band 2 (1900 MHz)
- Band 4 (1700/2100 MHz)
- Band 5 (850 MHz)
- Band 12 (700 MHz)
- Band 13 (700 MHz)
- Band 14 (700 MHz)
- Band 17 (700 MHz)
- Band 25 (1900 MHz)
- Band 26 (850 MHz)
- Band 29 (700 MHz)
- Band 30 (2100 MHz)
- Band 46 (5200 MHz)
- Band 48 (3500 MHz)
- Band 66 (2100 MHz)
- Band 71 (600 MHz)
- Band 77 (3700 MHz)
All supported LTE Bands: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B14, B17, B18, B19, B20, B21, B22, B25, B26, B28, B29, B30, B32, B34, B37, B38, B39, B40, B41, B42, B43, B46, B47, B48, B50, B51, B53, B65, B66, B67, B69, B70, B71, B74, B75, B76, B85, B103, B106
All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n65, n66, n67, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n96, n97, n98, n99, n100, n101, n102, n105
Frequently Asked Questions
What happens if my Internet connection goes down?
If your Internet connection goes down, the Verizon 4G LTE Network Extender 3 will stop working until the Internet is available. If you need a solution that does not require Internet connectivity, consider a cell booster instead.
Is the Verizon 4G LTE Enterprise Network Extender 3 compatible 1xRTT, 2G CDMA or 3G service?
No, the unit only broadcasts LTE signal. Every phone released since 2014 supports "Voice over LTE" (also known as VoLTE or HD Voice) technology as the default way for making calls and sending texts. Verizon is planning on shutting down their 2G CDMA network in 2019. Older phones (from before 2014) will not be able to make calls or send texts using the LTE signal generated by the Verizon 4G LTE Network Extender for Enterprise.
Can I use more than one Verizon 4G LTE Network Extender 3 for Enterprise in the same building?
Yes, absolutely. Multiple Verizon 4G LTE Network Extenders can be installed in the same building, and devices will hand off seamlessly from one device to the next. You can read more about how to arrange the devices in the Deployment Guide.
Can I limit access to the extender to specific users?
No - any Verizon devices in range of the device will connect to the Verizon 4G LTE Network Extender 3 for Enterprise. The Network Extender can support up to 64 active users and 300 idle users. In most cases, you shouldn't see any performance issues by having unknown devices using the signal.
I have a firewall - do specific ports need to be opened for the Verizon 4G LTE Network Extender 3 for Enterprise to work?
Yes - you will need to either put the units on a Demilitarized Zone (DMZ) or open ports 50, 500, 4500, 53 and 52428.
How do I know if I'm connected to the Verizon 4G LTE Network Extender 3?
You can check by dialing #48 - you'll hear an announcement stating your connection to the Verizon 4G LTE Network Extender 3 for Enterprise.
Will I drop my call if I walk into range or move out of range of the Verizon 4G LTE Network Extender 3?
No, your call won't drop, provided there is sufficient coverage for your phone to hand-off to the outdoor "macro" cellular network.
Warranty
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| UPC |
|
| Gain | 9 dBi |
| Impedance | 50 Ohm |
| Connector type | N-Female |
| CA Prop 65 Warning |
Read full warning Collapse warning |
