CEL-FI QUATRA EVO Signal Booster System
by: Nextivity
Dual-carrier active DAS designed for flexible and scalable enterprise coverage.
- 100 dB maximum gain.
- Supports two operators at the same time.
- All-digital signal distribution over Cat6 with PoE.
by: Nextivity
CEL-FI QUATRA EVO Signal Booster System
Dual-carrier active DAS designed for flexible and scalable enterprise coverage.
- 100 dB maximum gain.
- Supports two operators at the same time.
- All-digital signal distribution over Cat6 with PoE.
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Nextivity products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The CEL-FI QUATRA EVO is a next-generation active DAS solution engineered to deliver reliable in-building coverage for one or two operators. Built for enterprise environments, the EVO provides carrier-grade performance with rapid deployment, ensuring employees and customers enjoy uninterrupted voice, text, and data services. With unmatched system gain and digital architecture, the QUATRA EVO offers a cost-effective and scalable alternative to traditional DAS.
Features
-

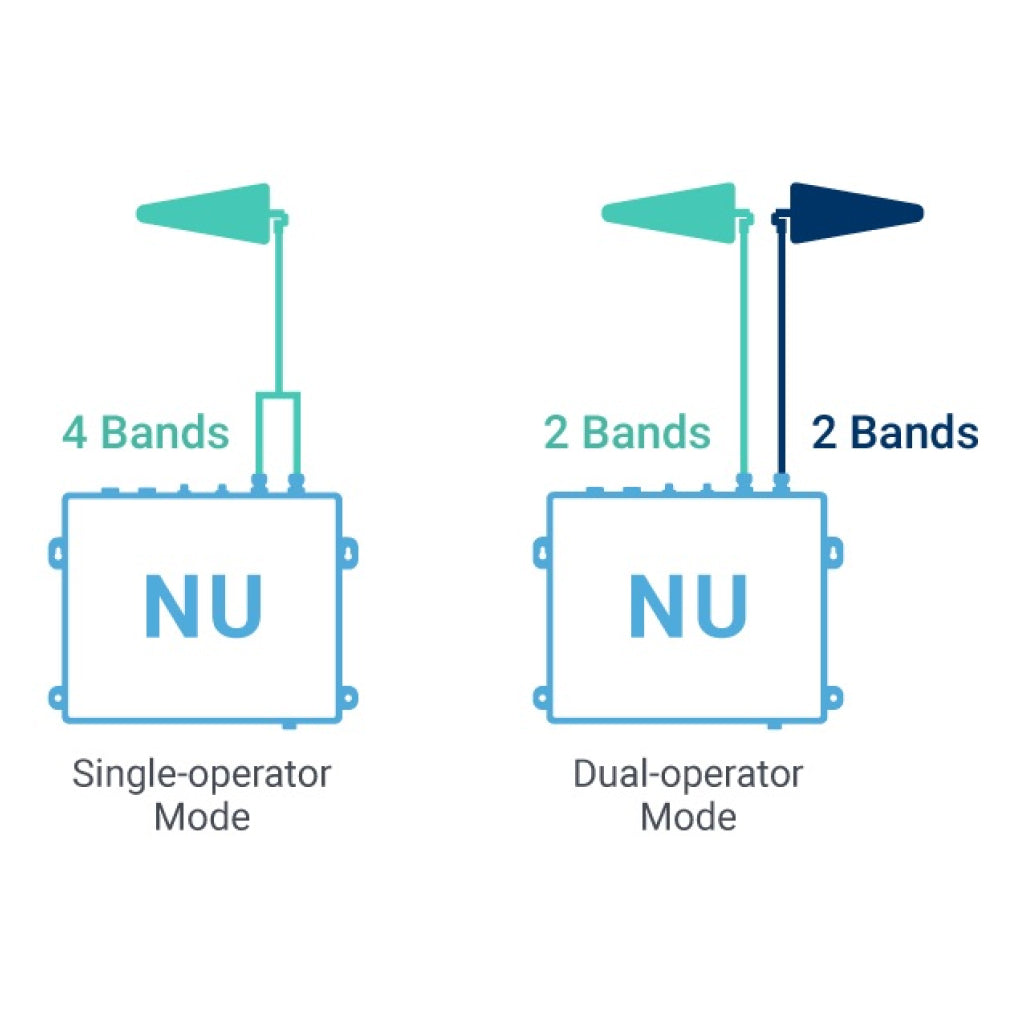

Dual-Operator Coverage: Supports two mobile operators simultaneously, enabling reliable calling, texting, and data streaming across multiple networks.
- Fast Installation: The system can be installed, commissioned, and activated within days, thanks to its Cat 6 cable architecture, offering faster deployment compared to traditional DAS systems.
- Multi-Mode Flexibility: Accepts donor signal from off-air antennas or small cells, enabling flexible system design and integration with carrier networks.
- Network Safe: Carrier-approved with no noise guarantee, ensuring your system operates smoothly without interfering with existing cellular networks.
- Installer-Friendly Enhancements: Includes N-type connectors, built-in SIM slot for the internal modem, and simplified antenna inputs for easier deployments.
- Remote Monitoring and Management: View real-time system performance and manage network configurations via the Nextivity WAVE Portal for efficient monitoring and maintenance.
- Powered by IntelliBoost®: The Nextivity IntelliBoost® chip uses digital signal processing to enhance cellular performance, providing industry-leading coverage at the lowest cost per square foot. IntelliBoost ensures that CEL-FI solutions are network-safe and approved for use globally by over 200 mobile network operators.
WAVE Portal
The Cel-Fi WAVE Portal provides cloud-based remote management for QUATRA systems. Administrators can monitor performance, configure devices, set alerts, and apply updates from any desktop or mobile device.
Features of the platform include:
- Carrier-grade security for mobile and desktop access.
- Asset management, reporting, and data modeling.
- Real-time alerts and alarms.
- API integration for enterprise workflows.

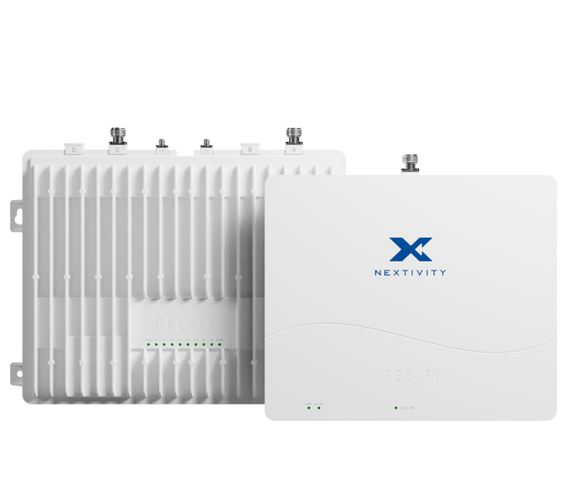

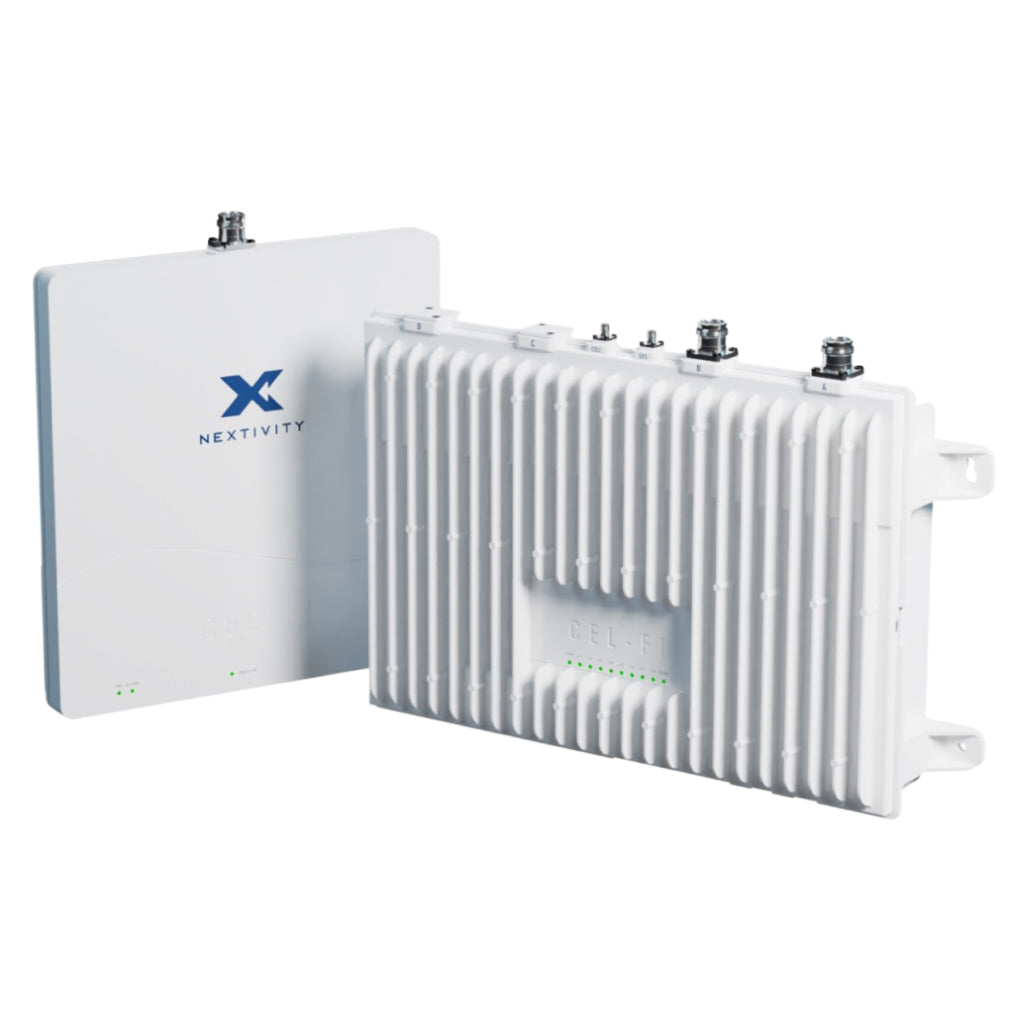

System Components
The standard QUATRA EVO kit includes one Network Unit and six Coverage Units. Optional additional accessories are available.

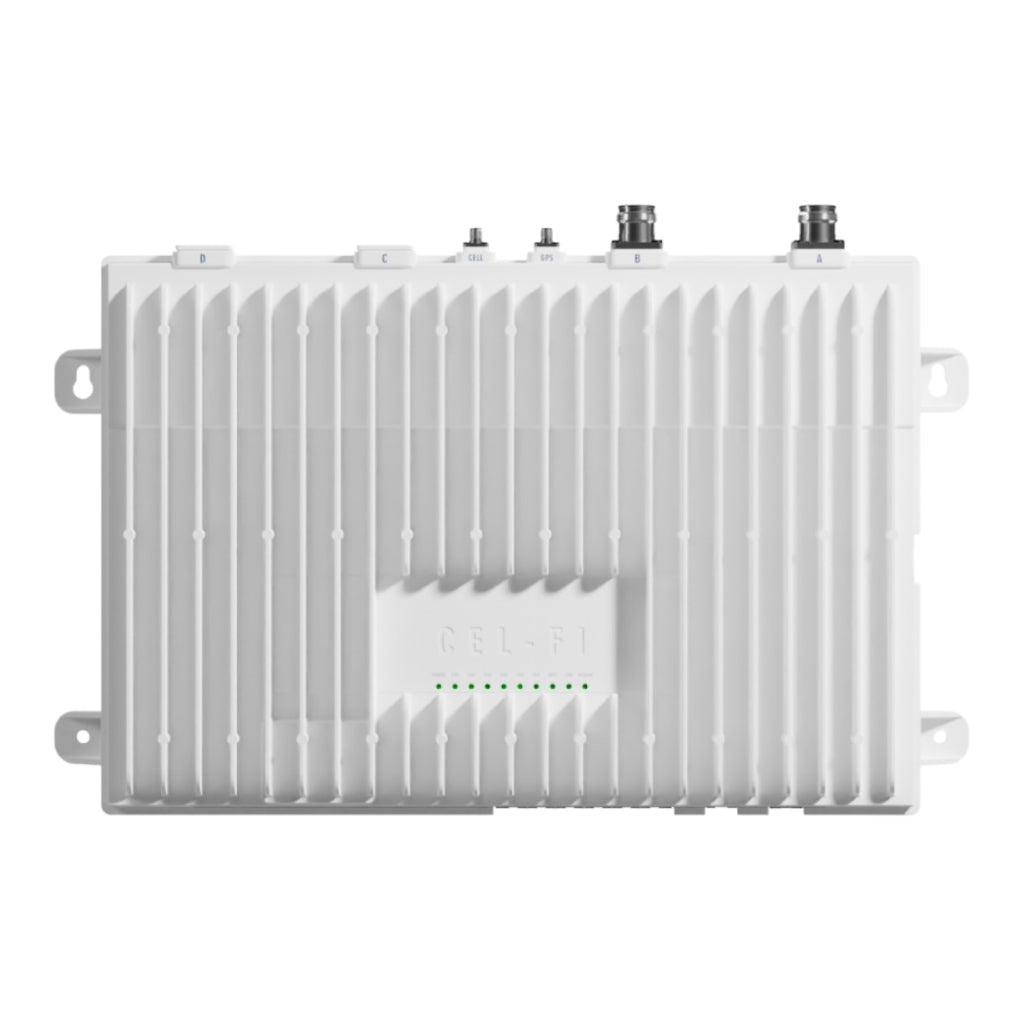

QUATRA EVO Network Unit
The Network Unit is the hub of the QUATRA EVO system. It receives donor signals and distributes them to Coverage Units across the building, extending coverage up to 50,000 square feet. Supporting up to six Coverage Units, the NU delivers both signal and power through standard Cat6 Ethernet cabling with Power-over-Ethernet (PoE). Simple to install, and fully scalable.
- Supports up to six Coverage Units and 50,000 square feet of coverage.
- Distributes donor signal over standard Cat6 Ethernet.
- Provides power and signal to Coverage Units via PoE.
- Self-configuring with remote management through the WAVE Cloud platform.

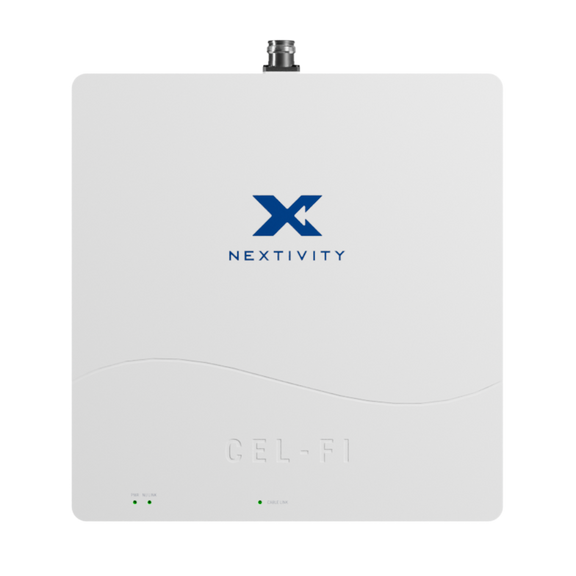

QUATRA EVO Coverage Unit
The Coverage Unit is the remote radio head within the system that rebroadcasts the donor signals from the Network Unit to extend service inside the building. Powered via Power-over-Ethernet (PoE), each Network Unit can power and manage up to six Coverage Units that configure automatically, and optimize continuously to maintain enhanced performance.
- Delivers dual-carrier coverage throughout the facility.
- Delivers cellular coverage across the facility (up to six CUs per NU).
- Connects via Ethernet or LTE modem to the Nextivity WAVE Portal for remote management and monitoring.
QUATRA EVO Fiber Hub (Optional)
The Fiber Hub extends the reach and capacity of the QUATRA EVO system. When paired with an EVO Network Unit, it allows support for an additional six Coverage Units, expanding system capacity from six to twelve. With fiber runs of up to 2 km (1.24 miles), the Fiber Hub makes it possible to cover large buildings, multi-building campuses, or areas where Ethernet cabling distances are not sufficient, all without compromising signal quality.
-
Extends donor signals over duplex fiber up to 2 km (1.24 miles).
-
Expands system capacity to 12 Coverage Units per Network Unit.
-
FCC certified (SFP+ module sold separately).
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| FCC notice |
Read full notice Collapse notice
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and
have your provider's consent. Most wireless providers consent to the use of signal boosters. Some
providers may not consent to the use of this device on their network. If you are unsure, contact your
provider. You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease
operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using
this device. Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and
more than 90 regional carriers have given blanket consent for use of all boosters certified to the new
FCC standards.
|
| CA Prop 65 Warning |
Read full warning Collapse warning |
Deploying as Part of a DAS System?
We don’t just ship equipment – we work with you to design and deliver the right DAS solution for your building. That might mean helping with RF planning, selecting the right components, or managing the full deployment and integration.
Whether you’re looking for design support, installation guidance, or a turnkey system buildout, our team is here to help.
- Ask any questions about cellular enhancement
- Discover the most suitable solution for your project
- Get a free estimate for a proposed solution
