Celona AP 11: Outdoor LTE Base Station for CBRS Band 48 (Cat B)
by: Celona
by: Celona
Celona AP 11: Outdoor LTE Base Station for CBRS Band 48 (Cat B)
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Celona products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

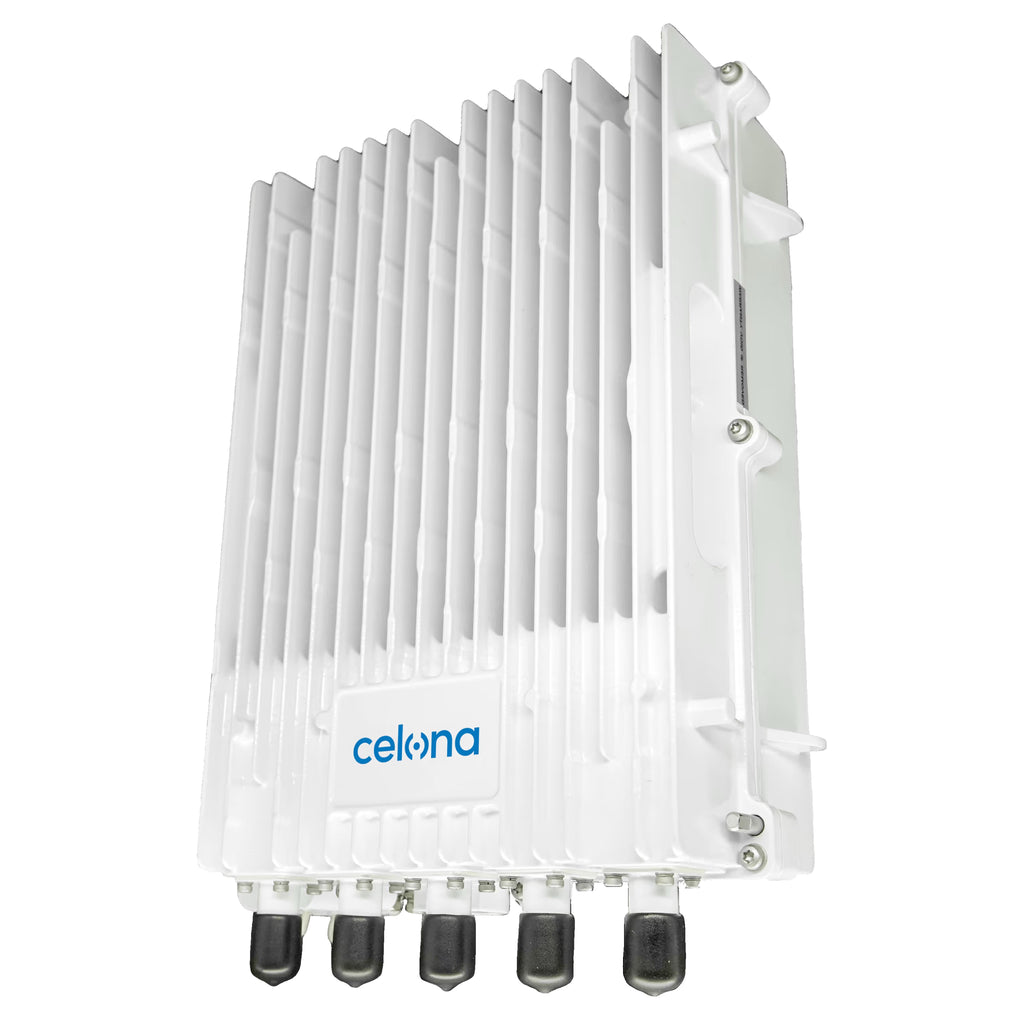

The Celona AP 11 is a rugged outdoor LTE access point designed for enterprise deployments in the CBRS Band 48 spectrum. With high output power, external antenna support, and hardened construction, the AP 11 delivers reliable coverage across large outdoor areas — including campuses, warehouses, ports, and industrial yards. It’s designed to be mounted on rooftops, poles, or towers, and connects to the enterprise network via Ethernet or fiber.
With 2x2 MIMO, 30 dBm per-port transmit power, and support for up to 40 MHz of aggregated bandwidth, the AP 11 delivers stable performance in demanding environments. Management and core networking functions are delivered via the Celona Edge and Orchestrator platforms, with secure IPsec-based transport and remote provisioning. This model operates in CBRS Band 48.
Deployment Requirements
To deploy the Celona AP 11, you’ll need:
- SAS registration: Required for operation in the CBRS Band 48. Celona’s system handles this automatically via their Orchestrator.
- Celona Edge and Orchestrator: Required for SIM provisioning, management, and LTE core network functionality.
- IP backhaul: Ethernet or fiber backhaul with SFP and RJ45 ports included. Site must provide sufficient uplink capacity.
- Power and mounting: Includes AC power adapter and surge protection. Requires ±48V DC power and wall or pole mounting at the site.
- External antennas: Required. Omni or sector antennas must be purchased separately. Each unit requires two antennas connected via Type-N connectors.
- GPS antenna for synchronization: Included. External GPS is used for timing alongside IEEE 1588v2 PTP.
- Environmental considerations: IP66-rated enclosure supports operation from -40°C to 55°C in outdoor or hazardous conditions.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports LTE Band 48 (CBRS 3550–3700 MHz) with TDD operation and 10 or 20 MHz channels, up to 40 MHz with carrier aggregation.
- Delivers 2x30 dBm output power (1W per port) for high-range outdoor coverage using external antennas.
- Supports up to 96 concurrent active devices per access point.
- Interfaces include RJ45 Ethernet and SFP for optical backhaul, with ±48V DC power input and lightning protection.
- Remote configuration and monitoring via Celona Orchestrator. Core network functionality provided by Celona Edge.
- GPS and IEEE 1588v2 PTP support for precise timing. GPS antenna included.
- Rated IP66 for harsh outdoor environments. Operates from -40°C to 55°C with built-in surge and lightning protection.
- Hazardous location model (AP 11H) available with Class I, Division 2 certification.
Kit Contents
Celona AP 11 (CBRS Band 48 variant)
AC to DC power adapter
RJ45 and SFP ports
Integrated GPS antenna
Power surge protector
Wall and pole mounting hardware
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
