Celona AP 13 & AP 13E: Rugged Indoor/Outdoor LTE Base Stations for CBRS Band 48
by: Celona
by: Celona
Celona AP 13 & AP 13E: Rugged Indoor/Outdoor LTE Base Stations for CBRS Band 48
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Celona products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

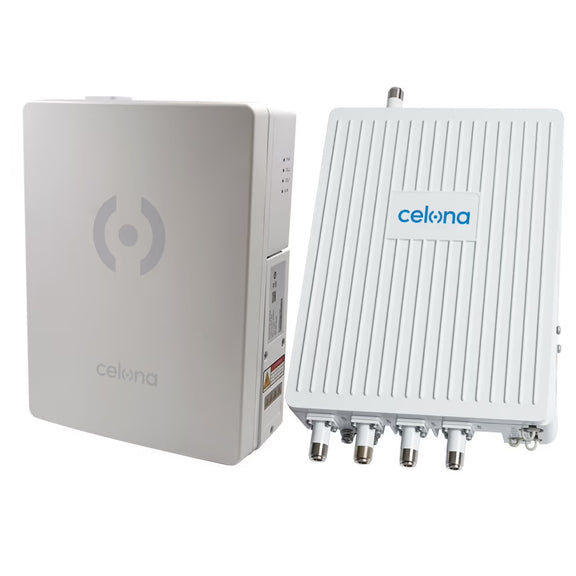

The Celona AP 13 and AP 13E are medium-power indoor/outdoor LTE access points designed for enterprise private network deployments in the CBRS Band 48 spectrum. Engineered for both indoor and rugged outdoor environments, these IP65-rated units are ideal for warehouses, loading docks, parking structures, and semi-industrial indoor spaces. The AP 13 features integrated antennas, while the AP 13E supports external directional or omnidirectional antennas for more flexible coverage.
Both models support up to 96 active users and deliver predictable low-latency performance using 2x2 MIMO and up to 40 MHz of carrier-aggregated bandwidth. They connect over Ethernet and are managed through Celona’s Orchestrator platform, with core functions provided by the Celona Edge. This model supports operation in Band 48 (3550–3700 MHz).
Deployment Requirements
To deploy the Celona AP 13 or AP 13E, you’ll need:
- SAS registration: Required for CBRS Band 48 use. Celona automates this via Orchestrator.
- Celona Edge and Orchestrator: Required for SIM provisioning, monitoring, and LTE core network functionality.
- IP backhaul: Uses 1x RJ-45 Ethernet interface (1 Gbps). Requires site connectivity.
- Power and mounting: Includes PoE injector. Requires 802.3bt (Type 3) PoE and wall or pole mounting.
-
Antennas:
- AP 13 includes built-in directional antennas (13.5 dBi gain).
- AP 13E requires external antennas (not included). Two 2-port or one 4-port antenna must be connected via Type-N connectors.
-
GPS synchronization:
- AP 13 has built-in GPS.
- AP 13E includes an external GPS antenna and supports IEEE 1588v2 PTP.
- Environmental considerations: Both models are IP65 rated and operate from -40°C to 55°C in outdoor or semi-rugged environments.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports LTE Band 48 (3550–3700 MHz) with TDD operation and up to 40 MHz of carrier-aggregated bandwidth.
- Delivers up to 24 dBm transmit power per port with 2x2 MIMO and 64 QAM modulation.
- Supports up to 96 concurrent active devices per access point.
- AP 13 includes 13.5 dBi internal directional antennas; AP 13E supports external antenna configurations.
- GPS and PTP timing support ensure accurate synchronization across the RAN.
- Peak throughput of up to 200 Mbps download and 50 Mbps upload per access point (with carrier aggregation).
- Rugged IP65-rated enclosures with flexible pole or wall mounting for indoor/outdoor deployments.
- Centralized management through Celona Orchestrator and secure IPsec connectivity to Celona Edge.
Kit Contents
- Celona AP 13 or AP 13E (Band 48 variant)
- PoE injector (Type 3)
- Pole and wall mounting hardware
- GPS antenna (AP 13E only)
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
Warranty
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| CA Prop 65 Warning |
Read full warning Collapse warning |
Deploying as Part of a Private Network?
We don’t just ship hardware – we work with you to design the right private network for your site and use case. That might mean helping plan your RF layout, choosing the right components, or handling the full deployment and integration.
Whether you need support with part of the process or want a turnkey buildout, we’re here to help.
Whether you need a pre-configured kit or a fully custom network, we’re ready to help.
- Ask questions and get technical guidance
- Explore the right options for your deployment
- Get a free design and estimate tailored to your project
