Celona AP 20: Indoor LTE/5G Access Point for Band 48
by: Celona
by: Celona

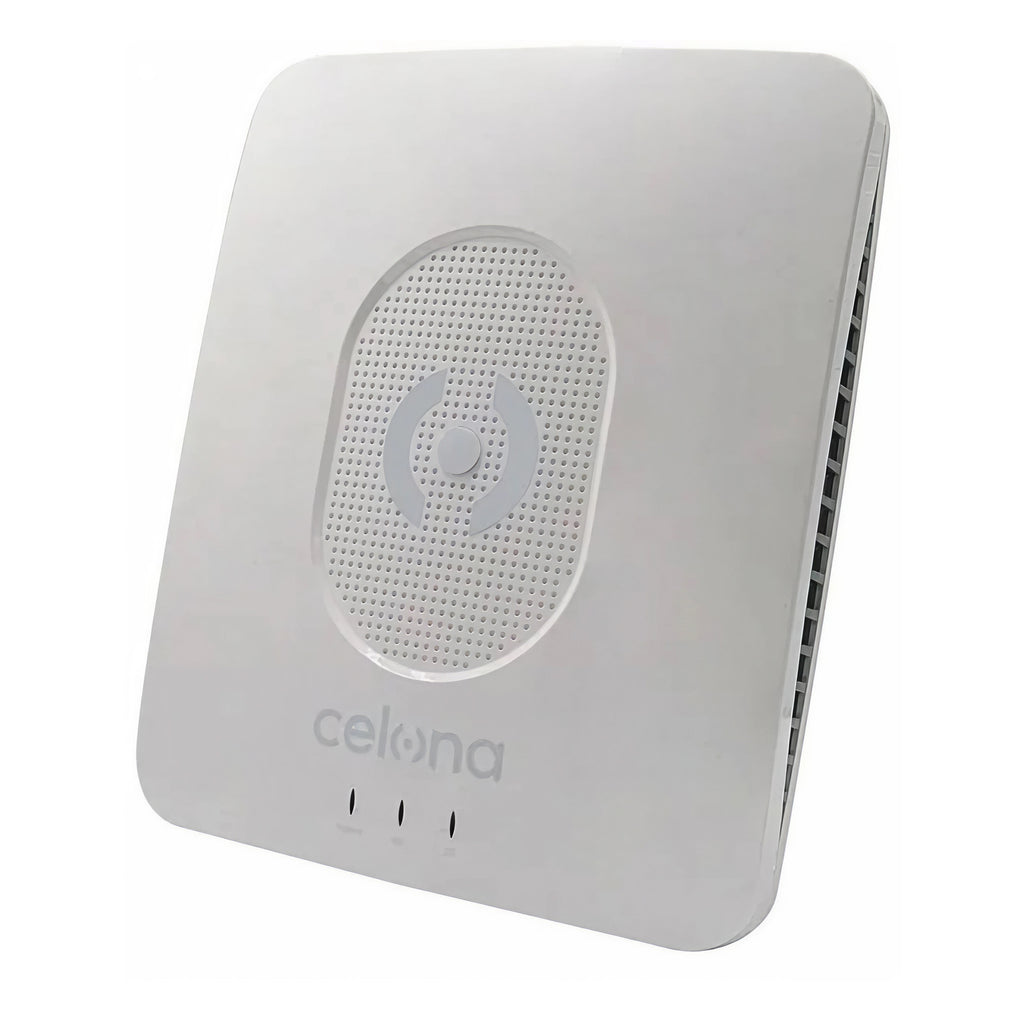

Celona AP 20: Indoor LTE/5G Access Point for Band 48
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Celona products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The Celona AP 20 is an enterprise-grade indoor access point designed for private network deployments on CBRS Band 48. It supports both LTE and 5G NR operation with 2x2 MIMO and up to 40 MHz bandwidth, enabling reliable, low-latency coverage across a variety of indoor environments — from hospitals and factories to office spaces and distribution centers. Its compact size, built-in antenna, and IP52-rated enclosure make it easy to deploy in high-demand enterprise settings.
The AP 20 delivers up to 1 Gbps of total throughput and supports 96 active LTE devices or 128 active 5G devices. It includes an integrated omnidirectional antenna (up to 6 dBi gain), IEEE 1588v2 PTP synchronization, and secure boot with hardware-based root-of-trust. The unit is powered via PoE++ (802.3bt Type 4) and managed through the Celona Orchestrator platform. It operates as part of Celona’s 5G LAN solution and includes core network functionality via Celona Edge.
Available in a Band 48 (3550–3700 MHz) variant. This model supports Band 48 only.
Deployment Requirements
To deploy the Celona AP 20, you’ll need:
- SAS registration: Required for CBRS operation. Handled automatically via Celona Orchestrator.
- IP backhaul: Ethernet connection required for backhaul and cloud-based management.
- EPC or core network: Included as part of Celona’s integrated Edge system.
- Power and mounting: PoE++ (802.3bt) injector included. Site must provide AC power and a suitable wall, ceiling, or T-bar mounting surface.
- GPS antenna for synchronization: Optional. Integrated IEEE 1588v2 timing is typically sufficient for indoor deployments.
- Configuration or management access: Managed via Celona Orchestrator. Login credentials provided through Celona's provisioning process.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports CBRS Band 48 (3550–3700 MHz) with 2x2 MIMO and up to 40 MHz channel bandwidth.
- Delivers up to 1 Gbps aggregate throughput with 256 QAM modulation for high-capacity applications.
- Includes integrated omnidirectional antenna with up to 6 dBi gain, no external antennas required.
- Supports both LTE and 5G NR operation, configurable through Celona Orchestrator.
- Handles up to 96 active LTE devices or 128 active 5G devices per access point.
- Secure hardware platform with encrypted data at rest and in transit, and mutual certificate-based authentication.
- Integrated IEEE 1588v2 timing for synchronization without external GPS in most environments.
- Compact, rugged IP52-rated enclosure for industrial indoor deployment.
Kit Contents
- Celona AP 20 (Band 48 variant)
- 802.3bt PoE++ power injector
- Wall and ceiling mount bracket kit
- T-bar ceiling rail mount kit (Prelude, Suprafine, Interlude, Silhouette compatible
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
Warranty
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| CA Prop 65 Warning |
Read full warning Collapse warning |
Deploying as Part of a Private Network?
We don’t just ship hardware – we work with you to design the right private network for your site and use case. That might mean helping plan your RF layout, choosing the right components, or handling the full deployment and integration.
Whether you need support with part of the process or want a turnkey buildout, we’re here to help.
Whether you need a pre-configured kit or a fully custom network, we’re ready to help.
- Ask questions and get technical guidance
- Explore the right options for your deployment
- Get a free design and estimate tailored to your project
