CommScope Plenum Air Aluminum AL4RPV Cable

by CommScope

Low loss coax cable designed for 20-year outdoor service. Beneficial for long cable runs requiring minimal signal loss.

$3.53

In stock. Ships in 1 to 2 business days.

Product options:

Paid shipping
Non-Returnable Item
Warranty
Unlimited free expert support

Carbon neutral deliveries

Product Description

Commscope HELIAX® coaxial cable is a high-quality cable designed for 20-year outdoor or indoor service.

AL4RPV is an ultra-low loss RF cable, so it is very suitable for long cable runs exceeding 100 ft, which require minimal signal loss.

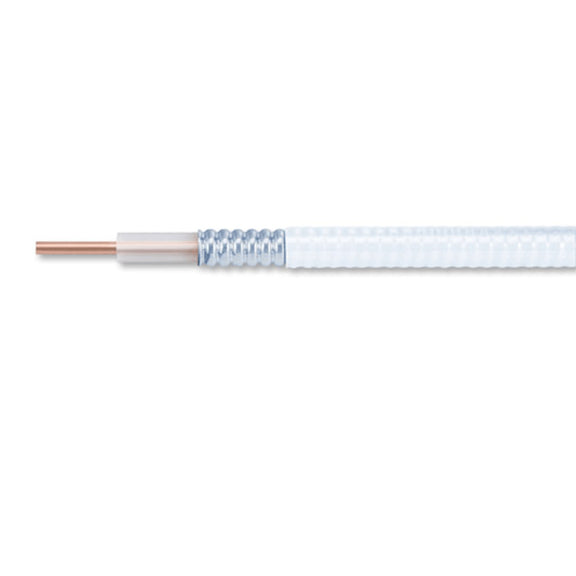

The cable has an off-white 1/2 inch PVC jacket. It is UL Listed Plenum-Rated Cable and approved for use in plenum space.

All Commscope Plenum Air-Dialectric cables are cut on a per-order basis and non-refundable. If you need a custom length of cable, please contact us.

Construction Materials
Jacket Material   PVC
Dielectric Material   PE spline
Flexibility   Standard
Inner Conductor Material   Copper-clad aluminum wire
Jacket Color   Off-white
Outer Conductor Material   Corrugated aluminum
Environmental Specifications
Installation Temperature   -5 °C to +60 °C (+23 °F to +140 °F)
Operating Temperature   -20 °C to +85 °C (-4 °F to +185 °F)
Storage Temperature   -20 °C to +85 °C (-4 °F to +185 °F)

Compatibility

The CommScope Plenum Air Aluminum AL4RPV Cable is compatible with the following networks:

Carrier Supported services Unsupported services
Verizon 2G/3G Voice + Data 4G LTE
AT&T 2G/3G Voice + Data 4G LTE
Sprint 2G/3G Voice + Data 4G LTE
T-Mobile 2G/3G Voice + Data 4G LTE

The CommScope Plenum Air Aluminum AL4RPV Cable kit is also compatible with Canadian networks, though they are not listed above. Check our international carriers page for more information.

Supported frequency bands (MHz): 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155

Specifications

SKU AL4RPV-50
AL4RPV-50-NM-NM-5
AL4RPV-50-NM-NM-10
AL4RPV-50-NM-NM-15
AL4RPV-50-NM-NM-20
AL4RPV-50-NM-NM-30
AL4RPV-50-NM-NM-40
AL4RPV-50-NM-NM-50
AL4RPV-50-NM-NM-60
AL4RPV-50-NM-NM-70
AL4RPV-50-NM-NM-80
AL4RPV-50-NM-NM-90
AL4RPV-50-NM-NM-100
AL4RPV-50-NM-NM-110
AL4RPV-50-NM-NM-120
AL4RPV-50-NM-NM-130
AL4RPV-50-NM-NM-140
AL4RPV-50-NM-NM-150
AL4RPV-50-NM-NM-160
AL4RPV-50-NM-NM-170
AL4RPV-50-NM-NM-180
AL4RPV-50-NM-NM-190
AL4RPV-50-NM-NM-200
AL4RPV-50-NM-NM-210
AL4RPV-50-NM-NM-220
AL4RPV-50-NM-NM-230
AL4RPV-50-NM-NM-240
AL4RPV-50-NM-NM-250
AL4RPV-50-NM-NM-260
AL4RPV-50-NM-NM-270
AL4RPV-50-NM-NM-280
AL4RPV-50-NM-NM-290
AL4RPV-50-NM-NM-300
Dimensions 1/2 inch
Frequency 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155
Impedance 50 ohm
Connector type N Male
Color Off-white
