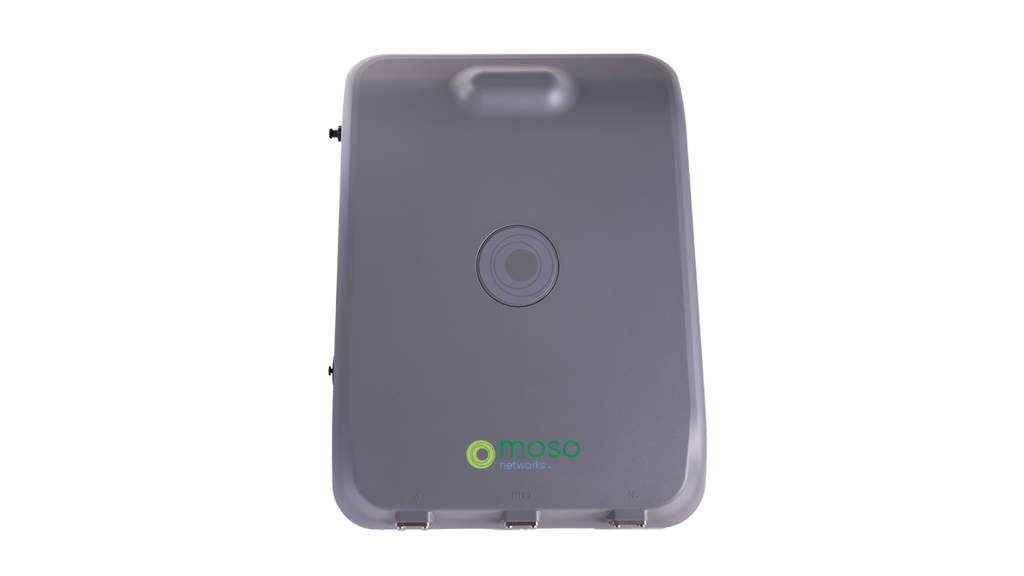

Moso Canopy 4GOD1: Outdoor CBRS Small Cell (Band 48)
by: Moso
by: Moso
Moso Canopy 4GOD1: Outdoor CBRS Small Cell (Band 48)
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Moso products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The Moso Canopy 4GOD1 is an outdoor LTE base station (eNodeB) designed for private network deployments in the CBRS Band 48 spectrum. With integrated directional antennas and a rugged IP65-rated enclosure, it provides reliable LTE coverage for enterprise campuses, public safety networks, and industrial sites.
This CBSD Category B device supports up to 128 active users, with 2x2 MIMO, carrier aggregation, and advanced modulation for stable outdoor performance. It integrates with major EPCs, offers SAS connectivity through direct link or domain proxy, and includes built-in IPSec for secure backhaul.
This model supports Band 48 only.
Deployment Requirements
To deploy the Moso Canopy 4GOD1, you’ll need:
- SAS registration: Required for CBRS Band 48 deployments, supported via direct connection or domain proxy.
- IP backhaul: 1GE connection with PoE+ power input. Supports IPSec for secure public or private transport.
- EPC or core network: Compatible with major EPCs.
- Power and mounting: Powered via DC input or PoE+ (802.3at). Includes pole mount bracket; customer provides site power and pole infrastructure.
- GPS antenna for synchronization: Internal PTP supported; external GPS antenna input available.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports LTE Band 48 (3550–3700 MHz) with TDD operation and 5/10/15/20 MHz channel bandwidths, including up to 2x20 MHz with carrier aggregation.
- Delivers up to 40 dBm EIRP output power (24 dBm per antenna port), enabling extended outdoor coverage.
- Integrated 4x 10 dBi directional antennas eliminate the need for external antenna installation.
- Supports up to 128 active users (64 per carrier), suitable for both fixed wireless and mobility scenarios.
- Compact outdoor enclosure (6 kg) with IP65 rating for weather resistance in rugged environments.
- Zero-touch provisioning and cloud-based management via Moso Control, with KPIs, diagnostics, and upgrade support.
- PTP (IEEE 1588v2) or external GNSS antenna input for timing synchronization.
- Advanced security with multiple IPSec tunnels, mutual authentication, and secure RAN management.
- VoLTE support with QoS, plus compliance with E911, Wireless Emergency Alerts, and Wireless Priority Service.
- MOCN capability with support for up to 6 PLMN IDs, enabling neutral host and DAS replacement scenarios.
Kit Contents
- Moso Canopy 4GOD1 Outdoor Small Cell (Band 48)
- Pole mounting bracket
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| CA Prop 65 Warning |
Read full warning Collapse warning |
Deploying as Part of a Private Network?
We don’t just ship hardware – we work with you to design the right private network for your site and use case. That might mean helping plan your RF layout, choosing the right components, or handling the full deployment and integration.
Whether you need support with part of the process or want a turnkey buildout, we’re here to help.
Whether you need a pre-configured kit or a fully custom network, we’re ready to help.
- Ask questions and get technical guidance
- Explore the right options for your deployment
- Get a free design and estimate tailored to your project
