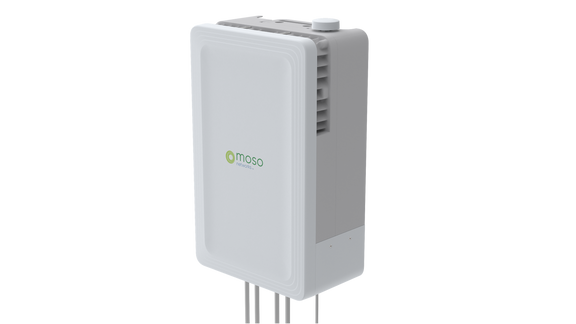

Moso Canopy 5GOD2: Outdoor 5G Small Cell
by: Moso
by: Moso
Moso Canopy 5GOD2: Outdoor 5G Small Cell
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Moso products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The Moso Canopy 5GOD2 is a flagship outdoor 5G NR base station designed for enterprise, campus, and industrial private networks requiring wide-area, high-capacity coverage. Built on a 3GPP Release 16 platform with uRLLC capabilities, it supports mission-critical applications such as robotics, autonomous systems, and real-time process control.
With support for band n48, the 5GOD2 offers deployment flexibility across CBRS spectrum. Its 4x4 MIMO design, high-gain directional antennas, and up to 55 dBm EIRP output power provide extensive coverage, while advanced features like network slicing and optional on-radio UPF enable scalable, future-ready performance.
Deployment Requirements
To deploy the Moso Canopy 5GOD2, you’ll need:
- SAS registration: Required for CBRS Band n48 deployments, supported via direct connection or integrated domain proxy.
- IP backhaul: Multiple 10GE and SFP fiber interfaces supported, with daisy-chaining for extended deployments. Wi-Fi maintenance access available.
- 5G Core network: Compatible with major 5GC vendors. Optional on-radio UPF supported for edge applications.
- Power and mounting: Powered via DC input or AC supply. Pole mounting bracket included; customer provides pole infrastructure and site power.
- GPS antenna for synchronization: PTP and GNSS supported with external input.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports 5G NR Bands n48 (3550–3700 MHz).
- Delivers up to 55 dBm EIRP output power (37 dBm per antenna port) for wide-area outdoor coverage.
- 4x4 MIMO with integrated 12 dBi directional antennas and four external N-type connectors for flexible coverage strategies.
- Supports up to 500 registered UEs with 300 active simultaneously, enabling dense enterprise and industrial deployments.
- uRLLC capabilities with <10 ms latency support mission-critical Industry 4.0 applications.
- Peak throughput of 1.56 Gbps downlink and 193 Mbps uplink at 100 MHz channel bandwidth.
- Advanced 5G features including 2CA (upgradeable to 3CA), network slicing, MORAN/MOCN, cascaded radio backhaul, and edge UPF.
- AI- and ML-driven diagnostics via Moso Intelligent Management Platform, with zero-touch provisioning and remote management.
- Ruggedized IP67-rated enclosure withstands harsh outdoor environments, with wind resistance up to 200 km/h and MTBF of 290,000 hours.
- Certified FCC Part 96 Category B for n48.
Kit Contents
- Moso Canopy 5GOD2 Outdoor Small Cell
- Pole mounting bracket
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| CA Prop 65 Warning |
Read full warning Collapse warning |
Deploying as Part of a Private Network?
We don’t just ship hardware – we work with you to design the right private network for your site and use case. That might mean helping plan your RF layout, choosing the right components, or handling the full deployment and integration.
Whether you need support with part of the process or want a turnkey buildout, we’re here to help.
Whether you need a pre-configured kit or a fully custom network, we’re ready to help.
- Ask questions and get technical guidance
- Explore the right options for your deployment
- Get a free design and estimate tailored to your project
