Please note: This is an open-box part, and may have minor surface blemishes or scratches that don't impact performance. The product will contain all original parts and accessories and can be returned within 30 days from receipt of the product for a full refund (not including any expedited shipping costs)

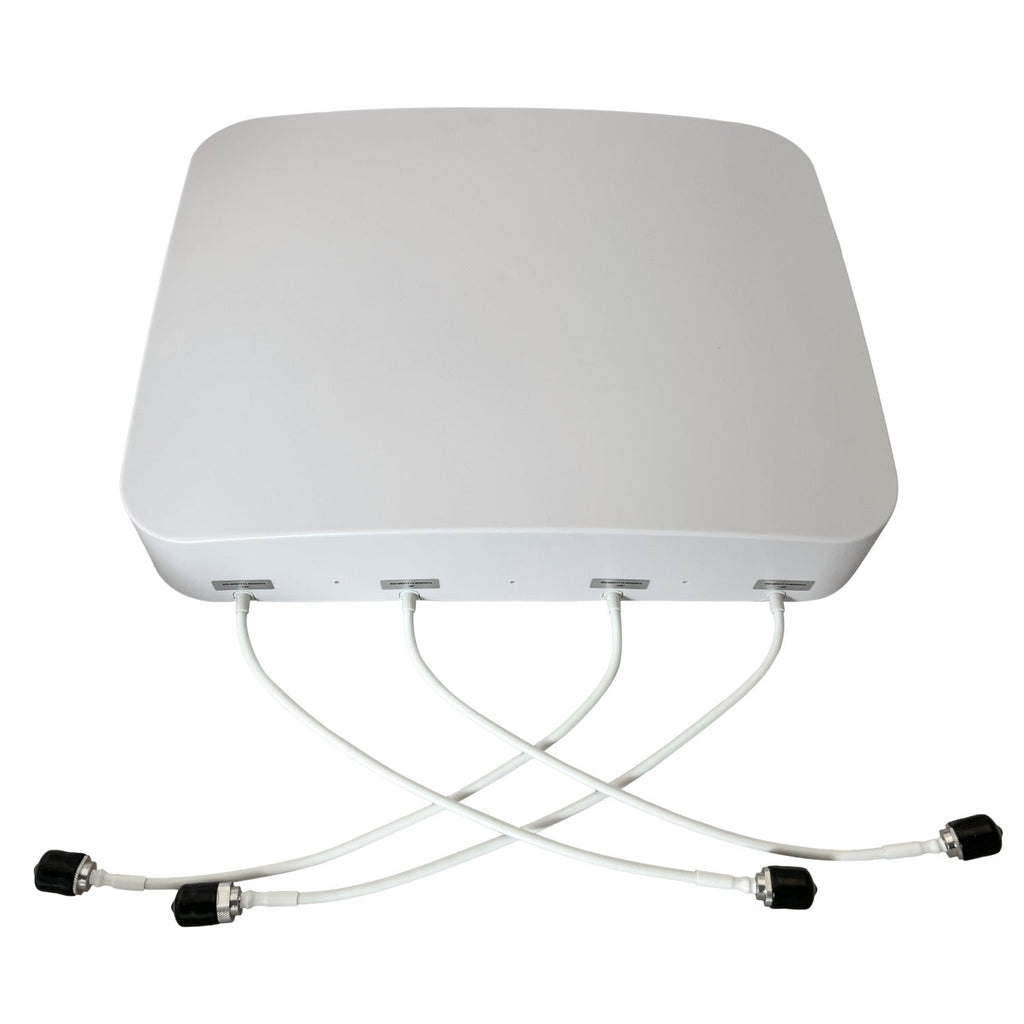

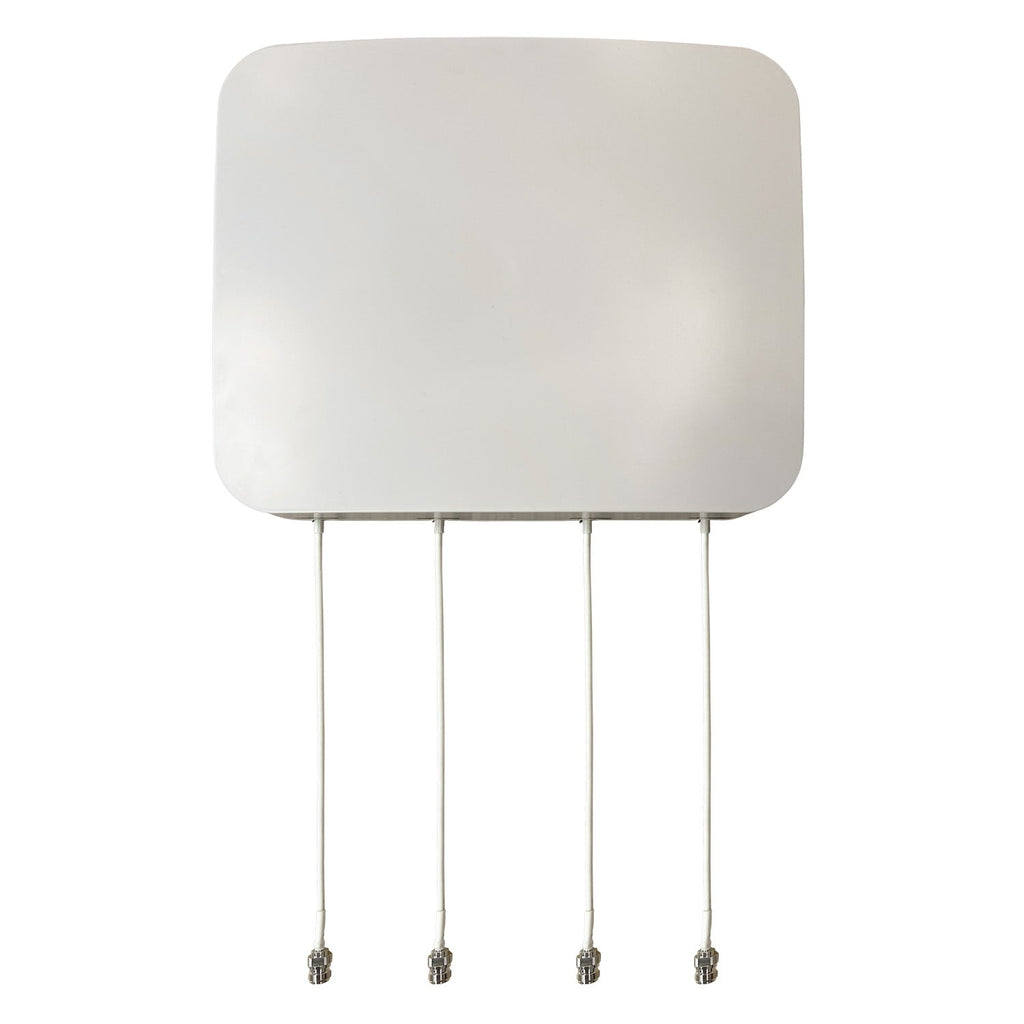

Our +/- 45 degree, 4x4 cross-polarized MIMO panel antenna covers the most common 4G LTE bands in use today, as well as low-band and mid-band 5G frequencies. The antenna has four short pigtails with N-female connectors
This 4x4 cross-polarized antenna is also available as part of a kit including coax cables, surge protectors, adapters, and an antenna mount here: 4x4 MIMO Panel Antenna Kit for 4G LTE Routers/Hotspots.
Due to the pole-mounting hardware included with this antenna, it is not suitable for indoor use.

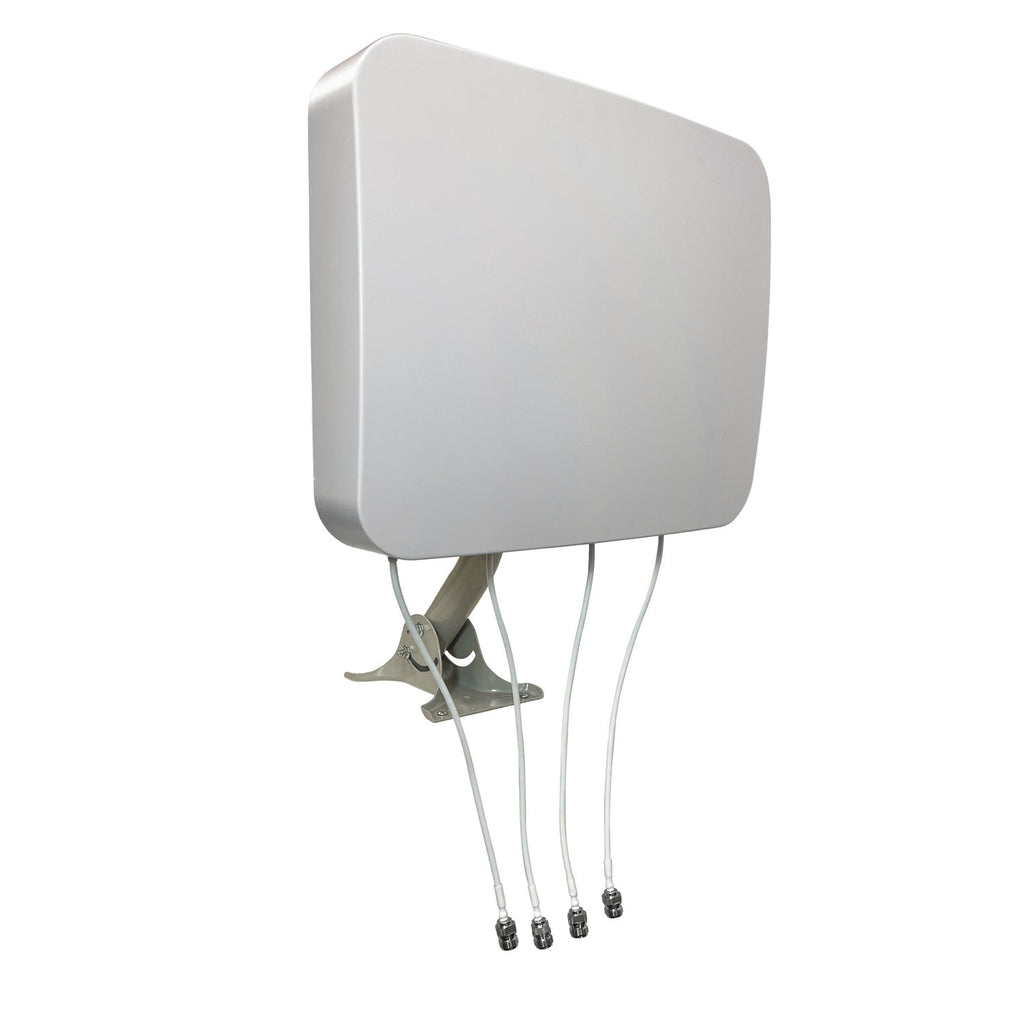

Please note: this antenna is pictured with, but does not include, a Universal J-Mount.
- Up to 6 dBi gain between 600 and 960 MHz, and up to 8 dBi gain between 1700 and 6000 MHz.
- +/- 45 degreee cross-polarization.
- 4x N-Type Female connectors

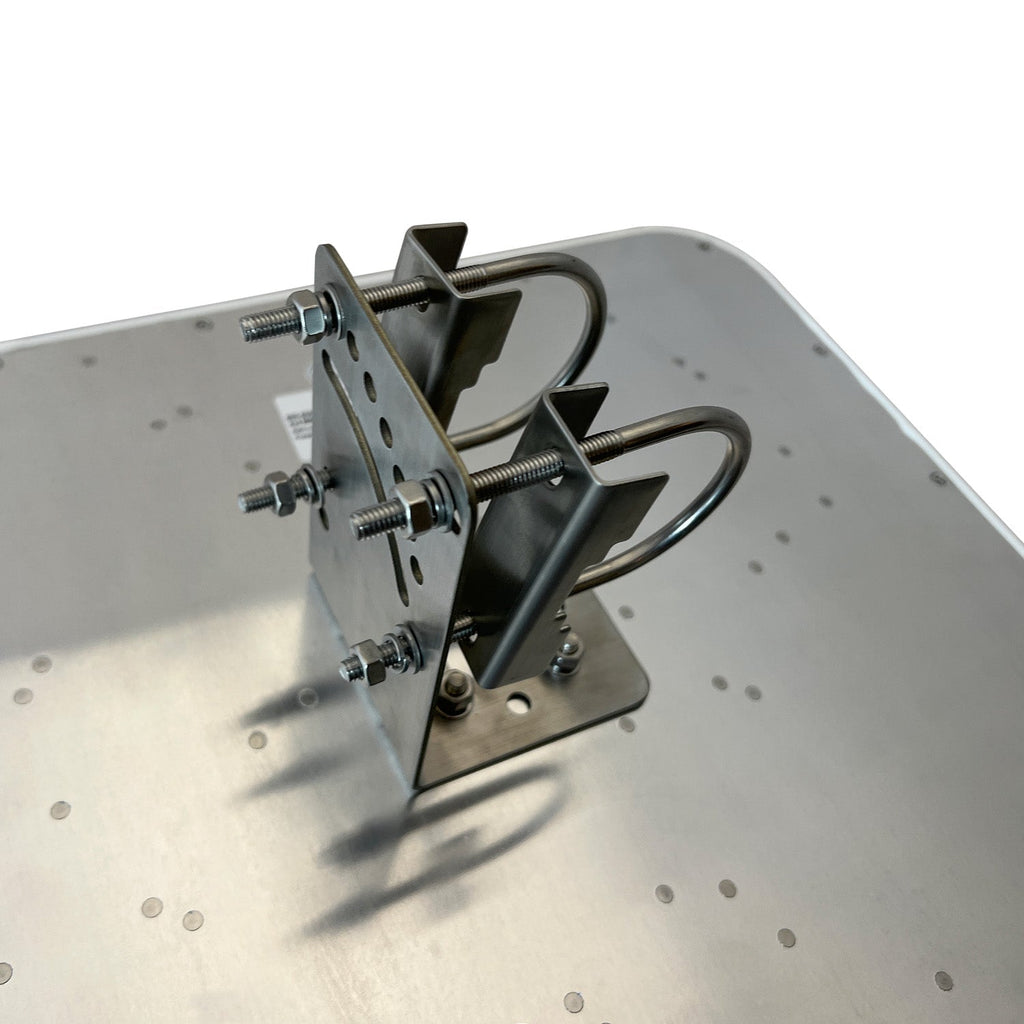

- Includes pole-mounting hardware (but not the J-mount pictured)
Frequency bands support
Our wideband 4x4 MIMO panel antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:
Supports all 4G LTE and 5G bands between 600 and 6000 MHz, including:
- AT&T: B2/n2, B4, B5/n5, B12, B17, B29, B30, B46, B66/n66, n77
- Verizon: B2/n2, B4, B5/n5, B13, B46, B48/n48, B66/n66, n77
- T-Mobile: B2, B4, B5, B12, B25, B26, B41/n41, B46, B66, B71/n71, n77
- Private 4G LTE and 5G: CBRS, B48/n48
All supported US Frequency Bands:
- Band 2 (1900 MHz)
- Band 4 (1700/2100 MHz)
- Band 5 (850 MHz)
- Band 12 (700 MHz)
- Band 13 (700 MHz)
- Band 14 (700 MHz)
- Band 17 (700 MHz)
- Band 25 (1900 MHz)
- Band 26 (850 MHz)
- Band 29 (700 MHz)
- Band 30 (2100 MHz)
- Band 46 (5200 MHz)
- Band 48 (3500 MHz)
- Band 66 (2100 MHz)
- Band 71 (600 MHz)
- Band 77 (3700 MHz)
All supported LTE Bands: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B14, B17, B18, B19, B20, B21, B22, B25, B26, B28, B29, B30, B32, B34, B37, B38, B39, B40, B41, B42, B43, B46, B47, B48, B50, B51, B53, B65, B66, B67, B69, B70, B71, B74, B75, B76, B85, B103, B106
All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n65, n66, n67, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n96, n97, n98, n99, n100, n101, n102, n105
Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.
Read more about Waveform's industry-leading warranty policy here.
