75 Ohm Lightning Surge Protector Kit with F-Type Connectors, DC - 3000 MHz
by: Waveform
by: Waveform
75 Ohm Lightning Surge Protector Kit with F-Type Connectors, DC - 3000 MHz
In stock.
Free, fast shipping on orders over $99
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
3 Year Warranty
Waveform products come with a 3 year manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

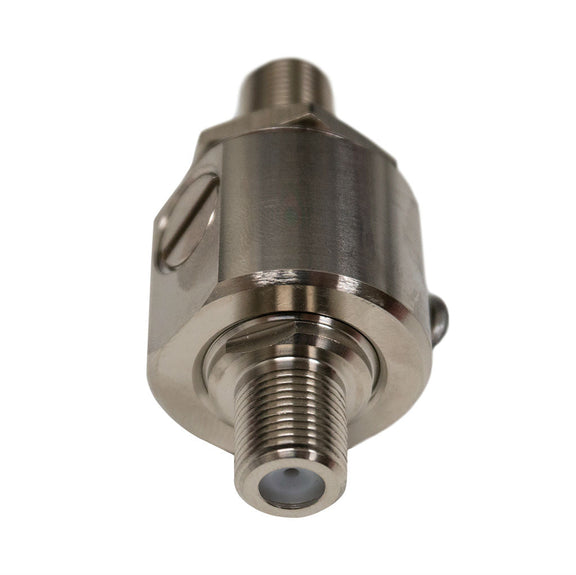

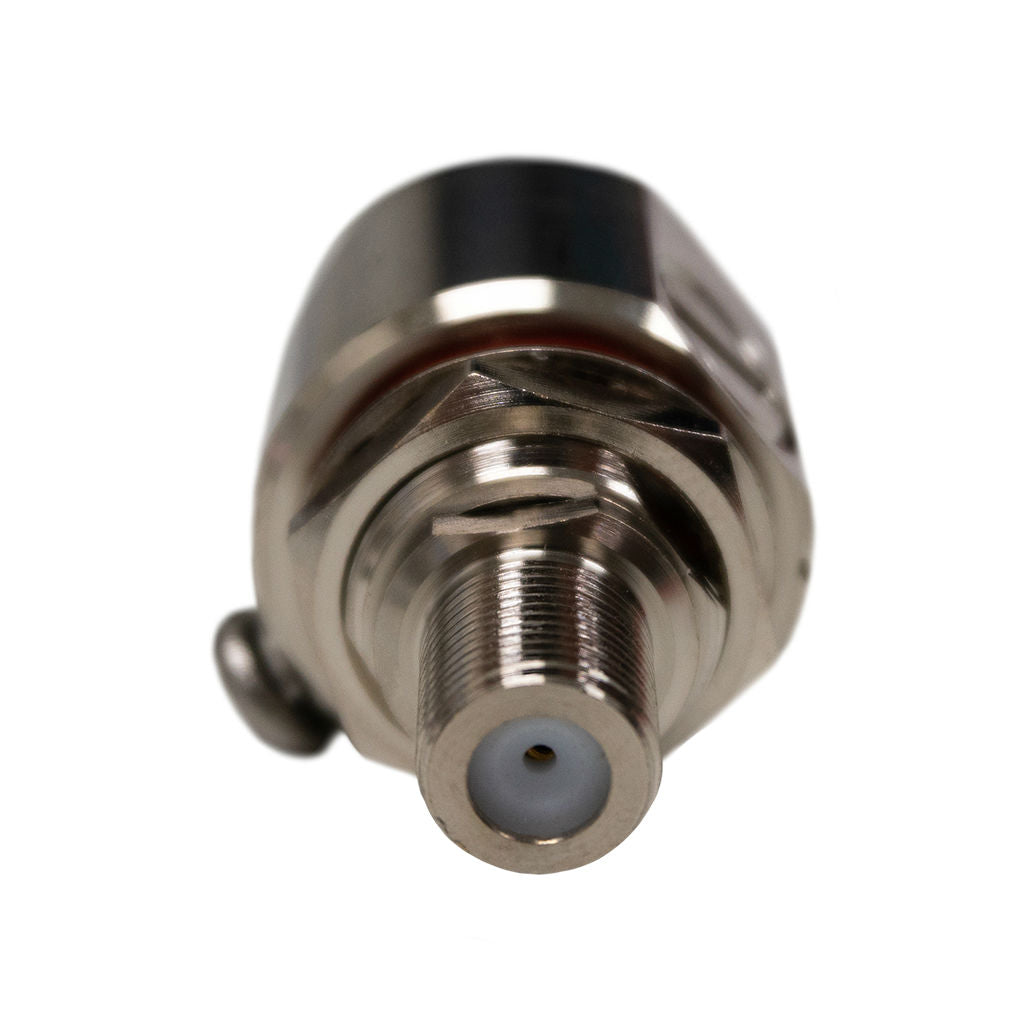

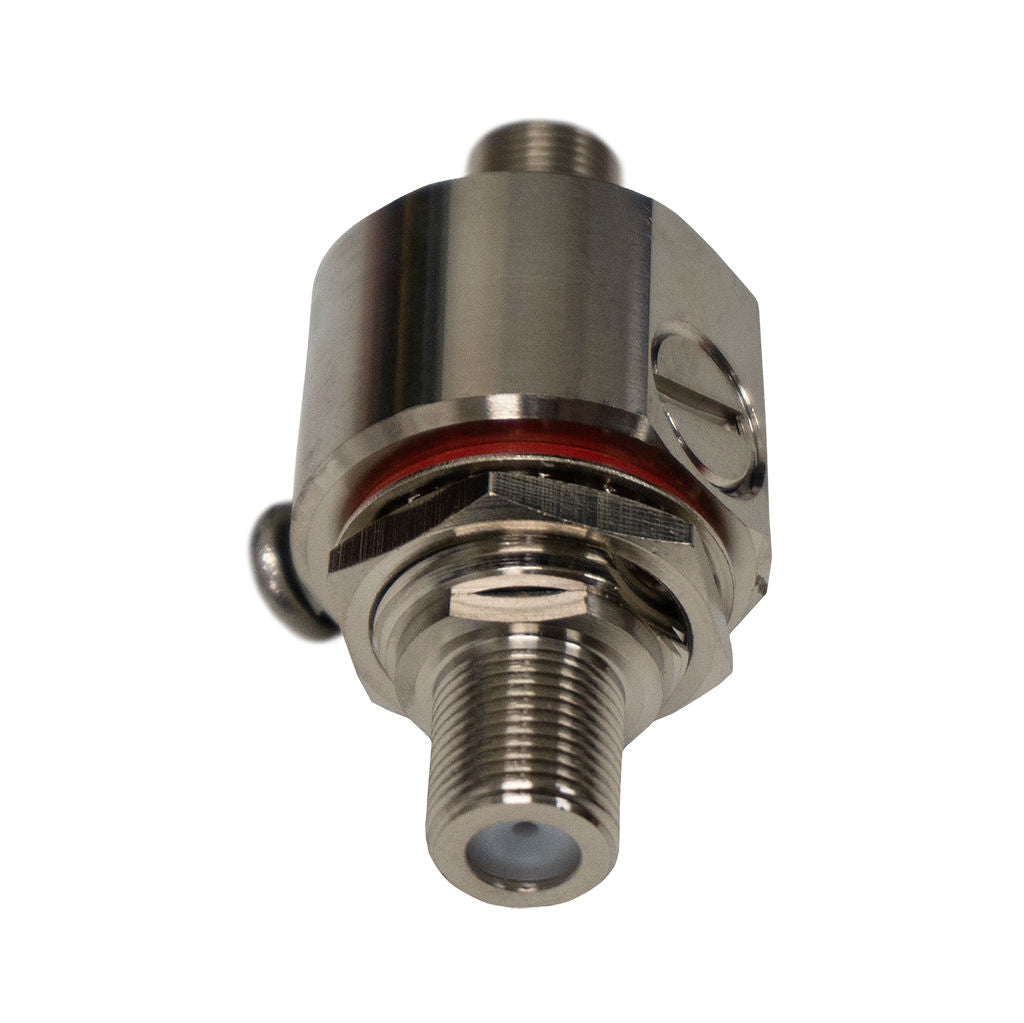

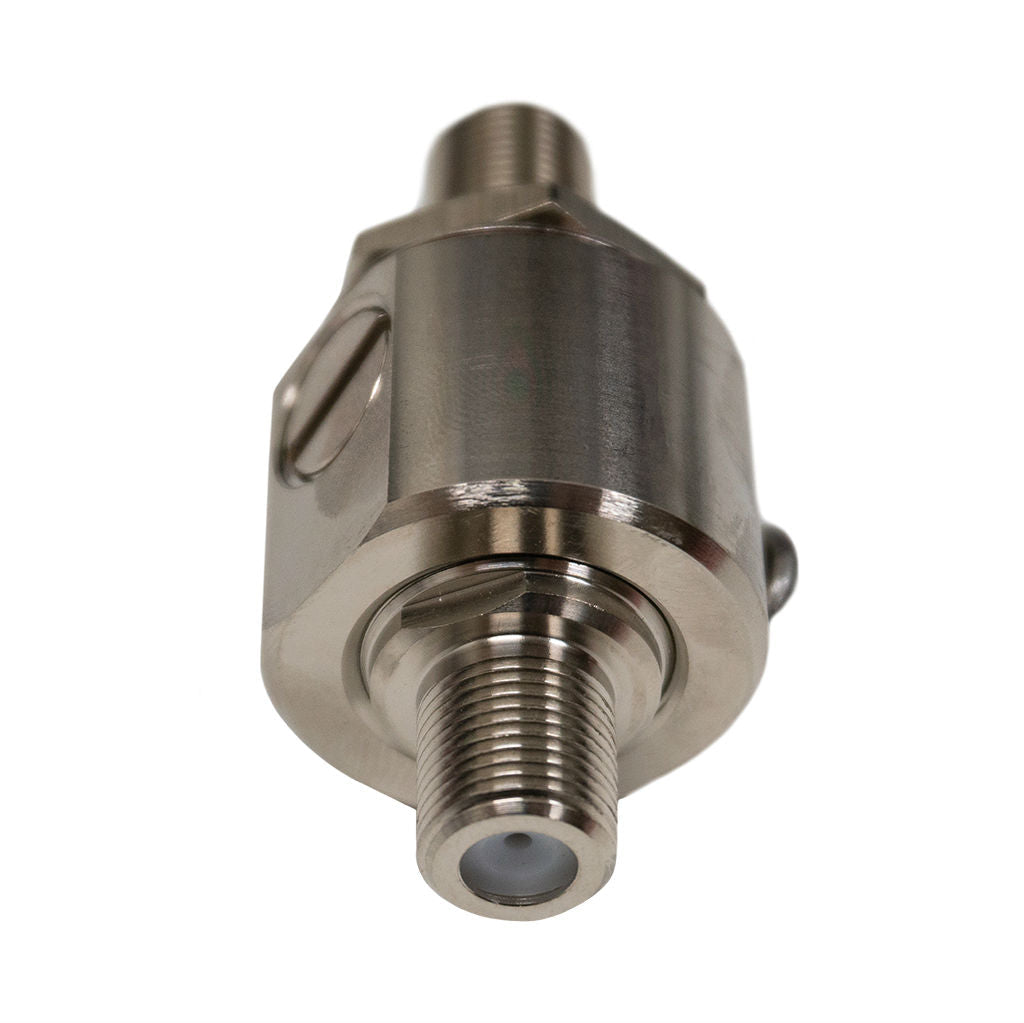

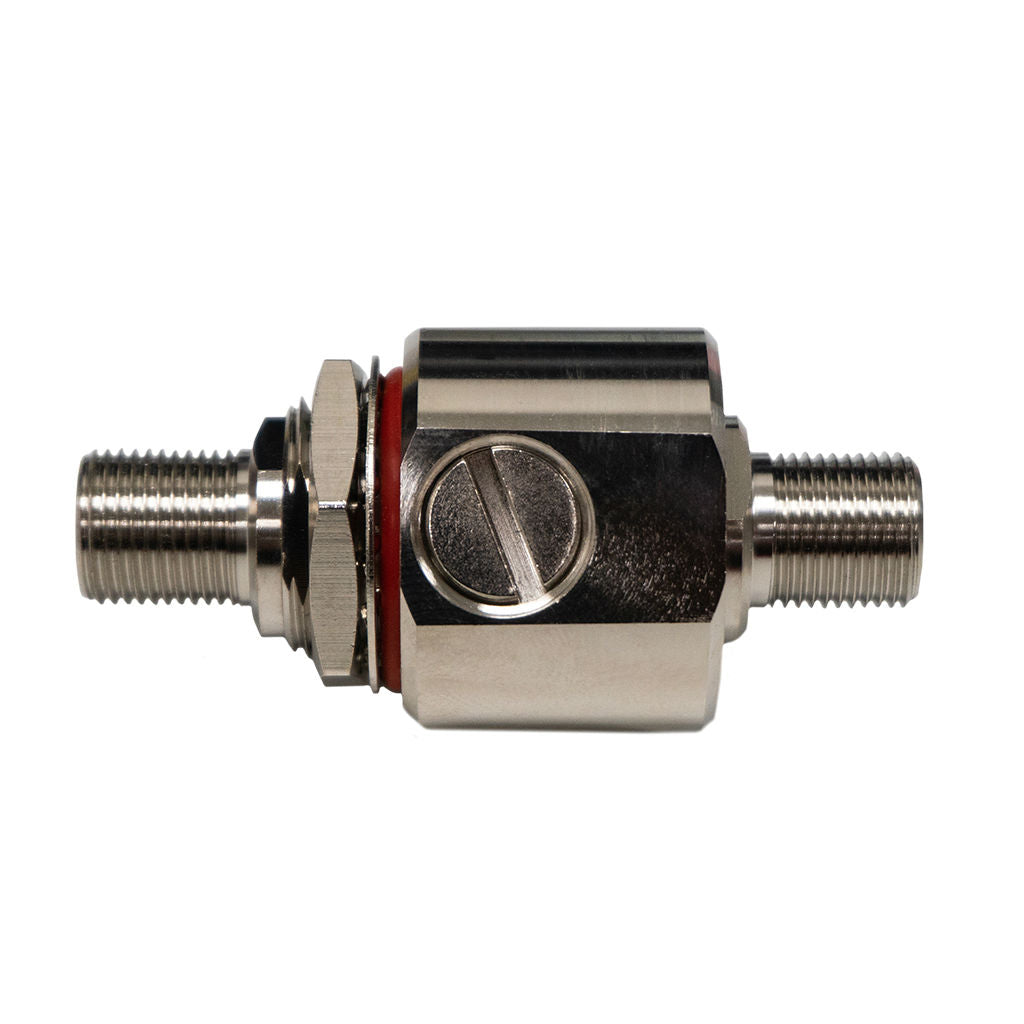

A lightning surge protector (LSP) protects the signal booster system if lightning strikes the donor antenna. A lightning surge protector is highly recommended anytime the system's donor antenna is installed outdoors.
- VSWR: 1.2:1 Max Rating Voltage: 230V
- Frequency Range: DC - 3000 MHz
The lightning surge protector should be connected to ground using solid copper grounding wire. It should be installed between the amplifier and the outdoor antenna.

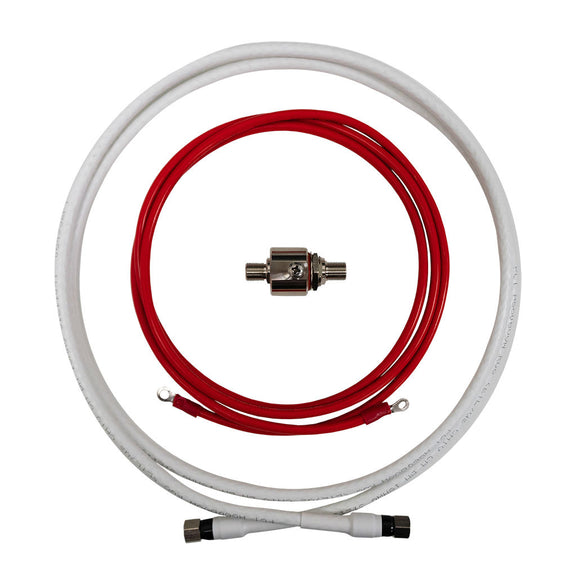

This protector is for 75 ohm signal booster systems, which typically utilizes F-type connectors. This Lightning Surge Protector kit includes a 5' jumper cable and a copper grounding wire.
According to the National Electric Code (NEC), a surge protector should be installed as near as possible to the point where the cable enters the house, but not near combustible materials. Since many attic crawl spaces contain combustible material, we suggest installing the surge protector outside the building, near the point of entry. We have included a 5' jumper cable in case the cable needs to be crimped to accommodate this.
The NEC also requires grounding the antenna mast. Tall antenna masts are a prime target for lightning strikes because of their height and tendency to accumulate static electricity. The kits includes a grounding cable. If your antenna mast is painted, you should make sure that you scrape off any paint before attaching this grounding wire.
Please see our detailed guide to grounding and using a Lightning Surge Protector here.
