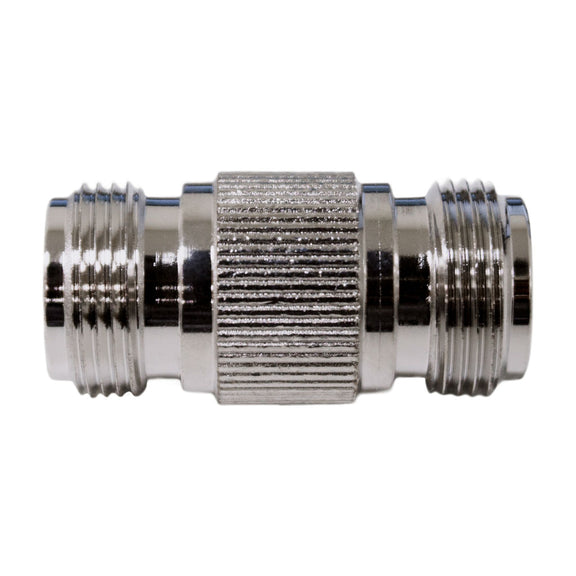

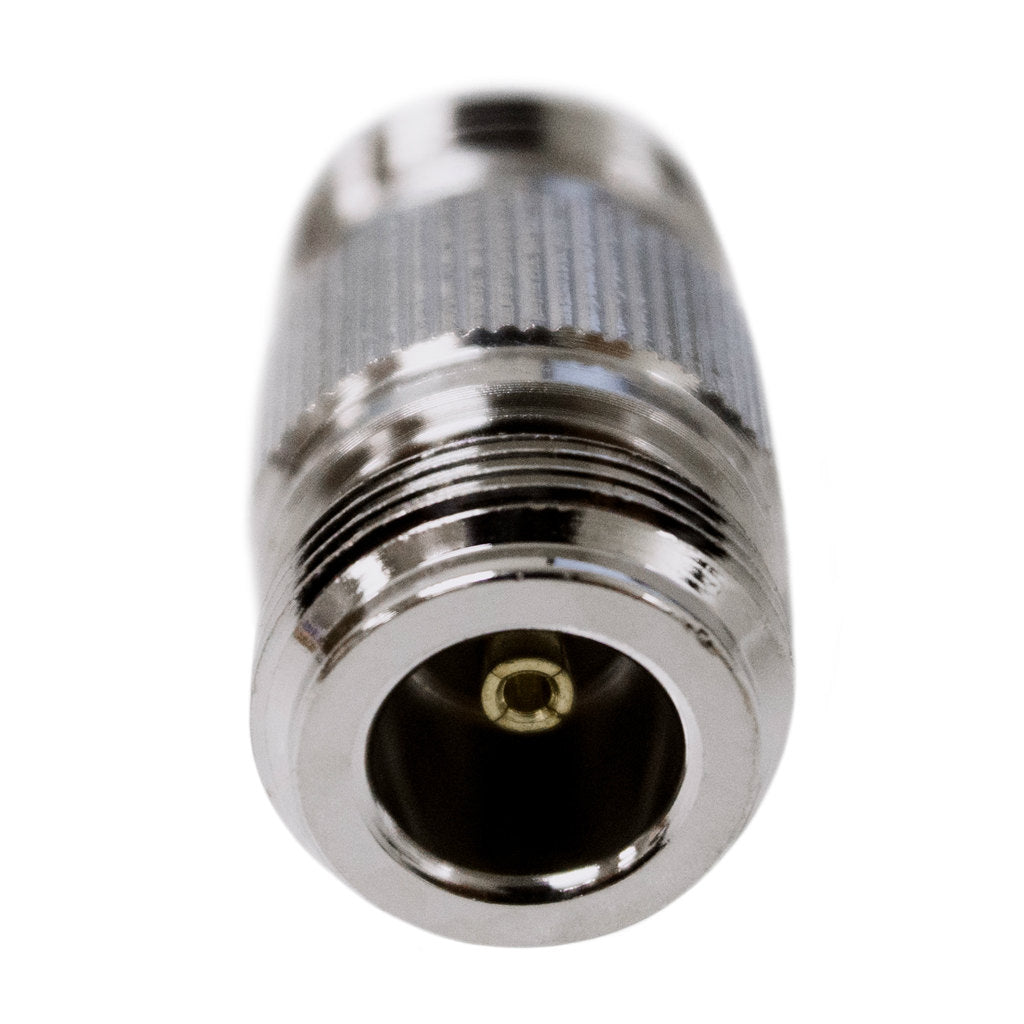

This is a high-quality alloy N-Female to N-Female 50 ohm bullet adapter.
This adapter is useful for joining two N-Male cables together. If you wish to extend a cable run with N-Male cables, the N-Female bullet adapter can be used to attach them.
These N-Female to N-Female bullet adapters use high-quality brass and bronze alloys, making them durable and strong, with minimal insertion loss.
This adapter is often used for joining two cables, or extending existing N-type cable runs.
- N-Female to N-Female connector
- 32 mm (1.25 inch) long with 20 mm (0.78 inch) diameter
- 50 Ohm impedance
- Gold-plated bronze center conductor, PTFE dielectric, and a plated brass body
- VSWR rated below 1.3 for use at frequencies of up to 6 GHz.
Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.
Read more about Waveform's industry-leading warranty policy here.
