The Waveform Panel Antenna is a high gain wideband directional antenna for indoor use. It offers up to 7 - 8 dBi of gain across all wireless frequencies (Voice/3G/4G/AWS/WLAN).

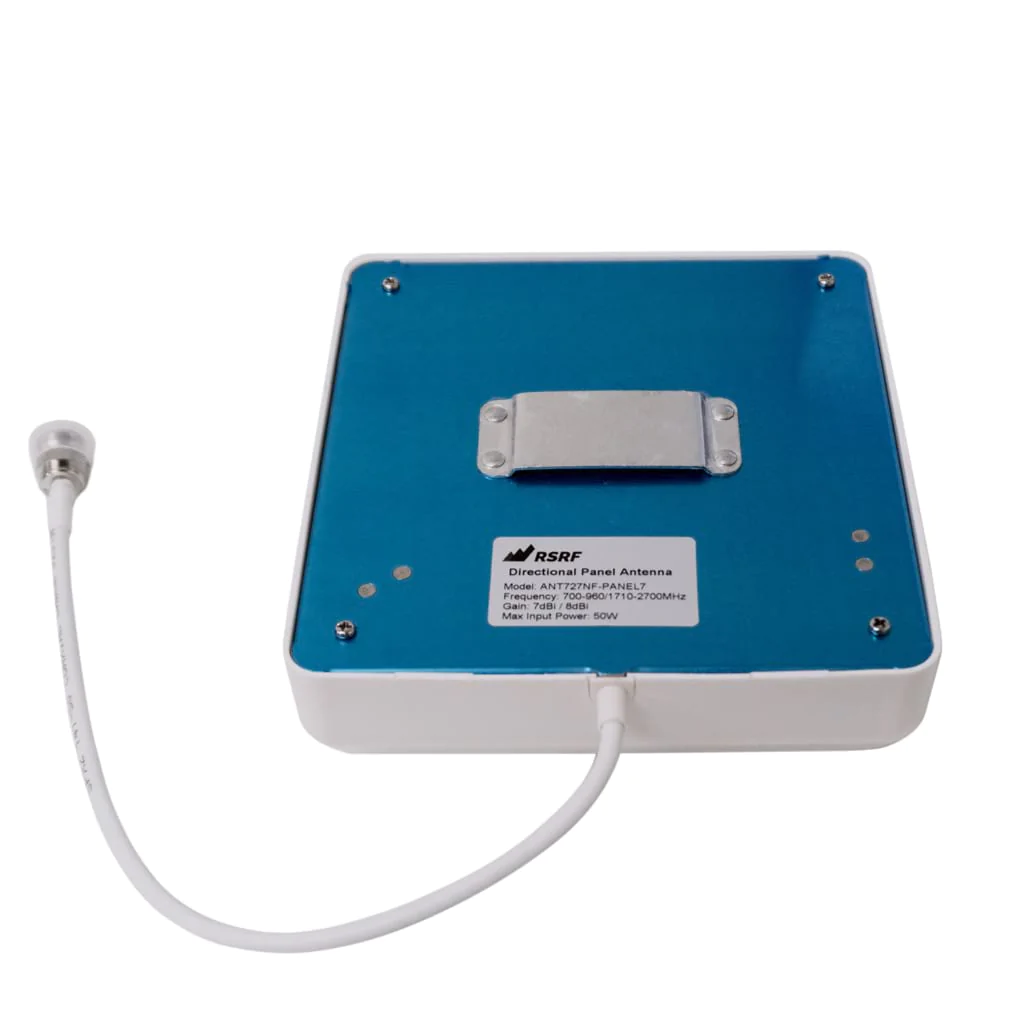

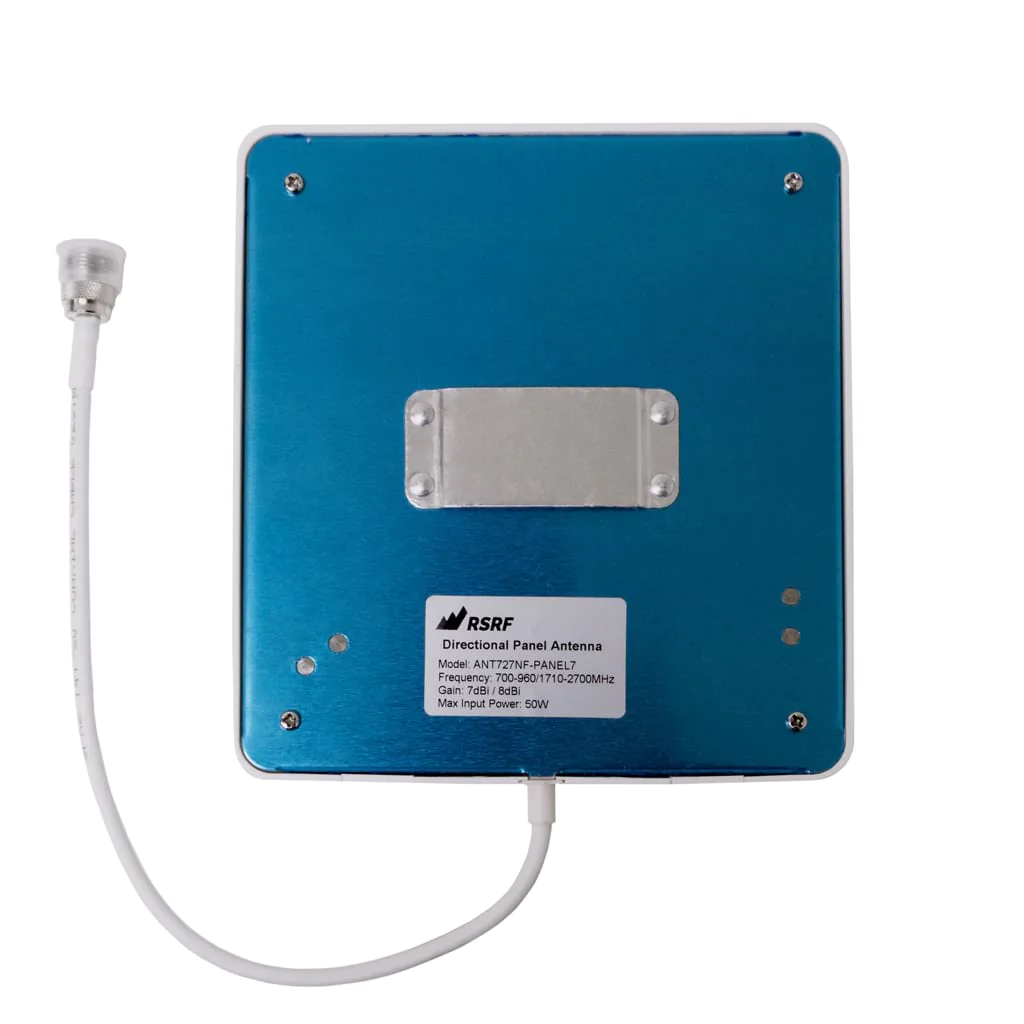

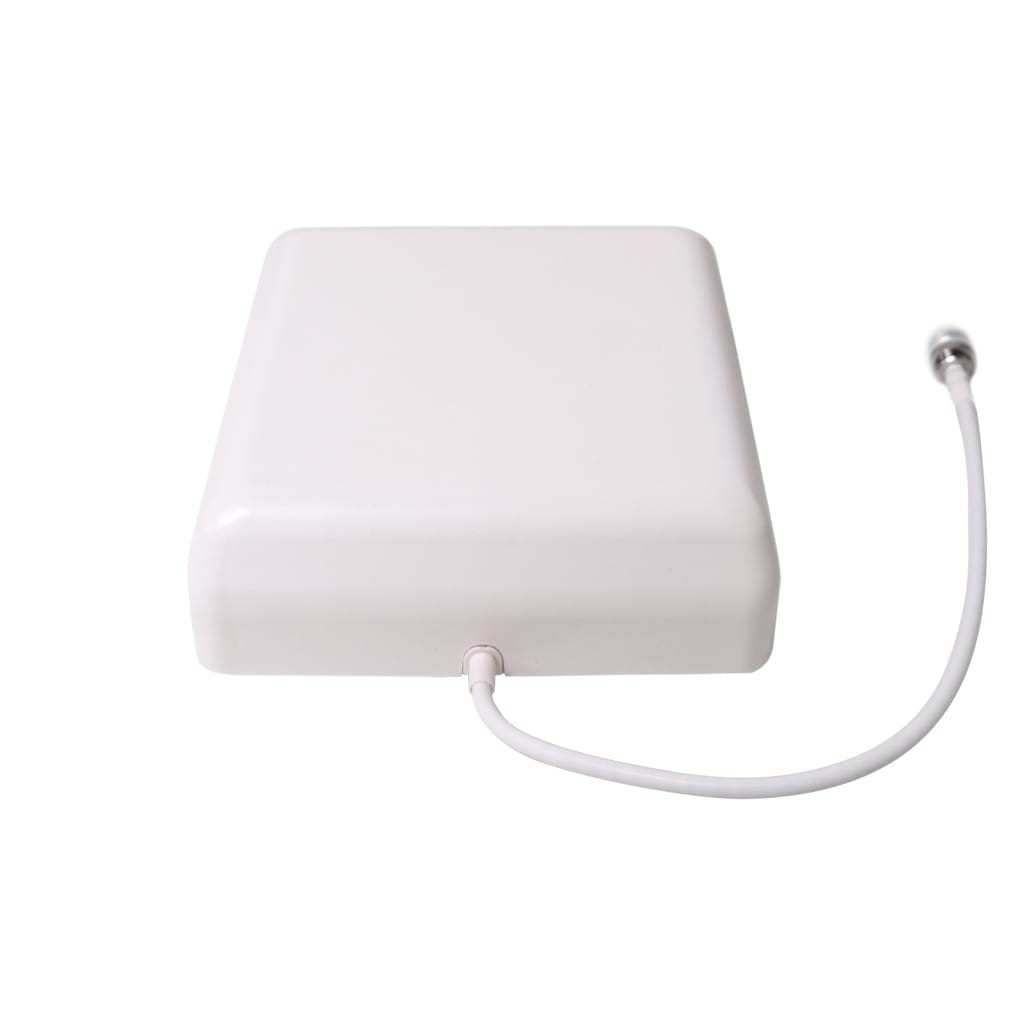

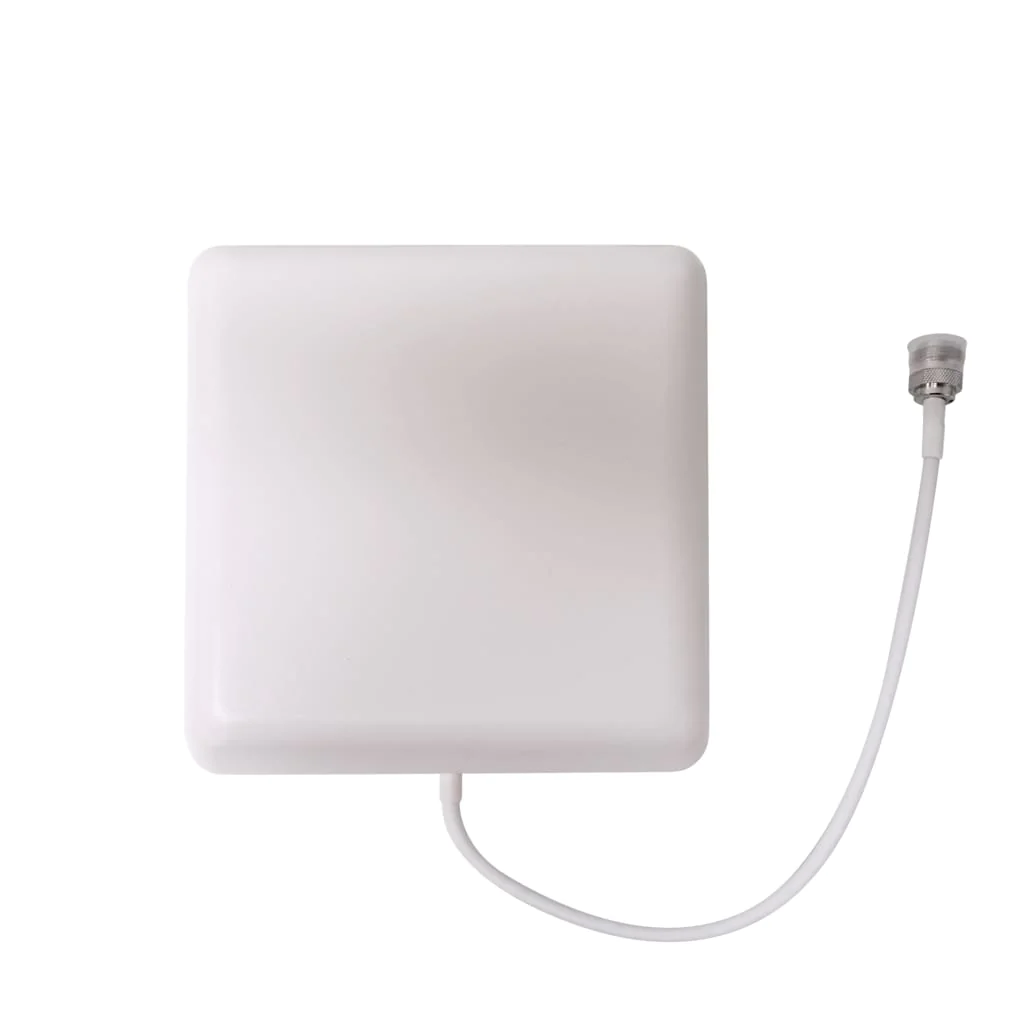

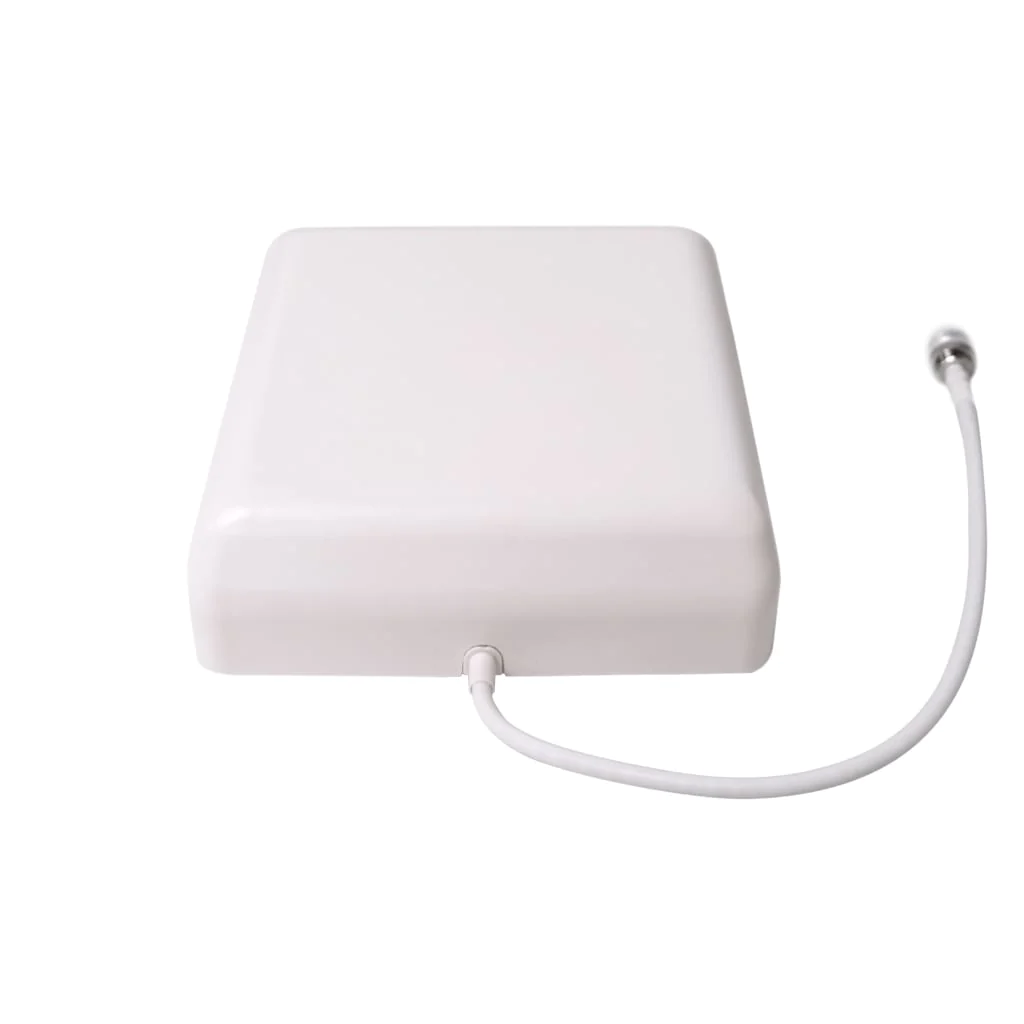

The antenna is made of white ABS plastic. It has 30mm attached cable with N-Female connectors.
Panel antennas allow optimum reception to targeted areas. A wall mounted antenna projects signal in front of it, and so should be placed facing the area where you wish to increase signal.
The Panel Antenna with N-Female Connector, 600 – 6000 MHz is compatible with the following networks:
| Carrier | Supported services | Unsupported services |
|---|---|---|
| Verizon | 2G/3G Voice + Data 4G LTE | |
| AT&T | 2G/3G Voice + Data 4G LTE | |
| Sprint | 2G/3G Voice + Data 4G LTE | |
| T-Mobile | 2G/3G Voice + Data 4G LTE |
The Panel Antenna with N-Female Connector, 600 – 6000 MHz kit is also compatible with Canadian networks, though they are not listed above. Check our international carriers page for more information.
Supported frequency bands (MHz): 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155
| SKU | ANT627NF-PANEL7 |
| Dimensions | 210x180x44 mm |
| Frequency | 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155 |
| Gain | 7-8 dBi |
| Impedance | 50 ohm |
| Connector type | N Female |
| Cable length | 260 mm |
| CA Prop 65 Warning | Read full warning |
