Description

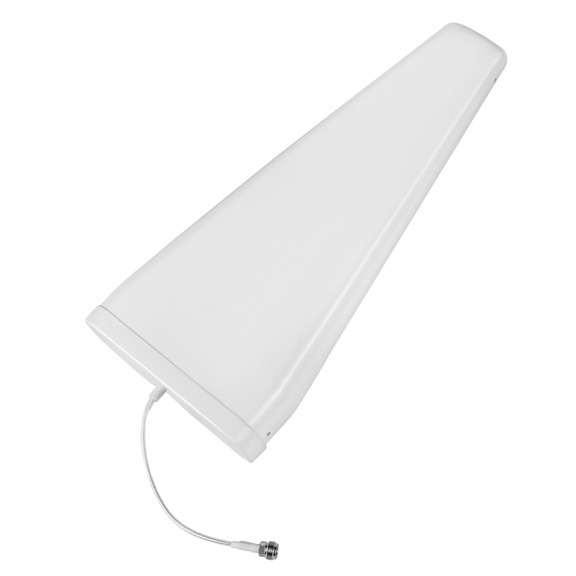

The SureCall SC-530W Ultra Wide-band Directional Yagi Outdoor Antenna is a high-gain directional outdoor antenna with a range of up to 30 miles for many signal booster applications.
One of SureCall's highest performing antennas on the market, the SC-530W offers an average 8 dBi of gain across it's supported frequency range of 617 - 2700 MHz.

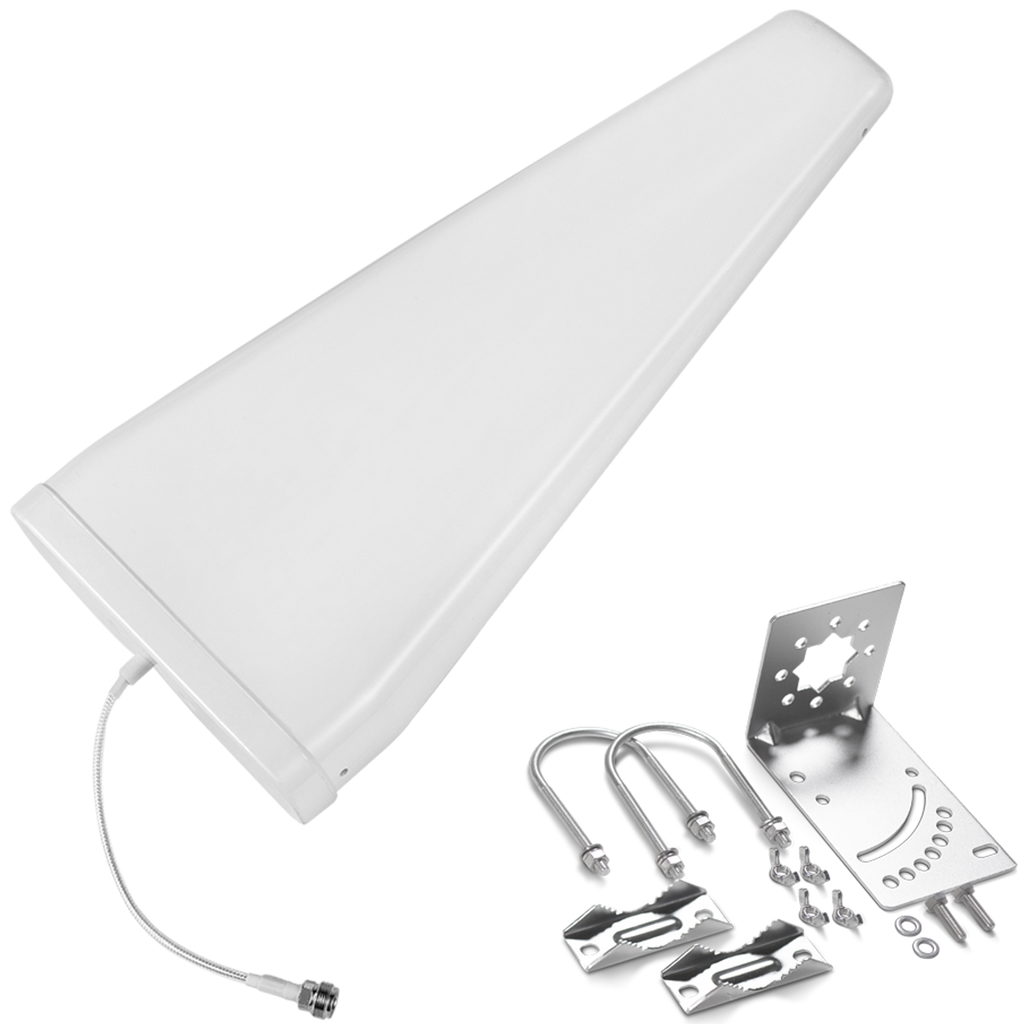

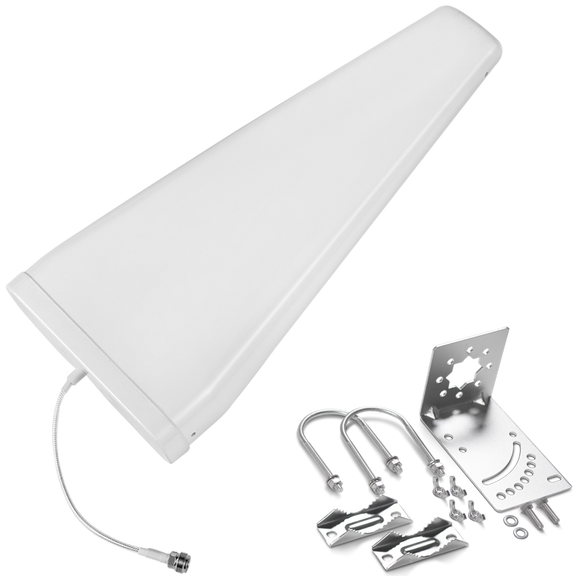

The Ultra-Wideband outdoor antenna transmits and receives signal directionally and is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. The SC-530W antenna uses a N-Female connector and measures 17.3 x 8 x 1.45 inches (440 x 204 x 37 mm) (l x w x h). It includes mounting hardware.
This is a 50 ohm antenna, for use with 50 ohm signal booster kits. A 75 ohm version, the SureCall 75 Ohm Yagi Outdoor Antenna (SC-231W), is also available for use with 75 ohm signal booster kits like the SureCall Fusion4Home.
It needs to be set up pointing in the direction of the cell tower, and because it is directional it will only pick up signal in that direction.
It's very powerful at picking up weak signal in one particular direction, and we recommend it for situations where existing outside signal is weak, and you only want to boost coverage for one carrier (or if more than one carrier has a cell tower in that direction).
If you need to boost signal coming from different directions, it is possible to set up more than one yagi antenna. Contact us for more help with this.
Installation
Directional antennas must be mounted horizontally and be aimed at the desired cellular tower for best results.
Any metallic rods must be at least three feet from the antenna. The antenna comes with mounting equipment to attach to a 1 to 2 inch diameter pole.
For best results, the white fiber-glass portion of the antenna should be mounted above the roof line and unobstructed in the direction of the tower.
