We’ve tried a lot of different pigtail adapters before deciding that none of them were good enough and started making our own instead.
These TS9-Male to SMA-Female adapters use high-quality RS100 semi-flexible cable that is durable and strong, with minimal insertion loss. Unlike most other adapters, our pigtail adapters won't fall apart during installation.
We tested both harder and softer cable and decided our RS100 cable achieved the right balance of durability but also flexibility, for TS9 connectors.

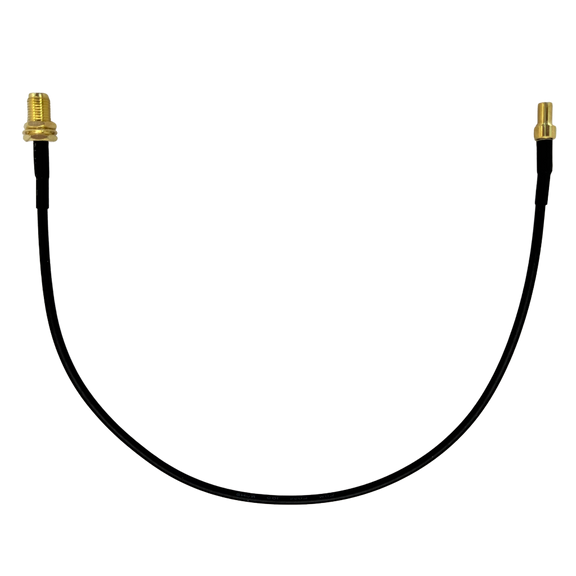

- SMA-Female to TS9-Male connector
- 30 cm (12 inch) LMR100 cable with 2.8mm cable diameter
- 50 Ohm impedance
- Gold-plated bronze center conductor, PTFE dielectric, and a black PE jacket.
- > 90 dB shielding,
- VSWR rated below 1.25 for use at frequencies of up to 6 GHz.

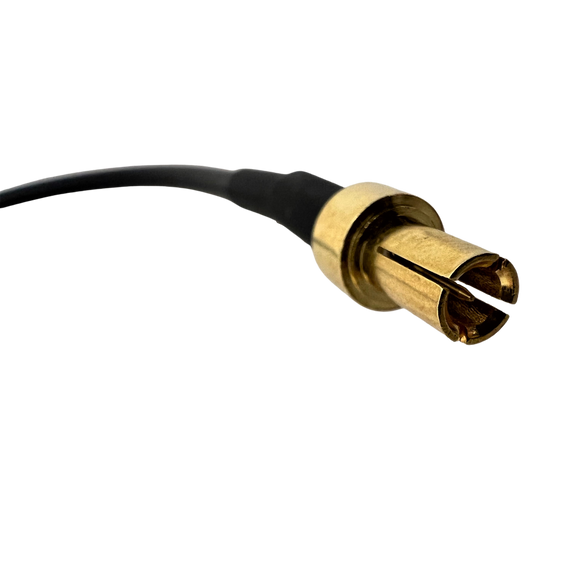

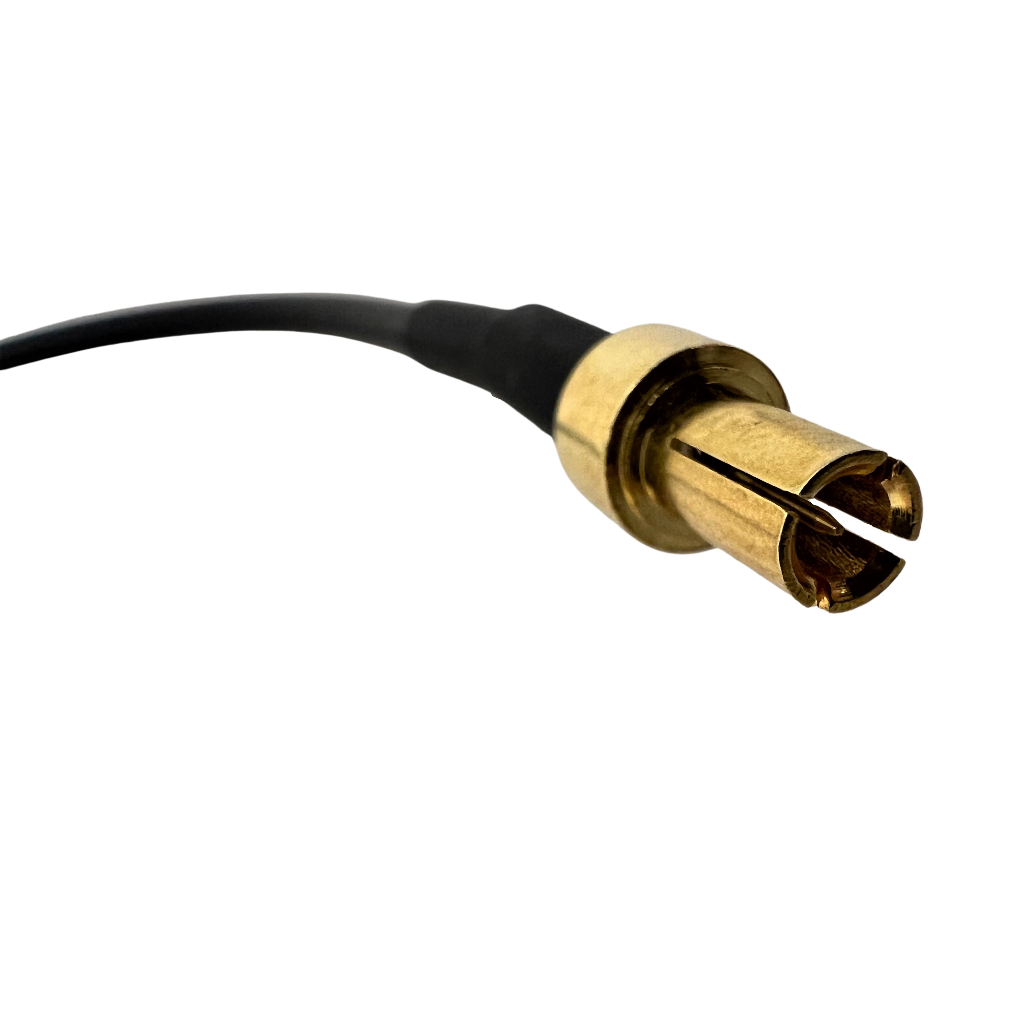

Important note about TS9 Connectors:
TS9 is unfortunately not a standardized connector. TS9 ports on different routers are all slightly different lengths. They also don’t have any physical “coupling”, so it can be difficult to get a good fit. We tested a lot of designs to find one that worked well with every device. Unfortunately, it’s not perfect for any one device. If yours become a bit loose, simply squeeze them lightly with your fingers and they will grip more firmly.
Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.
Read more about Waveform's industry-leading warranty policy here.
