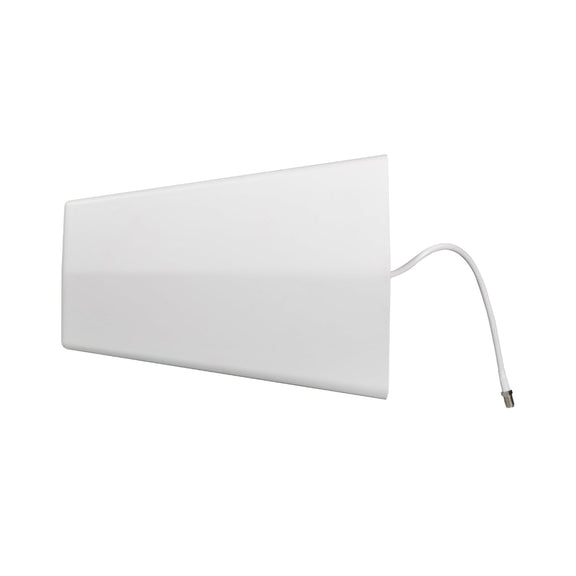

The weBoost Home Outside Directional Antenna (314445) is a powerful directional (yagi) style antenna. It is a wideband antenna that offers up to 7-9 dBi of gain on all North American cell carrier frequencies.
The sealed housing is UV stabilized plastic and is fully weather-proof.
It is 75 ohm impedance with F-Female connectors. The antenna measures 11.375 x 8.5 x 2.625 inches (288.9 x 215.9 x 66.6 mm).
Installation
The weBoost 314445 is a directional antenna. Directional antennas need to be pointed towards the nearest cell tower for the best results. As this is a multi-band antenna you will need to confirm that all of the towers for the networks you wish to improve are in the same direction.

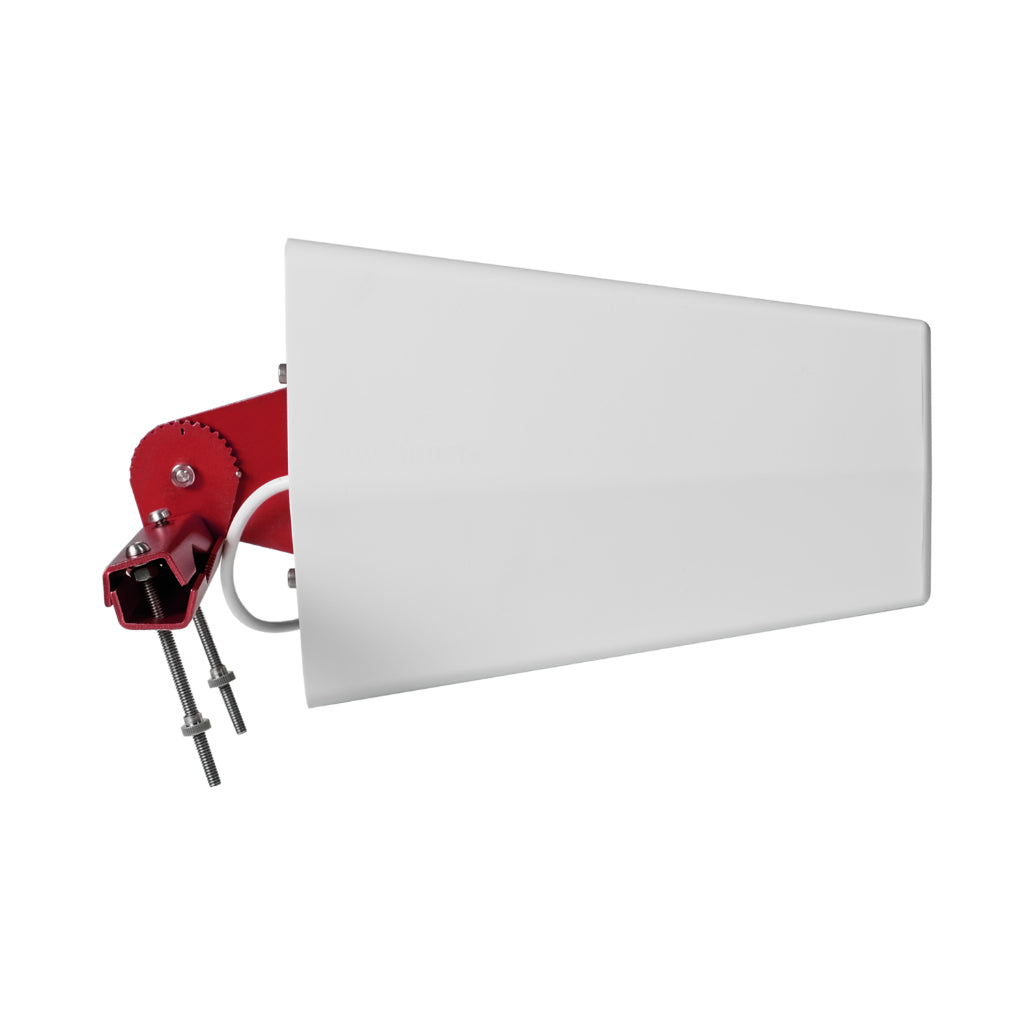

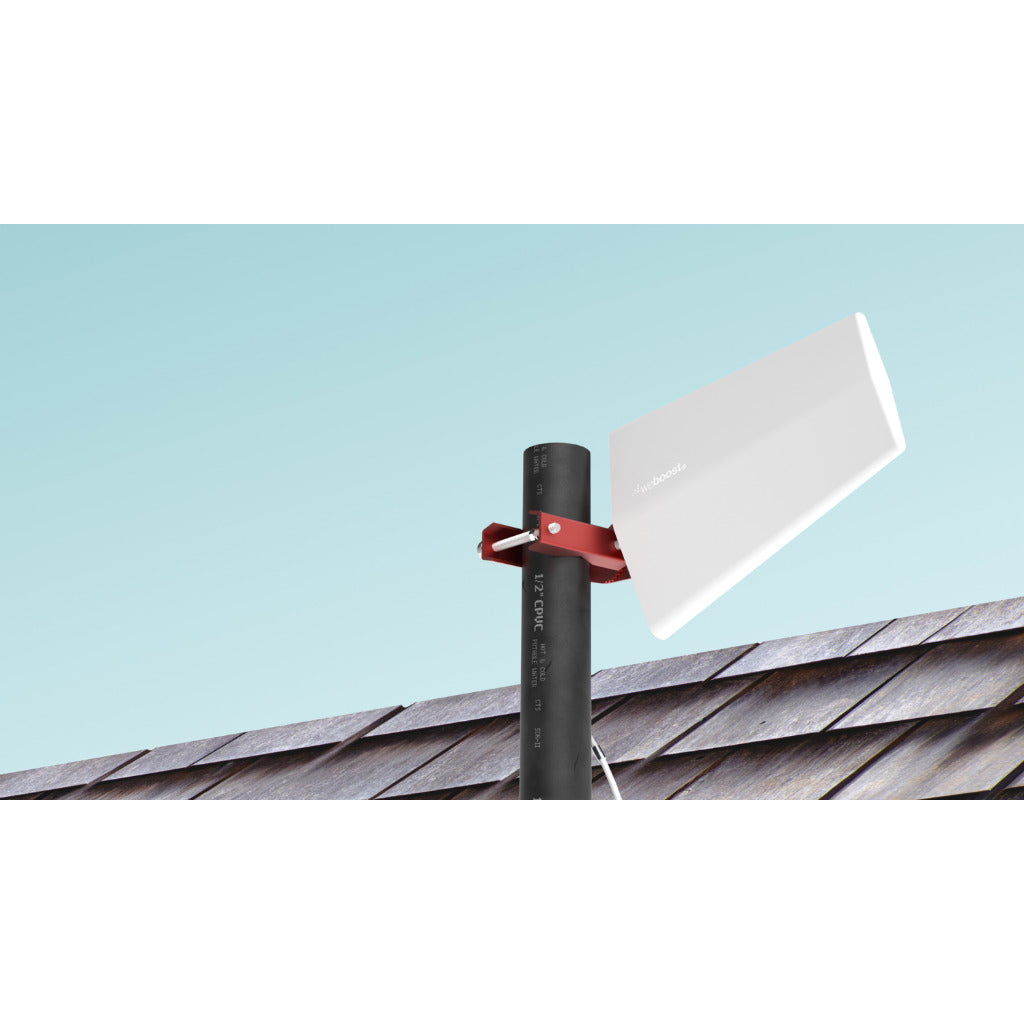

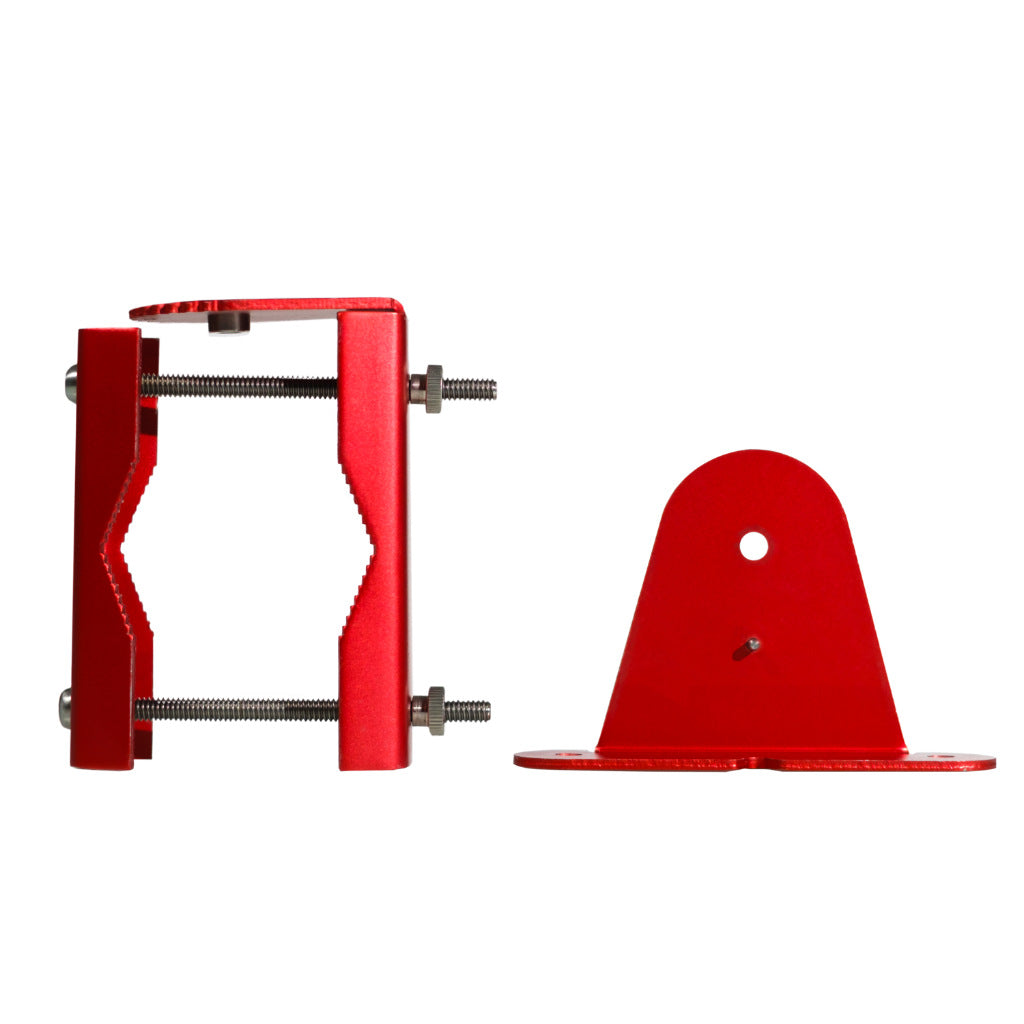

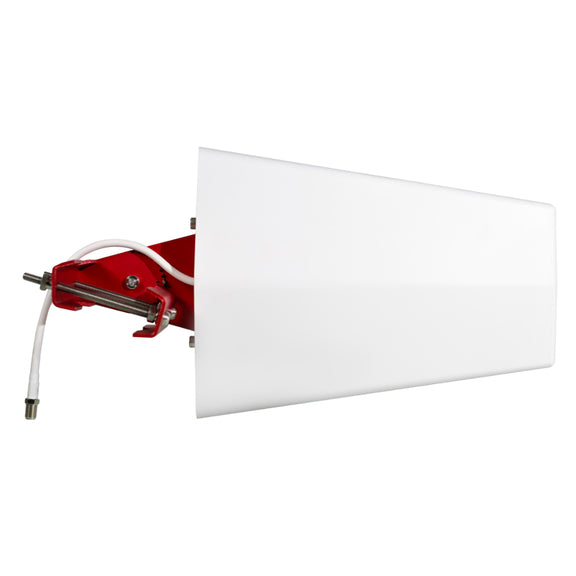

The included tilt-swivel mounting bracket can be used to secure attach the antenna to exterior walls. It can also be mounted to poles or rooftop vent pipes from 1.25” to 2” wide.
