WilsonPro 70 Plus Cell Signal Booster Kit
by: Wilson
Product discontinued
The WilsonPro 70 Plus Cell Signal Booster Kit has been discontinued by the manufacturer.
A replacement is available here: weBoost Office 100
by: Wilson
WilsonPro 70 Plus Cell Signal Booster Kit
Discontinued
We're the leading online distributor of WilsonPro products and stock their entire lineup of amplifiers, antennas, and accessories.
No matter what WilsonPro part you need, you can rest assured that we carry it.
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Wilson products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The Wilson Electronics Pro 70 Plus (50/75 Ohm) is a professional-grade all-bands multi-carrier signal booster. It amplifies and improves voice calls, 2G, 3G, and 4G LTE data on all US and Canadian carriers.
The Wilson Pro Plus is the most powerful signal booster allowed by the FCC and offers coverage of 20,000 sq feet and more.

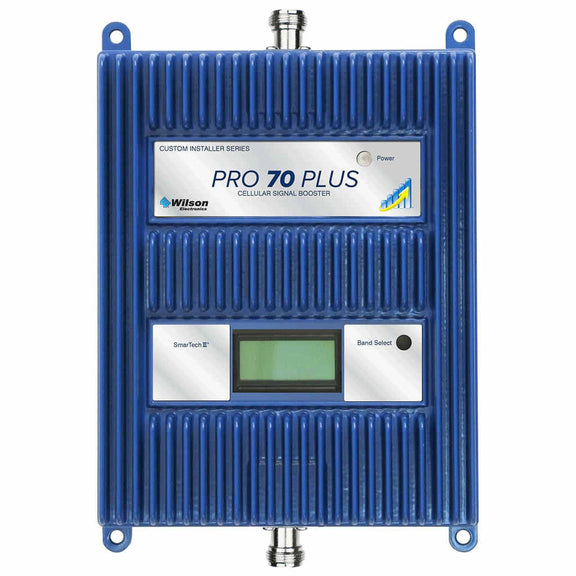

The Pro 70 Plus features a self-optimizing microprocessor with a built-in graphical signal meter. The new uplink and downlink LCD power display simplifies installation by making it easy to determine the direction of the cell tower and the strength of the available signal. The high downlink power enables maximum indoor coverage in areas of strong outside signal.
The Pro 70 Plus is an ideal choice for a large luxury home or commercial retail premises with signal issues. Its powerful 70dB amplifier gives strong, reliable connections even in weak signal areas. Data services are faster and indoor coverage greatly enhanced. The kit comes with a three year warranty and is FCC and Industry Canada approved.
Benefits
- Sold as a full kit, with expansion kits available if required
- Compatible with all North American cellular networks
- Three year warranty
- FCC and Industry Canada certified
- Faster, cleaner data transfers
- Strong, reliable connections even in weak signal areas
- Enhanced indoor coverage area
- Extends battery life of cellular devices
- Integrated Power Meter
- Enhanced Indoor Coverage
Purchase & Installation
The Wilson Pro product line is available to be installed by custom professional installers. RepeaterStore has years of experience designing and supporting custom installations. We can provide all customers with custom design services, including determining the need for the Wilson Pro 70 Plus expansion kits which are available for large scale installations.
Options
The Wilson Electronics Pro 70 Plus is available in 50 ohm and 75 ohm options. Please call us to discuss which version is best for you.

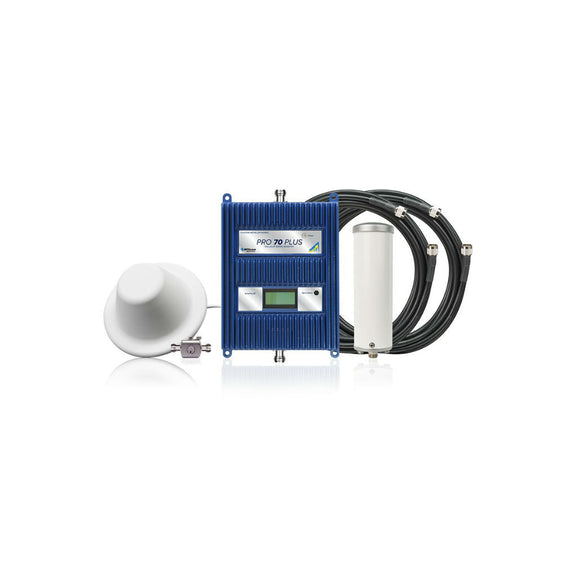

50Ω Kit Includes:
1 - 314411 Wide Band Directional Antenna OR 304422 Wideband Outdoor Omni Antenna
1 - 311135 Wide Band Panel Antenna OR 304412 Wilson Wideband Indoor Dome Antenna
1 - 859902 Lightning Surge Protector
1 - 952302 2ft Low-Loss Wilson400 Cable
1 - 952360 60ft Low-Loss Wilson400 Cable
1 - 952375 75ft Low-Loss Wilson400 Cable
1 - 859900 120v AC Power Supply
Outside Antenna
The Wilson Pro 70 Plus 50 Ohm kit comes with a choice of two outside antennas:

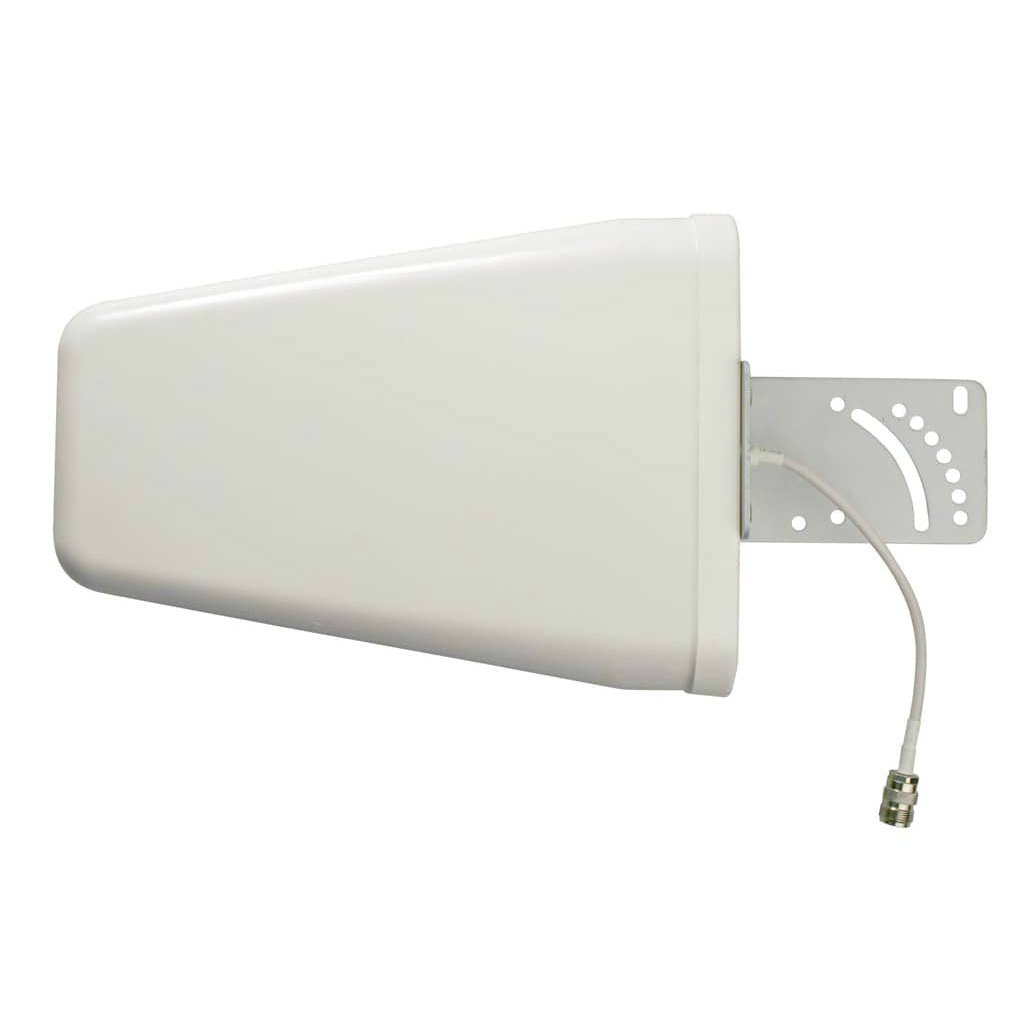

The 314411 multi-band yagi antenna is a 700MHz - 2700MHz antenna with 8-10 dB of gain. It is a wide-band high performance antenna. The sealed housing is UV stabilized ABS plastic and is fully weather-proof. It is a directional antenna. Directional antennas need to be pointed towards the nearest cell tower for the best results. It includes mounting equipment to attach to a pole up to 2in in diameter.
The 304422 Wideband Outdoor Omni Antenna is a convenient and durable exterior antenna. This powerful antenna is wide band with 2-5 dBi of gain. The antenna is made of UV resistant PVC, and is fully weatherproof. It is an omni-directional antenna. Omni-directional antennas receive signal from all directions, and so the antenna needs to be installed in a vertical position in the area of strongest signal. The antenna includes wall mount & L bracket & U bolts for 1.5 - 2" (38 - 52 mm) mast mounting hardware.
Inside Antenna
There are two indoor antenna options:
The 304412 Wilson Wideband Indoor Dome Antenna is an omni-directional antenna. Omni-directional antennas receive signal from all directions, so it needs to be installed in a vertical position in the area of strongest signal. It is a 50 ohm antenna made of white ABS plastic and is suitable for indoor use only.

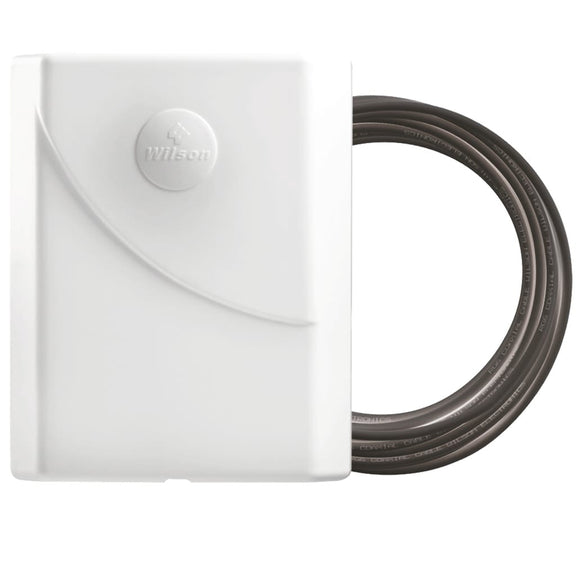

If you have selected the 314411 Yagi Outdoor Antenna, you can also consider the Wilson 311135 Indoor Wide Band Panel Antenna. It is a dual band antenna with 7 / 10 dB of gain. The antenna is made of ABS plastic and designed to attach to an interior wall. It can also be attached to the ceiling and broadcast downwards.
Included Cables
Wilson400 Ultra Low Loss Coax Cable is a 400 type cable with N Male connectors. It's suitable for 50 ohm cables for long cable runs.
The cable is light, flexible and weatherproof. 1 x 2ft, 1 x 60ft, and 1 x 75ft lengths are included in the kit.
Lightning Surge Protector
The kit includes a lightning surge protector. We recommend using a lightning surge protector in most cases, but particularly if you are in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.

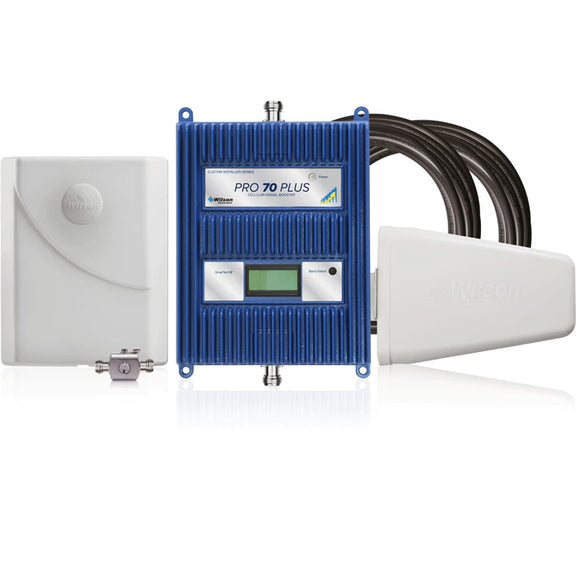

75Ω Kit Includes:
1 - 314475 - Wide Band Directional Antenna
1 - 311155 - Wide Band Panel Antenna
1 - 859992 - Lightning Surge Protector
1 - 951127 - 2ft Low-Loss RG11 Cable
1 - 951150 - 50ft Low-Loss RG11 Cable
1 - 951175 - 75ft Low-Loss RG11 Cable
1 - 859900 - 120v AC Power Supply
Outside Antenna
The Wilson 314475 multi-band yagi antenna is a 700MHz - 2700MHz antenna with 8-10 dB of gain. It is a wide-band high performance antenna. The sealed housing is UV stabilized ABS plastic and is fully weather-proof.
It is a directional antenna. Directional antennas need to be pointed towards the nearest cell tower for the best results. It includes mounting equipment to attach to a pole up to 2in in diameter.
It connects easily to the included high quality low loss coax cable.
Inside Antenna
There are two indoor antenna options:
The Wilson 311155 wide band panel antenna is a dual band antenna with 7 / 10 dB of gain. The antenna is made of ABS plastic and designed to attach to an interior wall. It can also be attached to the ceiling and broadcast downwards.
The 304412 Wilson Wideband Indoor Dome Antenna is an omni-directional antenna. Omni-directional antennas receive signal from all directions, so it needs to be installed in a vertical position in the area of strongest signal. It is a 50 ohm antenna made of white ABS plastic and is suitable for indoor use only.
Included Cables
RG-11 coaxial cable is a very low loss 75 ohm coaxial cable. It is designed to be used instead of RG-6 cable when long cable runs are required, as the signal loss is much lower when using RG-11.
The RG-11 cable is black and has F Female connectors. 1 x 2ft, 1 x 50ft, and 1 x 75ft lengths are included in the kit.
Lightning Surge Protector
The kit includes a lightning surge protector. We recommend using a lightning surge protector in most cases, but particularly if you are in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| UPC |
|
| Dimensions | 8.875 x 6.0 x 1.5 in (22.5 x 15.2 x 3.8 cm) |
| Frequency | 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155 |
| Gain | 70 dB |
| Impedance | 75 ohm or 50 ohm |
| Noise | 5 dB nominal |
| Power supply | 110-240 V AC, 50-60 Hz, 20 W |
| Connector type | F-Female (75Ω) and N-Female (50Ω) |
| Cable type | RG11 (75Ω) and Wilson400 (50Ω) |
| FCC notice |
Read full notice Collapse notice
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and
have your provider's consent. Most wireless providers consent to the use of signal boosters. Some
providers may not consent to the use of this device on their network. If you are unsure, contact your
provider. You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease
operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using
this device. Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and
more than 90 regional carriers have given blanket consent for use of all boosters certified to the new
FCC standards.
|
| CA Prop 65 Warning |
Read full warning Collapse warning |
