Description

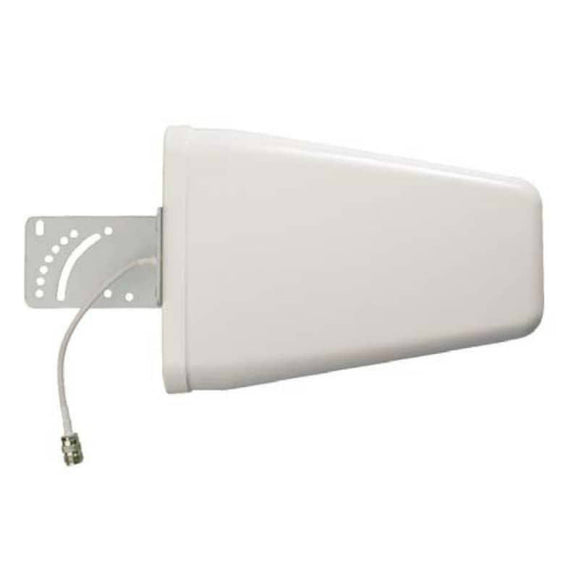

The Wilson Electronics Wide-Band Directional Antennas (314411, 314475) are 11.4 inch Yagi antennas with 8-10 dBi of gain that support frequencies of 700MHz - 2700MHz. They are wide-band antennas, ideally suited for use with any of the weBoost and Wilson building amplifiers.
The higher gain of this directional antenna would greatly improve the performance of these amplifiers compared to other antennas. The sealed housing is UV stabilized ABS plastic and is fully weather-proof.
These two antennas are an updated version of the previously models which used part numbers 304411 (50 ohm - N-Female Connector) and 304475 (75 ohm - F-Female Connector).
Installation
The Wilson Electronics Wide-Band Directional Antennas (314411, 314475) are a directional antenna. Directional antennas need to be pointed towards the nearest cell tower for the best results. As this is a multi-band antenna you will need to confirm that all of the towers for the networks you wish to improve are in the same direction.
Mounting Details

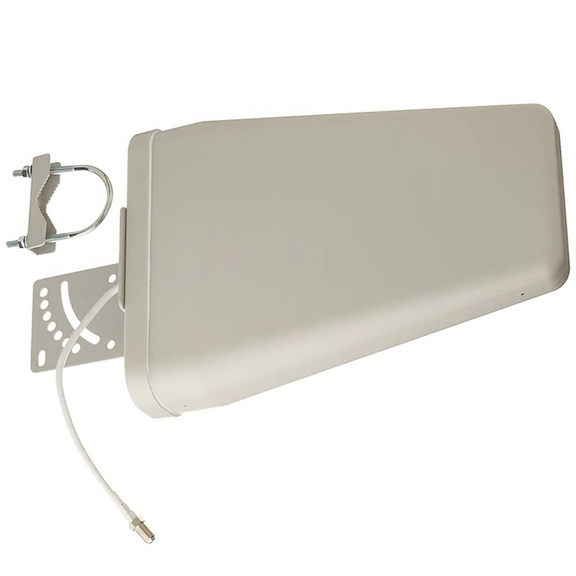

Both antenna options include mounting equipment to attach to a pole up to 2in in diameter. The pole is not included.
Product Options
There are 2 different versions of this antenna, depending on which system you currently have. If you are unsure which antenna is best suited for your system please contact us and we can help.
- 50 ohm - N-Female Connector (314411). For 50 ohm systems only.
- 75 ohm - F-Female Connector (314475). For 75 ohm systems only.
Warranty
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| UPC |
|
| Weight | 3.31 lbs |
| Dimensions | 11.42" L |
| Frequency | 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155 |
| Gain | 7.3/8.1/7.4/9.2/10.6/10.4 dBi |
| Impedance | 50 ohm |
| Connector type | N Female |
