A lightning surge protector protects your cellular amplifier system in case lightning strikes the donor antenna. A lightning surge protector is highly recommended anytime the system's donor antenna is installed outdoors.

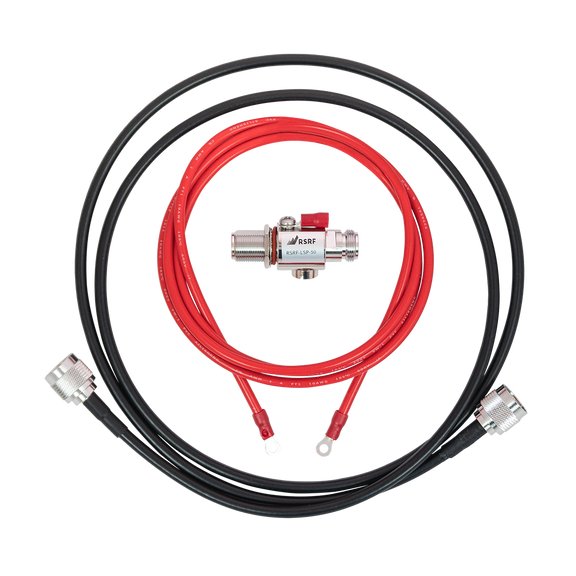

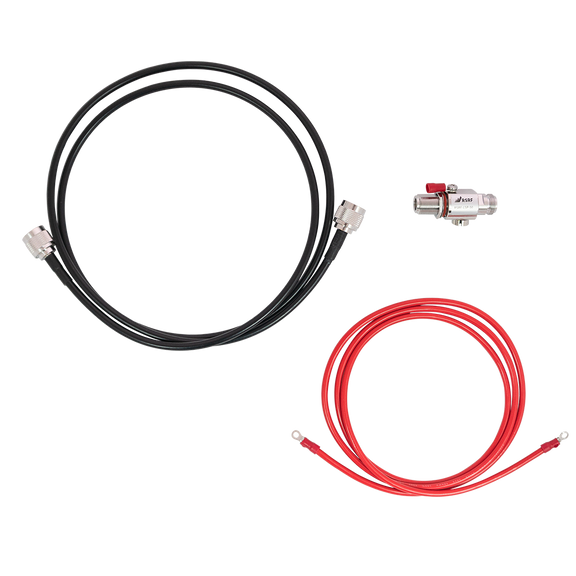

This protector is for 50 Ohm signal booster systems, which typically utilize N-type connectors. This Lightning Surge Protector kit includes a 5' RS200 jumper cable with N-Male connectors and a 5' copper grounding wire with ring terminals.
Please see our detailed guide to grounding and using a Lightning Surge Protector here.
Installing a Lightning Surge Protector
Your lightning surge protector should be connected to the ground using solid copper grounding wire. It should be installed outdoors, between the amplifier and the outdoor antenna.
According to the National Electric Code (NEC), a surge protector should be installed as near as possible to the point where the cable enters the house, but not near combustible materials. Since many attic crawl spaces contain combustible material, we suggest installing the surge protector outside the building, near the point of entry. We have included a 5' jumper cable in case the cable needs to be crimped to accommodate this.
Grounding the Antenna Mast
The NEC also requires grounding the antenna mast. Tall antenna masts are a prime target for lightning strikes because of their height and tendency to accumulate static electricity. This kit includes a grounding cable to ground your lightning surge protector to your antenna mast. You should additionally ground your antenna mast using 8 AWG or higher ground wire.
If your antenna mast is painted, you should make sure that you scrape off any paint before attaching this grounding wire.

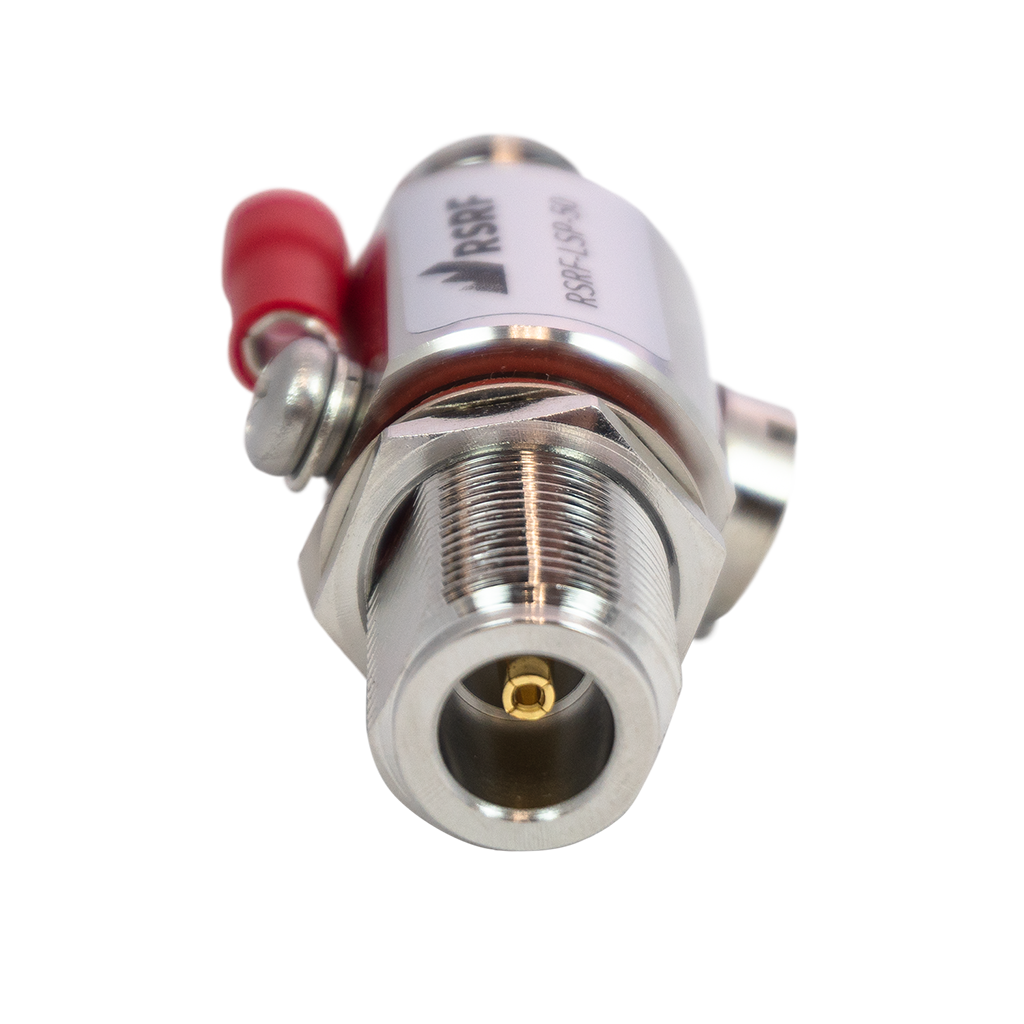

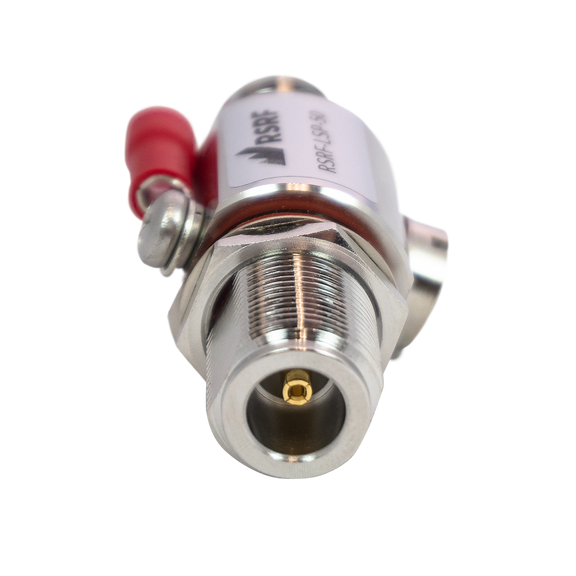

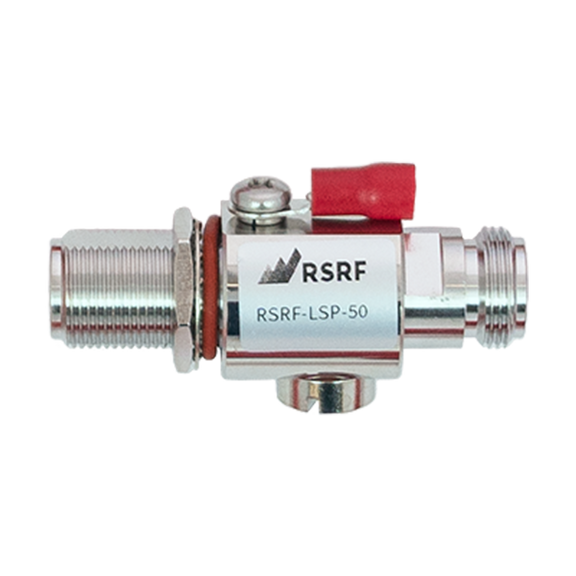

- 50 Ohm N-FemaleLightning Surge Protector, DC - 6GHz

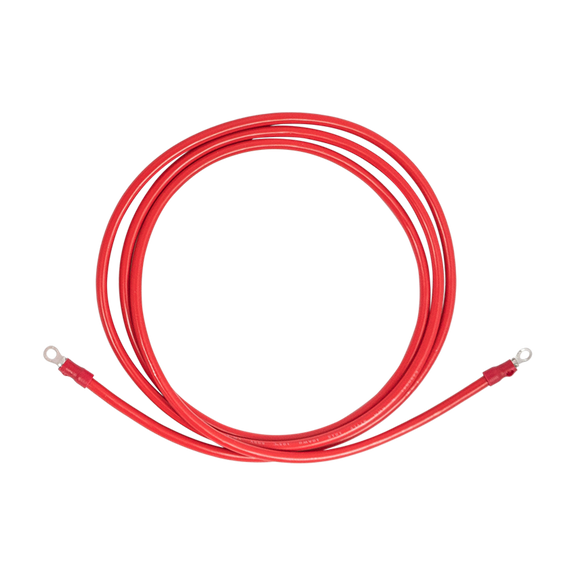

- 5 ft copper ground wire with ring terminals

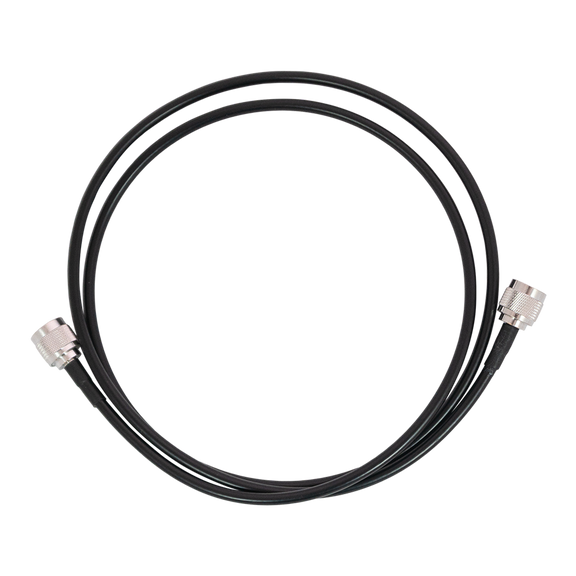

- 5 ft RS200 jumper cable with N-male connectors
- Impedance: 50 Ohm
- Frequency Range: DC - 6GHz
- VSWR: < 1.20
- Insertion Loss: ≤ 0.5 dB
- Maximum Impulse Discharge Current (8/20 μs): 20 KA, 2000 J
- N-Female to N-Female Bulkhead Connector
- Copper Ground Wire:
- Gauge: 10 AWG
- Length: 5 ft
- Ring Terminal Diameter: 4 mm
- RS200 Jumper Cable:
- Cable Type: N-Type
- Insertion Loss: < 0.75 dB
- Length: 5 ft
- Connector Type: N-Male to N-Male
Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.
Read more about Waveform's industry-leading warranty policy here.
