CEL-FI QUATRA 4000i (Part 90) Signal Booster System

by: Cel-Fi

Product discontinued

The CEL-FI QUATRA 4000i (Part 90) Signal Booster System has been discontinued by the manufacturer.

Please check our Buyer Guide for our latest recommendations

by: Cel-Fi

CEL-FI QUATRA 4000i (Part 90) Signal Booster System

Description

The Cel-Fi QUATRA 4000i is an Industrial Grade Part 90 Class B signal booster system.

The QUATRA 4000i is a powerful active DAS hybrid system. It boosts 3G/4G/LTE voice and data on up to four bands simultaneously from four operators. It operates on bands 2, 4, 5, 12, 13, 25, 26, 30, 41, and 71.

Band Configurations Available:

AT&T Configurations:
Bands: 12&5, 12&25, 12&4, 12&2, 30&5, 30&25, 30&4, 30&2

Sprint Configurations:
Bands: 5&25, 5&2, 26&25, 26&2, 41&26, 41&25, 41&2, 41&5

T-Mobile Configurations:
Bands: 25&4, 25&12, 4&12, 4&71, 25&71, 2&4, 2&12, 2&71

Verizon Configurations:
Bands: 13&25, 13&4, 13&2

All Bands Supported:
2/4/5/12/13/25/26/30/41/71

The QUATRA 4000i is self-configuring and self-optimizing, offering the easiest installation in its class via the Cel-Fi WAVE Portal.

The Cel-Fi WAVE Platform is a cloud-based remote management platform that enables device management and maintenance of Cel-Fi systems. Key features of the WAVE platform include:

  • Cel-Fi device and asset management
  • Data modeling and reporting
  • Mobile and desktop applications. The WAVE mobile app facilitates ease of use on site
  • Globally trusted carrier-grade security
  • Alerts and alarms can be used as recommended settings or customized however users prefer.
  • The WAVE Platform portal can be accessed through the dashboard interface, or integrated via APIs.

There are two versions of the QUATRA 4000 available. The regular QUATRA 4000 offers up to 75,000 sq ft of coverage, but does not support Band 30 or Band 41 coverage. The QUATRA 4000i is the industrial version, which does support Band 30 and Band 41 coverage.

5 Significant Improvements To The QUATRA 4000i

1) 4 carriers are now supported

The QUATRA 4000i now supports AT&T, Verizon, T-Mobile, and Sprint.

2) Greater coverage and more downlink power

The Coverage Units (CUs) for the 4000i have increased downlink power (17 dBm), to maximise the coverage they support. While previous versions of the QUATRA system included four CUs, the QUATRA 4000i includes six, increasing coverage area by 50%.

3) Small cells

The QUATRA 4000i is the first QUATRA system to support small cells being overlaid. This greatly increases coverage options with carriers including Verizon.

4) Installer-friendly changes

The QUATRA 4000i has made a number of changes to make set-up more straightforward for integrators. The unit now has N-type connectors. The internal modem has a built-in SIM card slot for connectivity if there is no ethernet connection. The Coverage Unit's single N-type connector is ideal for a passive antenna design. Coaxial inputs are now one per carrier (previous generations used one per band, which could cause signal issues where two carriers shared the same band).

5) Band 41 support

The QUATRA 4000i is the first signal booster system that supports T-Mobile's new Band 41.

Coverage is provided via Power over Ethernet (PoE); this means that no separate power supply is needed for the Coverage Units. Dynamic gain control in the Network Unit ensures maximum gain and the best coverage at all times in changing RF environments, without any need for administrator intervention.

Elements

The standard QUATRA 4000i kit includes one Network Unit and six Coverage Units. Optional additional accessories are also available.

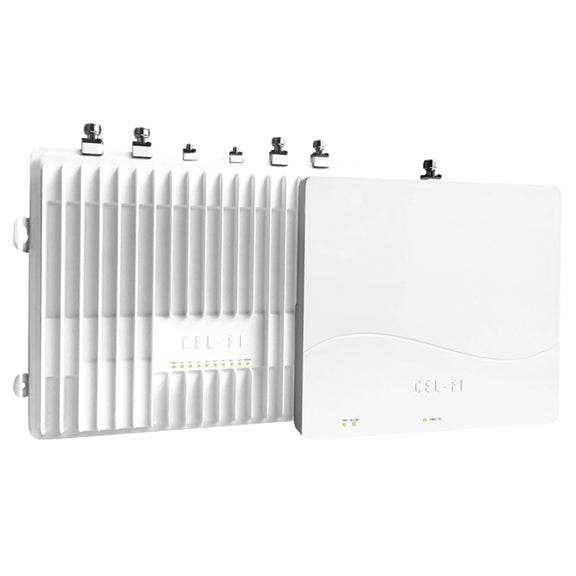

QUATRA 4000 Network Unit (NU)

The Cel-Fi QUATRA 4000 Network Unit (NU) is the hub of the system. The scalable design works with one to six Coverage Units to provide up to 75,000 sq ft. of coverage. The NU receives signal from the donor antenna and provides power to up to six Coverage Units. It can be managed by the WAVE Cloud Platform for Remote Monitoring. A standard kit includes one NU. The NU has an attractive metal case and weighs approx 8 lbs.

QUATRA 4000 Coverage Unit (CU)

The Cel-Fi QUATRA 4000 Coverage Unit (CU) is the remote radio head of the system that rebroadcasts the donor signal. Each CU provides coverage in the QUATRA 2000 system (up to six per Network Unit). Each CU is powered by Power-Over-Ethernet (POE) from the Network Unit. A standard kit includes six CUs.

Optional Accessories

QUATRA Range Extender (QRE)

The Cel-Fi QUATRA 4000 Range Extender is an optional accessory that extends the maximum distance between the NU and the CU. It allows NU-to-CU cable lengths of up to 200 meters (650 ft.) The QRE is a Power over Ethernet (PoE) device (no separate power supply or PoE injector needed).

Warranty

Cel-Fi warranties the GO X for 2 years, and Waveform warranties all of our antennas and RF components for 3 years.


Read more about Cel-Fi and Waveform's warranty policies here.
