Please note: This is an open-box part, and may have minor surface blemishes or scratches that don't impact performance. The product will contain all original parts and accessories, and can be returned within 90 days from receipt of the product for a full refund (not including any expedited shipping costs).

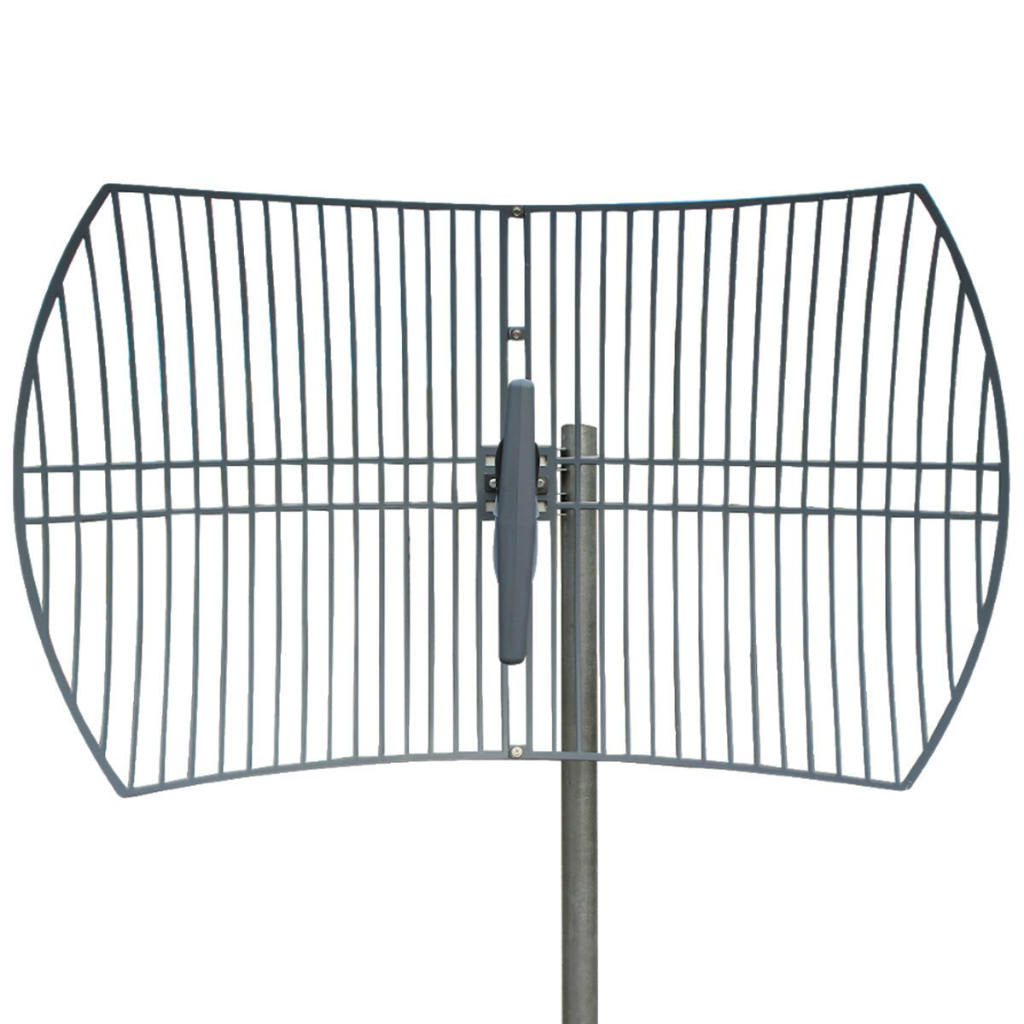

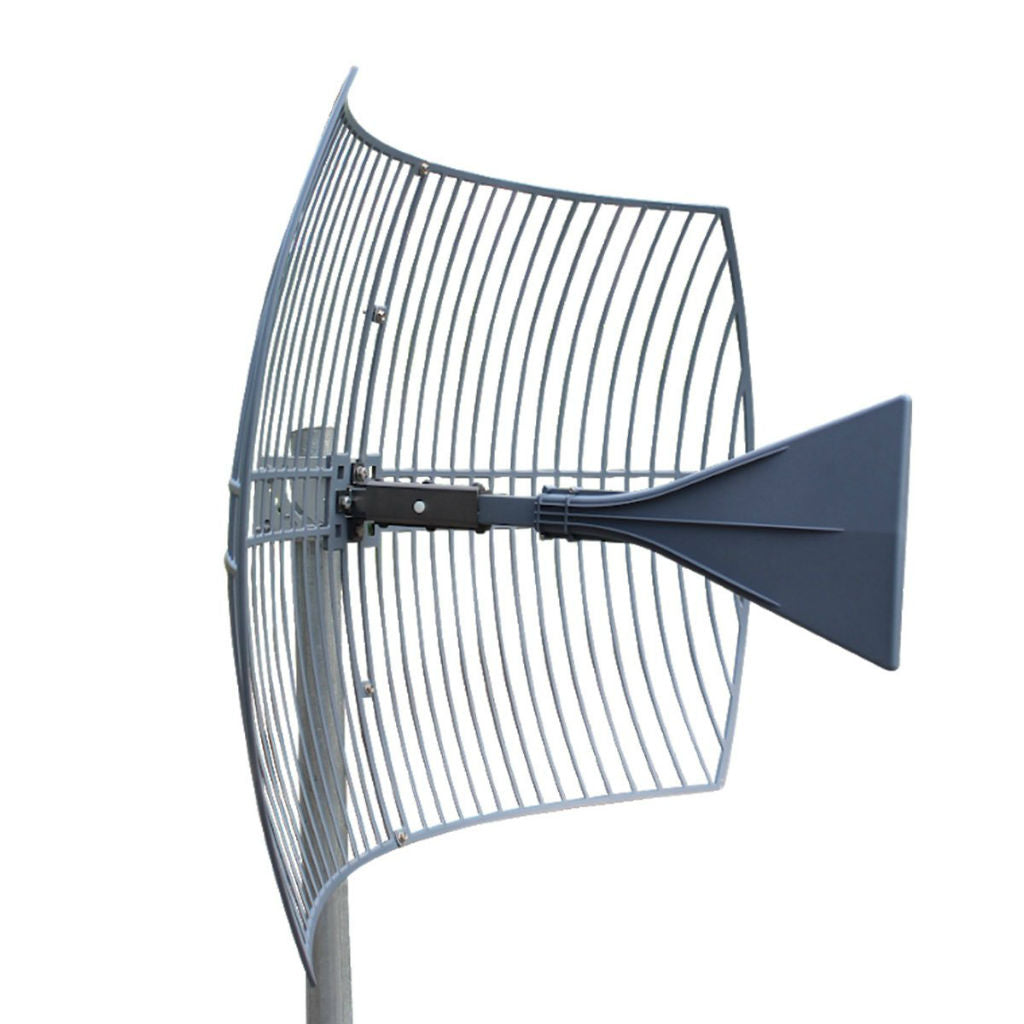

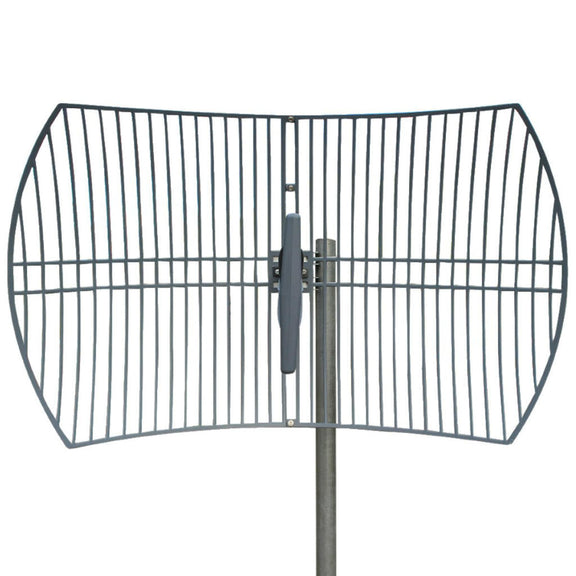

Griddy is an ultra wideband parabolic grid antenna that’s ready to help you get the most out of your LTE modem, booster, or WiFi device!
Have line of sight to your nearest cell tower or a distant WiFi access point? Great! Simply aim Griddy in that exact direction, and you’re all set!
High Gain and Highly Directional
Griddy adds up to 26 dBi of gain to your wireless connection, making weak signals considerably stronger and clearer
- 12-17 dBi at 600-960 MHz
- 20-23 dBi at 1700-2700 MHz
- 23-26 dBi at 3000-6500 MHz
You need line of sight to the cell tower or WiFi access point for Griddy to work well. Griddy’s super high gain means that any signal dispersion or reflection from trees or buildings will make Griddy much less effective.
Installing Griddy
As long as you’re handy, professional installation isn’t required. This antenna isn’t any more involved than any other kind of rooftop antenna to mount, but will take a bit of careful aiming to get dialed in.
We cannot state this enough, Griddy has a very, very narrow beam width. It only “sees” a very narrow horizontal and vertical aperture. To get the best results, you’ll want to move slowly to find the exact right direction. Even a 1-2 degree variance can make a huge difference.
Installation requires two 10mm wrench, socket or nutdrivers, or alternatively an adjustable wrench and/or pliers.
Griddy has N-Female connectors, measures 24 x 39 x 16 inches and is made of ASA anti-UV and aluminum. It is IPX weather rated and rated to a wind velocity of 130 mph.
Kit Contents
- 2x halves of the Grid Reflector
- 1x Feedhorn
- 1x Reinforced L-Bracket
- Assorted bolts, washers, and clamps
- Installation Guide
Warranty
Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.
Read more about Waveform's industry-leading warranty policy here.
This product
can expose you to chemicals including Nickel, which is known to the State of California to
cause cancer, and Bisphenol A, which is known to the State of California to cause birth
defects or other reproductive harm. For more information go to
If your device has SMA ports then they will typically be SMA female. In that case you can use this cable with N-connectors (waveform.com/products/rsrf-rs400-custom-cut-coaxial-cable?variant=45598989898) and this pigtail adapter (waveform.com/products/rsrf-sma-male-to-n-female-adapter). Though it will be device dependent.
If you are unsure at all, please reach out to us at [email protected] we love to help and will look at the problem in more detail to confirm we are recommending the right equipment.
Sincerely, your friends at Waveform
