Please note: This is an open-box part, and may have minor surface blemishes or scratches that don't impact performance. The product will contain all original parts and accessories and can be returned within 90 days from receipt of the product for a full refund (not including any expedited shipping costs).
Our Quad-RS240 30ft cables make it easier than ever to connect four outdoor antennas or a 4x4 MIMO Antenna to your LTE router, hotspot, or signal booster system. This cable assembly has four strands of low loss RS240 coaxial cable glued and sheathed, to minimize the bulk of running multiple cables, and make installation easier than ever.
Also included in the bundle are four SMA-Female to TS9-Male pigtail adapters, four SMA-Female to U.FL pigtail connectors, and four SMA-Male to N-Male connectors, to ensure you have everything you might need to connect almost any device.

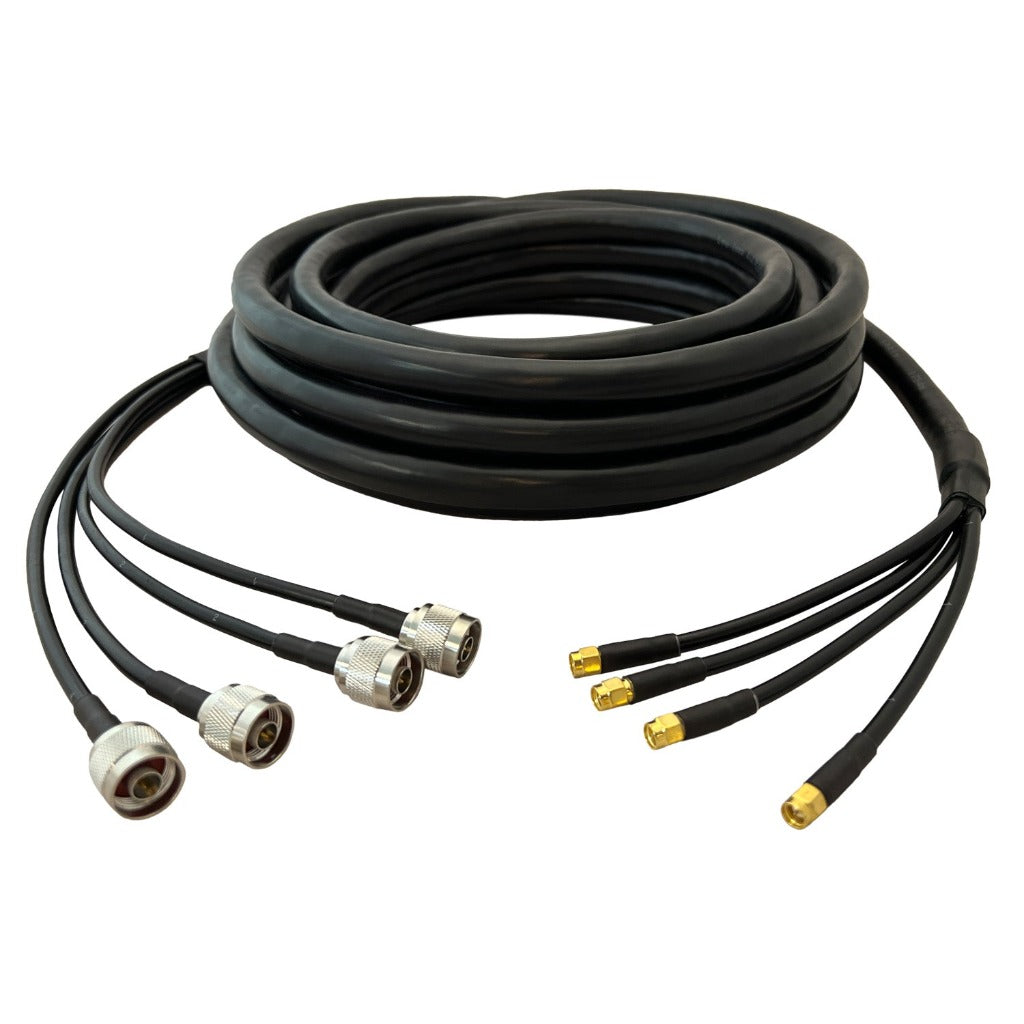

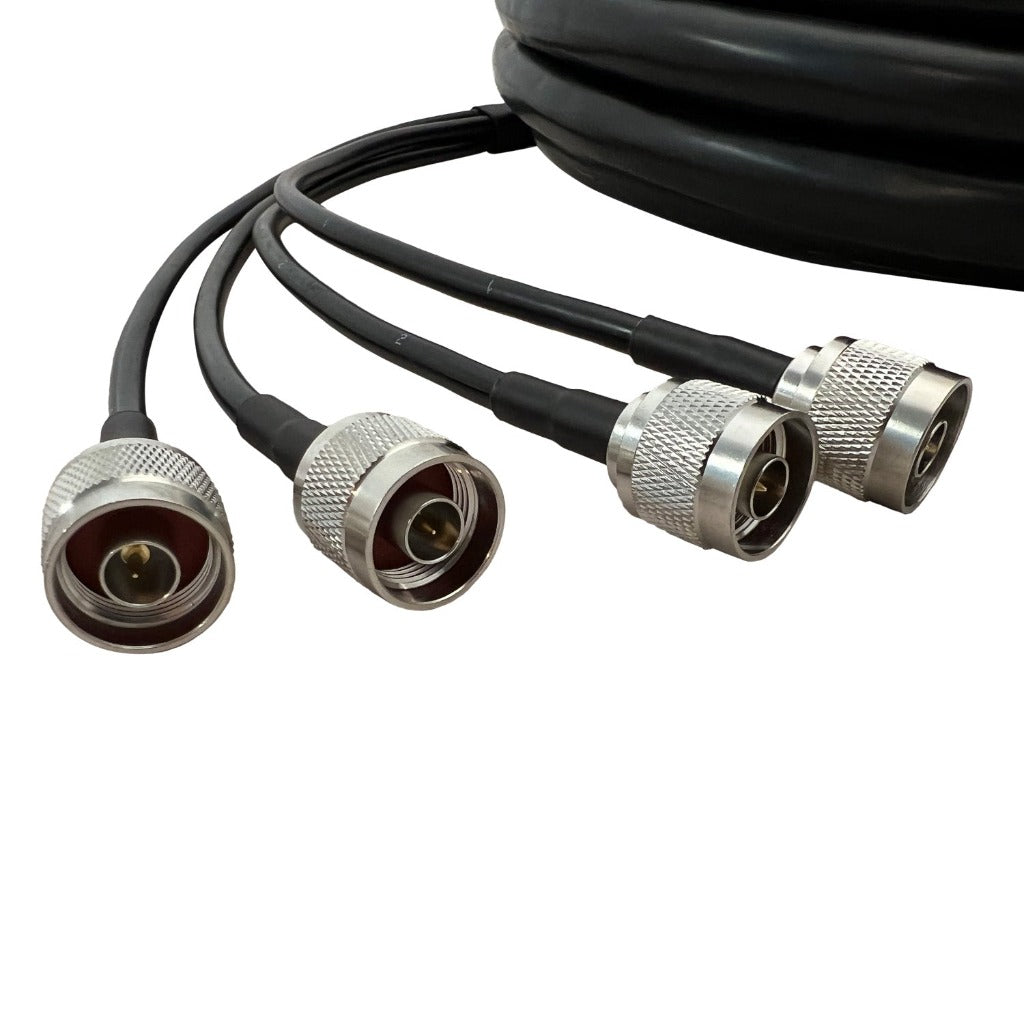

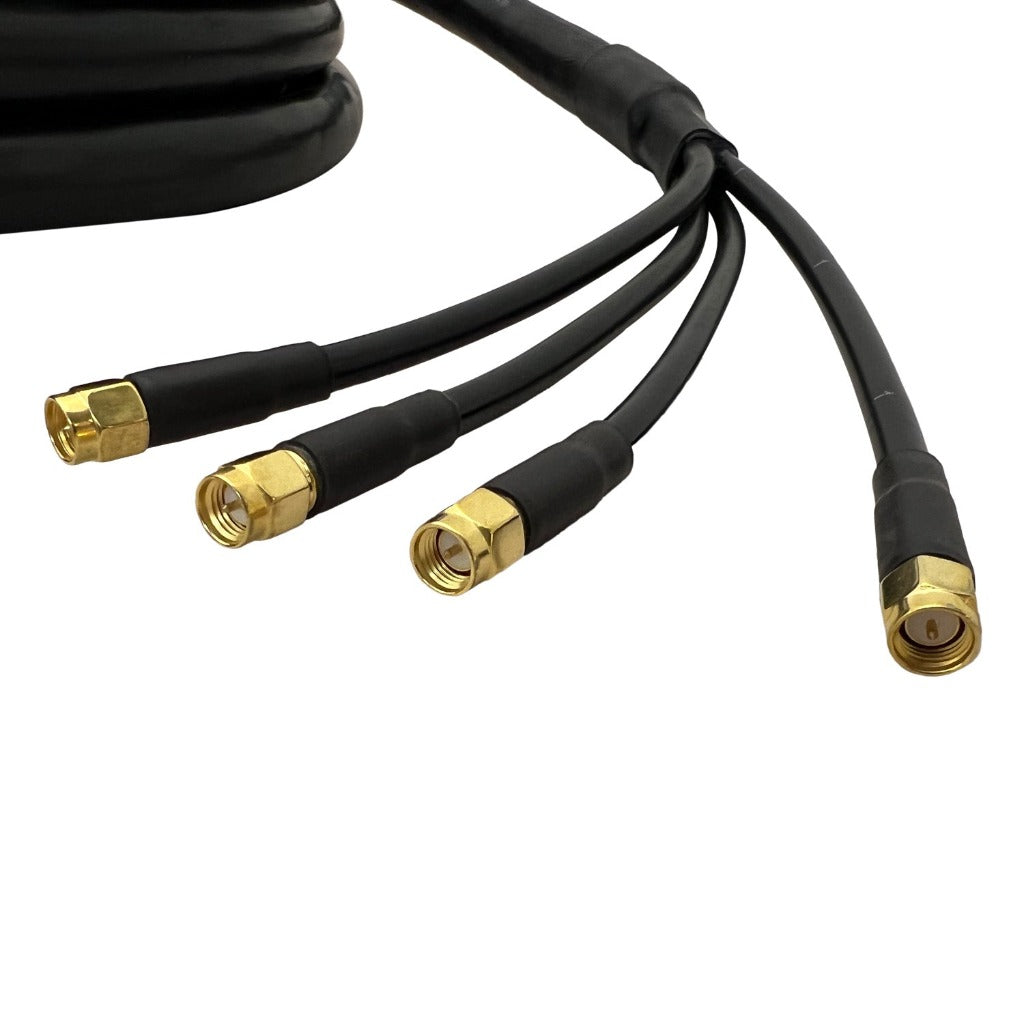

Our Quad-RS240 30 ft cable uses four SMA-Male connectors on the “indoor” end of the cable, and four N-Male connectors on the “outdoor” end. The small SMA connectors reduce the size of the hole needed and make wall penetration even easier.
We designed this cable to be the ideal solution for connecting 4x4 MIMO Outdoor Antennas to Hotspots and Boosters.
Flexible, Durable & Low Loss
RS240 is a flexible, weatherproof, low-loss, high-performance cable that features a durable polyethylene jacket that makes it suitable for outdoor and indoor use. Applications include use with LTE routers and MIMO antennas, signal boosters, and distributed antenna systems, as well as for WiFi, WLAN, Land Mobile Radio, and GPS.
Quad-RS240 Cable Specifications
See spec sheet for full specifications, attenuation figures, and diagrams.
- 4x N-Male to 2x SMA-Male connectors
- 9.2 m (30 ft) cable, 6.1 mm diameter per strand, four strands with 24.4 mm total diameter
- 50 Ohm impedance
- 1.8 dB loss per 30 ft at 600 MHz
- Gold-plated bronze center conductor, PTFE dielectric, and a black PE jacket.
- > 90 dB shielding, 5.6 kW peak power rating, VSWR rated below 1.2 for use at frequencies of up to 6 GHz.
- UV Rated
RS240 is an equivalent replacement for LMR240 type cable. If you think you might need a cable with even lower loss, we also sell RS400 and RS600 Ultra Low Loss Cable. Get in touch with our team if you’re unsure what cable you should use for your application.

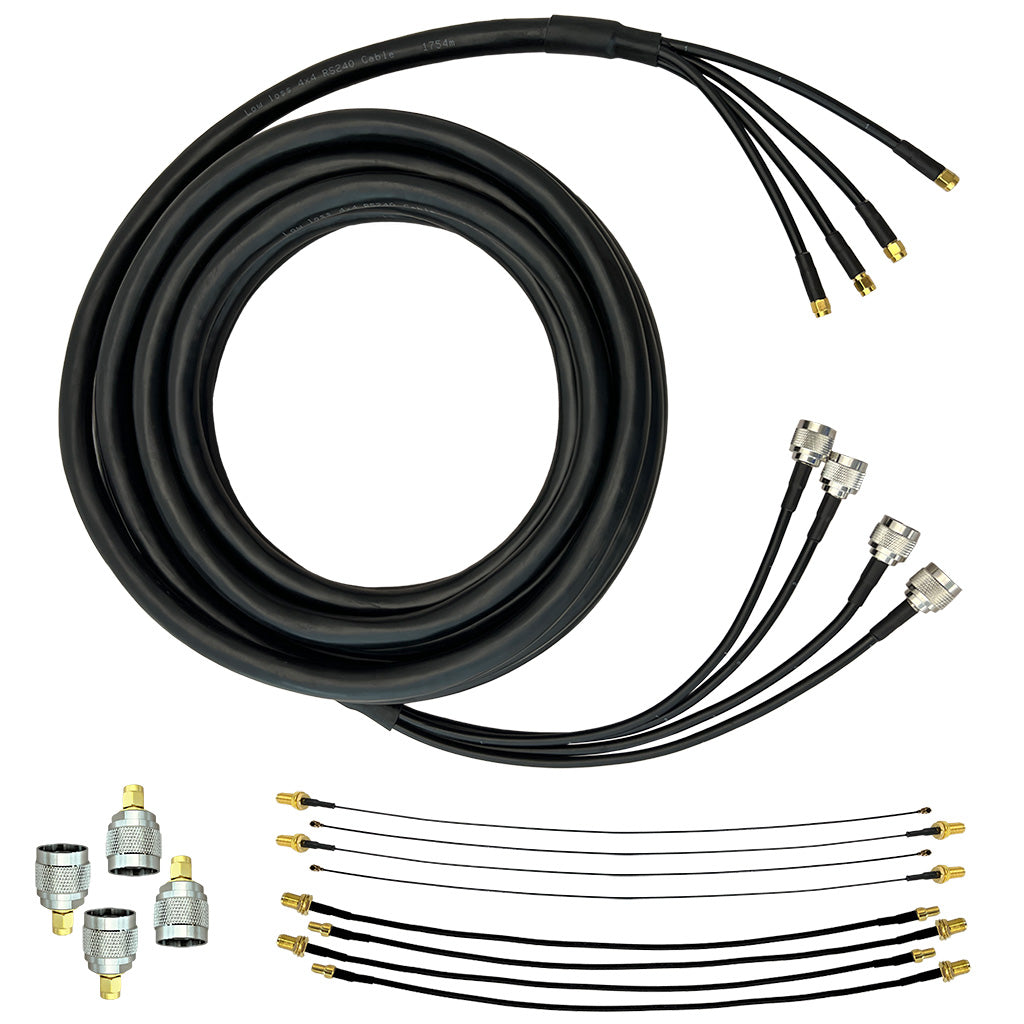

- 1x Open Box 30ft Quad RS240 N-Male to SMA-Male Coaxial Cable
- 4x Open Box TS9-Male to SMA-Female Adapters

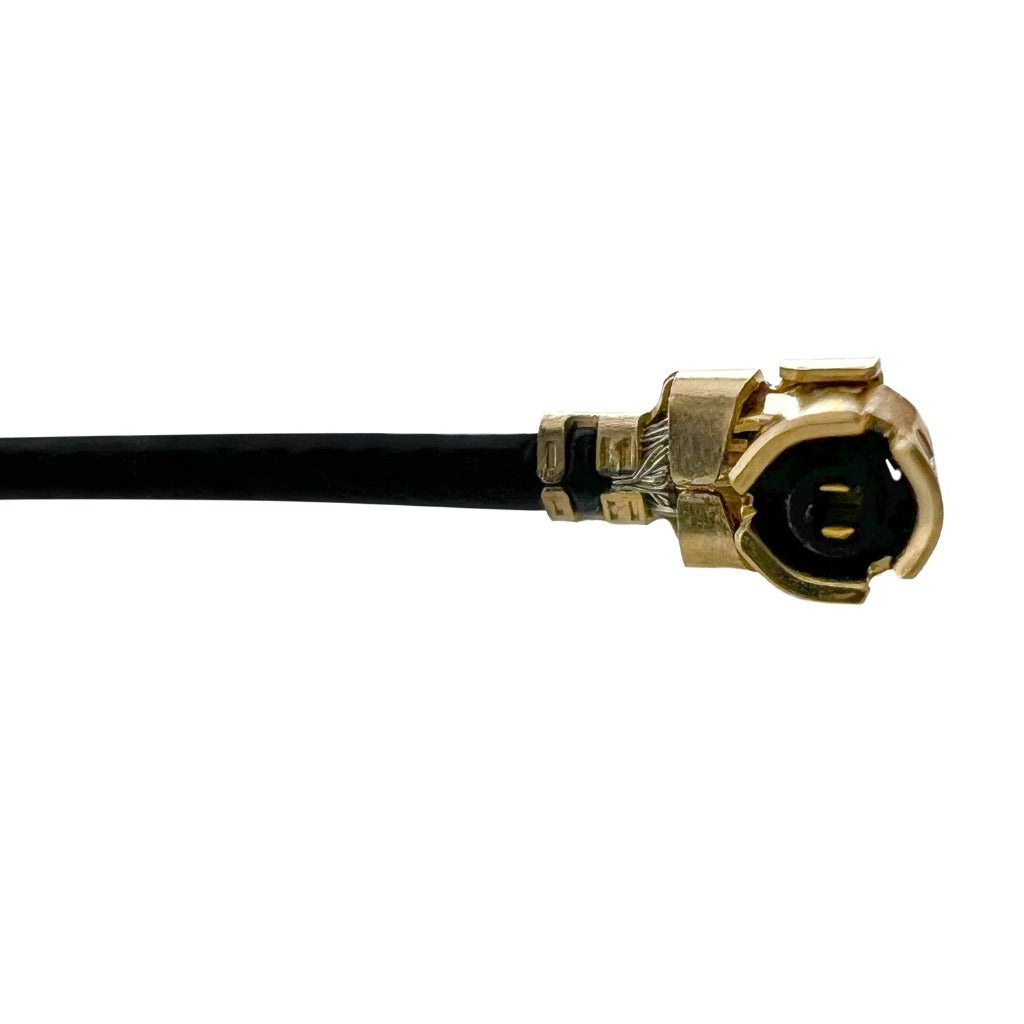

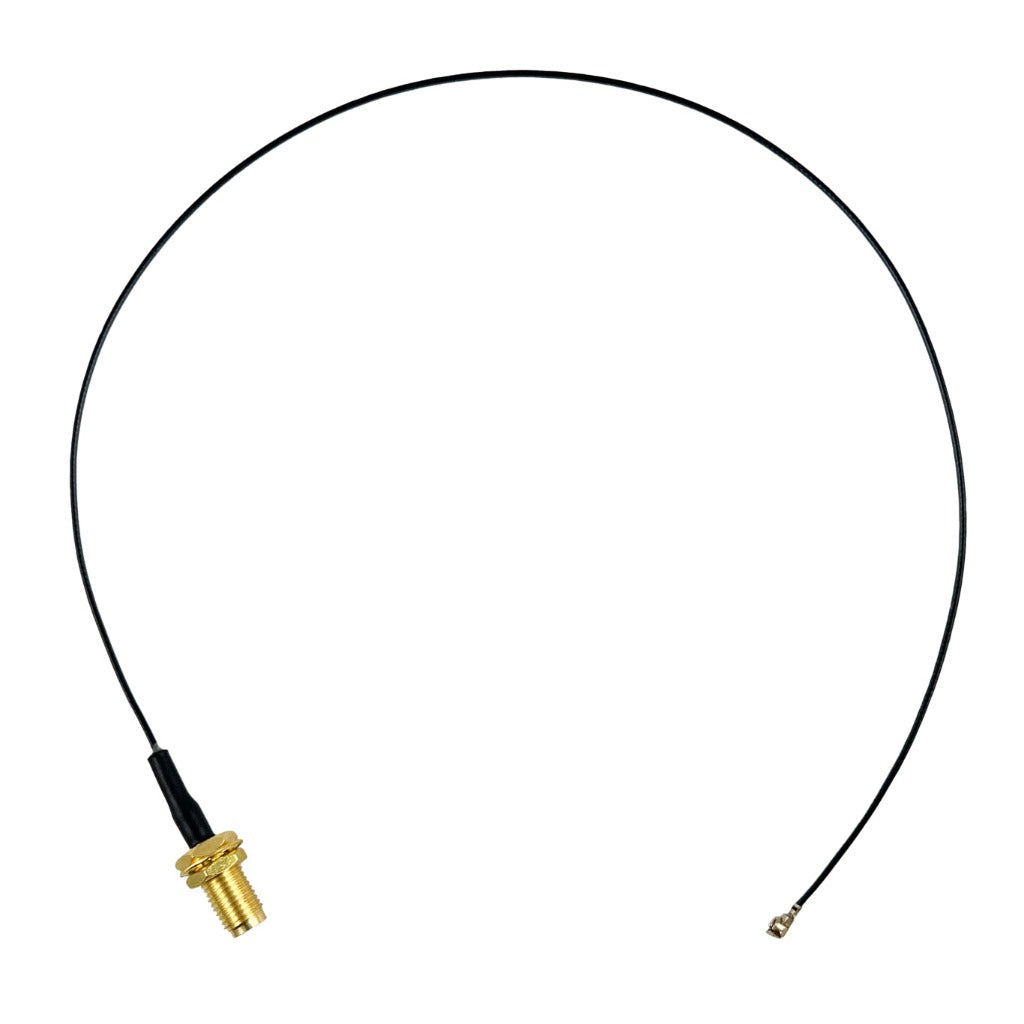

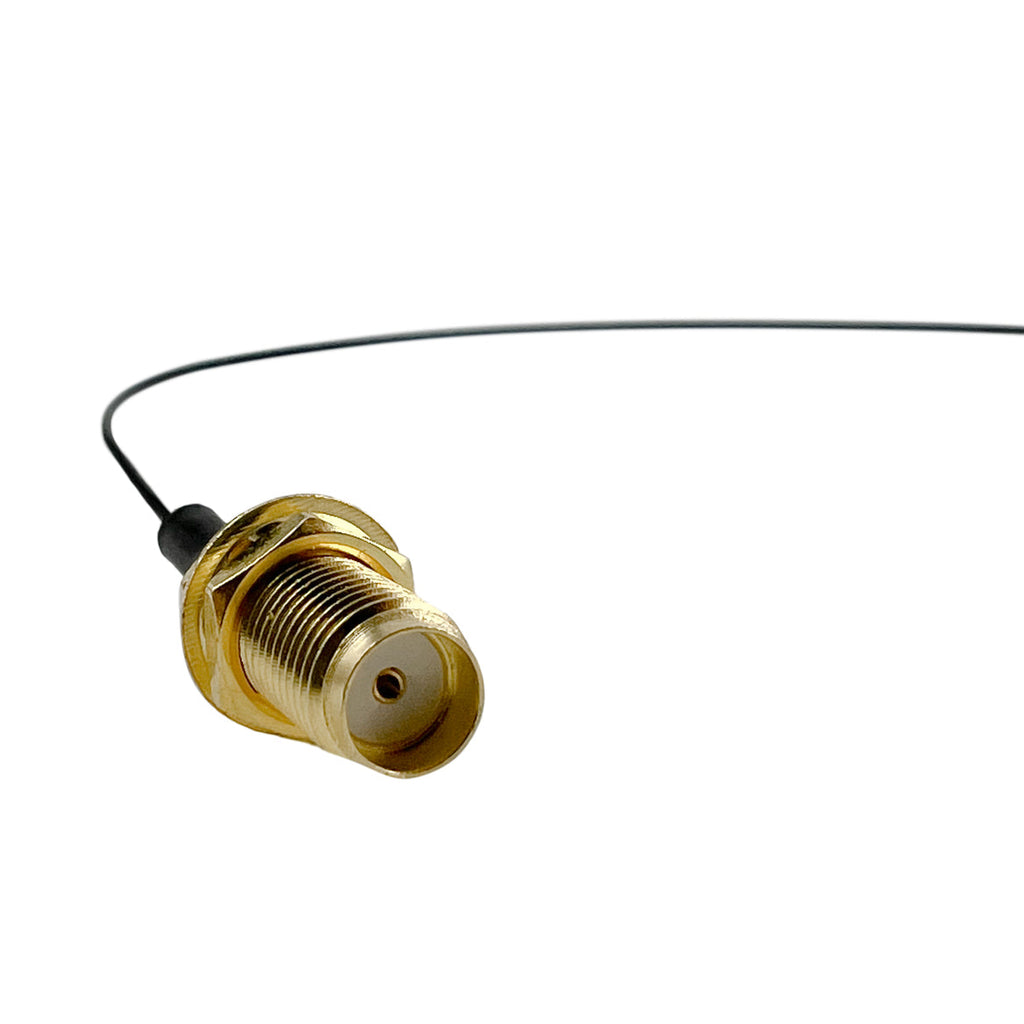

- 4x Open Box U.FL to SMA-Female Pigtail Adapters

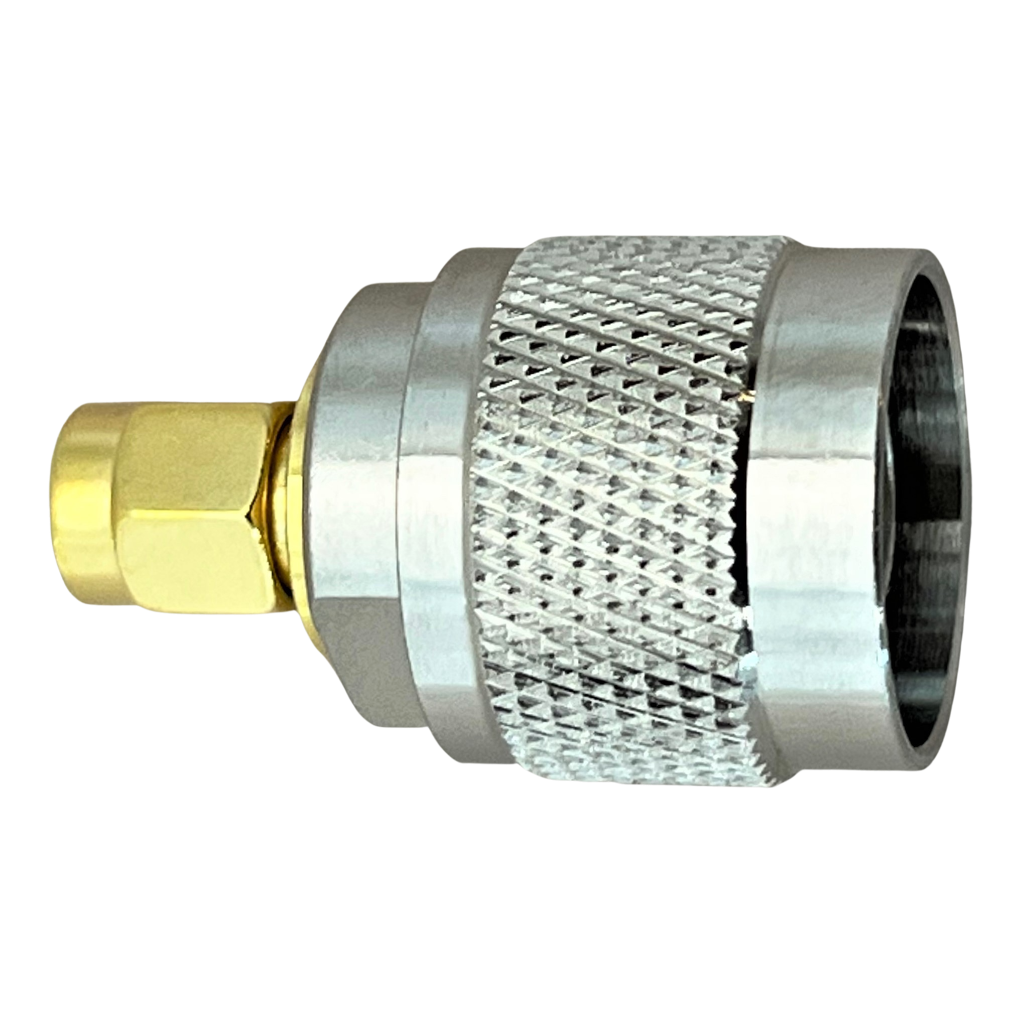

- 4x Open Box N-Male to SMA-Male Barrel Adapters

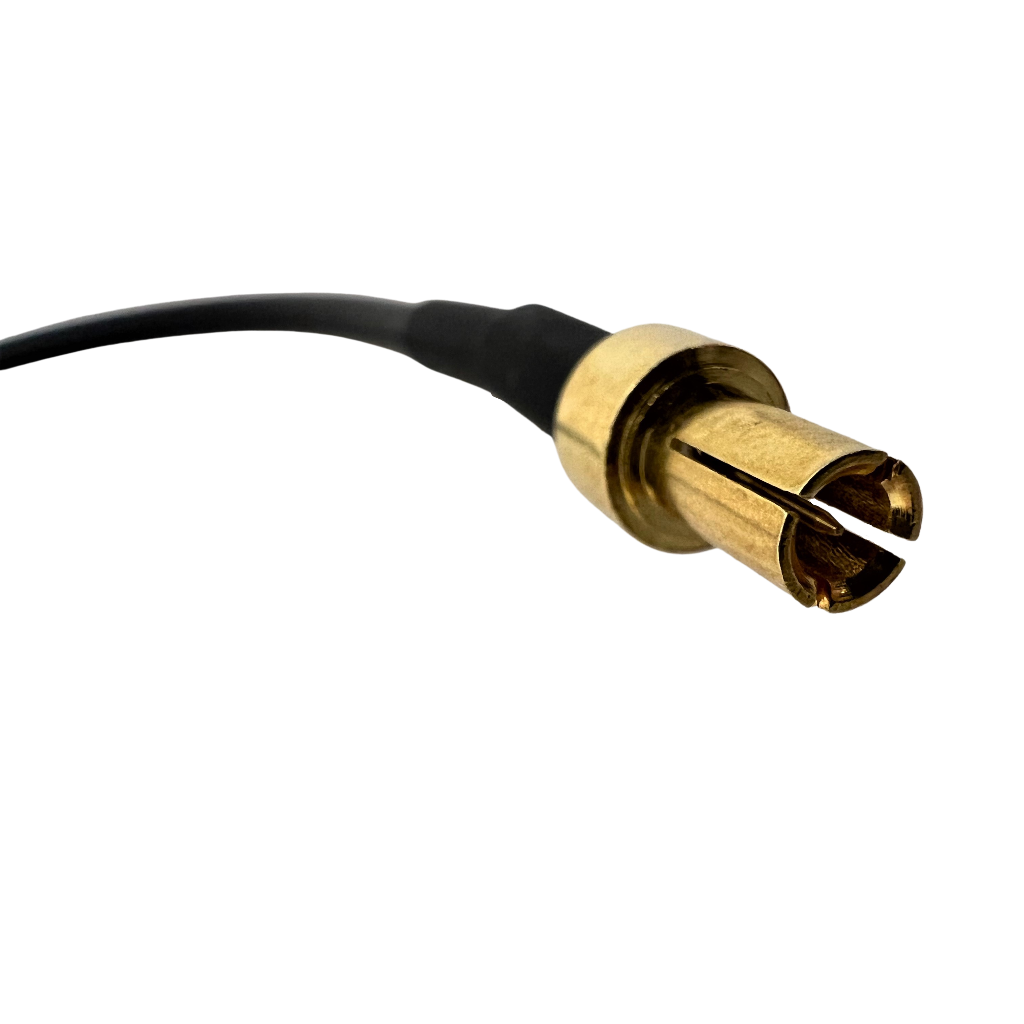

Important note about TS9 Connectors:
TS9 is unfortunately not a standardized connector. TS9 ports on different routers are all slightly different lengths. They also don’t have any physical “coupling”, so it can be difficult to get a good fit. We tested a lot of designs to find one that worked well with every device. Unfortunately, it’s not perfect for any one device. If yours become a bit lose, simply squeeze them lightly with your fingers and they will grip more firmly.
