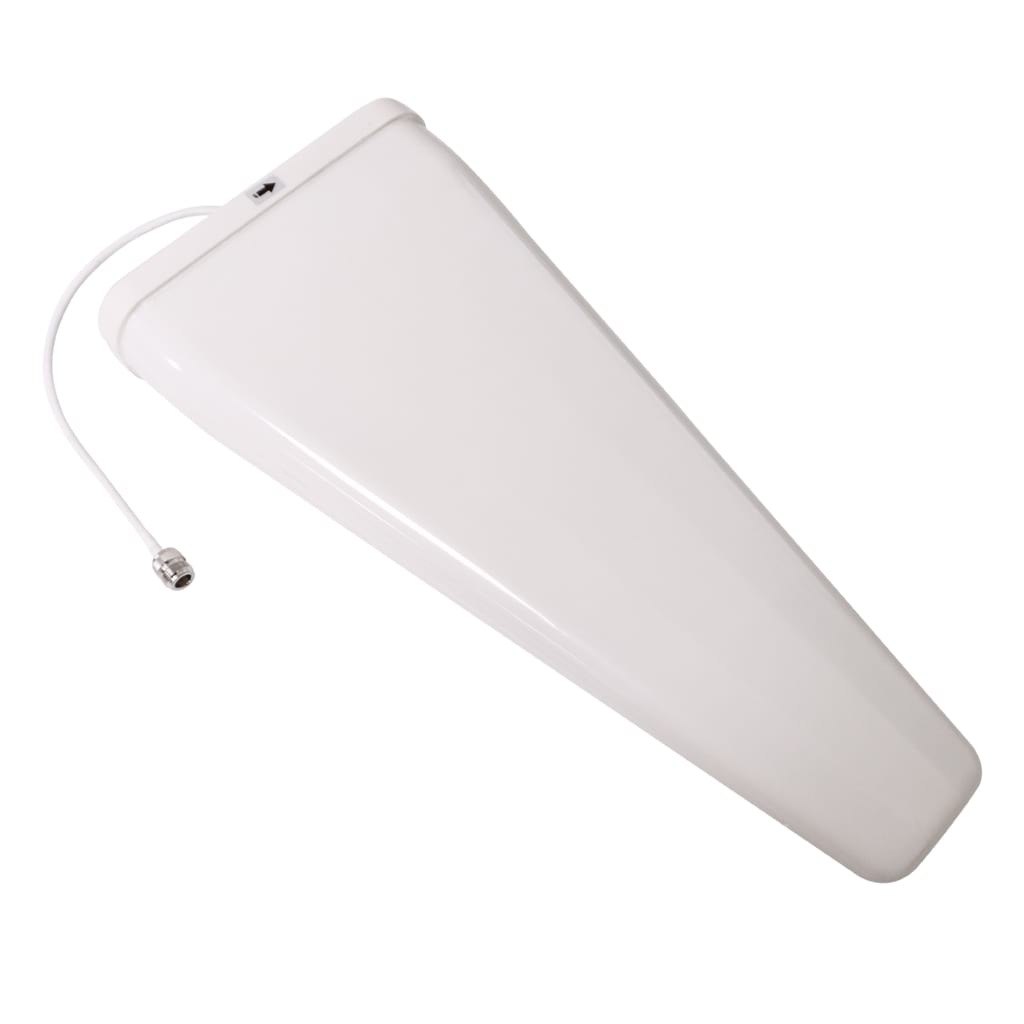

The Waveform Wideband Log Periodic Outdoor Antenna is a high gain directional antenna. It offers 10 - 11 dB of gain across all wireless frequencies (Voice/3G/4G/AWS/WLAN) from 600 MHz up to 6000 MHz.

The antenna is made of white ABS plastic. It measures 440 × 205 × 60mm.

The Waveform Wideband Directional Antenna needs to be set up pointing in the direction of the cell tower. We recommend it for situations where existing outside signal is weak, and you only want to boost coverage for one carrier (or if more than one carrier has a cell tower in that direction).

If you need to boost signal coming from different directions, it is possible to set up more than one log periodic antenna. Contact us for more help with this.

This cross-polarized antenna is also available as part of a kit including coax cables, surge protectors, adapters, and an antenna mount here: MIMO 2x2 Log Periodic External Antenna Kit and MIMO 4x4 Log Periodic External Antenna Kit for 4G LTE/5G Hotspots & Routers.

Due to the pole-mount included with this antenna, it is not suitable for indoor use.

Features

• Up to 11 dBi gain between 1710 and 6000 MHz, 9 dBi gain between 698 and 960 MHz, and 6 dBi gain between 600 MHz and 698 MHz.
• N-Type Female connector

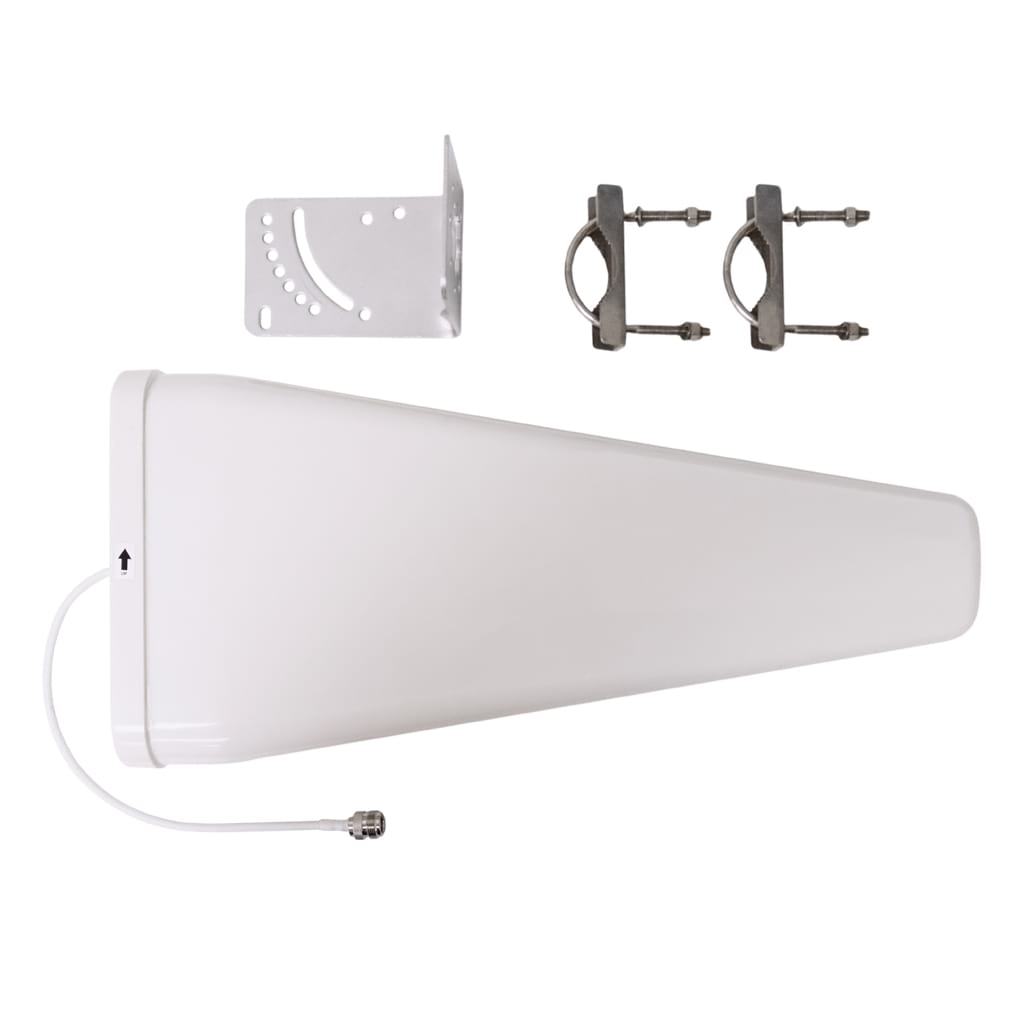

• Includes pole-mounting hardware

Frequency bands support

Our wideband log-periodic antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:

Supports all 4G LTE and 5G bands between 600 and 6000 MHz, including:

• AT&T: B2/n2, B4, B5/n5, B12, B17, B29, B30, B46, B66/n66, n77
• Verizon: B2/n2, B4, B5/n5, B13, B46, B48/n48, B66/n66, n77
• T-Mobile: B2, B4, B5, B12, B25, B26, B41/n41, B46, B66, B71/n71, n77
• Private 4G LTE and 5G: CBRS, B48/n48

All supported US Frequency Bands:

• Band 2 (1900 MHz)
• Band 4 (1700/2100 MHz)
• Band 5 (850 MHz)
• Band 12 (700 MHz)
• Band 13 (700 MHz)
• Band 14 (700 MHz)
• Band 17 (700 MHz)
• Band 25 (1900 MHz)
• Band 26 (850 MHz)
• Band 29 (700 MHz)
• Band 30 (2100 MHz)
• Band 46 (5200 MHz)
• Band 48 (3500 MHz)
• Band 66 (2100 MHz)
• Band 71 (600 MHz)
• Band 77 (3700 MHz)

All supported LTE Bands: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B14, B17, B18, B19, B20, B21, B22, B25, B26, B28, B29, B30, B32, B34, B37, B38, B39, B40, B41, B42, B43, B46, B47, B48, B50, B51, B53, B65, B66, B67, B69, B70, B71, B74, B75, B76, B85, B103, B106

All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n65, n66, n67, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n96, n97, n98, n99, n100, n101, n102, n105

Warranty

Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.

Read more about Waveform's industry-leading warranty policy here.
