Description
If your LTE or 5G router supports 4x4 MIMO external antennas, and you're looking to get the absolute best data rates, using 4x4 cross-polarized MIMO external antennas is often the best option.
Our MIMO Log Periodic 11 dBi Hotspot/Router External Antenna kit for 4G LTE/5G Hotspots & Routers includes everything you need, including the adapters necessary to connect the four MIMO antennas to your hotspot or LTE router.
Our Log Periodic antennas offer up to 11 dBi gain between 1710 and 6000 MHz, and 10 dBi gain between 600 MHz and 900 MHz.
These directional antennas are also sometimes referred to as "yagi antennas", but they are technically called log periodic antennas.
Including Our Ultra-Flexible Twin-RS240 Cables
Our Twin-RS240 30ft cables make it easier than ever to connect your 4x4 MIMO Antenna to your LTE router, hotspot, or signal booster system. This cable assembly has four strands of low loss RS240 coaxial cable glued and sheathed, with SMA-Male connectors on the "indoor" end, to minimize the bulk of running multiple cables and make installation easier than ever.
Also included in the bundle are four SMA-Female to TS9-Male pigtail adapters, four SMA-Female to U.FL pigtail connectors, and four SMA-Male to N-Male connectors, to ensure you have everything you might need to connect almost any device.
Looking to extend your cables for a longer cable run? You can rely on our custom-cut SMA extension cables, available in various lengths to suit your needs. Please note that these cables are sold individually, so ensure that you purchase four cables to complete your setup.
MIMO Panel vs MIMO Log Periodic
We also sell a 4x4 Waveform QuadPro MIMO Antenna Kit for Hotspots/Routers that is very similar to this kit but uses a single MIMO Panel Antenna that makes installation easier, but has less gain. We recommend using the Waveform QuadPro Antenna Kit if you're surrounded by trees, buildings, or hills. If you have line-of-sight to your nearest cell towers, this MIMO Log Periodic Antenna Kit will likely perform somewhat better than the Waveform QuadPro.
Choosing Between 4x4 MIMO and 2x2 MIMO
Installing external MIMO antennas is all about maximizing your data speeds. Different routers and hotspots have different configurations for external antenna ports.
Most hotspots, like the Netgear Nighthawk M1 and Verizon Jetpack 8800L will have two antenna ports, while some of the more advanced routers like the T-Mobile 5G Gateway and the MoFi 5500 often have four ports.
Our MIMO External Antenna Kits are available in both 4x4 MIMO and 2x2 MIMO configurations, with 4 and 2 antenna elements respectively.
Which one you should pick depends entirely on the device you have. If your device has four antenna ports, then it's usually best to go with a 4x4 MIMO Antenna kit like the Waveform QuadPro 4x4, while if you're working with only two external antenna ports, then you'll want the 2x2 MIMO Antenna Kit.

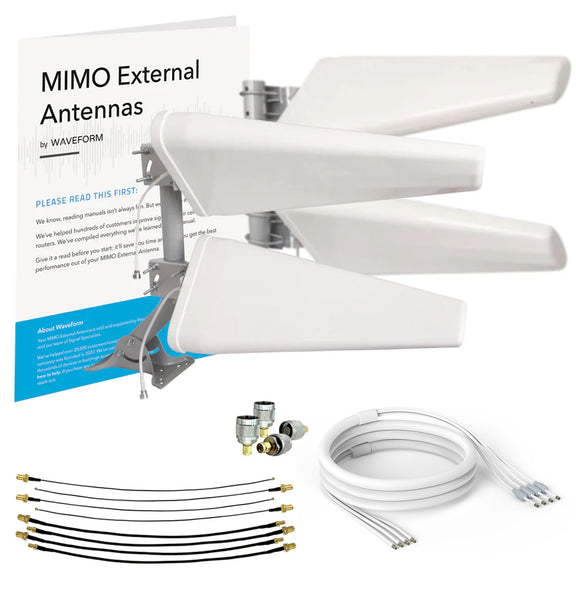

Kit Contents
- 4x Wideband 600 - 6000 MHz Log Periodic Antenna including pole-mount hardware
- 2x Twin-RS240 30 ft N-Male to SMA-Male Cable bundle
- 2x 30ft Twin-RS240 N-Male to SMA-Male Coaxial Cable
- 4x TS9-Male to SMA-Female Adapters
- 4x U.FL to SMA-Female Pigtail Adapters
- 4x N-Male to SMA-Male Barrel Adapters
- 2x Waveform UltraPole (Base Kit)
- Optional: 4x Lightning Surge Protector Kit including 5 ft RS240 cable and grounding cable
- User manual
Kit Options
Lightning Surge Protectors

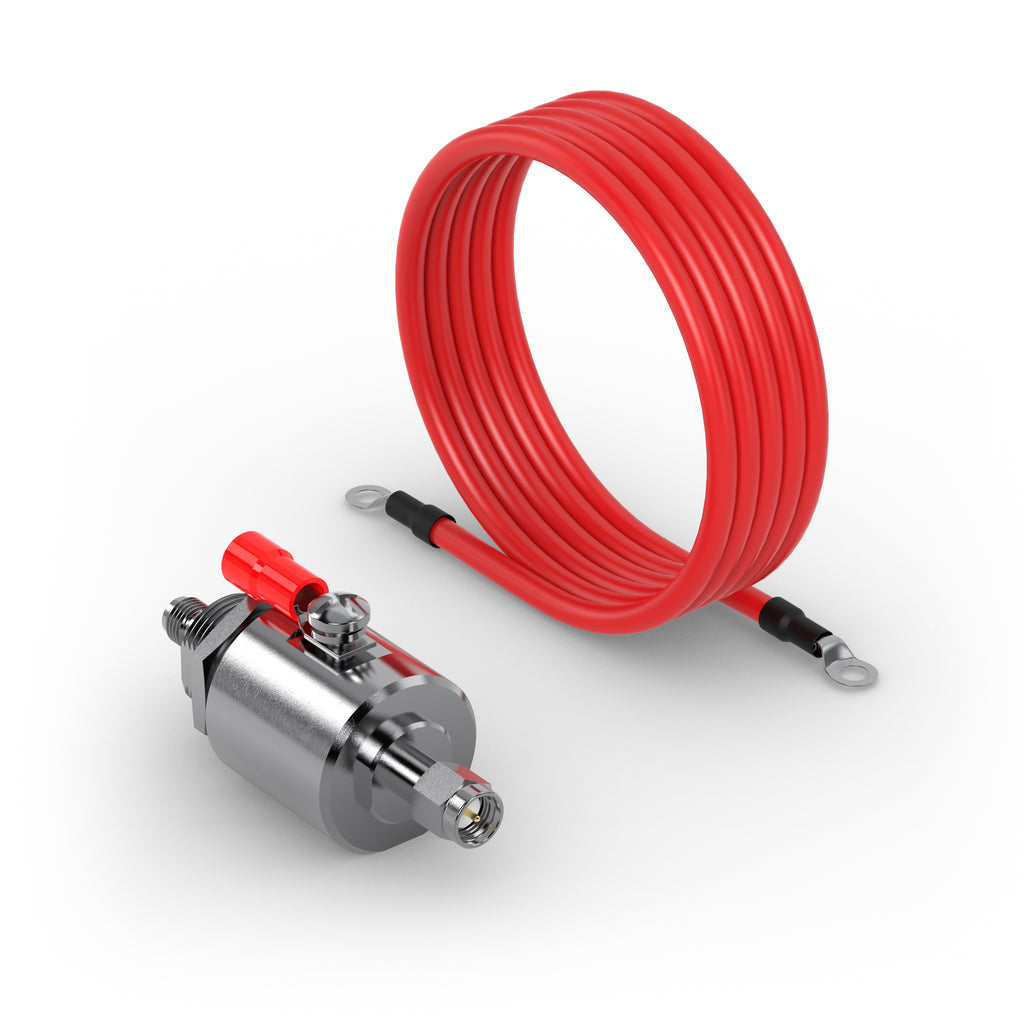

We highly recommend using our Waveform Lightning Surge Protector Kits to protect your hotspot or 4G LTE/5G router from electrical surges due to lightning. Our Lightning Surge Protector Kits each include a 5 ft RS240 Jumper Cable and a short length of grounding cable.
The surge protectors should be installed just before the coaxial cable enters the building. If you're unsure about grounding your outdoor antenna, We've got a guide on how to ground a rooftop antenna.
Optional Right-Angle Adapters for T-Mobile G4 Gateways
If you're using T-Mobile's new G4AR or G4SE gateways, we suggest using four of our Right Angle SMA Adapters, perfect for routing cables to downward facing ports or where space might be limited.
If you're unsure or need help, please reach out to our support team.
Our Detailed Guide for your Hotspot or 4G LTE/5G Router
Every hotspot and router is different, so we've written up detailed guides for some of the most common devices here.
Adapters and Connectors
Our Twin-RS240 coax cables have SMA-Male connectors on the "indoor" end. These are able to connect directly to most LTE routers, like the MoFi 5500, and Peplink Max BR1 Pro 5G, which make use of four SMA connectors.
Some devices without external antenna ports like the T-Mobile High Speed 5G Internet Gateway may have internal U.FL connectors.
We include both U.FL to SMA-Female and TS9-Male to SMA-Female adapters, which allow our MIMO antennas to be connected to almost any hotspot or LTE router.
If you're unsure of which adapter you need, how to connect it, or where to begin, we suggest reading our guide for your router, or referring to your user manual. We know, there's a lot of information out there and this can get very technical.
Don't be afraid to reach out to us for support at +1-800-761-3041, or at [email protected].
Frequency Bands Support
Our wideband 4x4 MIMO panel antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:
Supports all 4G LTE and 5G bands between 600 and 6000 MHz, including:
- AT&T: B2/n2, B4, B5/n5, B12, B17, B29, B30, B46, B66/n66, n77
- Verizon: B2/n2, B4, B5/n5, B13, B46, B48/n48, B66/n66, n77
- T-Mobile: B2, B4, B5, B12, B25, B26, B41/n41, B46, B66, B71/n71, n77
- Private 4G LTE and 5G: CBRS, B48/n48
All supported US Frequency Bands:
- Band 2 (1900 MHz)
- Band 4 (1700/2100 MHz)
- Band 5 (850 MHz)
- Band 12 (700 MHz)
- Band 13 (700 MHz)
- Band 14 (700 MHz)
- Band 17 (700 MHz)
- Band 25 (1900 MHz)
- Band 26 (850 MHz)
- Band 29 (700 MHz)
- Band 30 (2100 MHz)
- Band 46 (5200 MHz)
- Band 48 (3500 MHz)
- Band 66 (2100 MHz)
- Band 71 (600 MHz)
- Band 77 (3700 MHz)
All supported LTE Bands: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B14, B17, B18, B19, B20, B21, B22, B25, B26, B28, B29, B30, B32, B34, B37, B38, B39, B40, B41, B42, B43, B46, B47, B48, B50, B51, B53, B65, B66, B67, B69, B70, B71, B74, B75, B76, B85, B103, B106
All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n65, n66, n67, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n96, n97, n98, n99, n100, n101, n102, n105
Warranty
Specifications, Guides, and Downloads
SKU |
|
---|---|
UPC |
|
Gain | 10 - 11 dBi |
Impedance | 50 Ohm |
Connector type | N Female to SMA-Male/TS9-Male/U.FL |
Cable length | 30 ft |
Cable type | Quad-RS240 (LMR240 equivalent) |
