Dome Antenna with N-Female Connector, 600 - 6000 MHz
by: Waveform
by: Waveform
Dome Antenna with N-Female Connector, 600 - 6000 MHz
In stock.
Free, fast shipping on orders over $99
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
3 Year Warranty
Waveform products come with a 3 year manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

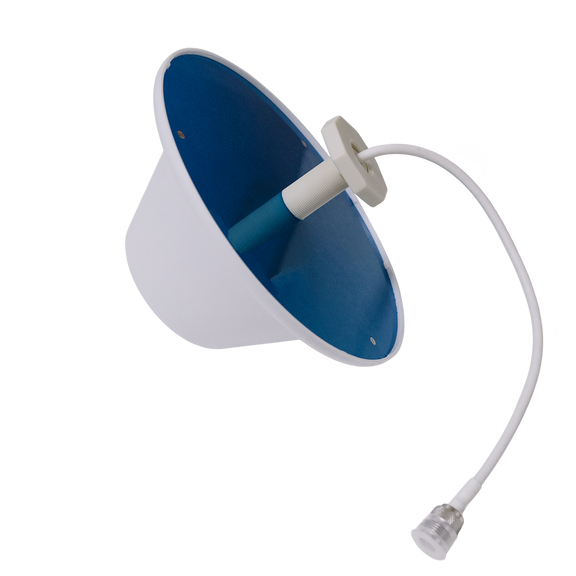

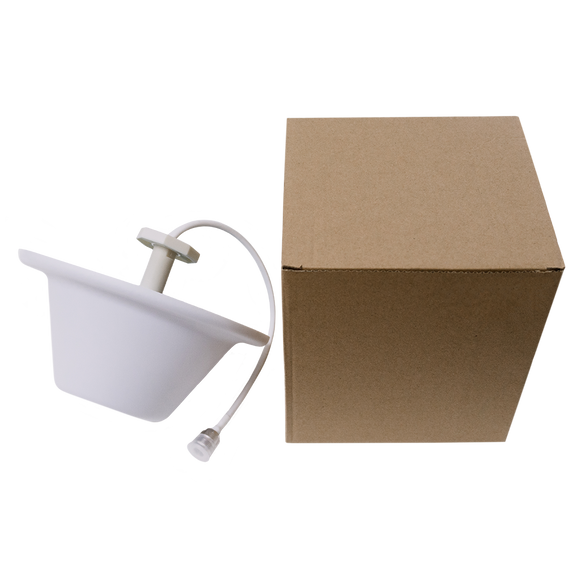

The Waveform Dome Antenna is a wideband omni-directional ceiling antenna. It offers 3.0 - 5.5 dBi of gain and covers frequencies from 600 MHz up to 6000 MHz.
Further testing revealed this antenna provides an impressive gain of up to 5.0 dBi all the way to 6000 MHz, exceeding it's original specification of up to only 2700 MHz!
Omni-directional antennas receive signal from all directions, and so the antenna needs to be installed in a vertical position in the area of strongest signal.
It is a 50 ohm antenna that will rebroadcast boosted signal for every major cell network in the US and Canada. The antenna is made of white UV-protected ABS plastic and is suitable for indoor use only.
The antenna has N-Female connectors.

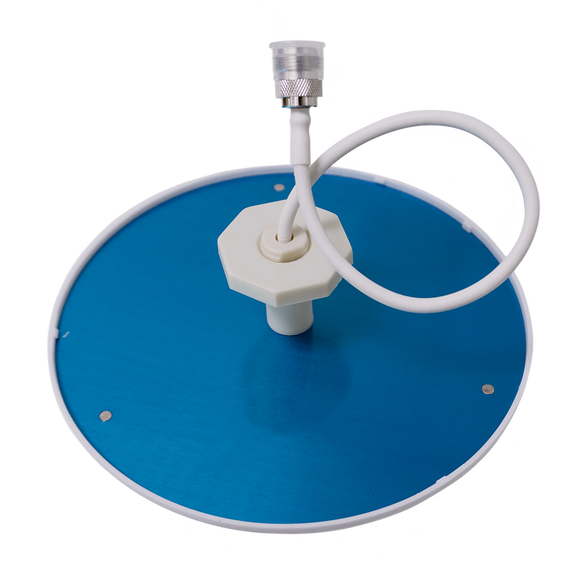

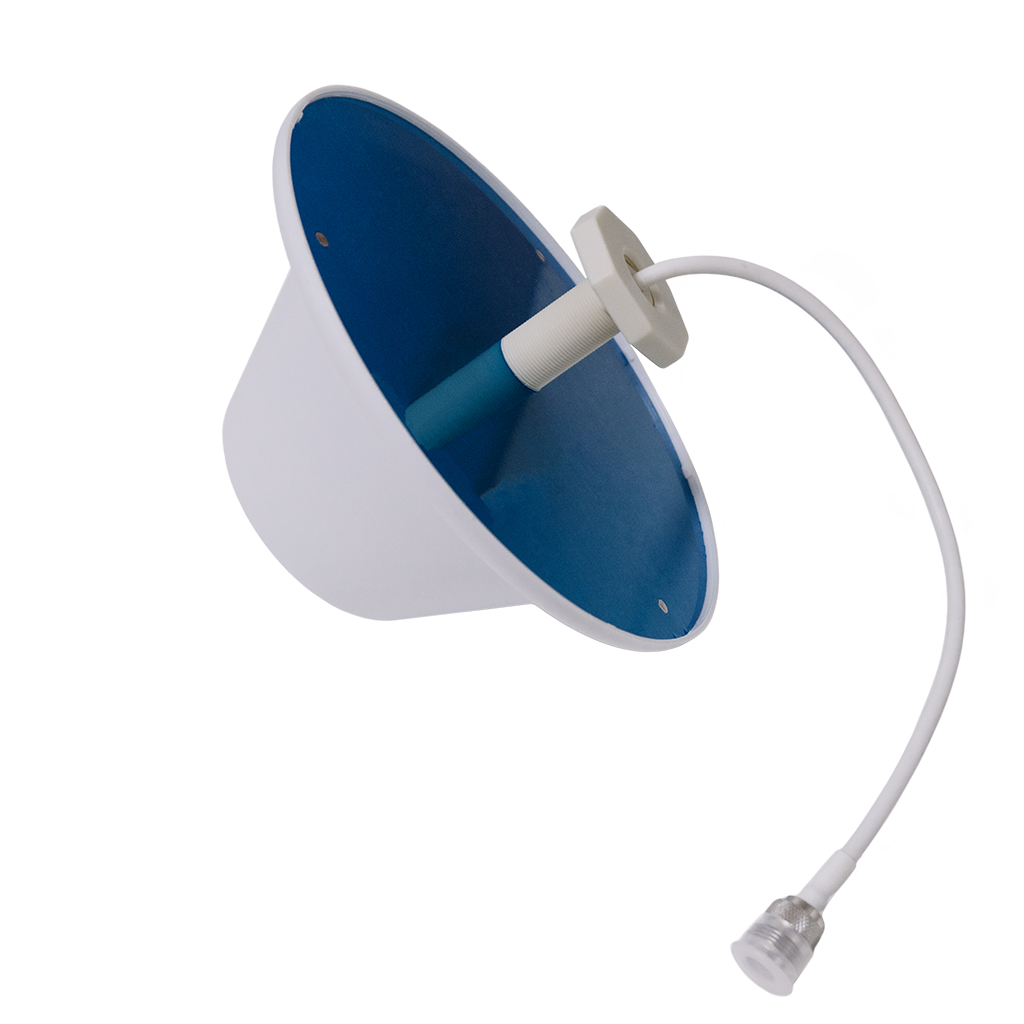

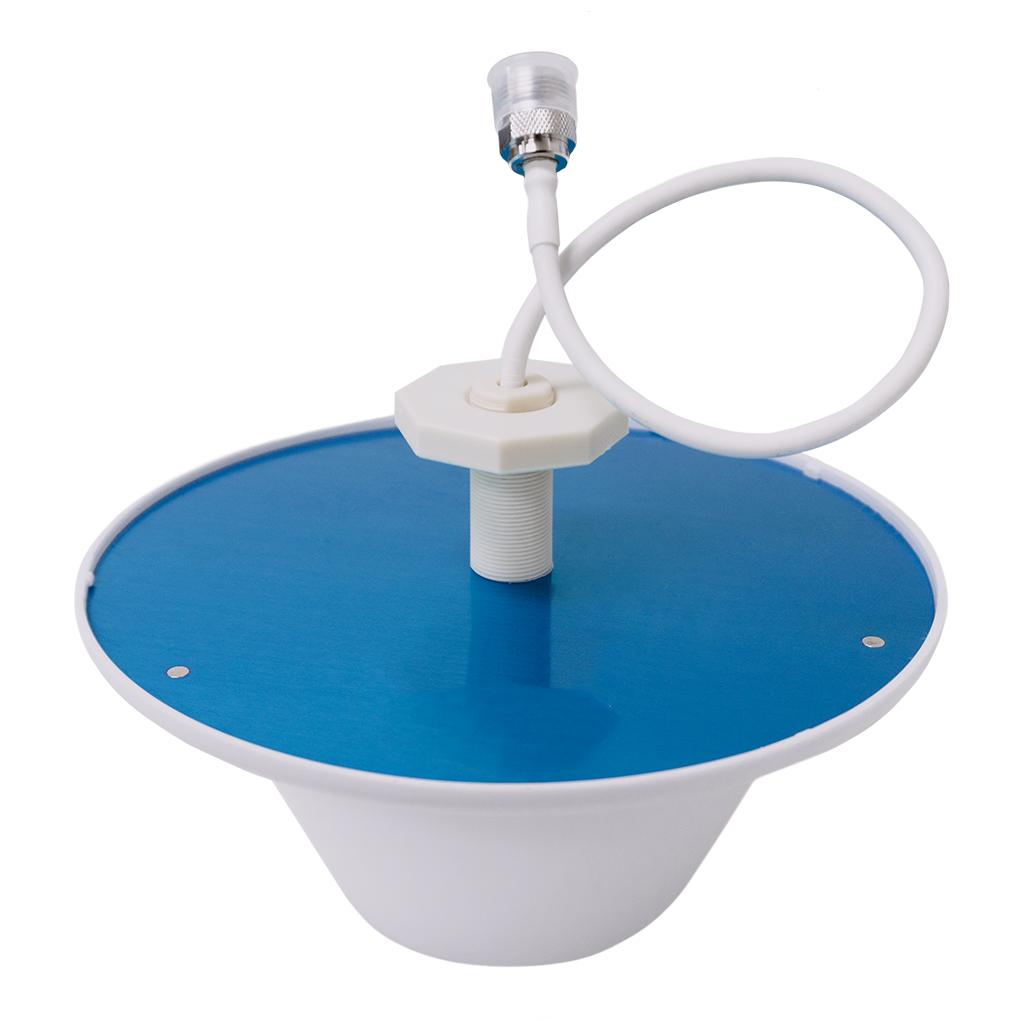

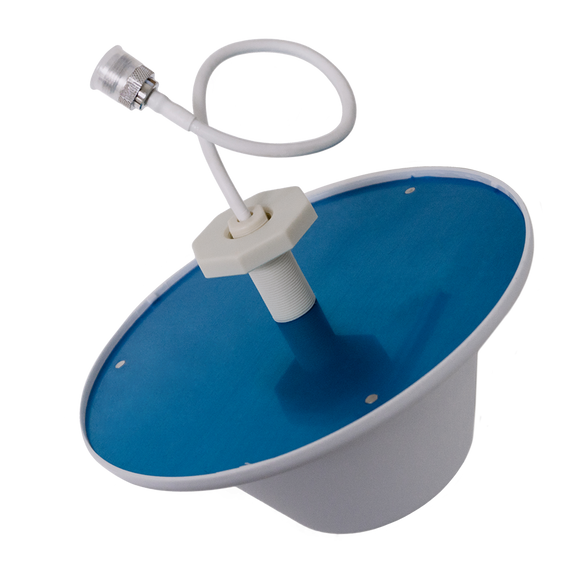

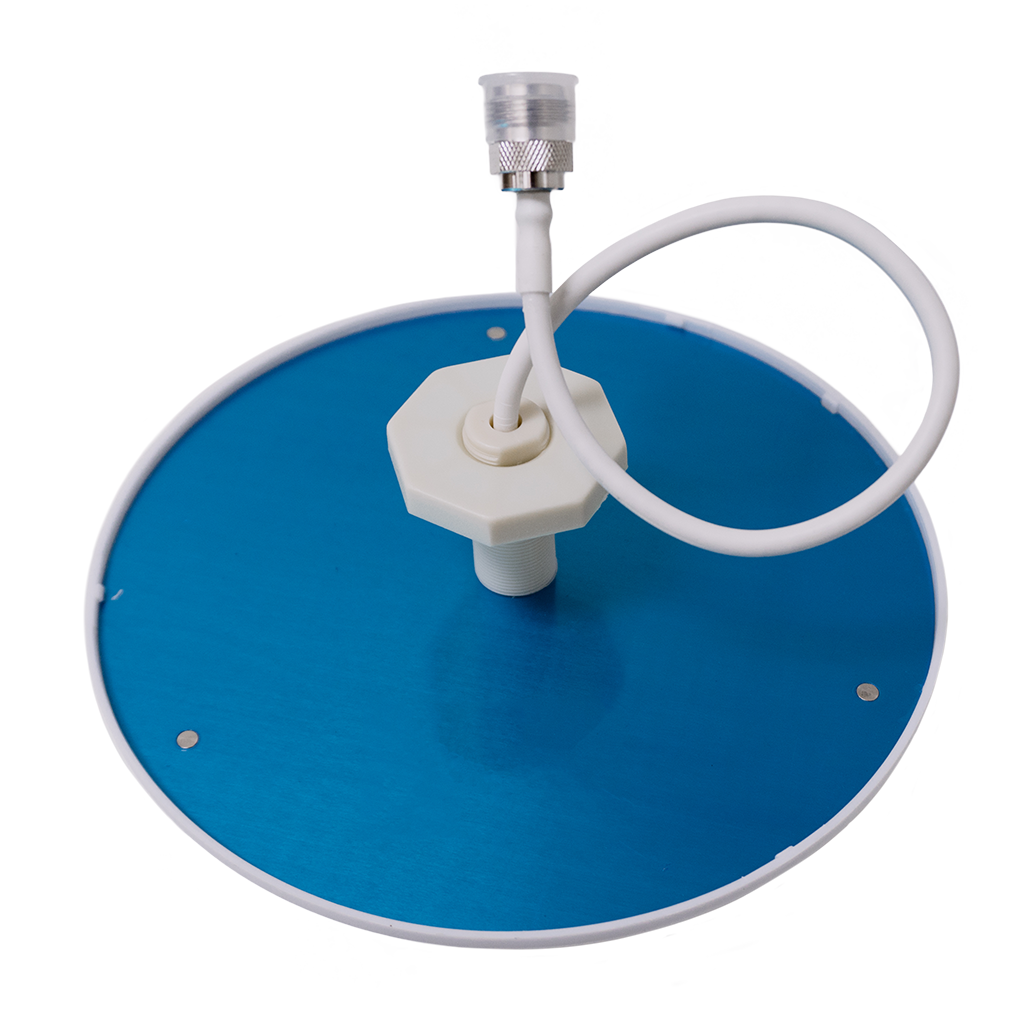

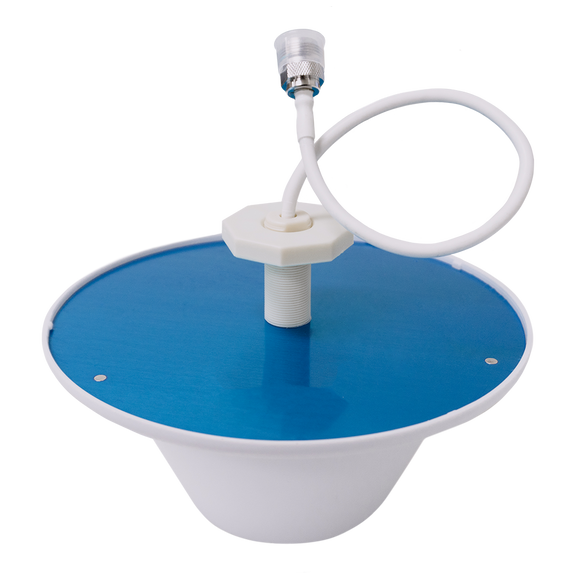

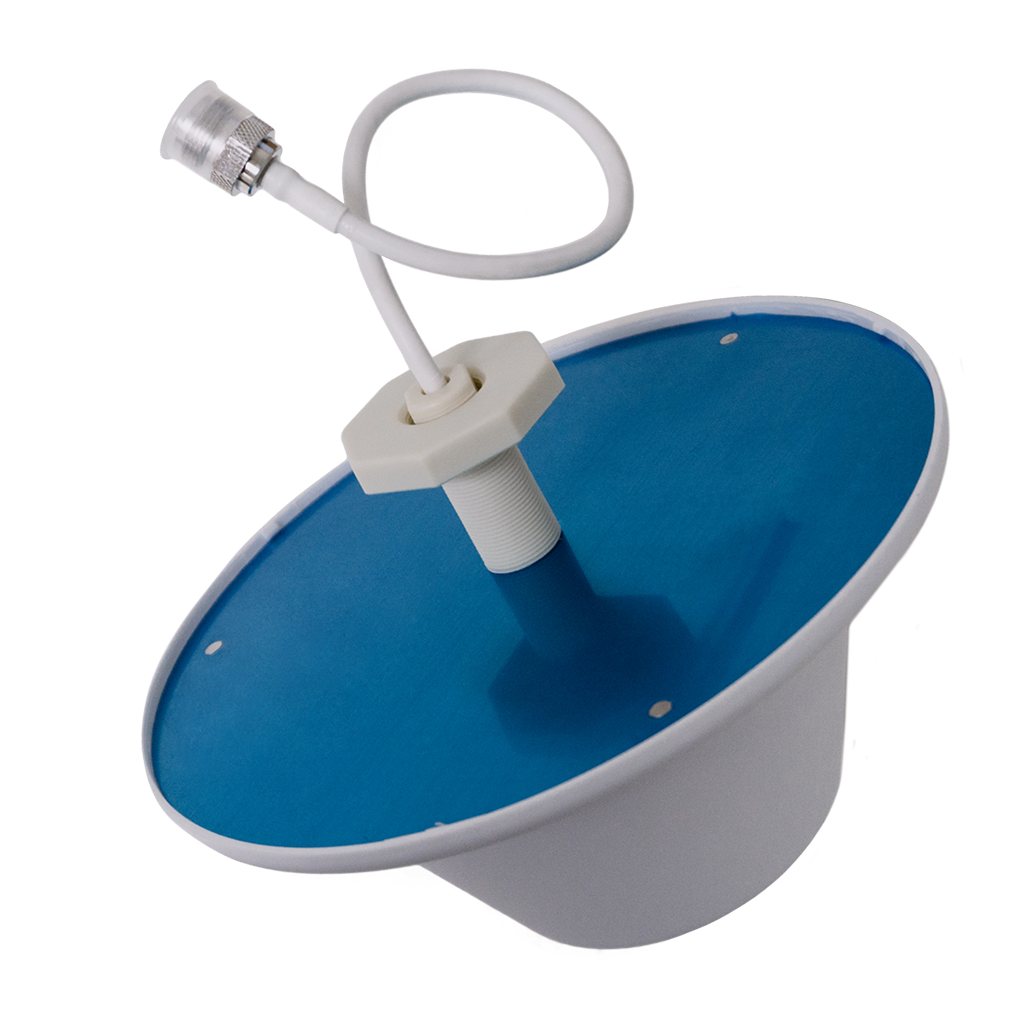

The antenna needs to be mounted to the ceiling for best results and you will need to run a cable to the back of the ceiling. Ceiling mount equipment is included. You will need to drill a hole of 35mm in the ceiling and screw the fixing nut to fasten the antenna on the ceiling. The ceiling's thickness should be no more than 20mm / 0.78 inches.
Warranty
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| UPC |
|
| Dimensions | 186×85 mm |
| Frequency | 698-716 / 728-746 / 746-757 / 758-768 / 776-787 / 788-798 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155 |
| Gain | 3-5 dBi |
| Impedance | 50 ohm |
| Connector type | N Female |
| Color | White |
| CA Prop 65 Warning |
Read full warning Collapse warning |
