Product discontinued

The SureCall TriFlex has been discontinued by the manufacturer.

A replacement is available here: SureCall Fusion4Home

by: SureCall

SureCall TriFlex

The TriFlex is a bidirectional booster that enhances cellular signals for multi-carrier 2G-3G service as well as carrier-specific 4G service for AT&T and Verizon.

Description

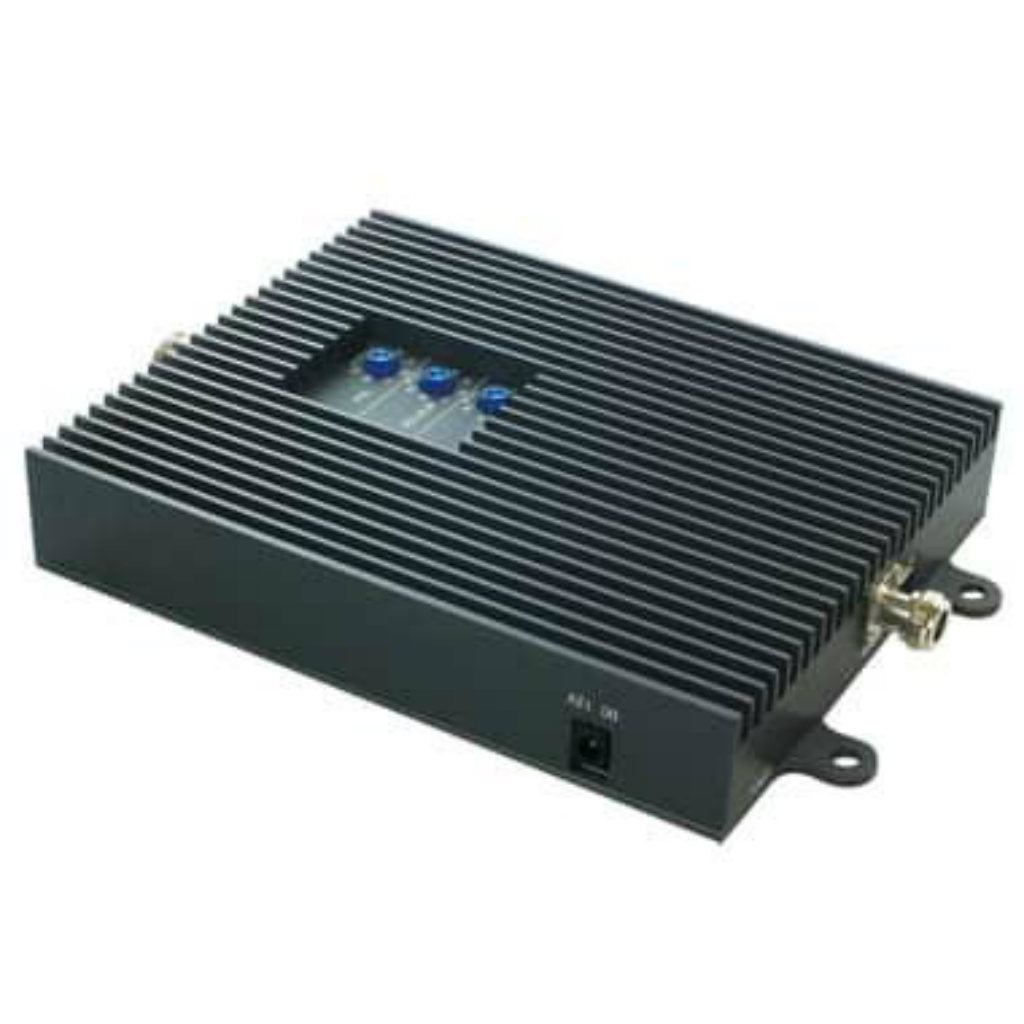

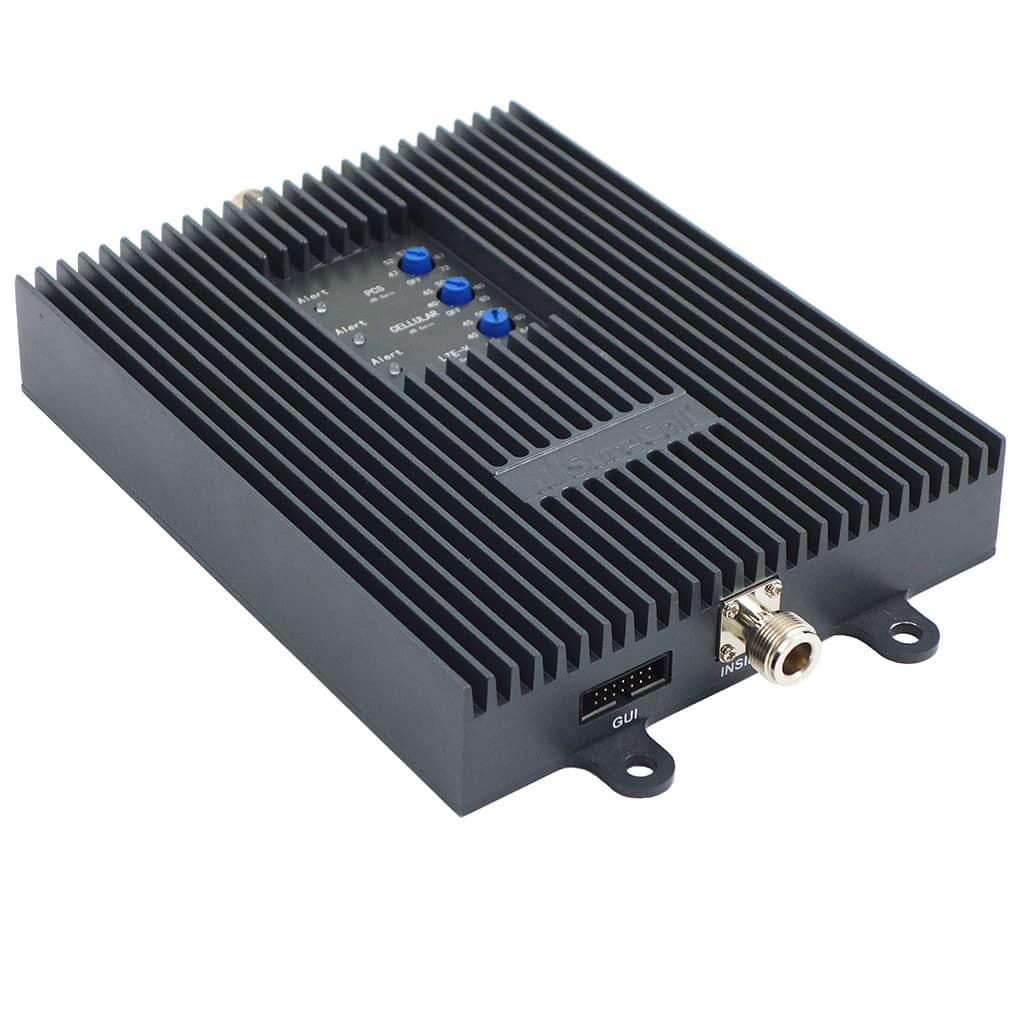

The SureCall TriFlex Signal Booster Kit is a tri-band wireless signal booster. It supports Voice and 3G for all carriers, and 4G for a single carrier, depending on the model chosen.

It covers an area of up to 6,000 square feet, multiple simultaneous users and includes a 3-year warranty.

All carrier frequencies are independently balanced with easy to use adjustable control dials. The SureCall TriFlex is approved by all major carriers and equipped with built in safeguards to completely eliminate interference to cell towers.

Features

  • Highest 4G data rate in the industry
  • 65 dB cellular, 72dB PCS, 63.5 dB LTE
  • Fully compliant with new FCC certification standards
  • Auto Gain Control (AGC) and manually adjustable dB gain and attenuation
  • Dual Embedded CPU
  • Eight RSSI detectors for all inputs and outputs
  • Configurable for all indoor environments

Amplifier Options

The SureCall TriFlex cellular booster kit can be customised with several different amplifier and antenna options:

The TriFlex-A Amplifier boosts most major 2G and 3G carriers plus the AT&T & US Cellular 4G LTE networks.

The TriFlex-V Amplifier boosts most major 2G and 3G carriers plus the Verizon 4G LTE network.

Outside Antenna

The TriFlex kit also comes with a choice of two outside antennas:

The SC-288W Omni Outdoor Antenna has 4dB gain. Omni antennas receive and send signals in a 360º radius. They can receive signals from multiple cell towers and is best for boosting signal on many different carriers. They are excellent in most situations where the existing outside signal strength is moderate to strong. If the outside signal is weaker than that, you may need the directional yagi antenna instead. We have a guide to testing your outside signal strength here.

The SC-230W-S Yagi Outdoor Antenna has up to 8dB of gain. It is a directional antenna that can reach cell towers up to 30 miles away. It needs to be set up pointing in the direction of the cell tower, and because it is directional it will only pick up signal in that direction. It's very powerful at picking up weak signal in one particular direction, and we recommend it for situations where existing outside signal is weak, and you only want to boost coverage for one carrier (or if more than one carrier has a cell tower in that direction). If you need to boost signal coming from different directions, it is possible to set up more than one yagi antenna. Contact us for more help with this.

Inside Antenna

Finally, the TriFlex kit also has a choice of two inside antennas:

The SC-222W Omni Dome Antenna is a multi-band omni-directional plastic dome antenna with that gathers signals from all sides. It has 6dB gain and is designed for central locations with 360º coverage. The range of the antenna is dependent on three factors: 1) physical obstructions, 2) power generated by the booster and 3) reception from outside signal received and distributed by the outside antenna. Besides the antenna itself, parts include mounting equipment. It needs to be mounted to the ceiling for best results and you will need to run a cable to the back of the ceiling.

The SC-248W Panel Antenna is a directional antenna with up to 10dB gain. Panel antennas allow optimum reception to targeted areas. It can be mounted to either the wall or ceiling.

Antenna Separation

The SureCall TriFlex repeater has a powerful 72 dB gain. Because this is a powerful amplifier, you must have a minimum of 20 ft of vertical separation between the inside and outside antennas. Adding up to 75 feet of horizontal separation will help improve the performance of the kit by minimizing the potential for oscillation (feedback) between the inside and outside antennas.

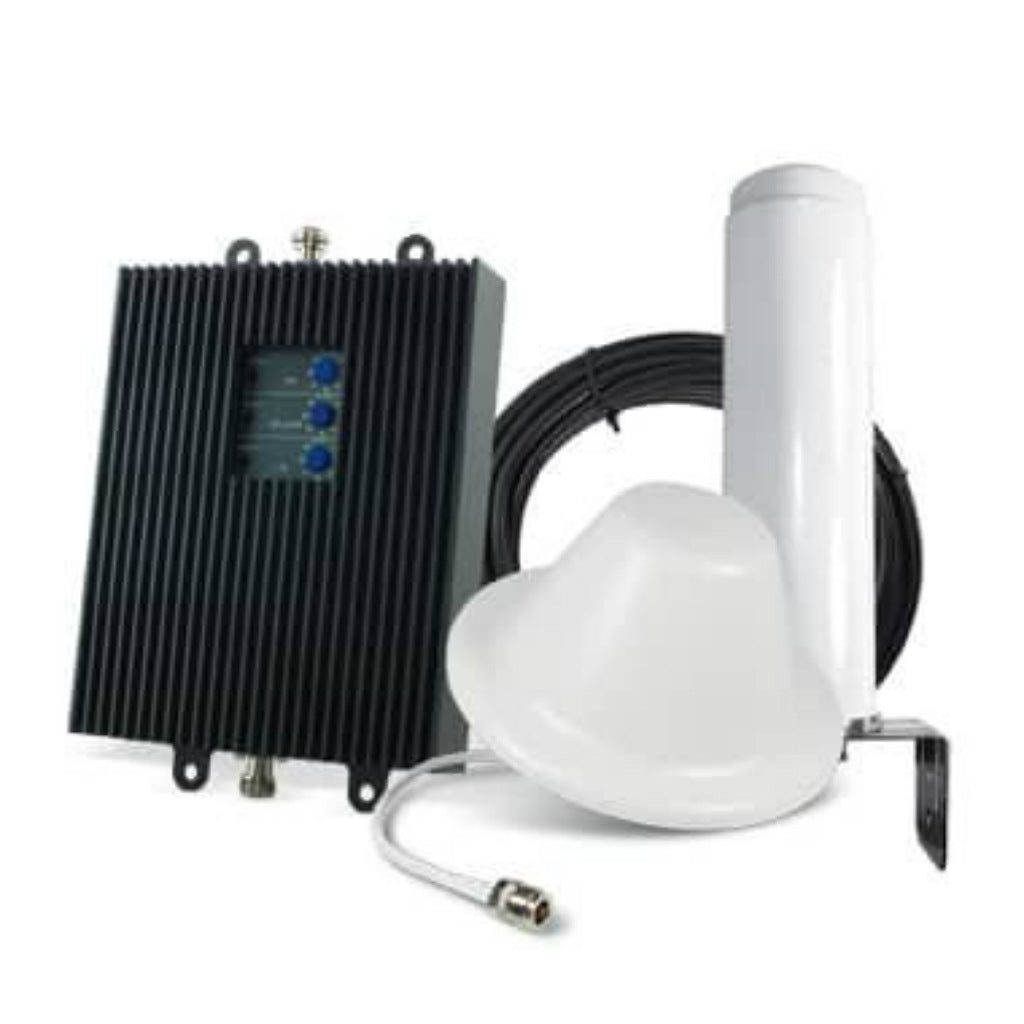

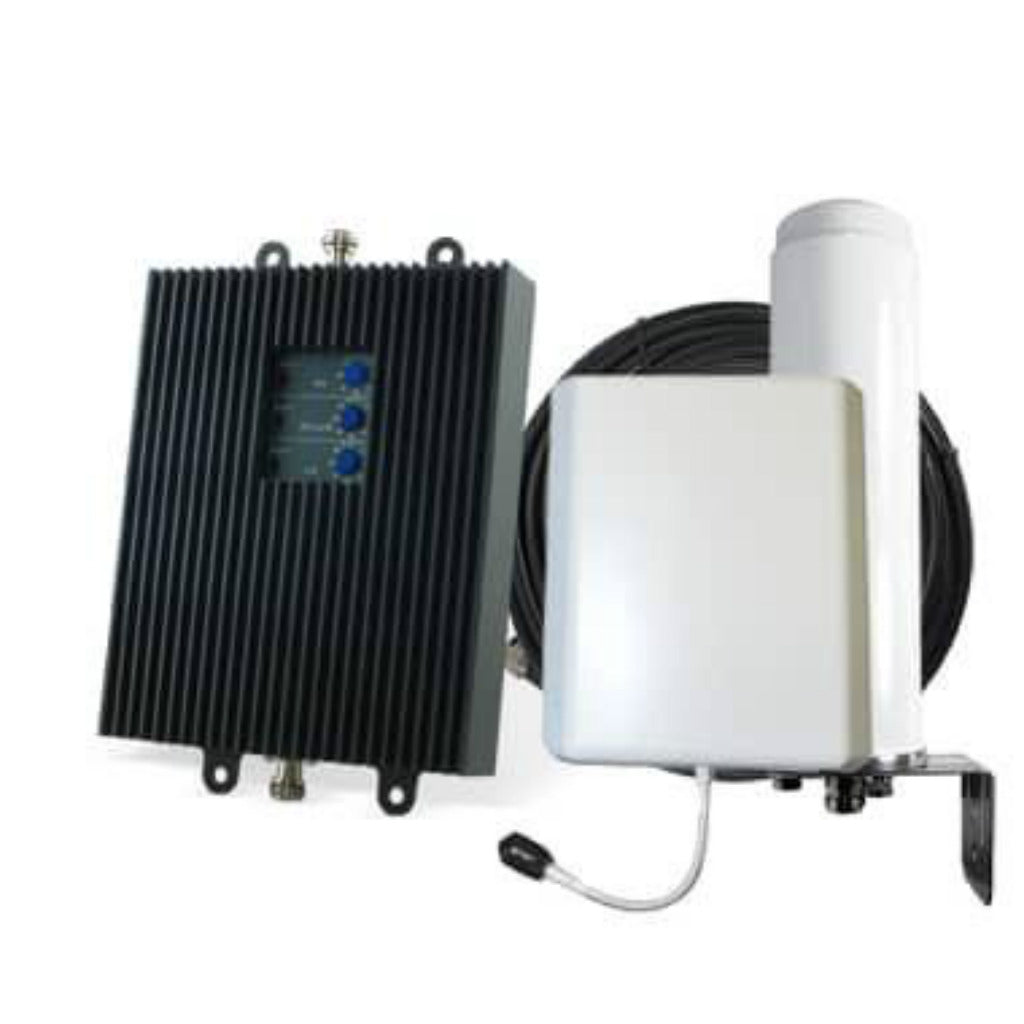

Kit Contents

  • SureCall TriFlex Amplifier
  • SureCall Omni Directional Outside Antenna SC-288W OR Yagi Directional Outside Antenna SC-230W
  • SureCall Dome Antenna SC-222W OR SureCall Panel Antenna SC-248W
  • 1x30ft. SureCall Ultra Low-Loss CM400 Coax Cable SC-400-30NN
  • 1x75ft. SureCall Ultra Low-Loss CM400 Coax Cable SC-400-75NN

Lightning Surge Protector

We recommend using a lightning surge protector in most cases, but particularly if you'll be installing the kit in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.

Product Video

Warranty

SureCall warranties all of their amplifiers, antennas, and RF components for 3 years against any workmanship or material defects.

Read more about SureCall's warranty policy here.

Specifications, Guides, and Downloads

SKU
  • SC-TriAH/O-72-OD-KIT
  • SC-TriAH/O-72-OP-KIT
  • SC-TriAH/O-72-YD-KIT
  • SC-TriAH/O-72-YP-KIT
  • SC-TriVH/O-72-OD-KIT
  • SC-TriVH/O-72-OP-KIT
  • SC-TriVH/O-72-YD-KIT
  • SC-TriVH/O-72-YP-KIT
Weight 3.5 lb
Dimensions 9.3" x 6.3" x 1.4"
Frequency 698-716 / 728-746 / 824-849 / 869-894 /1850-1910 /1930-1990
Gain 65dB - Cellular / 72dB - PCS / 63.5dB - LTE
Impedance 50 Ohm
Noise 5dB
Output power 1 Watt EIRP
Power supply AC 100-240V, 50-60Hz.
FCC notice
Read full notice Collapse notice
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
CA Prop 65 Warning
Read full warning Collapse warning
This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
