Compact easy-to-install booster that covers one large room.

$349.99

In stock.

Ships in 1 to 2 business days.

Carbon neutral deliveries

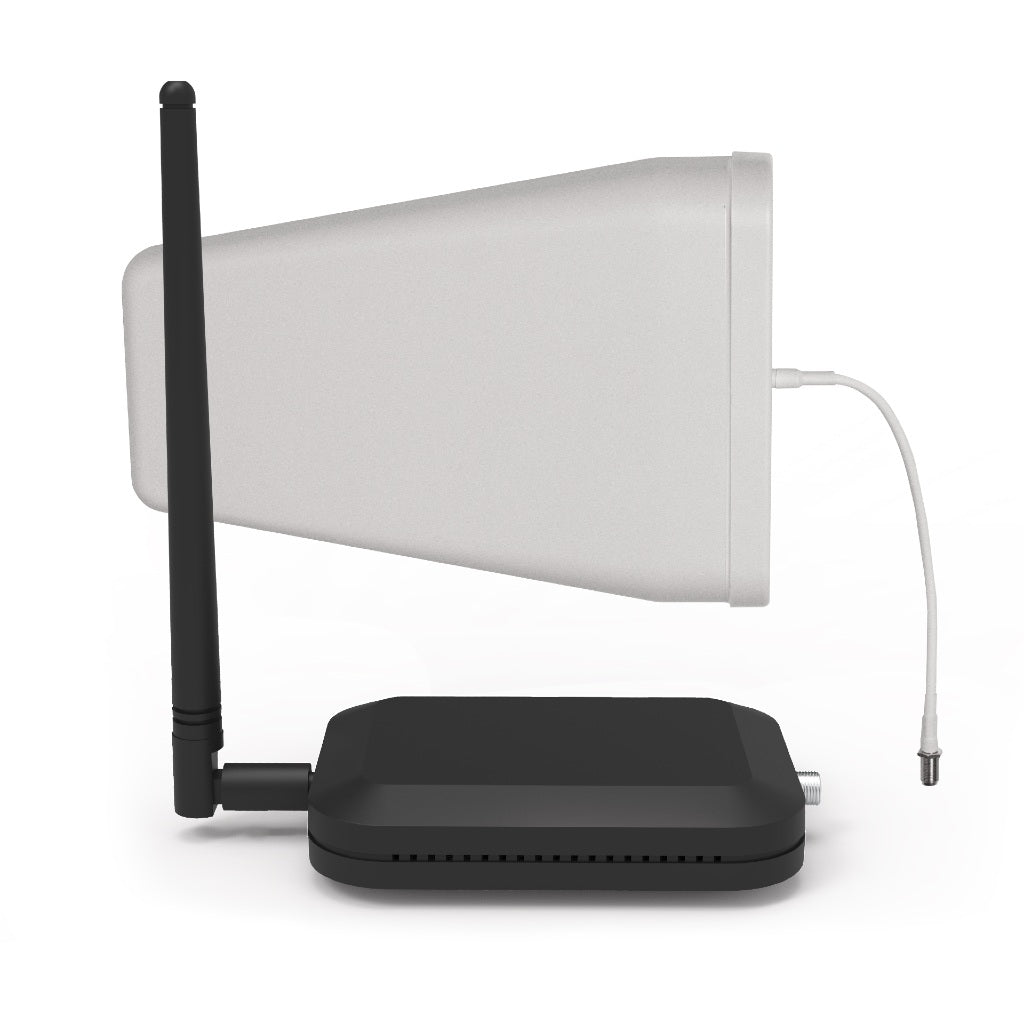

The weBoost Home Studio is a compact signal booster that's suitable for use in home offices, apartments, and living rooms. It's designed to sit on...

The weBoost Home Studio is a compact signal booster that's suitable for use in home offices, apartments, and living rooms. It's designed to sit on a shelf and will cover a large room if existing outside signal is strong, and a small one if it is weak.

This is a 5G-ready booster that will improve signal on all US carriers including AT&T, Verizon, US Cellular, T-Mobile and Sprint. It will support multiple cellular devices at once.

The Home Studio is much easier to install than many larger booster systems because there is no need to run cable and mount a separate indoor antenna. The outdoor antenna included is a powerful directional antenna that needs to be mounted to the roof or outside wall.

Benefits

Fewer dropped calls
Faster data speeds
5G ready
Easy installation
FCC Approved
Boosts all US cell networks

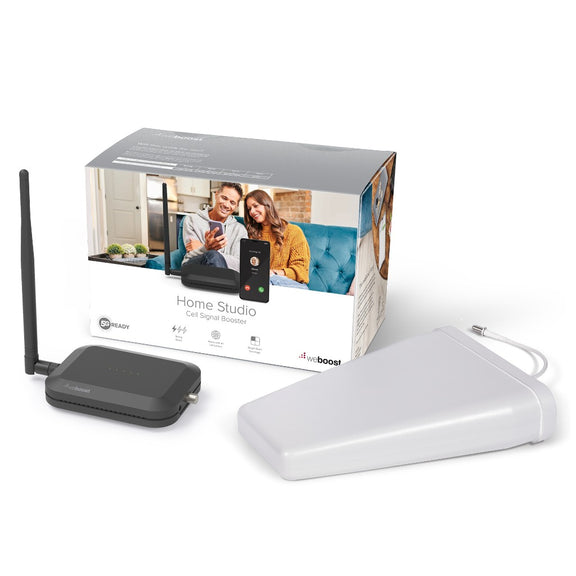

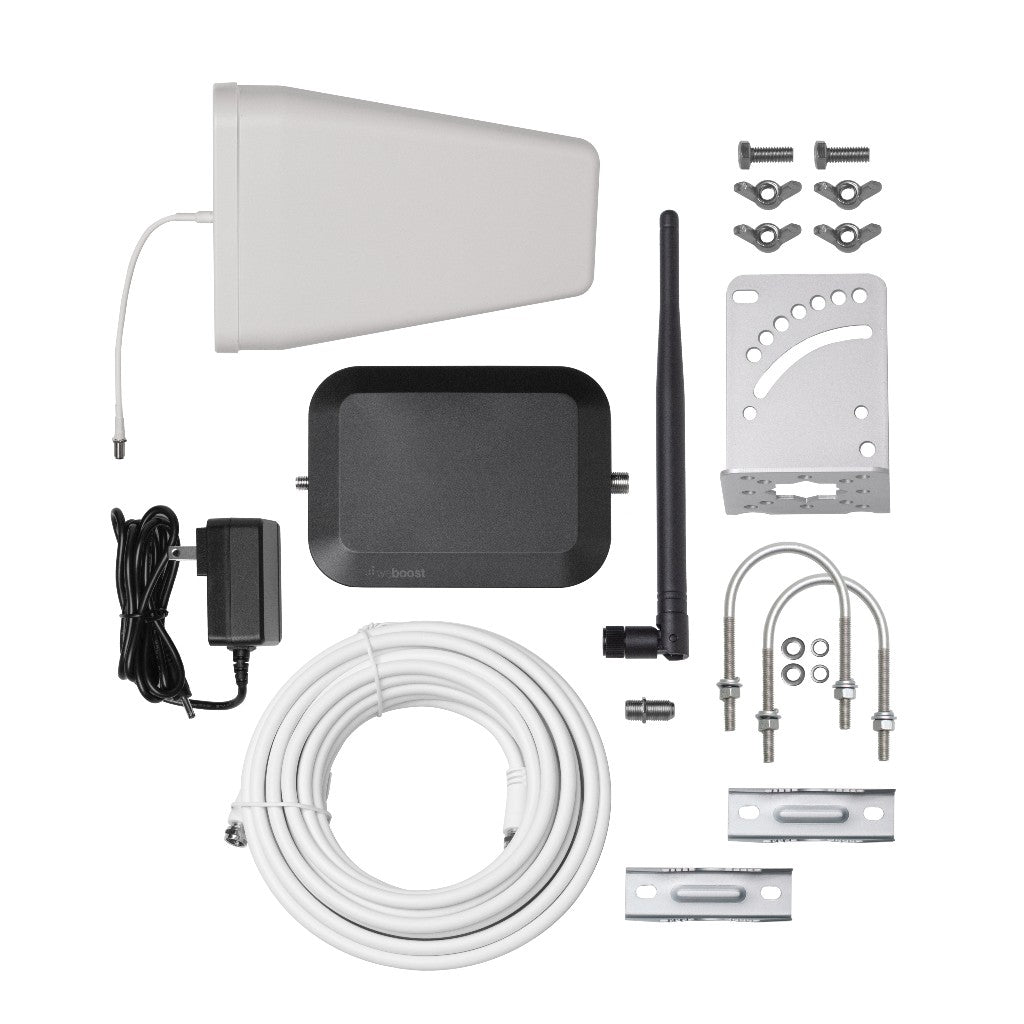

Kit Contents

Home Studio Booster (470166)
Outside Directional Antenna (314475)
Inside Booster Antenna (311159)
2x 30 ft White F-Male RG6 Coax Cable (950630)
F-Female to F-Female Cable Connector (971129)
4.2V/2.5A AC/DC Power Supply (850027)
Outside Antenna Pole Mounting Bracket
Outside Antenna Wall Mounting Bracket
Installation Guide

Outdoor Antenna

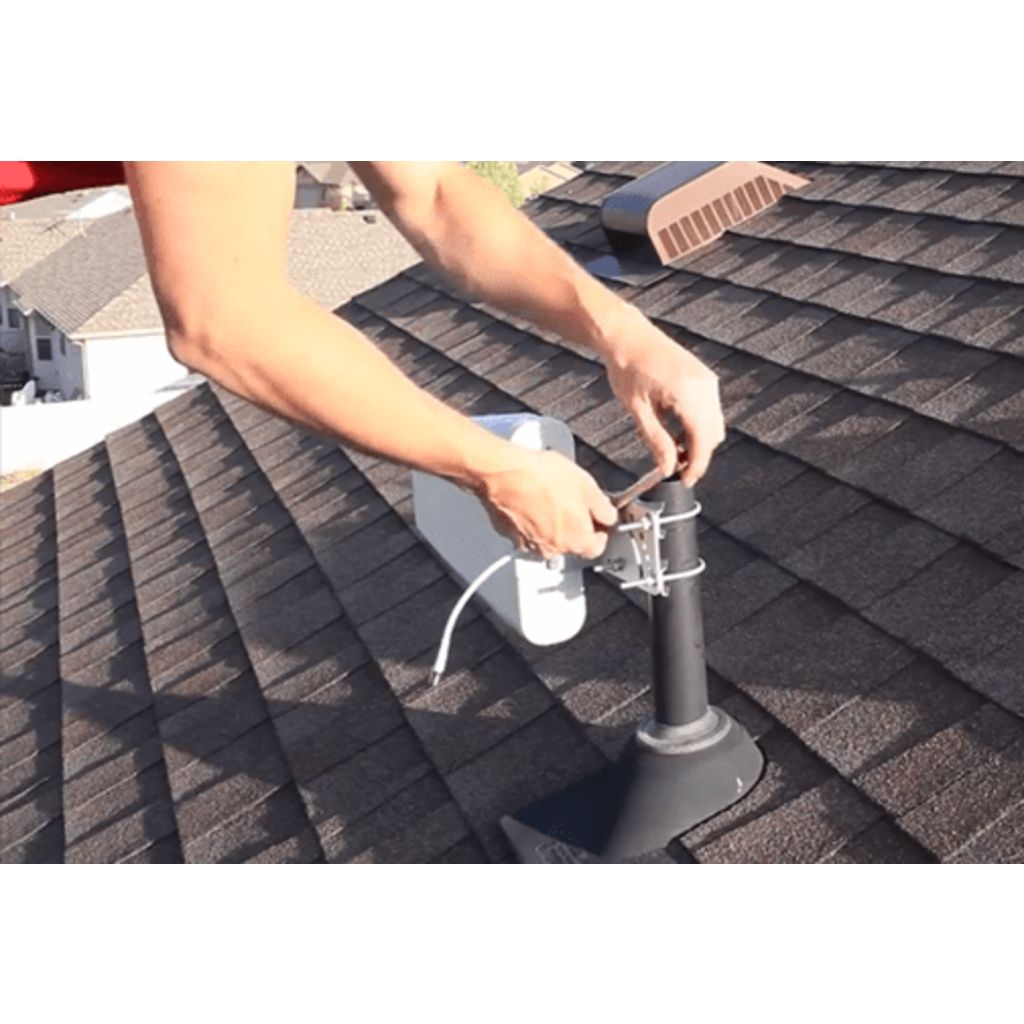

The weBoost Outside Directional Antenna (314475) is an outdoor directional yagi antenna that offers 8-10 dB of gain. It needs to be pointed in the direction of the nearest cell phone tower. This antenna should be installed on an exterior wall or roof. It is a 75 ohm antenna with an F-Female connector.

Indoor Antenna

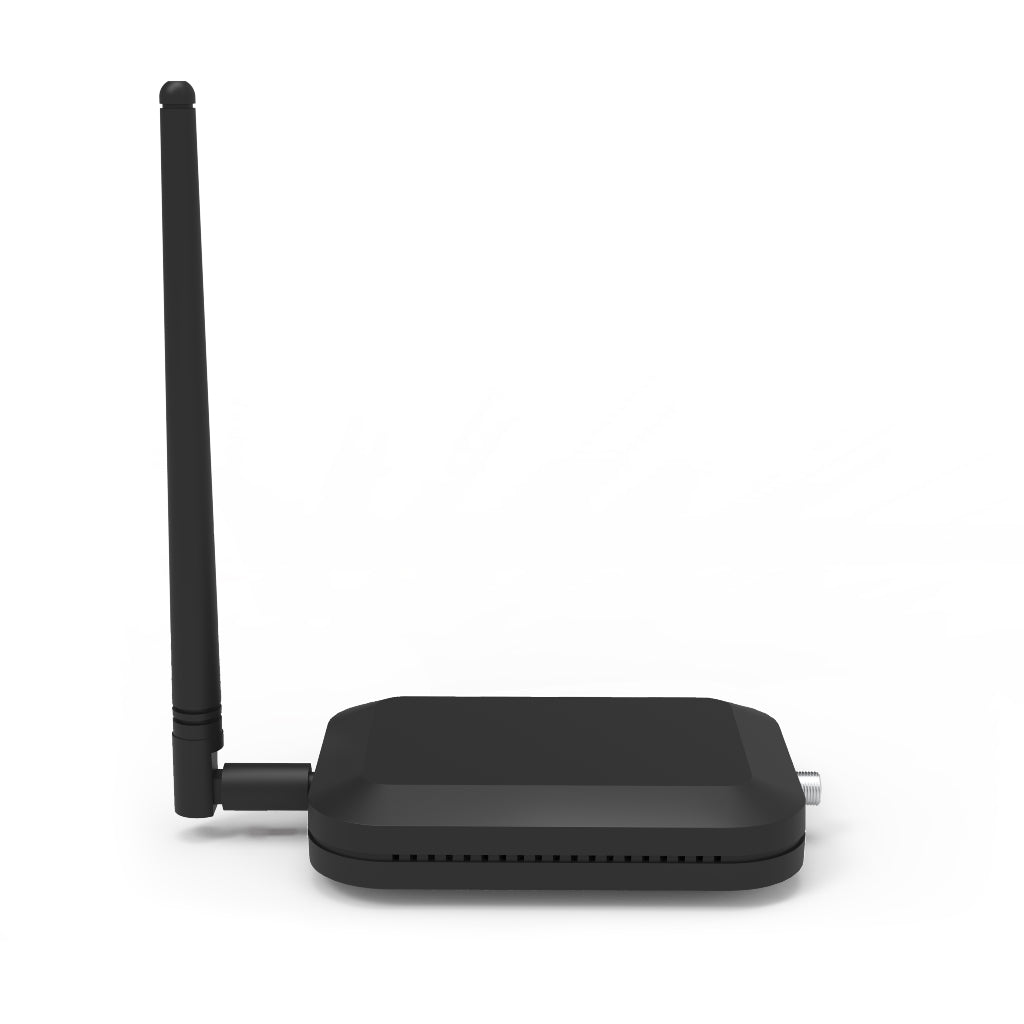

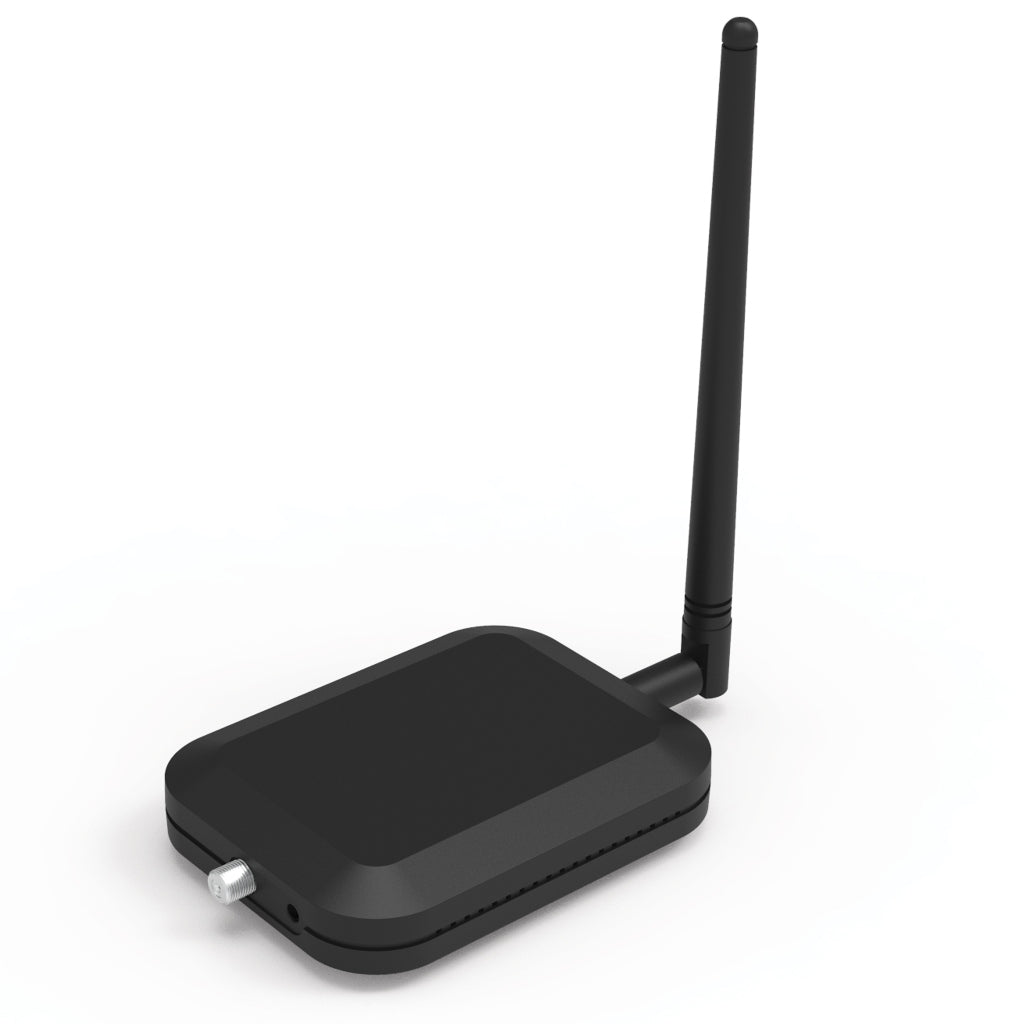

The weBoost Booster Antenna (311159) is an terminal "whip" antenna with 3 dB of gain. It connects directly onto the Home Studio Booster unit. It is a 50 ohm antenna with a SMA-Male connector

Warranty

weBoost warranties all of their amplifiers, antennas, and RF components for 2-3 years against any workmanship or material defects.

Read more about weBoost’s warranty policy here.

The weBoost Home Studio (470166) is compatible with the following networks:

Carrier	Supported services	Unsupported services
Verizon	2G/3G Voice + Data 4G LTE
AT&T	2G/3G Voice + Data 4G LTE
Sprint	2G/3G Voice + Data 4G LTE
T-Mobile	2G/3G Voice + Data 4G LTE

The weBoost Home Studio (470166) kit is also compatible with Canadian networks, though they are not listed above. Check our international carriers page for more information.

Supported frequency bands (MHz): 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155

Like almost all of our products, the weBoost Home Studio (470166) can be installed by anyone who feels comfortable doing simple home repairs and running cabling. If you’re not comfortable doing that kind of work, you might consider finding a local electronics installer or asking a friend.

Unlimited free technical support:

Anytime you purchase from Waveform, you get unlimited free technical support from our signal experts. Whether it’s installing a kit or troubleshooting a problem, we’re here. In over 11 years of being in business we’ve helped over 25,000 customers install kits and improve their signal.

Have a question now? Call us from 7am to 5pm PST: 1-800-761-3041.

SKU	470166
UPC	0810005962452
Dimensions	6.125 x 3.875 x 1.125 in.
Frequency	698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155
Gain	60 dB
Impedance	75 ohm
Output power	20 W
Power supply	110-240V AC
Connector type	F-Female / SMA / Barrel
Cable length	2x 30 ft
FCC notice	Read full notice This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
CA Prop 65 Warning	Read full warning This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
