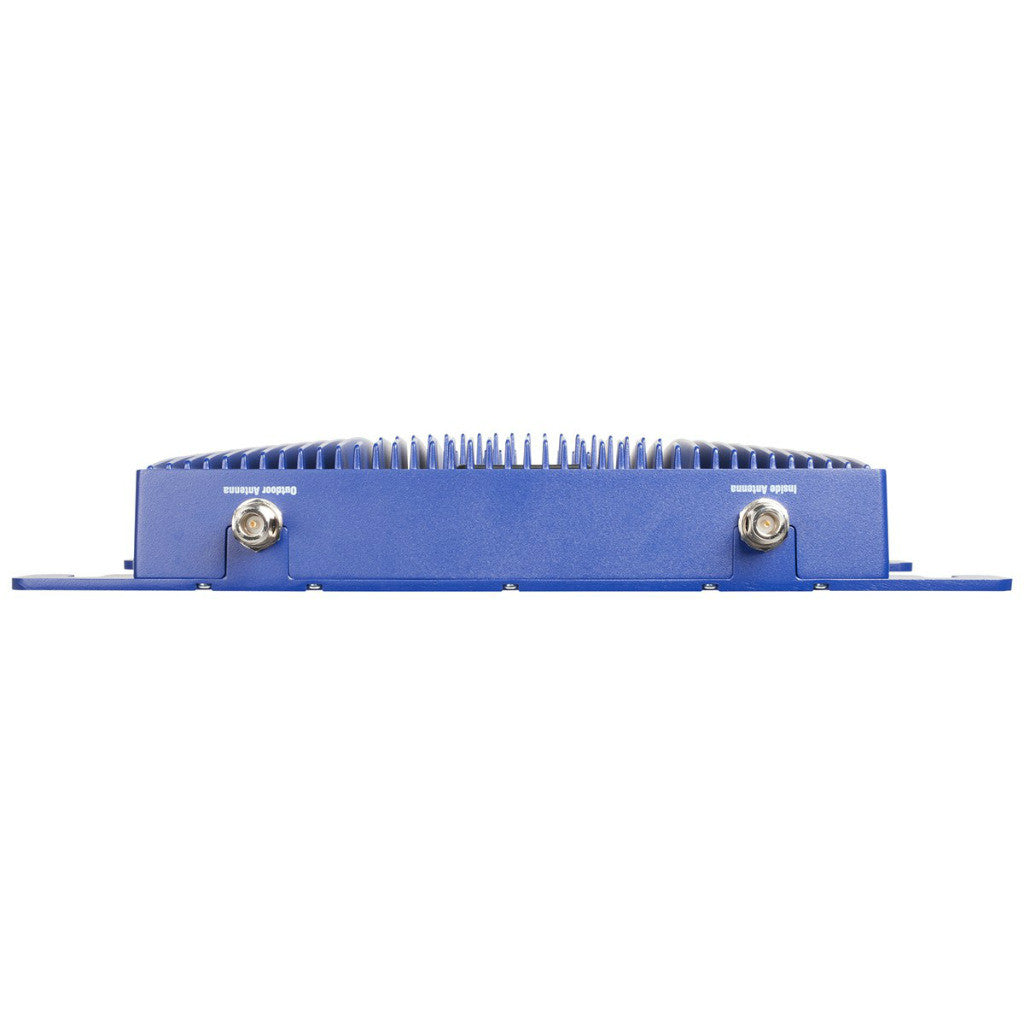

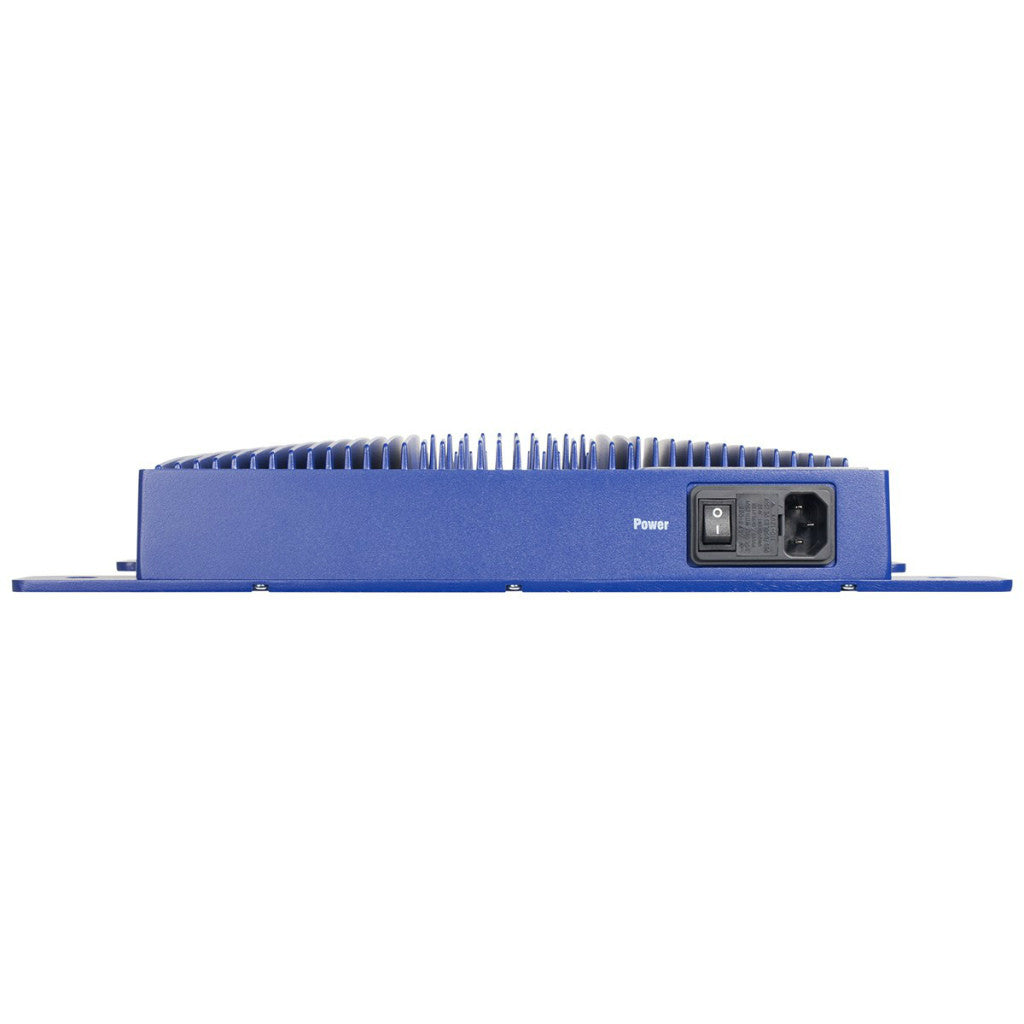

WilsonPro 1050 Inline Booster Kit (460230)

by: Wilson

Unique dual-amplifier inline signal booster system.

by: Wilson

WilsonPro 1050 Inline Booster Kit (460230)

Unique dual-amplifier inline signal booster system.

The manufacturer of this product does not allow it to be sold online.

Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.

Contact us to purchase
WilsonPro Master Distributor
Free, fast shipping
90-Day Money-Back Guarantee
Unlimited free expert support
Carbon neutral deliveries

Product Description

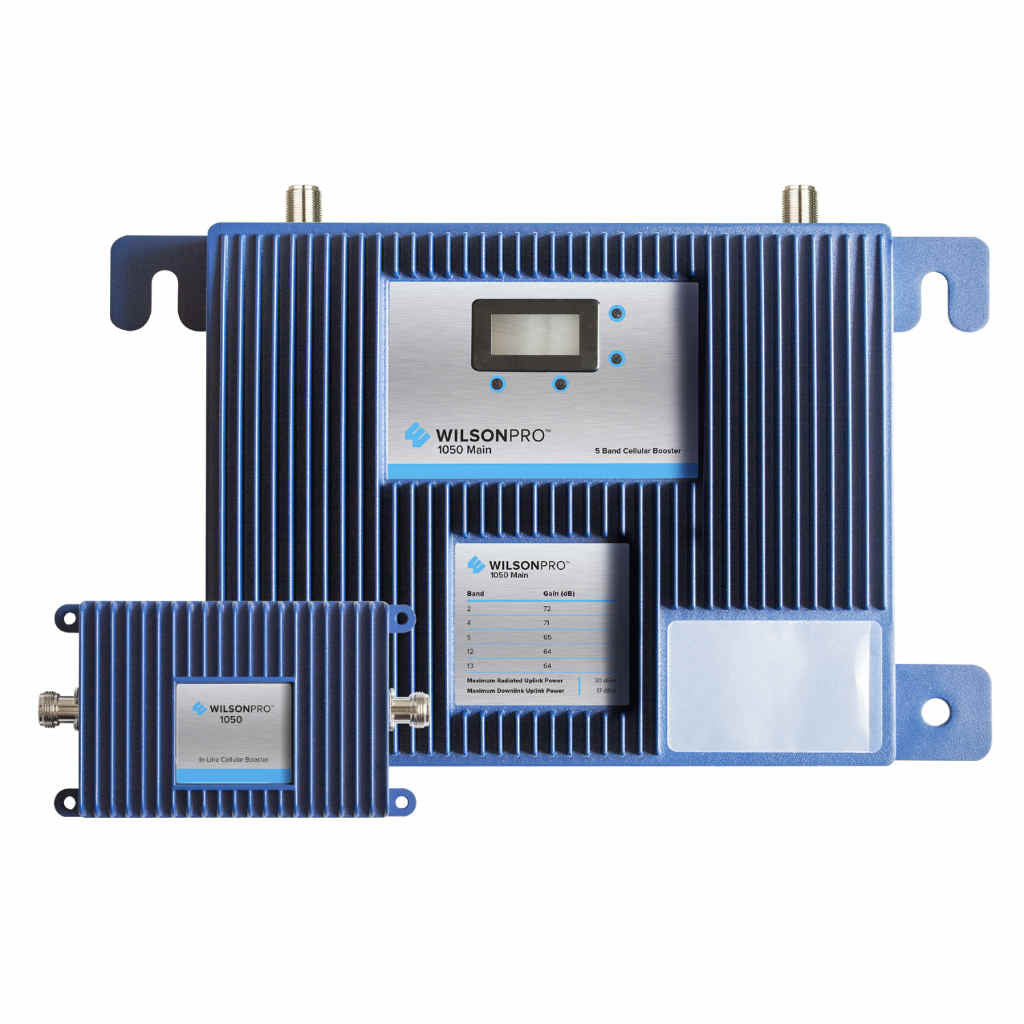

The WilsonPro 1050 features a unique dual-amplifier system designed to compensate for signal loss caused by long cable runs.

Signal loss or “attenuation” occurs over all kinds of coaxial cables. The longer the cable run, the more significant the loss will be. Using high-quality cable designed for long runs, like Wilson400, reduces this loss, as does running cable through walls and ceilings to keep cable length as short as possible. Nevertheless, some loss is inevitable. The WilsonPro 1050 aims to greatly reduce this by using a dual amplifier system composed of a main signal booster and a supplementary inline booster.

The Pro 1000 main amplifier unit boosts the signal first, and communicates with the inline Pro 1050 booster. The two amplifiers work together to determine the actual signal bleed along the cable run, and supply sufficient boost to compensate for this lost signal. The Pro 1050 signal booster system has been tested and approved by the Federal Communications Commission (FCC) to compensate for cable-run signal loss without exceeding the maximum-allowed system gain.

The WilsonPro 1050 uses the strongest downlink power permitted by the FCC to provide the largest possible indoor signal coverage. The new Wilson Electronics XDR (Extended Dynamic Range) technology balances and compensates for strong incoming signal to prevent system shutdowns.

The Pro 1050 is ideal for large installations that use long lengths of coaxial cable. It supports multiple simultaneous users, and it supports all cellular devices. It boosts 2G/3G/4G/LTE voice and data on all US and Canadian cellular networks.

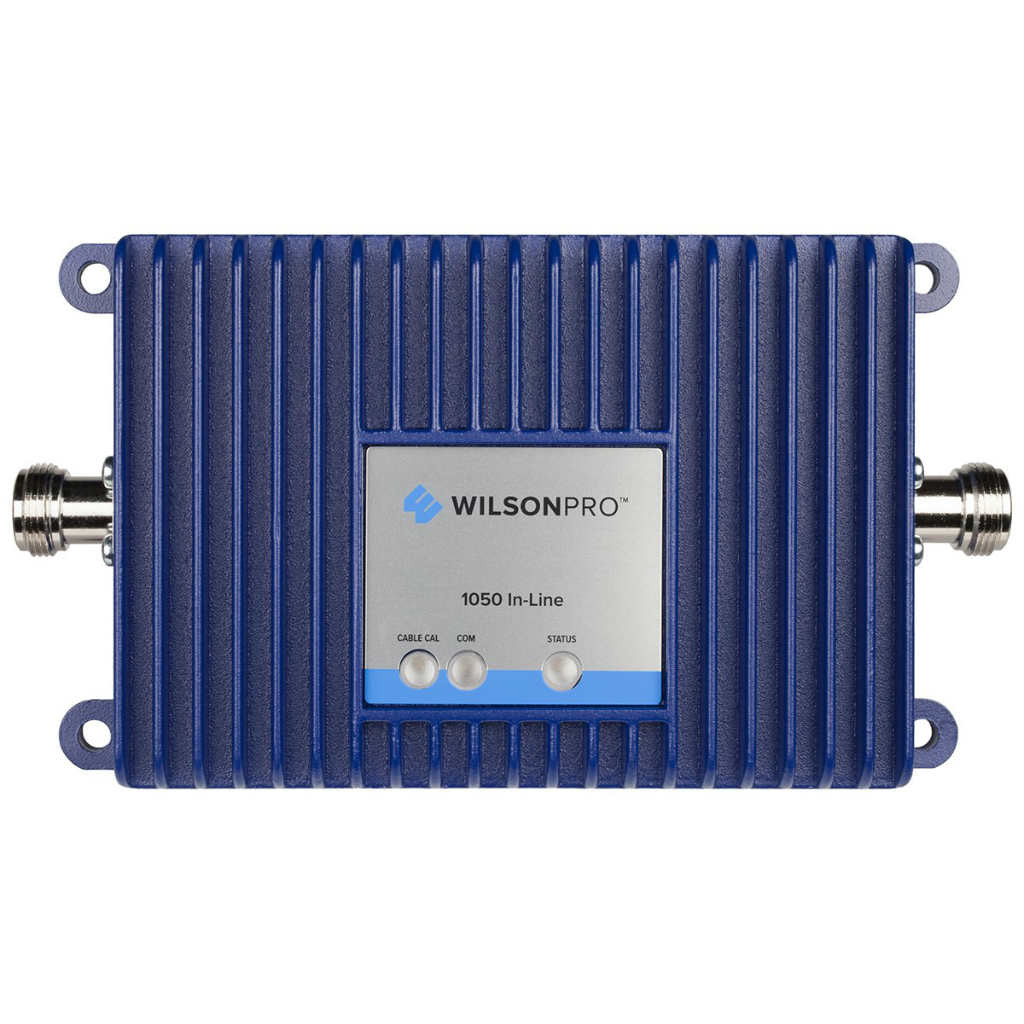

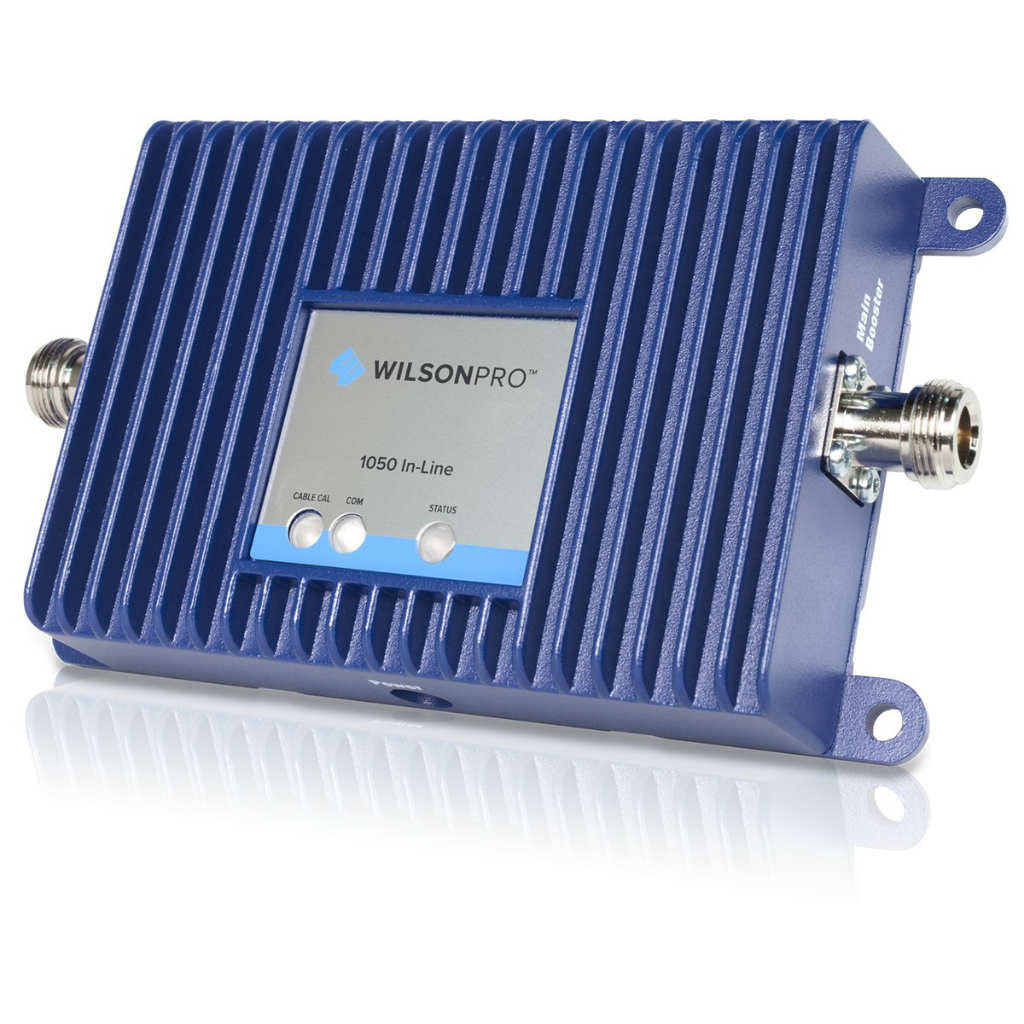

The 1050 inline booster works only with the WilsonPro 1050, and cannot work as a standalone booster. Nor can the inline booster work with any other cell signal booster. FCC regulations prohibit any sale or distribution of the inline booster except as part of the WilsonPro 1050 system.

5 Critical Tips for the WilsonPro 1050:

1. Take signal measurements before you buy

The WilsonPro 1050 can cover up to an area of up to 30,000 square feet, but only if your outdoor signal is strong enough. This isn't true for just the Pro 1050, but across the board for all signal boosters.

We strongly recommend measuring your outdoor signal and speaking to our team of Signal Experts before you purchase. Our Signal Experts can help guide you to the best solution based on your signal conditions.

2. Only buy the WilsonPro 1050 if you have a very long cable run

The WilsonPro 1050 makes sense if you have at least one very long cable run. That means that your donor signal location must be very far from the area you want to cover.

So, for example, the WilsonPro 1050 is a good fit if you have a 50-story building, need to put the donor antenna on the roof, but only need coverage on the ground floor.

If you don't have a very long cable run, an inline booster system doesn't make sense. Instead, consider the WilsonPro 1000 or WIlsonPro 1000C.

3. Getting your outdoor antenna positioned correctly is critical

As we explain in our Signal Booster Guide, the bars on your phone are more than just signal strength. Signal quality is absolutely critical.

The only way to improve the signal quality coming into your booster is getting the outdoor antenna positioned correctly. Our team of Signal Experts can help guide you as you install the Pro 1050.

4. Consider the Cel-Fi QUATRA 2000

The Cel-Fi QUATRA 2000 targets a similar market to the WilsonPro line, however it is a carrier-specific system that the FCC allows to utilize up to 100 decibels gain. The extra gain means the QUATRA  works better in remote areas with very weak outdoor signal.

The QUATRA also uses ethernet cable in place of coaxial cable. That allows you to run up to 300 feet of cable with no loss. The Quatra Range Extender allows you to extend this to 600 feet.

The QUATRA 2000 has both benefits and disadvantages. For example, each unit only works with 2 carriers at a time, so you need two sets for 4-carrier coverage. Additionally, installation can be a little more complicated than the WilsonPro products.

5. The WilsonPro 1050 is designed to be part of a custom-designed system

There's a reason that Wilson doesn't allow these units to be sold online: they're supposed to be designed into a custom system, with multiple antennas, splitters, couplers, and custom-length cables.

We offer complimentary design services using the industry-standard iBwave in-building design software. Simply contact our Signal Specialists and we'll chat through your building and requirements and help put together a custom solution for you.

Purchase & Installation

The WilsonPro product line is available to be installed by custom professional installers. RepeaterStore has years of experience designing and supporting custom installations. We can provide all customers with custom design services.

The WilsonPro line is not available to purchase directly online, so please contact us via email or call us at (800) 761-3041 to discuss your in-building signal coverage needs and receive a free quote.

Kit Contents


WilsonPro warranties all of their amplifiers, antennas, and RF components for 3 years against any workmanship or material defects.

Read more about WilsonPro’s warranty policy here.

How it works

1 - Outdoor antenna

The outdoor antenna receives and transmits signal to nearby cellphone towers. Outdoor antennas can be either directional or omni-directional.

2 - Cellular amplifier

The amplifier (or "repeater") boosts the signal coming to and from and going to the cell phone tower. The "gain" of the amplifier describes how strong the amplification is - you'll see that word scattered across our product pages.

3 - Indoor antenna

The indoor antenna rebroadcasts the signal inside the building. Some kits have more than one indoor antenna to help distribute the signal.

how a cell phone booster works


The coverage area you can expect from any signal booster kit depends on the signal strength outside the building.

Outdoor Signal Estimated coverage area
Strong outdoor signal (5 bars) up to 30,000 sq. ft. coverage
Medium outdoor signal (3-4 bars) up to 10,000 sq. ft. coverage
Weak outdoor signal (1-2 bars) up to 5,000 sq. ft. coverage


The WilsonPro 1050 Inline Booster Kit (460230) is compatible with the following networks:

Carrier Supported services Unsupported services
Verizon 2G/3G Voice + Data 4G LTE
AT&T 2G/3G Voice + Data 4G LTE
Sprint 2G/3G Voice + Data 4G LTE
T-Mobile 2G/3G Voice + Data 4G LTE

The WilsonPro 1050 Inline Booster Kit (460230) kit is also compatible with Canadian networks, though they are not listed above. Check our international carriers page for more information.

Supported frequency bands (MHz): 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155


Like almost all of our products, the WilsonPro 1050 Inline Booster Kit (460230) can be installed by anyone who feels comfortable doing simple home repairs and running cabling. If you’re not comfortable doing that kind of work, you might consider finding a local electronics installer or asking a friend.

Unlimited free technical support:

Anytime you purchase from Waveform, you get unlimited free technical support from our signal experts. Whether it’s installing a kit or troubleshooting a problem, we’re here. In over 11 years of being in business we’ve helped over 25,000 customers install kits and improve their signal.

Have a question now? Call us from 7am to 5pm PST: 1-800-761-3041.

Product video


SKU 460230
UPC 0811815027003
Dimensions 3.75 x 11.5 x 18 in
Frequency 698-716 / 728-746 / 746-757 / 776-787 / 824-849 / 869-894 / 1850-1910 / 1930-1990 / 1910-1915 / 1990-1995 / 1710-1755 / 2110-2155
Gain 70 dB
Impedance 50 ohm
Connector type N-Female
Cable length 75', 2 x 100', 2'
Cable type Wilson 400
Coverage 5000 sq ft (1 coverage with weak signal)
10000 sq ft (2 coverage with medium signal)
30000 sq ft (3 coverage with strong signal)
