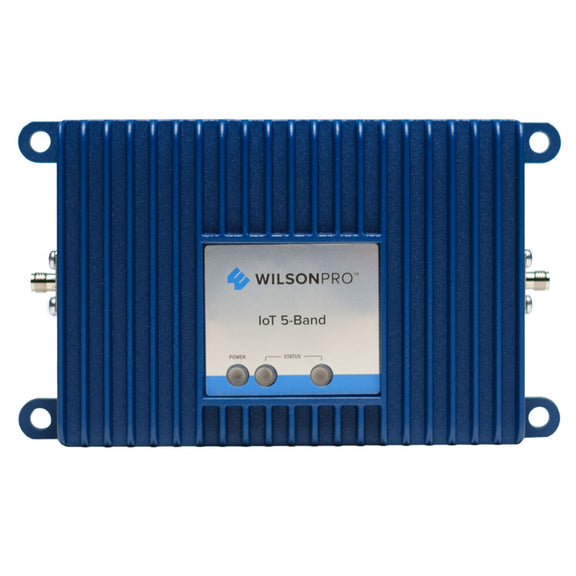

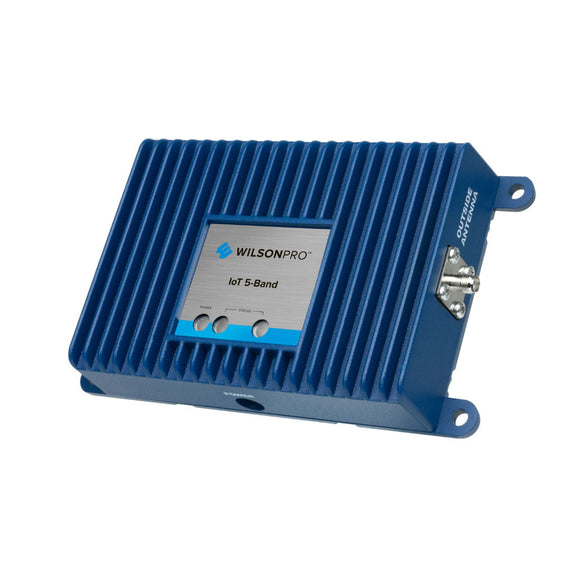

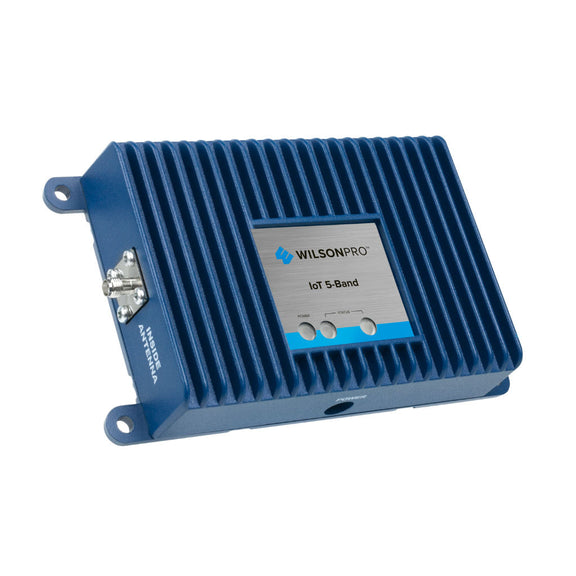

The WilsonPro IoT 5-Band is designed for use by integrators with data-enabled devices who need to integrate M2M kits in tightly constrained spaces. The IoT 5-Band is configurable to almost any Internet of Things (IoT) installation.

More and more types of electronic devices require a data connection. In locations where cellular signals are weak due to distance from the cell site, terrain features, or building materials like concrete and steel, the IoT 5-Band provides a strong, reliable signal.

Examples of devices that require a data connection include ATMs, security systems, point-of-sale systems, and more. Typically these devices need a persistent, always-on connection which means that a solid signal is required.

A passive RF bypass failover keeps the modem going if power is lost.

Compatibility

The WilsonPro IoT 5-Band is compatible with all U.S. carrier networks.

The WilsonPro IoT 5-Band is the latest version of the M2M unit formerly called the WilsonPro Signal 4G.

Kit Options

The IoT 5-Band is offered in three different kit options:

• 460119 The basic kit; ideal for ATMs, vending machines, or movie-rental kiosks with access to AC power outlets
• 460219 The hardwire kit, with DC power supplied by a vehicle to amplify cell signal for an LTE-modem hotspot
• 461119 The security kit with MMCX cables to interface with cellular-based home or business security systems

Kit Contents

460119 Basic Kit:

• WilsonPro IoT 5-Band Amplifier
• 6ft RG-174 Cable with SMA-Male Connectors (951141)
• AC/DC 5V/4A Power Supply (850012)
• Mini Magnet Antenna (301126)

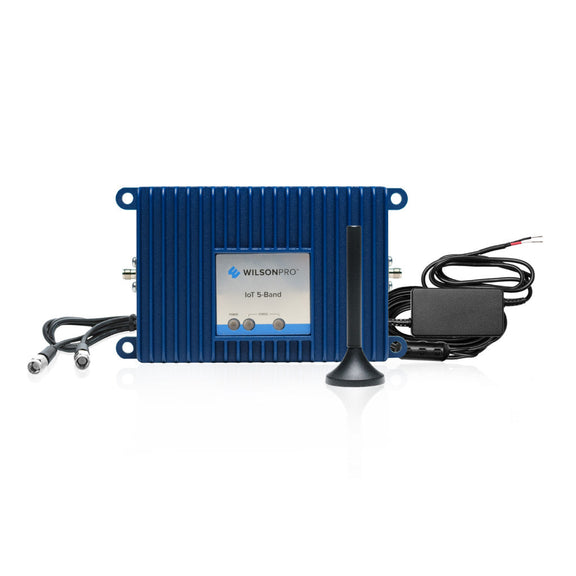

460219 Hardwire Kit:

• WilsonPro IoT 5-Band Amplifier
• 6ft RG-174 Cable with SMA-Male Connectors (951141)
• DC/DC 6V Hardwire Power Supply (859923)
• Mini Magnet Antenna (301126)

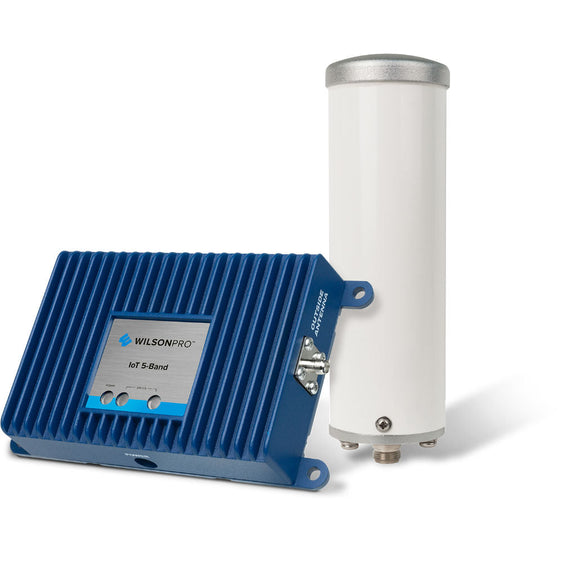

461119 Security Kit:

• WilsonPro IoT 5-Band Amplifier
• Omni Antenna (304422)
• 12 inch Adapter w/MMCX (951153)
• MMCX right angle to SMA-Female Bulk-head connector w/12 inch RG316 cable (951154)
• 10ft RG58 SMA-Male to SMA-Male (295834)
• 30ft RG58 SMA-Male to N-Male (955833)
• AC/DC 5V/4A Power Supply (850012)

Warranty

WilsonPro warranties all of their amplifiers, antennas, and RF components for 3 years against any workmanship or material defects.

Read more about WilsonPro’s warranty policy here.
