Netgear 4G LTE Modem (LB1120, LB2120) External Antenna Guide

Written by Afif Chamas

Why you can trust Waveform

Waveform is the leading provider of solutions for improving cellular signal and connectivity. Our team of experts has decades of combined experience in wireless communication and remains committed to providing honest, data-driven reviews and recommendations. We rigorously test every product we sell and maintain complete editorial independence. No company can pay to influence our reviews or product ratings.

Read more about Waveform
Updated December 5, 2024 4 min read

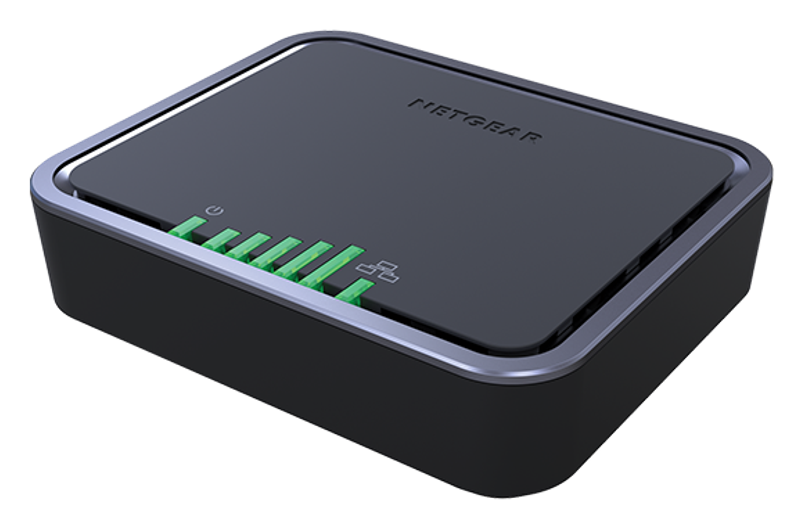

Netgear 4G LTE Modem LB1120

Looking to get the best possible data rates from your Netgear 4G LTE Modem LB1120?

You’ll want to purchase and connect external MIMO antennas to the device’s two TS9 ports.

In this guide, we'll:

  • Recommend the best external antennas to use.
  • Show where the TS9 ports are located.
  • Explain how to aim the antennas for best results.

The Best External Antennas For the Netgear 4G LTE Modem

Using a MIMO antenna outside your building, pointed at the nearest tower, can help you get the fastest LTE data rates possible.

The Netgear 4G LTE Modem has two TS9 ports at the back. These allow for a 2x2 MIMO antenna to be connected to the device.

We recommend two different MIMO antenna options for use with the Netgear 4G LTE Modem:

Best For Most Users
2x2 MIMO Panel Antenna Kit

2x2 MIMO Panel Antenna Kit

This MIMO panel antenna kit will provide meaningful signal improvement, even if you're surrounded by trees, hills, or tall buildings.

Shop Now
From: $179.99

For most users the best external antenna choice for the Netgear 4G LTE Modem is our 2x2 MIMO panel antenna kit. This antenna doesn’t require line-of-sight to the tower.

Best With Line Of Sight
Waveform DualPlus: 2x2 MIMO Log Periodic Antenna

Waveform DualPlus: 2x2 MIMO Log Periodic Antenna

This cross polarized log periodic antenna has higher gain and is more directional. It works best if you have direct line-of-sight to the tower.

Shop Now
From: $229.99

However, if you have line of sight to the nearest tower, we recommend using a DualPlus MIMO log periodic antenna kit instead. The higher gain on these antennas can get you better performance, but only when you have a straight shot to the tower.

Why External Antennas Are Critical for Improving Data Rates

Most people think that external antennas primarily help you increase your data rates by increasing the signal strength. But that's not the case.

An increase in signal strength is often less important than other ways that external antennas help.

Here are the three main ways that external antennas help you increase your data rates:

  1. They Improve Signal Quality

    In 4G LTE networks, signal quality is measured as SINR (Signal to Interference plus Noise Ratio) or sometimes as RSRQ (Reference Signal Received Quality).

    Improving signal quality has a huge impact on your data rates.

    Higher data rates allow your hotspot to communicate using "higher order modulation schemes." That means they can use the same wireless spectrum to send more data per second.

    However, there's one big caveat:

    In order to improve your signal quality, you need to both aim and shield your outdoor antenna properly. We talk more about this in the next section.

  2. They Allow You To Connect On More Bands

    Hotspots like the Netgear 4G LTE Modem support an LTE feature called "carrier aggregation."

    Carrier aggregation allows the Netgear Modem to connect on multiple cellular bands simultaneously.

    The more bands you're connected on, the greater the bandwidth, and the higher your data rates.

    However, many of the higher frequency bands aren't able to penetrate into buildings. Using external antennas allows you to access higher frequency bands, which are often less congested and offer higher speeds than lower frequency bands.

  3. MIMO Isolation

    MIMO (Multiple Input Multiple Output) technology uses signals travelling along multiple paths simultaneously, increasing both bandwidth and reliability in wireless connections.

    MIMO isolation is the antenna's ability to handle several data streams at once, cleanly and without interference, leading to quicker data speeds and steadier connections

    Our external antennas are specifically designed for superior MIMO isolation, and dramatically outperform standard built-in antennas found in most home devices.

    This means you'll see a more reliable connection with enhanced bandwidth, ensuring smoother streaming, gaming, and browsing with minimal interruptions.

Positioning and Aiming MIMO Antennas

Positioning and aiming MIMO antennas well is crucial to getting the best performance to your Netgear 4G LTE Modem, or indeed any other hotspot.

We've actually compiled a detailed instruction manual to accompany our own 2x2 MIMO Antenna Kits, where we go into depth on the best ways to aim the antennas.

The goal is to find the best location and direction for the antenna(s), to maximize data rates to the hotspot. It can take a little patience, but can have a huge impact – it’s worth a bit of extra effort!

Before getting started, it's always a good idea to run a couple of speed tests indoors from a device connected to your Netgear Modem's WiFi. The results will fluctuate a little, but this is the baseline you're trying to improve.

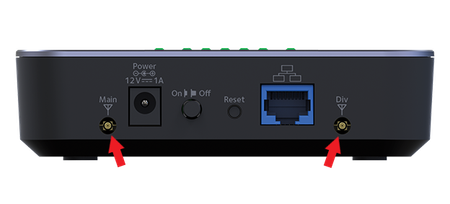

Location of the TS9 ports on the Netgear 4G LTE Modem
Location of the TS9 ports on the Netgear 4G LTE Modem

Now connect the MIMO antennas to your Netgear 4G LTE Modem via the TS-9 ports, and go outside with your "test-rig".

With each location and direction you try, run a couple speed tests, and make a note of the results. Here are all the locations and directions where we recommend testing your MIMO antenna:

Where to test your signal
Where to test your signal

Pro tip: Don’t just go to the highest point of the roof! While signal is generally stronger the higher you go, there’s also often more interference. We’ve found it’s often better to mount the antenna(s) on the side of the building where the structure can shield the antennas from interference.

Once you've found the position which gets you the highest data rates to the Netgear Modem, that's where you'll want to install the MIMO antenna. Go ahead and mount the antenna, run cables inside, connect everything up, and enjoy superior data rates!

Netgear 4G LTE Modem Versions and Technical Specifications

The Netgear 4G LTE Modem comes three main versions:

  • LB1120 - The base model, and the one we reference throughout this guide
  • LB1121 - This version can be powered over PoE (power over Ethernet) as well as via the power jack
  • LB2120 - This version adds an ethernet WAN port to be used as input. This allows the LB2120 to act as a failover and take over providing internet if the wired internet goes down.

All three modems have the same chipset and look identical aside from the athernet ports on the back panel. For most folks we'd recommend the base LB1120 version, which is what the technical specifications below refer to.

Technical Specifications

Supported 4G LTE bands in the US

  • AT&T: B2, B4, B5, B12, B17, B14, B29, B30, B66
  • Verizon: B2, B4, B5, B13, B46, B48, B66
  • T-Mobile: B2, B4, B5, B12, B41, B25, B26, B66, B71

Cellular Modem

  • Model: Netgear LB1120
  • MIMO Support: 2x2 with internal or external antennas
  • LTE-A Carrier Aggregation: No
  • LTE Performance Category: Cat 4
  • Max Theoretical Speeds: 150Mbps Download, 50Mbps Upload

Wi-Fi

  • None

Ports

  • Cellular Antenna Ports: Dual TS-9
  • Other Ports: Gigabit Ethernet

Other

  • Power: AC power only (no battery)

Other Helpful Resources

A helpful video by Mobile Internet Resource Center

NETGEAR's product page for the 4G LTE Modem LB1120

Documentation
