Description

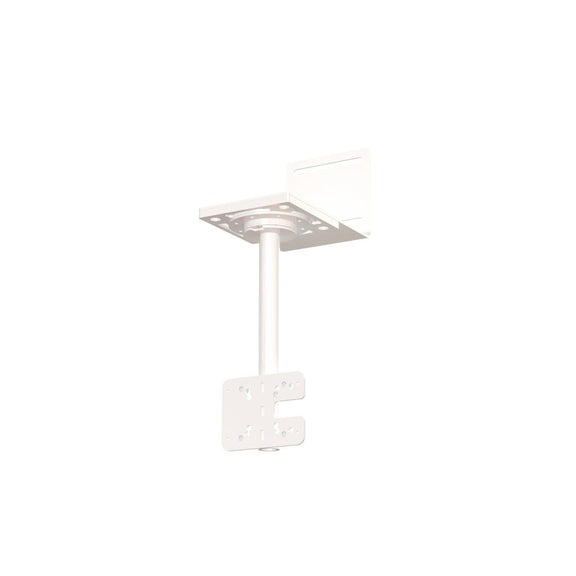

The Cel-Fi Antenna Mount is an mount designed for the Cel-Fi QUATRA system. It is an indoor/outdoor antenna mount that can be used to position a Network Unit as a donor antenna, or a Coverage Unit as a server antenna.
The antenna mount is compatible with the Cel-Fi WAVE Antenna Positioning Application. The WAVE platform is a mobile app, available for desktop, Android, and iOS. It can determine the optimum antenna direction. The mount's 8-position dial base enables the antenna to be rotated in 45-degree increments, with real time performance data updates from the WAVE app.
The mount has a flexible hole pattern for multiple mount types. It can be used to mount to a pole, ceiling, or wall.
The mount is a 26 cm powder-coated pole with stamped metal surface.
It comes with a 2-Year Warranty.
Donor Antenna Position (for Network Unit)
The antenna should be mounted at a window with a clear view to the outside cellular network. The antenna must not be directed at any nearby Coverage Unit. This is to avoid oscillation (feedback).
Server Antenna Position (for Coverage Unit)
The antenna should be mounted and aimed where coverage is needed. Do not point antenna at the Network Unit donor antenna. This is to avoid oscillation (feedback).
Which Extender Is Right For You?
4G LTE Network Extender 3
Fastest possible 5G data rates but requires aiming.
-
Technology & Bands:
4G LTE - Bands 4, 13, 66 -
Coverage with built-in antennas:
10 000 sq ft -
Coverage with external antennas:
Up to 50 000 sq ft per device -
User Capacity
Up to 64 active users, 300 idle users per device
5G Network Extender 4
Upgrade your 5G in minutes with no aiming required.
-
Technology & Bands:
5G NR - Bands n48, n77 and 4G LTE - Bands 4, 13, 66 -
Coverage with built-in antennas:
10 000 sq ft -
Coverage with external antennas:
Expandable via external antennas or DAS -
User Capacity:
Up to 64 active users, 300 idle users per device
Choose Network Extender 3 (LTE) if you only need stable 4G LTE coverage — for example, older devices, basic voice/data, smaller sites, or locations where 5G signal is weak.
Choose 5G Network Extender for Enterprise when you want to future-proof your installation, support newer 5G-enabled devices, maximize throughput, or deploy across larger or multi-structure environments.
