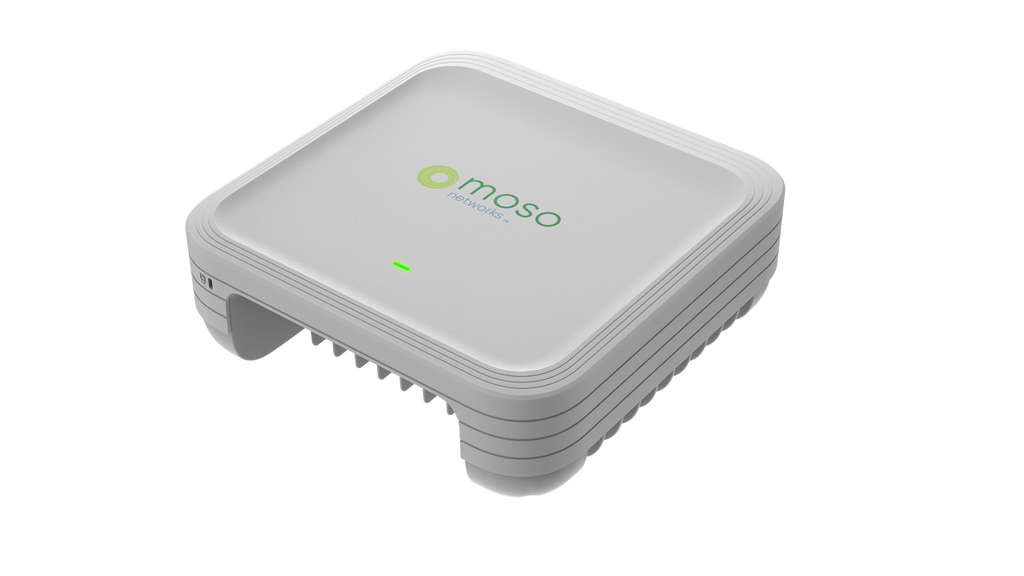

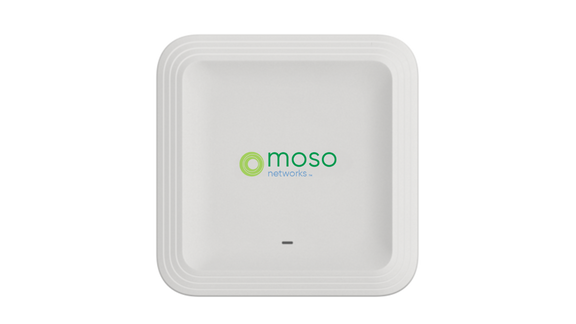

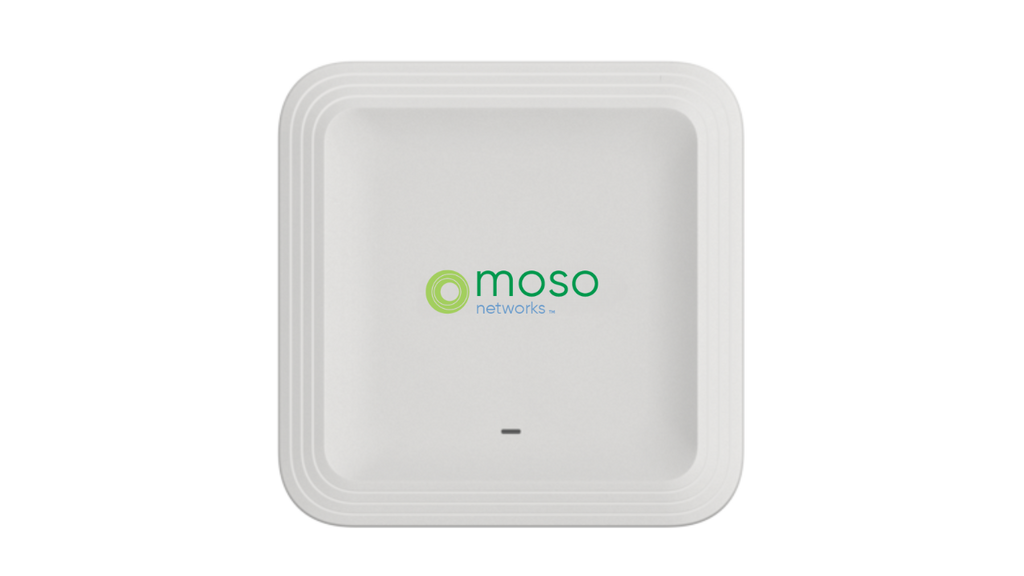

Moso Canopy 5GID2: Indoor 5G Small Cell
by: Moso
by: Moso
Moso Canopy 5GID2: Indoor 5G Small Cell
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Moso products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The Moso Canopy 5GID2 is a flagship indoor 5G NR base station designed for high-capacity enterprise and Industry 4.0 deployments. With Release 16 compliance and uRLLC capabilities, it supports mission-critical applications such as robotics, machine control, and real-time monitoring. Its fanless, compact design allows quiet operation in office and industrial environments while delivering advanced 5G connectivity.
The 5GID2 supports up to 200 MHz operating bandwidth in CBRS Band n48. Featuring 4x4 MIMO and peak throughput up to 1.5 Gbps downlink, it enables enterprises to run high-density, performance-sensitive applications. Integrated SAS proxy and IPSec security simplify deployment, while advanced features like network slicing and optional on-radio UPF support extend flexibility.
Deployment Requirements
To deploy the Moso Canopy 5GID2, you’ll need:
- SAS registration: Required for CBRS Band n48 deployments, supported via direct connection or integrated domain proxy.
- IP backhaul: 10GE and SFP+ fiber interfaces supported. Powered via PoE++ (802.3bt) or 12V DC input. IPSec supported for secure transport.
- 5G Core network: Compatible with major 5GC vendors. Optional on-radio UPF available for edge deployments.
- Power and mounting: Includes ceiling and wall mounting bracket. Customer provides mounting surface and power source.
- GPS antenna for synchronization: PTP timing supported with external SMA port for GNSS input.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports 5G NR Bands n48 (3550–3700 MHz)
- Delivers up to 30 dBm EIRP with 4x4 MIMO, enabling higher throughput and improved cell-edge performance
- Supports up to 500 registered UEs with 300 active simultaneously, suited for high-density deployments.
- uRLLC capabilities with <10 ms latency enable mission-critical Industry 4.0 applications.
- Peak downlink throughput of up to 1.56 Gbps at 100 MHz channel bandwidth.
- Advanced 5G features including carrier aggregation (2CA, upgradeable to 3CA), network slicing, MORAN/MOCN support, and cascaded radio backhaul.
- Integrated SAS proxy for Band n48 compliance. FCC Part 96 Category A certified.
- Advanced security with multiple IPSec tunnels, encryption, and secure RAN management.
- Fanless passive cooling design for quiet operation in office and industrial environments.
- Compact 4.5 kg unit with <70W power consumption.
Kit Contents
- Moso Canopy 5GID2 Indoor Small Cell
- Wall/ceiling mounting bracket
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
