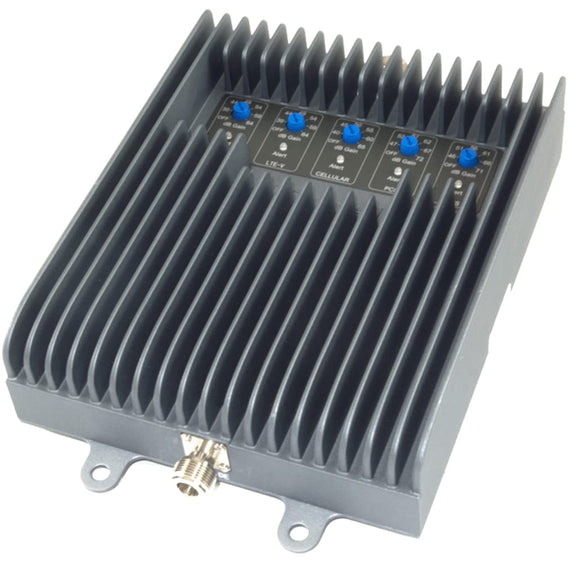

The SureCall Fusion 5s is a 5-Band 72dB signal booster system designed especially for small office and home users. It works on all major carriers. The Fusion5s is built to combine PCS and Cellular dual bands with both LTE and 4G AWS frequencies for Verizon, AT&T and T-Mobile voice and data reception. It covers an area of up to 6,000 square feet, multiple simultaneous users and includes a 3-year warranty.

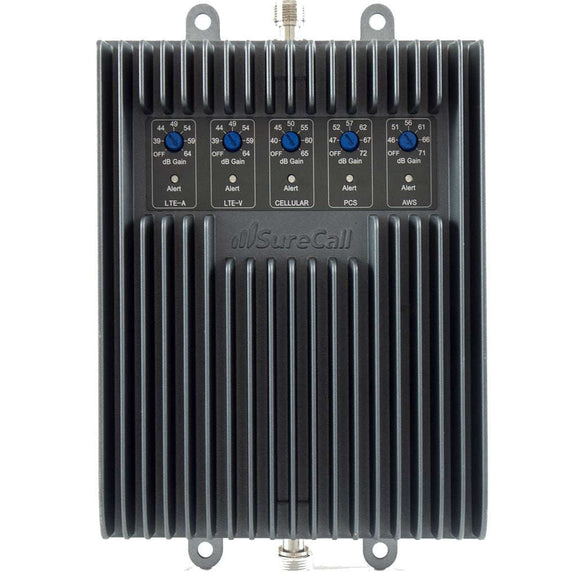

All carrier frequencies are independently balanced with easy to use adjustable control dials. The SureCall Fusion 5s is approved by all major carriers and equipped with built in safeguards to completely eliminate interference to cell towers.
Features
- Highest 4G data rate in the industry
- Simple Plug and Play operation
- Fully compliant with new FCC certification standards and approved by all major US carriers
- Dual Embedded CPU
- Eight RSSI detectors for all inputs and outputs
- Configurable for all indoor environments
Outside Antenna
The SureCall Fusion 5s kit comes with a choice of two outside antennas:
The SC-288W Omni Outdoor Antenna has 4 dB gain. Omni antennas receive and send signals in a 360º radius. They can receive signals from multiple cell towers and is best for boosting signal on many different carriers. They are excellent in most situations where the existing outside signal strength is moderate to strong. If the outside signal is weaker than that, you may need the directional yagi antenna instead. We have a guide to testing your outside signal strength here.

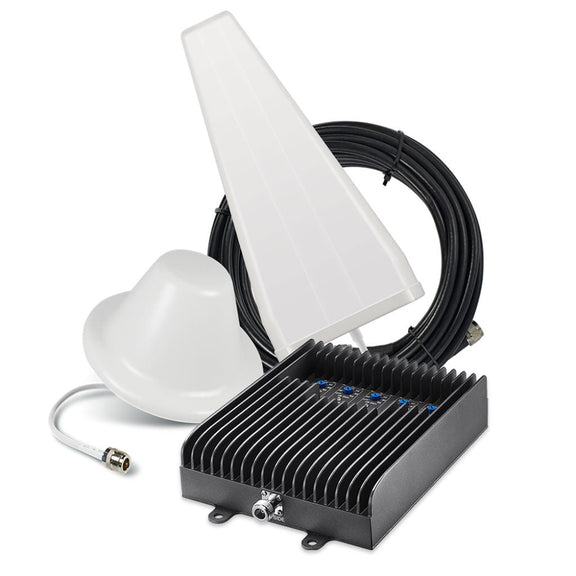

The SC-230W Yagi Outdoor Antenna has an average 10 dB of gain. It is a directional antenna that can reach cell towers up to 30 miles away. It needs to be set up pointing in the direction of the cell tower, and because it is directional it will only pick up signal in that direction. It’s very powerful at picking up weak signal in one particular direction, and we recommend it for situations where existing outside signal is weak, and you only want to boost coverage for one carrier (or if more than one carrier has a cell tower in that direction). If you need to boost signal coming from different directions, it is possible to set up more than one yagi antenna. Contact us for more help with this.
Inside Antenna
The SureCall Fusion 5s kit also has a choice of two inside antennas:

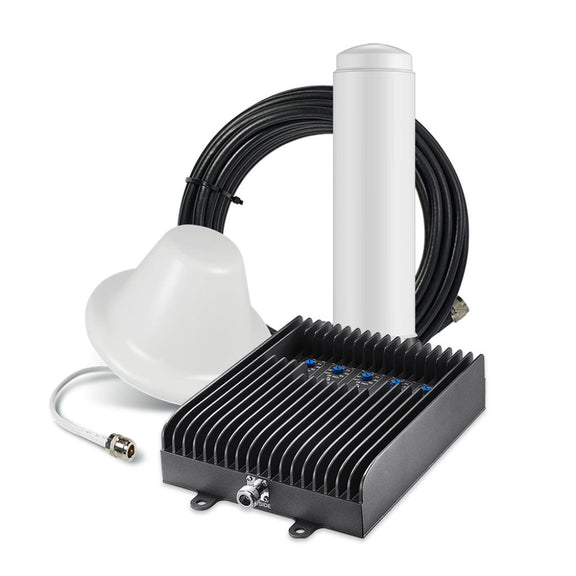

The SC-222W Omni Dome Antenna is a multi-band omni-directional plastic dome antenna with that gathers signals from all sides. It has 6dB gain and is designed for central locations with 360º coverage. The range of the antenna is dependent on three factors: 1) physical obstructions, 2) power generated by the booster and 3) reception from outside signal received and distributed by the outside antenna. Besides the antenna itself, parts include mounting equipment. It needs to be mounted to the ceiling for best results and you will need to run a cable to the back of the ceiling.

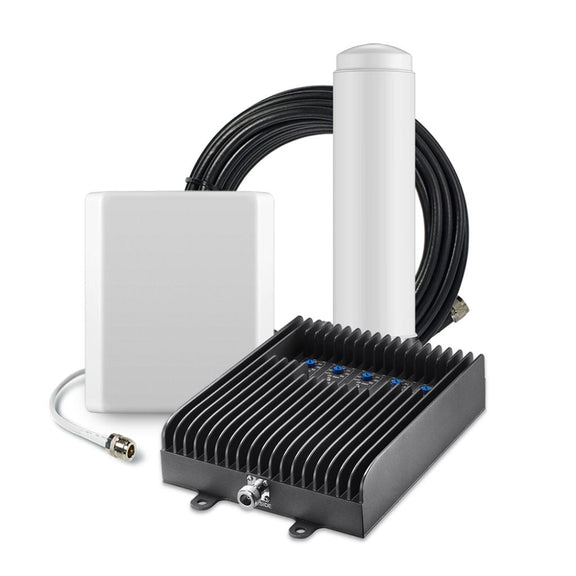

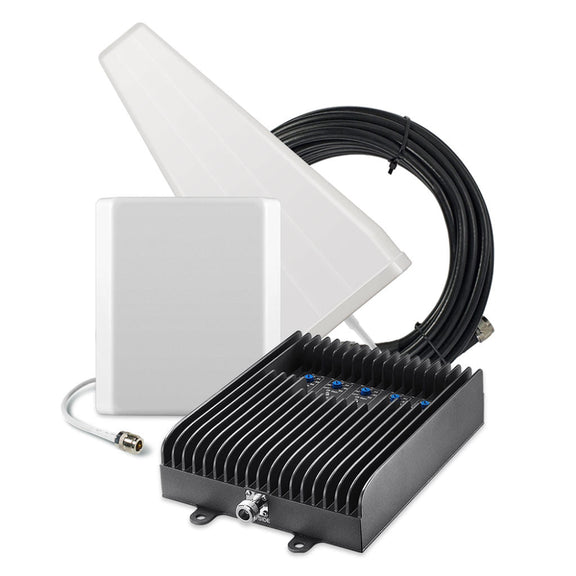

The SC-248W Panel Antenna is a directional antenna with up to 10dB gain. Panel antennas allow optimum reception to targeted areas. It can be mounted to either the wall or ceiling.
Kit Contents
- SureCall Fusion 5s 72 dB 5-Band Amplifier
- SureCall Omni Directional Outside Antenna SC-288W OR Yagi Directional Outside Antenna SC-230W
- SureCall Dome Antenna SC-222W OR SureCall Panel Antenna SC-248W
- 1x30ft. SureCall Ultra Low-Loss CM400 Coax Cable SC-400-30NN
- 1x75ft. SureCall Ultra Low-Loss CM400 Coax Cable SC-400-75NN
2-Antenna Kit

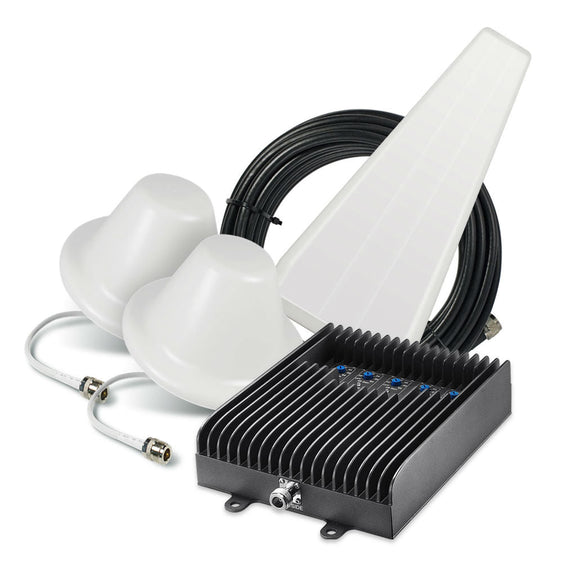

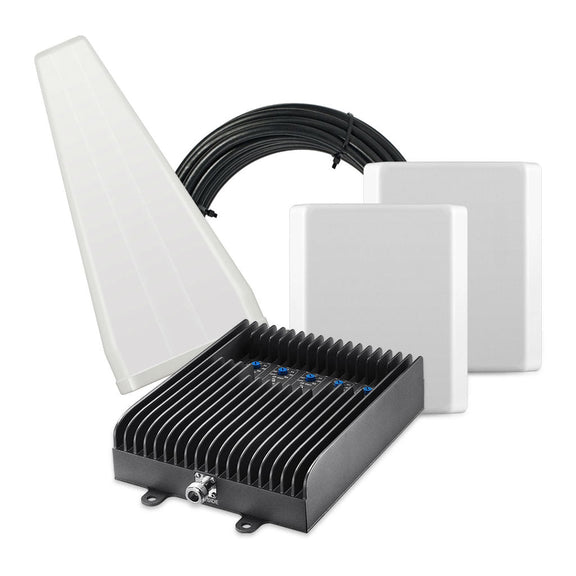

There is also an option to increase indoor coverage with an extra indoor antenna. The 2-antenna kit comes with either 2 SC-222W Omni Dome Antennas or 2 SC-248W Panel Antennas. The 2-antenna kit is only available with an outdoor SC-230W Yagi Antenna. It also comes with 10', 75', and 2 x 50' Sure Call 400 low loss coax cables, and a 2-way splitter.
Lightning Surge Protector
We recommend using a lightning surge protector in most cases, but particularly if you'll be installing the kit in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.
