Our Twin-RS240 cables make it easier than ever to connect two outdoor antennas or a MIMO antenna to your LTE router, hotspot, or signal booster system. This cable assembly has two strands of low loss RS240 coaxial cable glued together, to minimize the bulk of running multiple cables, and make installation easier than ever.
Also included in the bundle are two SMA-Female to TS9-Male pigtail adapters, two SMA-Female to U.FL pigtail connectors, and two SMA-Male to N-Male connectors, to ensure you have everything you might need to connect almost any device.

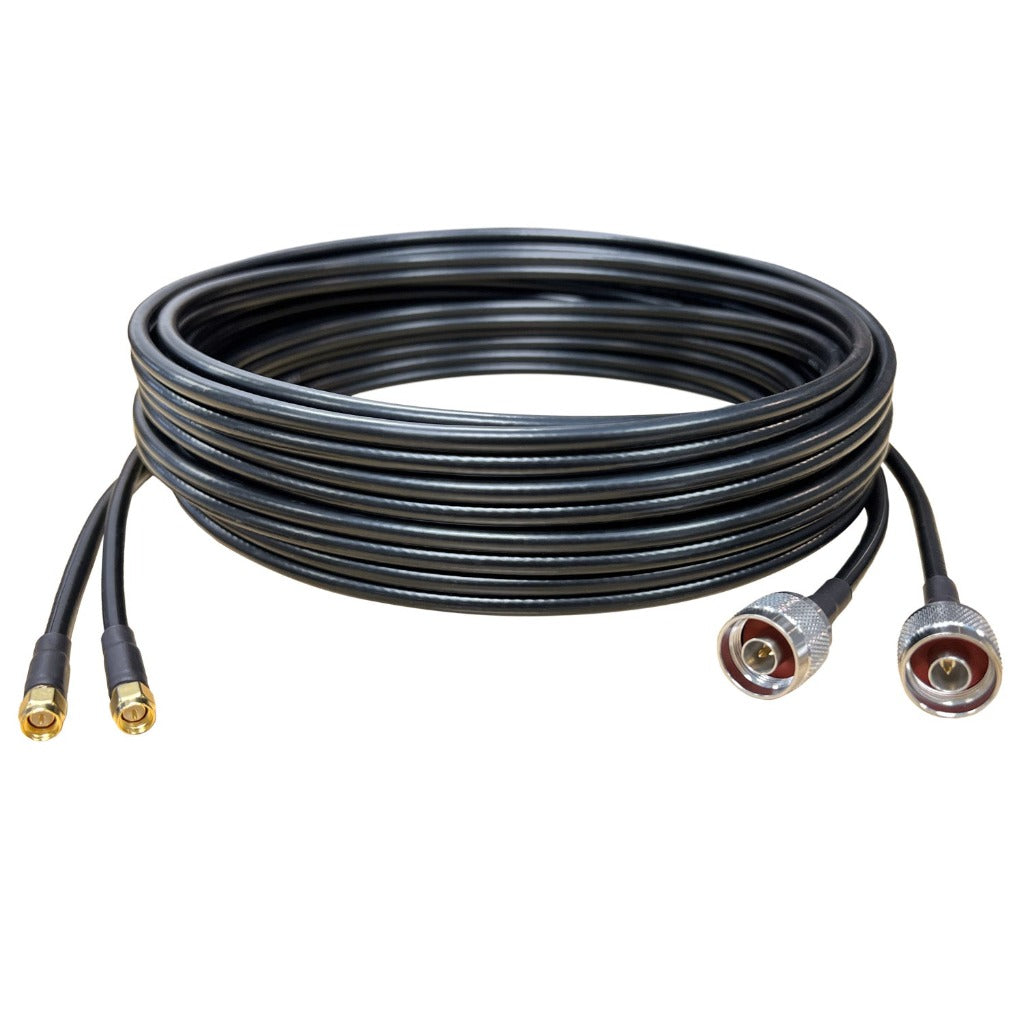

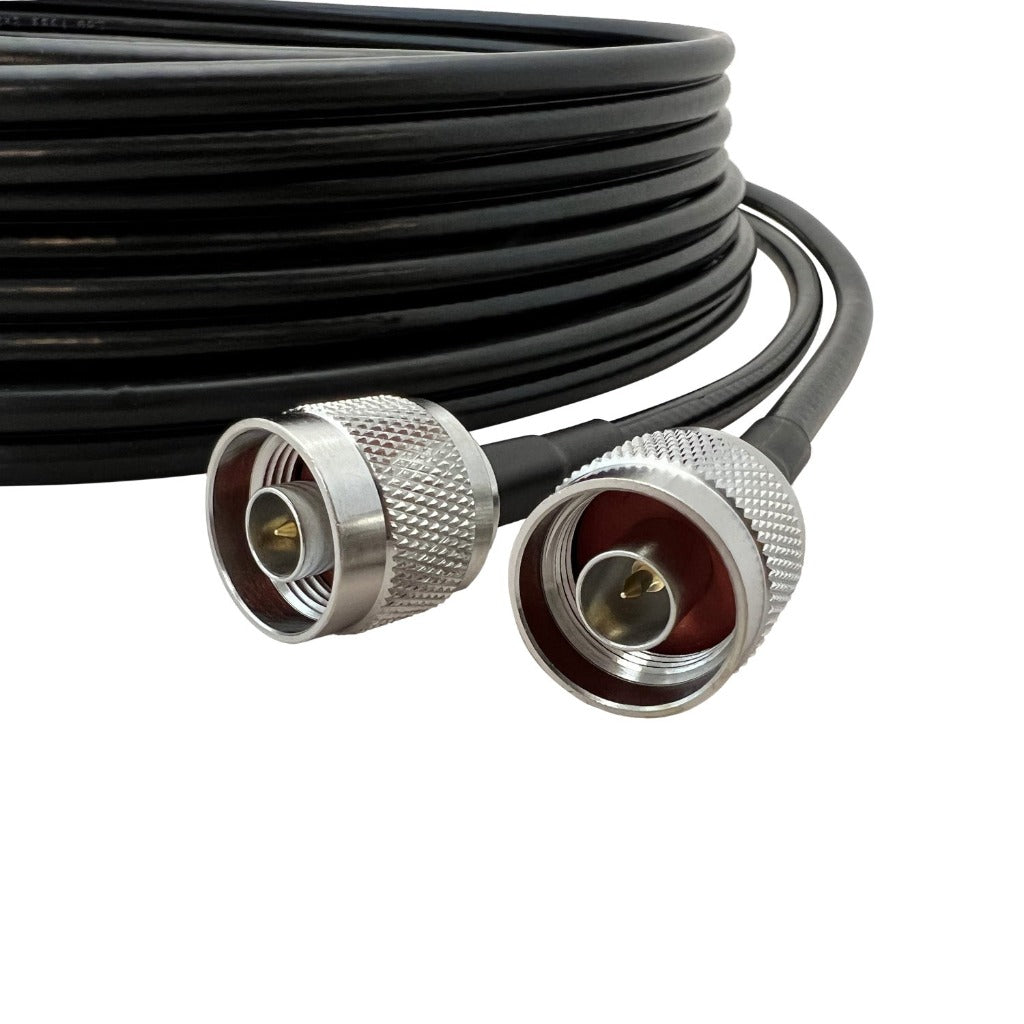

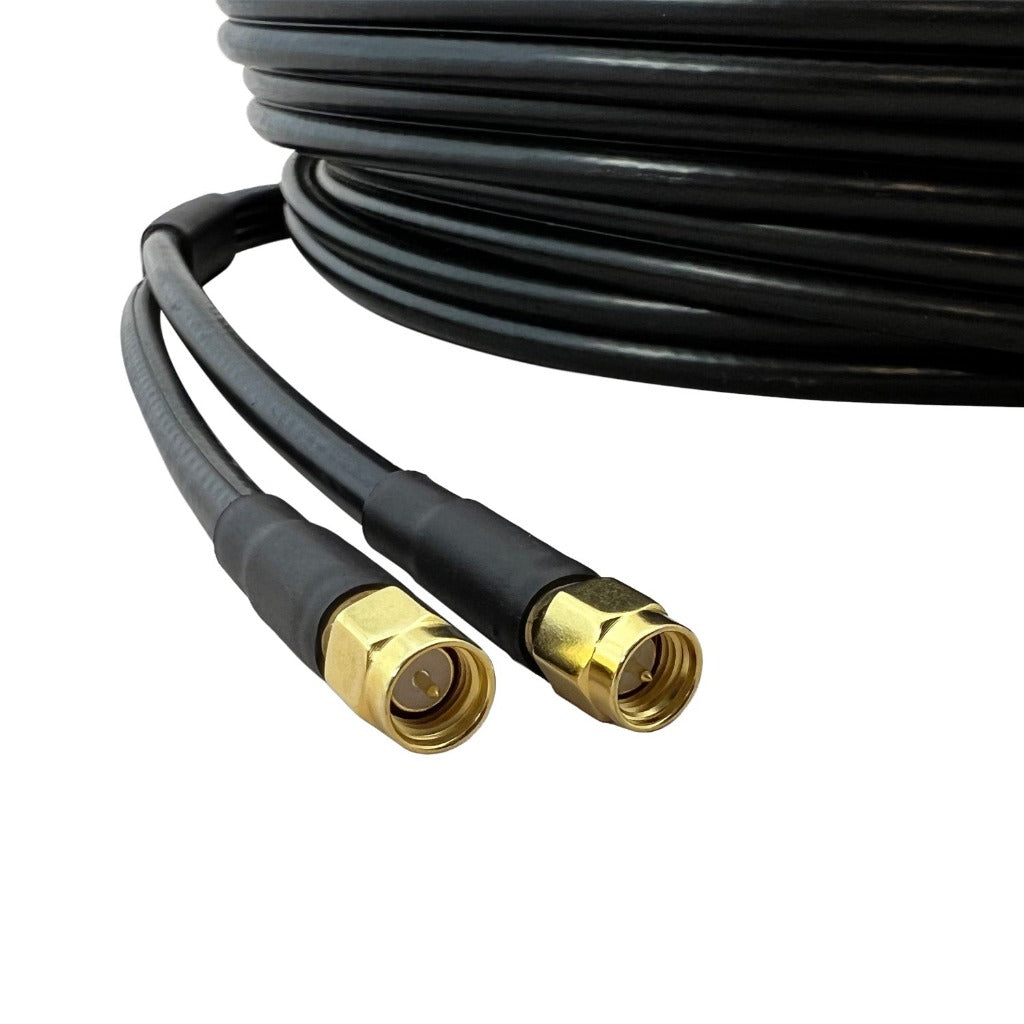

Our Twin-RS240 cables uses two SMA-Male connectors on the “indoor” end of the cable, and two N-Male connectors on the “outdoor” end. The small SMA connectors reduce the size of the hole needed and make wall penetration even easier.
We designed this cable to be the ideal solution for connecting MIMO Outdoor Antennas to Hotspots and Boosters.
Flexible, Durable & Low Loss
RS240 is a flexible, weatherproof, low-loss, high-performance cable that features a durable polyethylene jacket that makes it suitable for outdoor and indoor use. Applications include use with LTE routers and MIMO antennas, signal boosters, and distributed antenna systems, as well as for WiFi, WLAN, Land Mobile Radio, and GPS.
Twin-RS240 Cable Specifications
See spec sheet for full specifications, attenuation figures, and diagrams.
- 2x N-Male to 2x SMA-Male connectors
- Twin-RS240 style cable, 6.1 mm diameter per strand, two strands with 12.2 mm total diameter
- 50 Ohm impedance
- 1.8 dB loss per 30 ft at 600 MHz
- Gold-plated bronze center conductor, PTFE dielectric, and a black PE jacket.
- > 90 dB shielding, 5.6 kW peak power rating, VSWR rated below 1.2 for use at frequencies of up to 6 GHz.
- UV Rated
RS240 is an equivalent replacement for LMR240 type cable. If you think you might need a cable with even lower loss, we also sell RS400 and RS600 Ultra Low Loss Cable. Get in touch with our team if you’re unsure what cable you should use for your application.

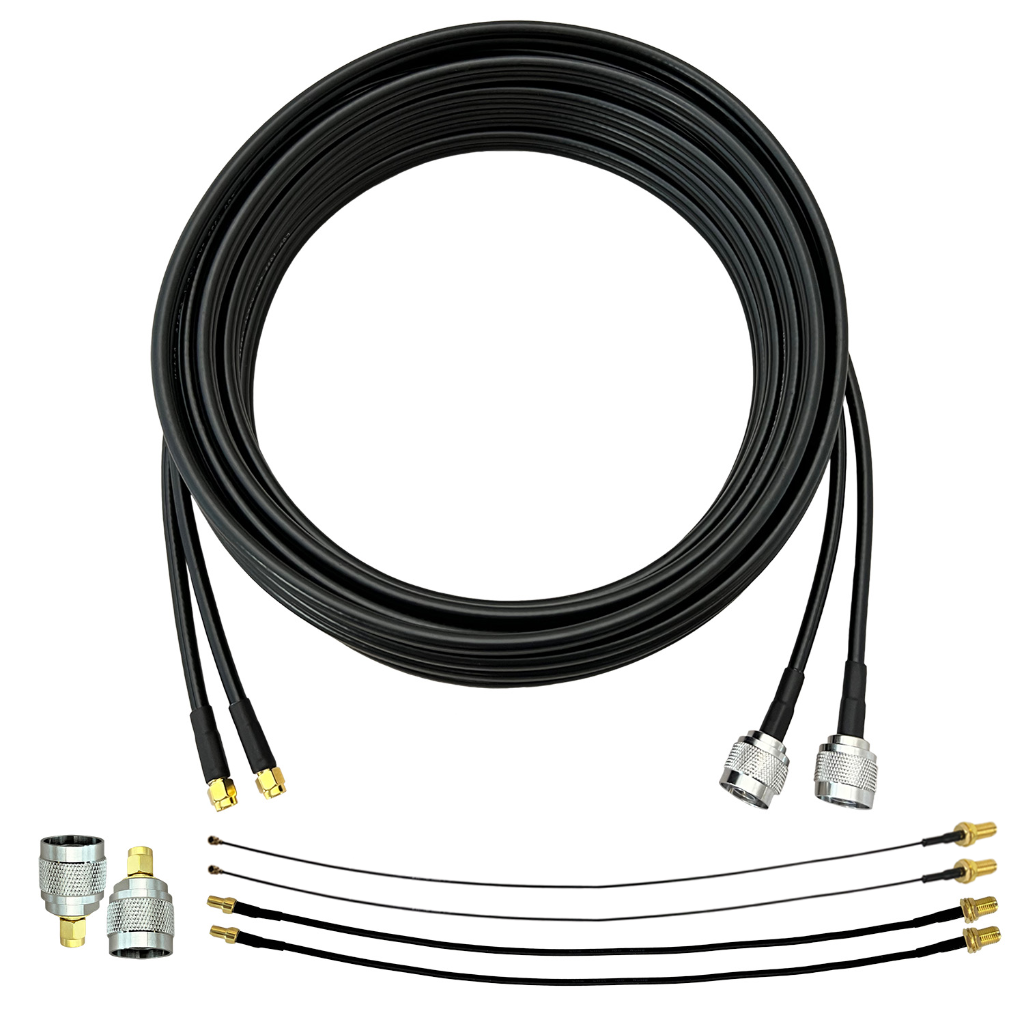

Bundle Contents
- 1x 15ft, 30ft, or 50ft Twin RS240 N-Male to SMA-Male Coaxial Cable

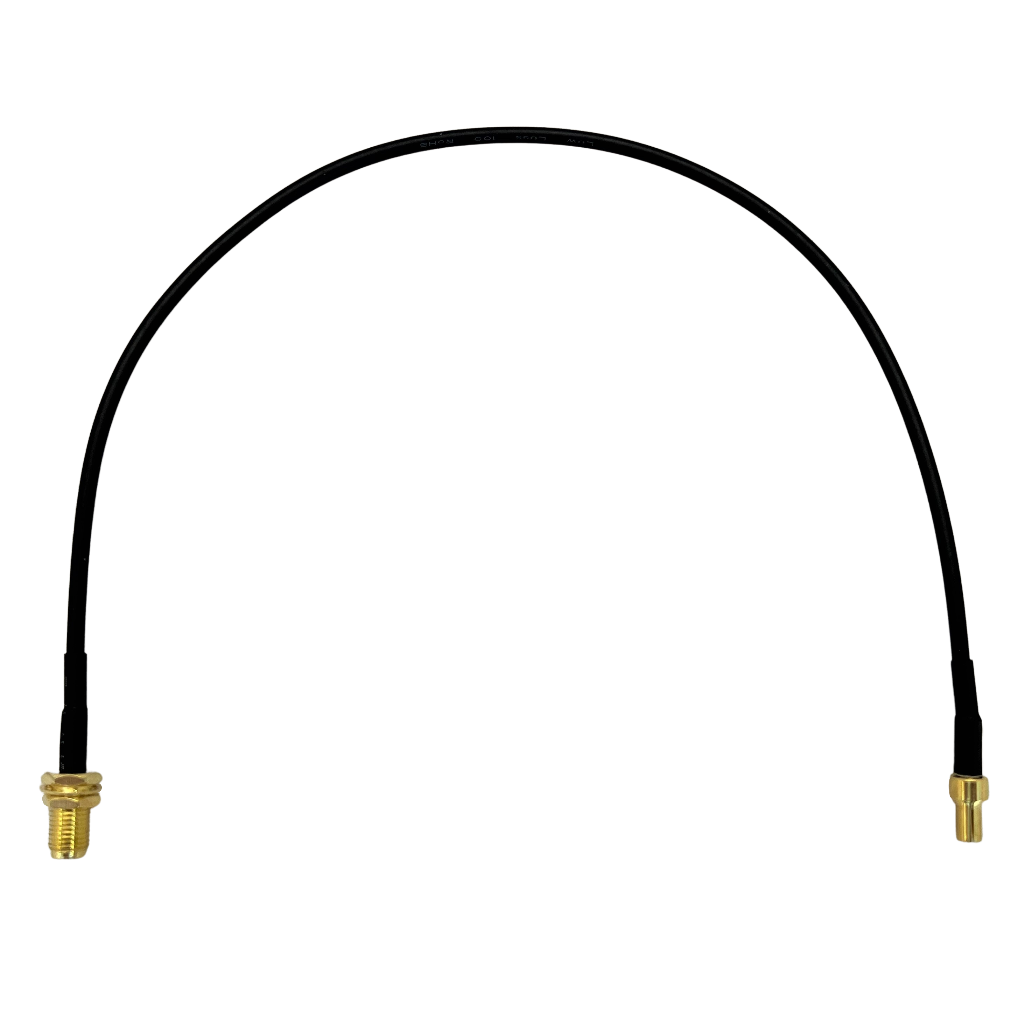

- 2x TS9-Male to SMA-Female Adapters

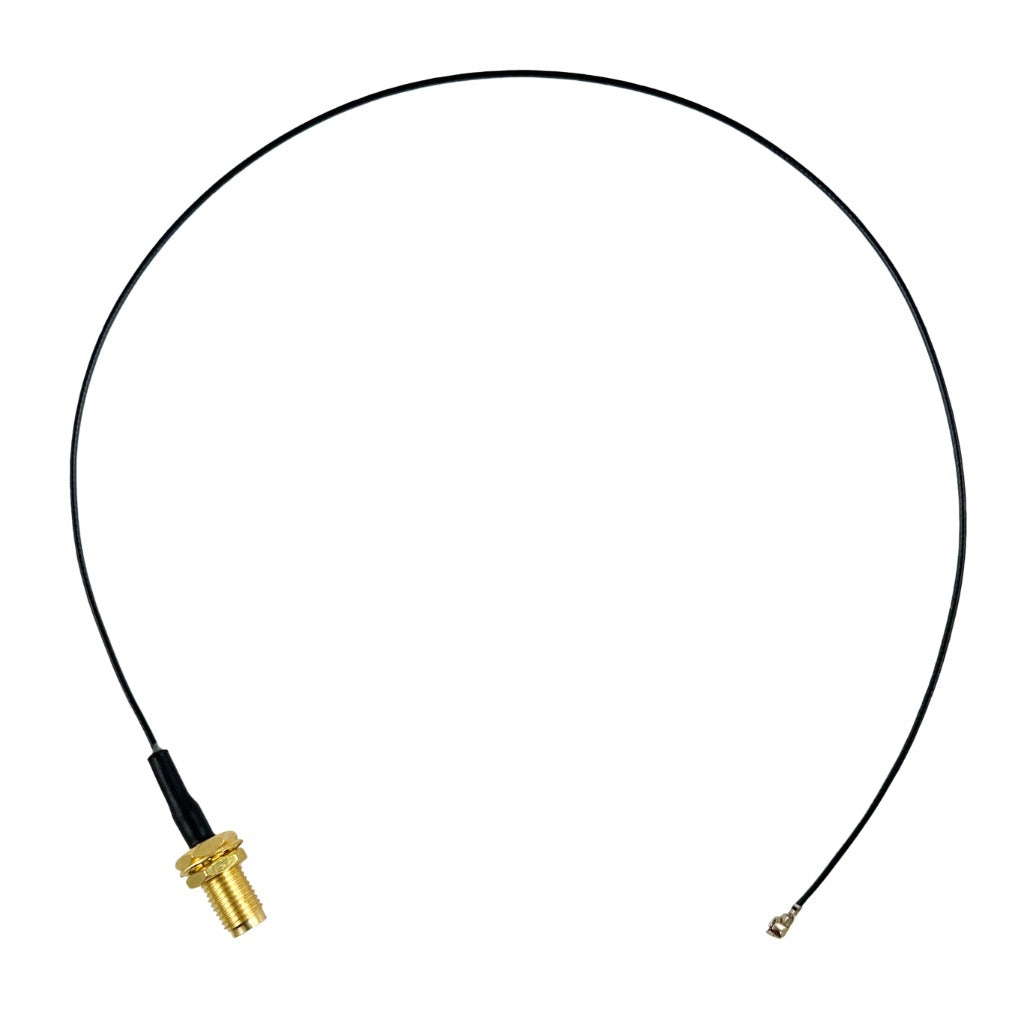

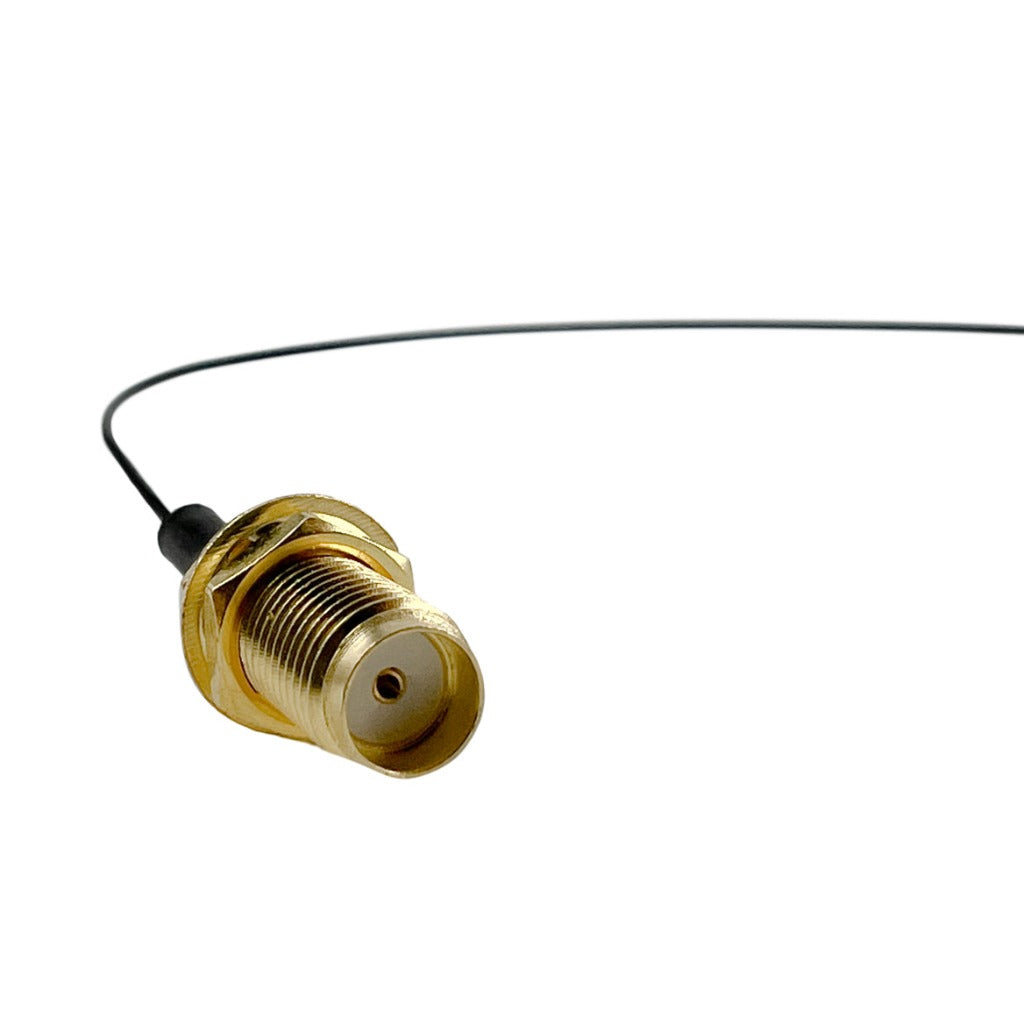

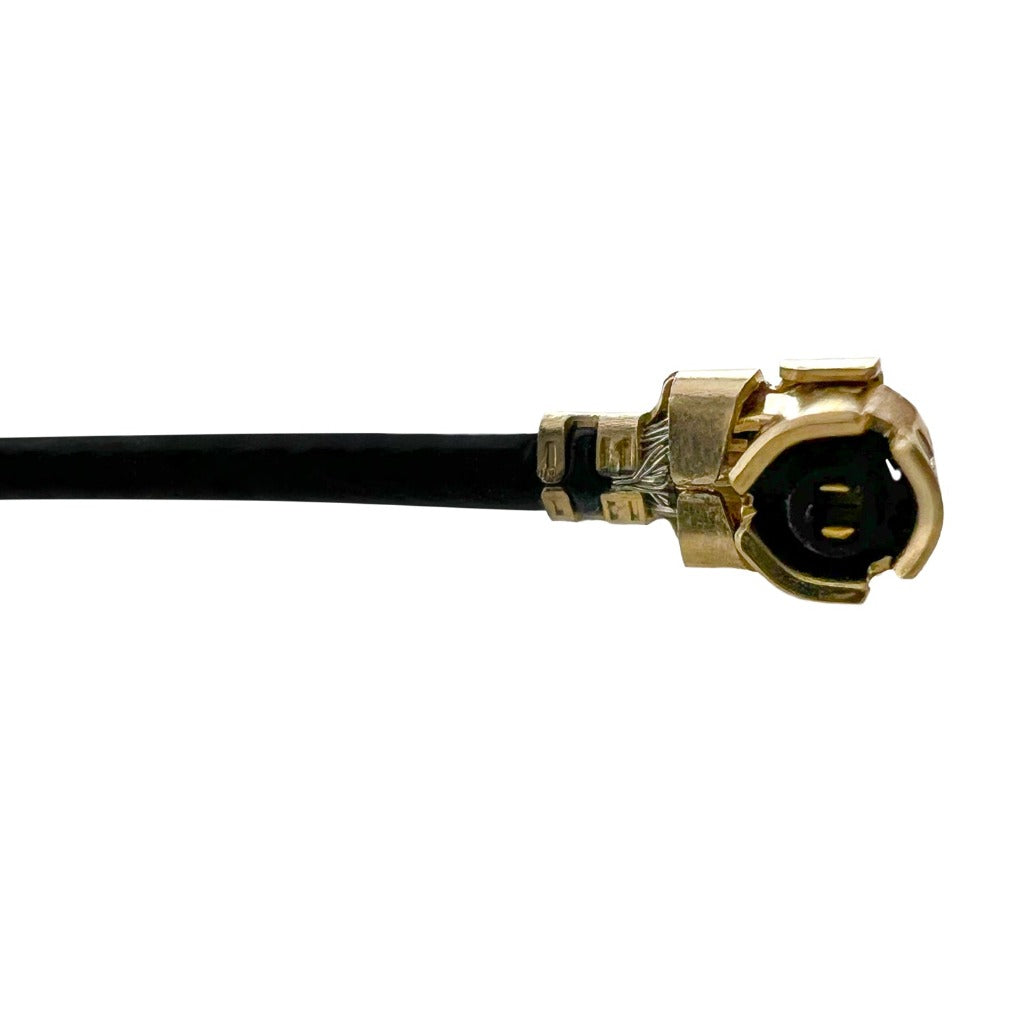

- 2x U.FL to SMA-Female Pigtail Adapters

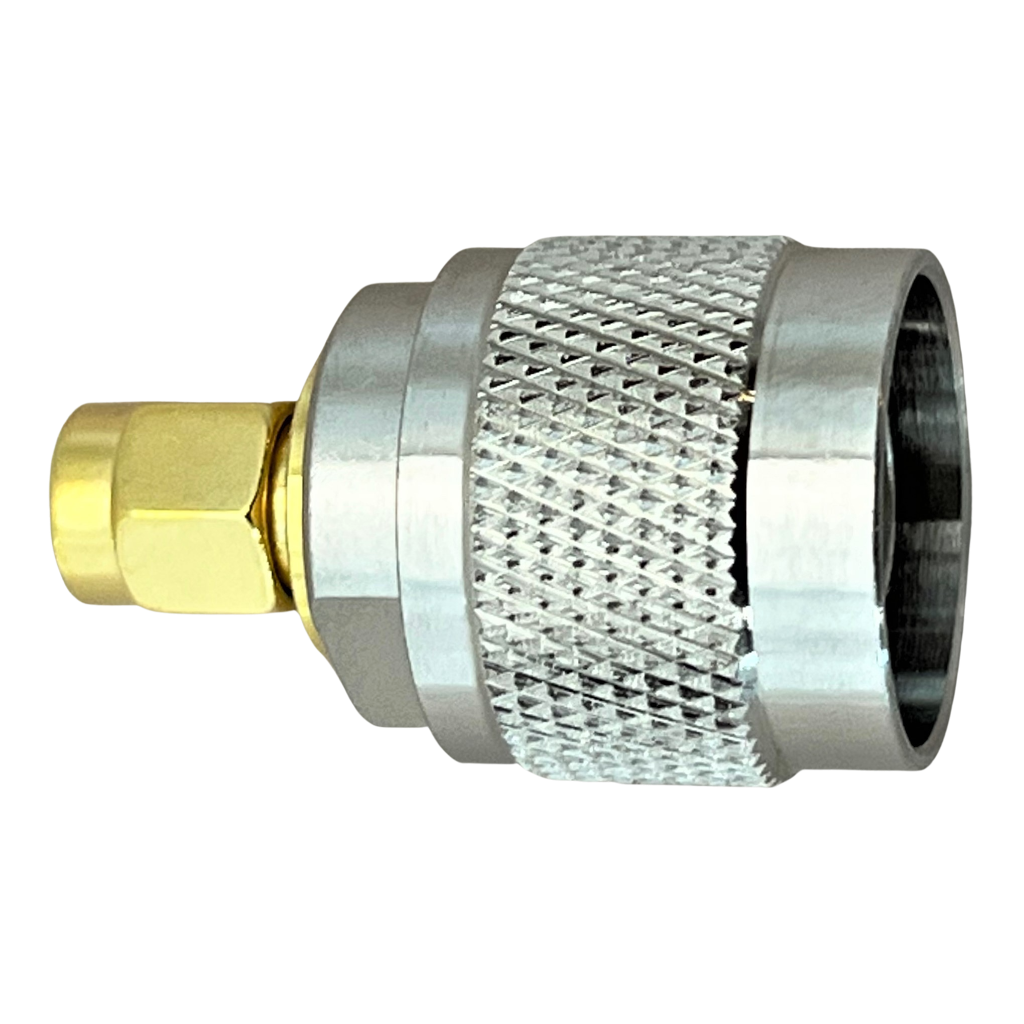

- 2x N-Male to SMA-Male Barrel Adapters

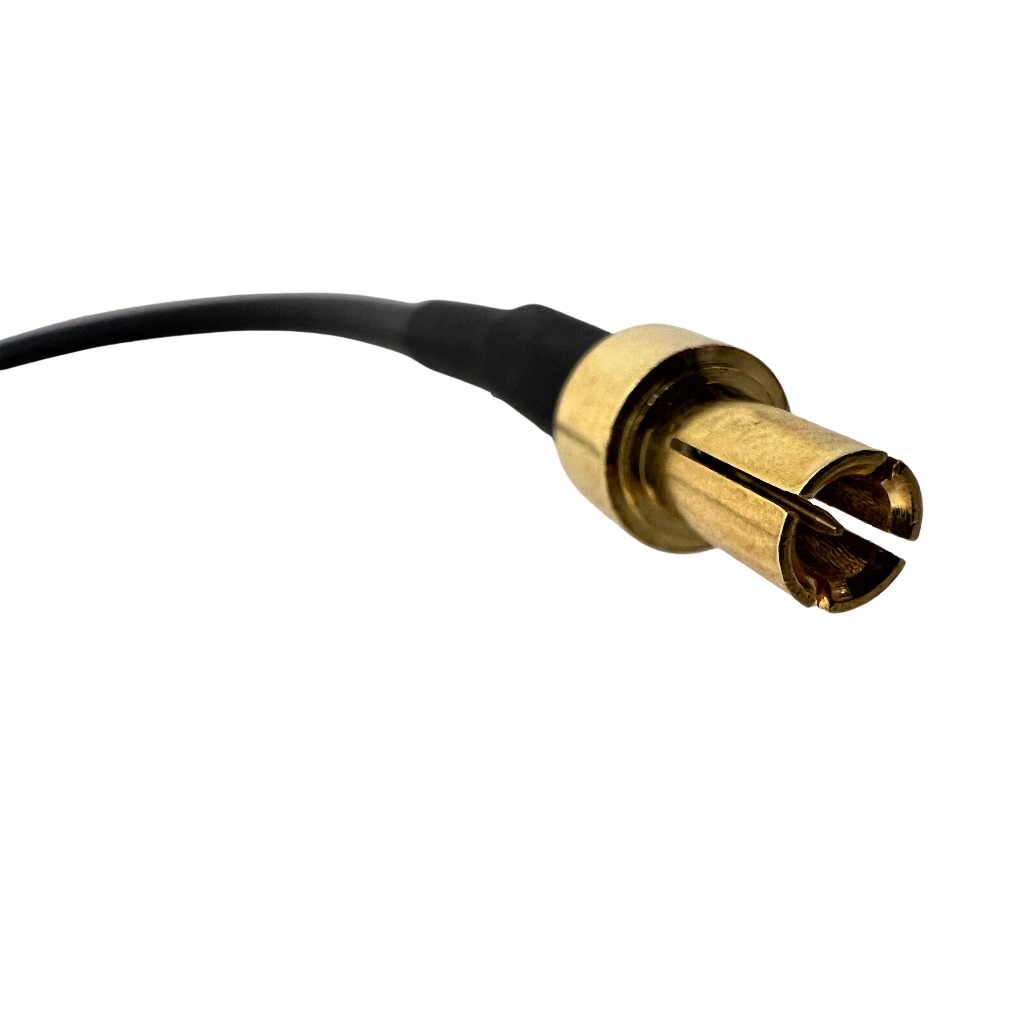

Important note about TS9 Connectors:
TS9 is unfortunately not a standardized connector. TS9 ports on different routers are all slightly different lengths. They also don’t have any physical “coupling”, so it can be difficult to get a good fit. We tested a lot of designs to find one that worked well with every device. Unfortunately, it’s not perfect for any one device. If yours become a bit loose, simply squeeze them lightly with your fingers and they will grip more firmly.
Warranty
Waveform proudly warranties all of our antennas and RF components for 3 years against any workmanship or material defects.
Read more about Waveform's industry-leading warranty policy here.
