The weBoost Home Room (472120) is the ideal repeater to bring you continuous signal in your home or small workspace. It's a simple and effective solution to maintain uninterrupted communication for all cellular devices, such as phones/tablets and data cars, in up to 2 rooms of your home or workplace. The Home Room boosts voice, 3G, and 4G LTE on every carrier in the USA and Canada. It also supports many different devices connected on many different networks at the same time.
The weBoost Home Room was previously known as the weBoost Home 4G (470101).
The weBoost Home Room is designed to boost signal in a small inside area. Depending on outside signal strength and outside antenna positioning, it may be possible to get up to 1,500 sq ft. of coverage, but in practice, most installations will only cover one or two rooms inside.
The weBoost Home Room is also suitable for situations like apartment living, where it is not possible to attach an antenna and cabling to the roof of the building. The outside panel antenna can be attached to the wall outside the window, if the roof is not available.
- Strong cellular signal across a desktop workspace
- Reduce dropped calls and increase data speed - including 4G LTE
- Increase the battery life of your devices with up to 2 hours longer talk time
- Small device footprint with a modern, attractive design

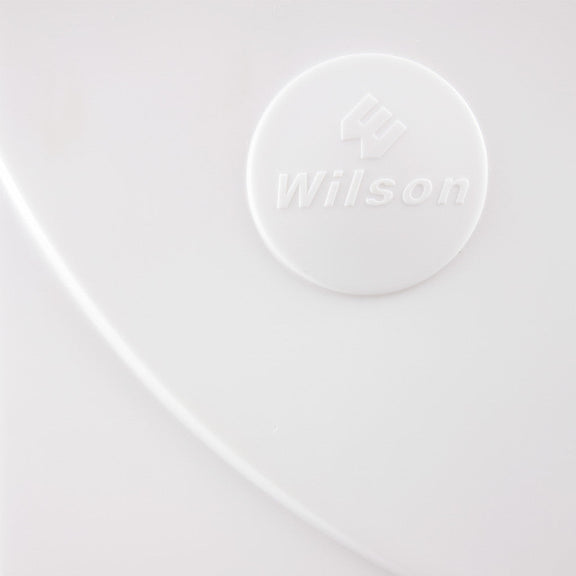

The outdoor antenna provided with the weBoost Home 4G is a panel antenna (311155). Ideally, this antenna should be installed on an exterior wall or roof. The antenna sends the signal via a coaxial cable to the amplifier, which boosts the signal before sending it to the indoor antenna to be broadcast around your home or office. The kit includes wall-mount and pole-mount bracket options, and a window entry cable for ease of access and installation.

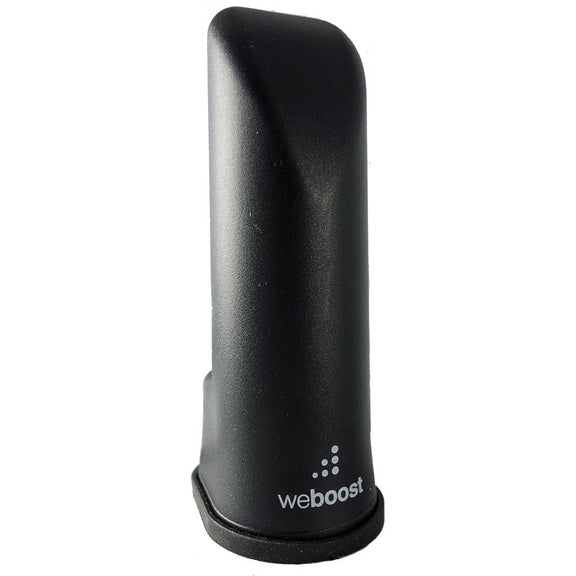

The indoor antenna included in this kit is the weBoost 301211 desktop antenna. The antenna features an attractive modern design and is small enough to sit unobtrusively on a desk.
The kit comes with two 30’ RG6 Coax Cables (950630). It also includes the (971129) F-Female to SMA Male cable connector.
Lightning Surge Protector
We recommend using a lightning surge protector in most cases, but particularly if you'll be installing the kit in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.

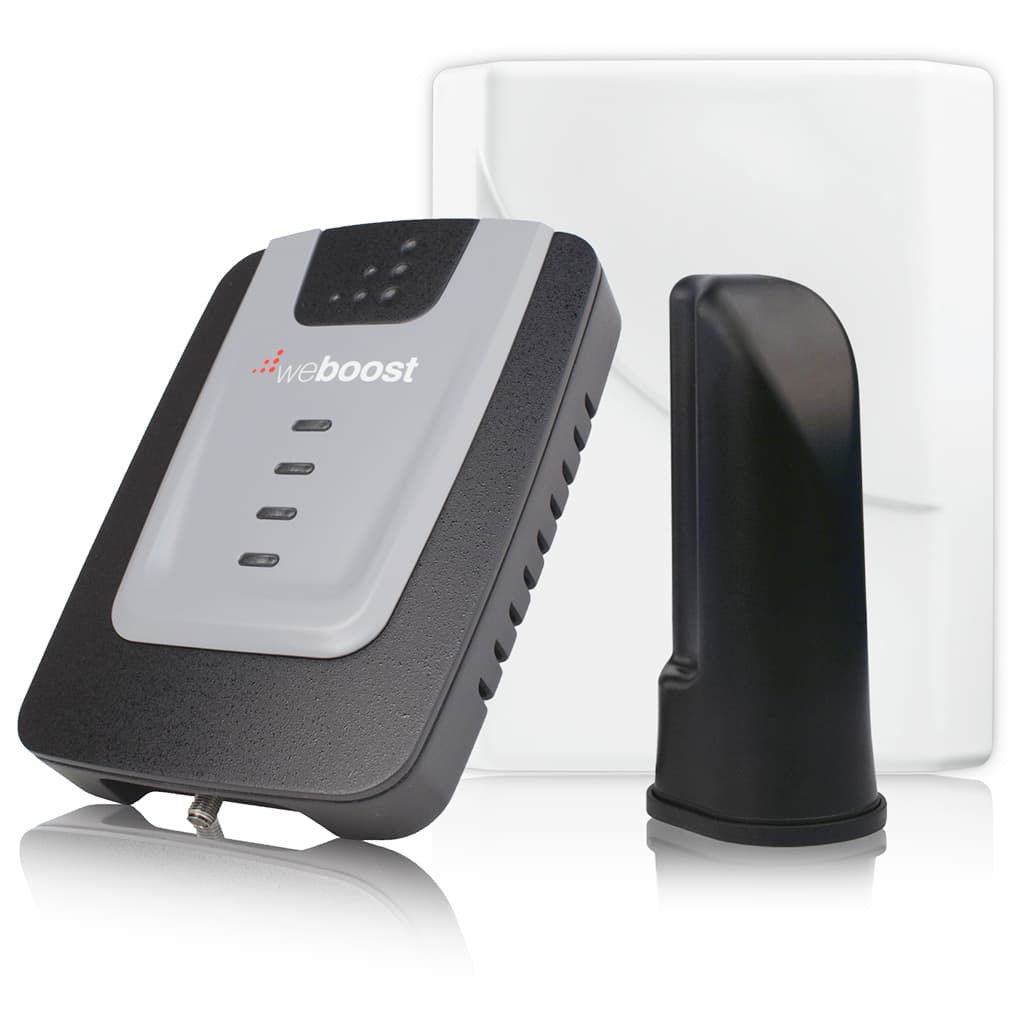

The weBoost Home Room kit (472120) contains the following:

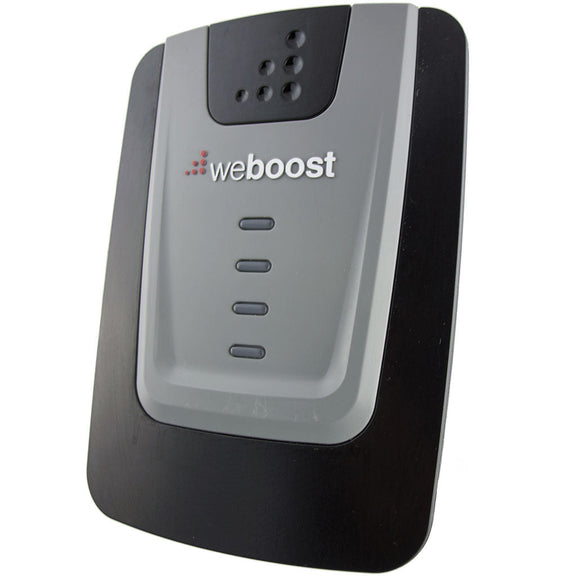

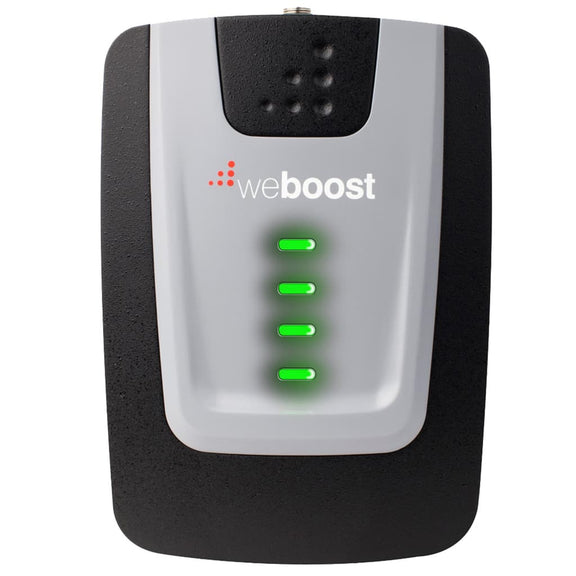

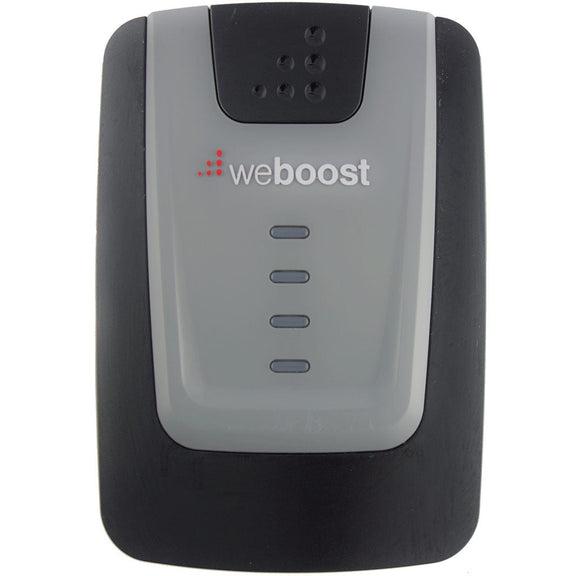

- weBoost Home Room 60dB amplifier (472120)
- weBoost Outside Panel Antenna (311155)
- Pole mounting bracket for outdoor antenna
- Wall mounting bracket for outdoor antenna
- Flat window cable (951177)
- Desktop Antenna (5’ RG-174 comes attached) (301211)
- 2 x 30’ RG6 Coax Cable (950630)
- F-Female to SMA Male cable connector (971129)
- 5V / 2.5A, AC Power Supply (850012)
- Installation Guide
Installation of the weBoost Home Room is quick and easy and can be done with no specialized tools. A detailed guide will take you through the installation procedure, and tell you how to connect the two antennas to the main amplifier.
