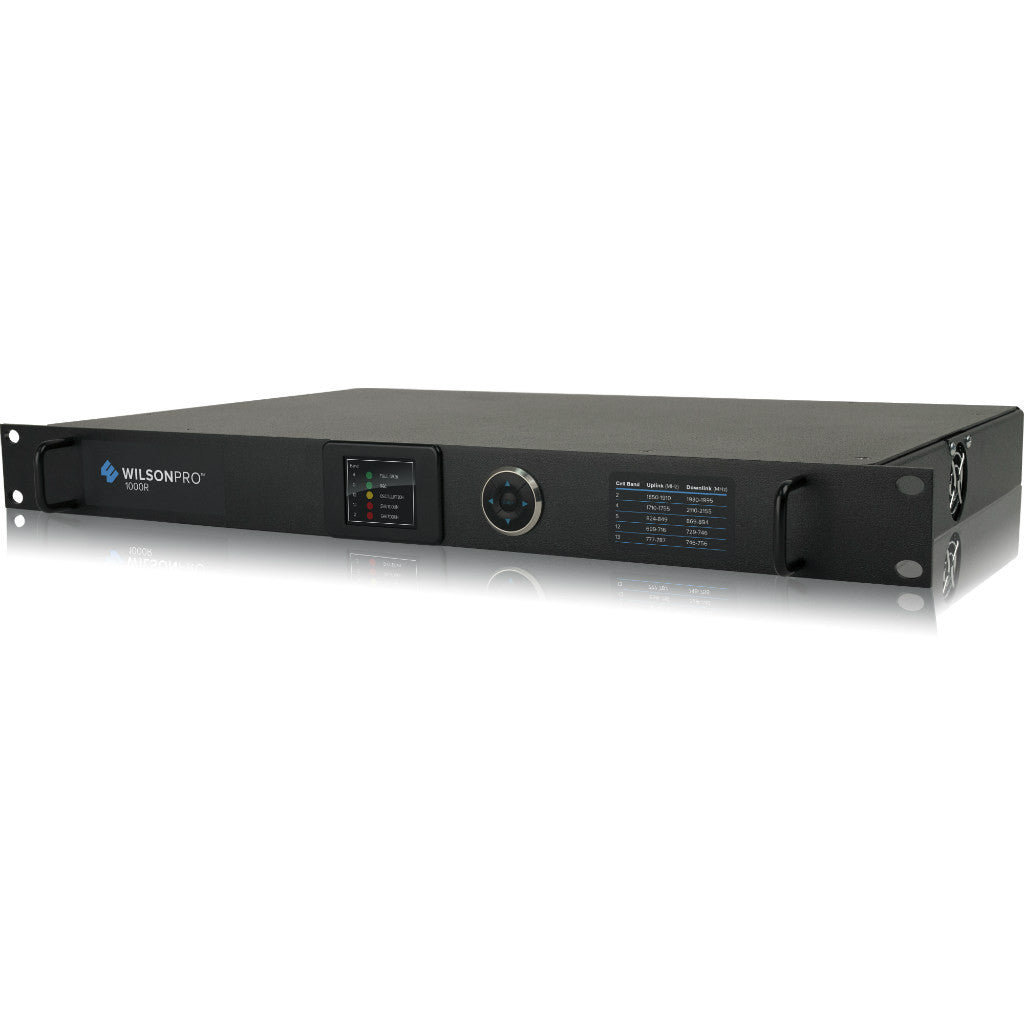

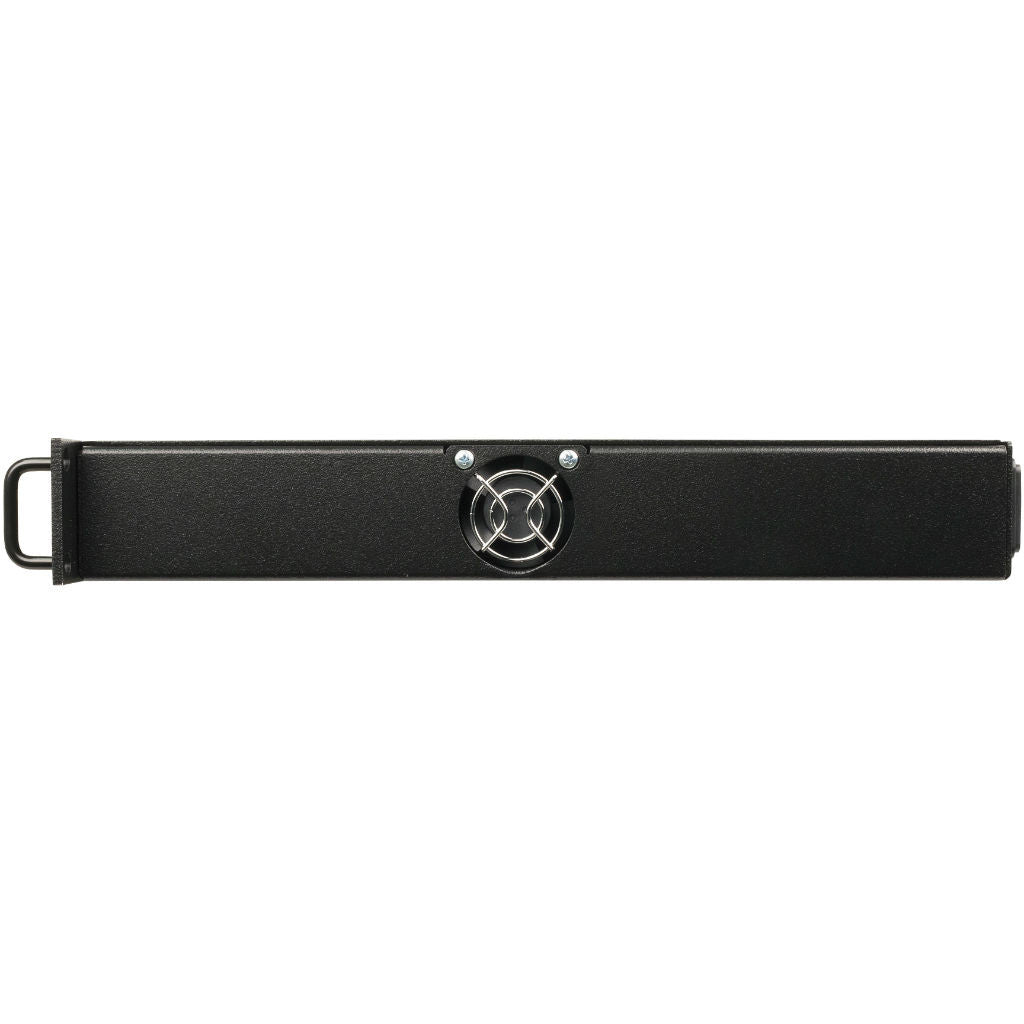

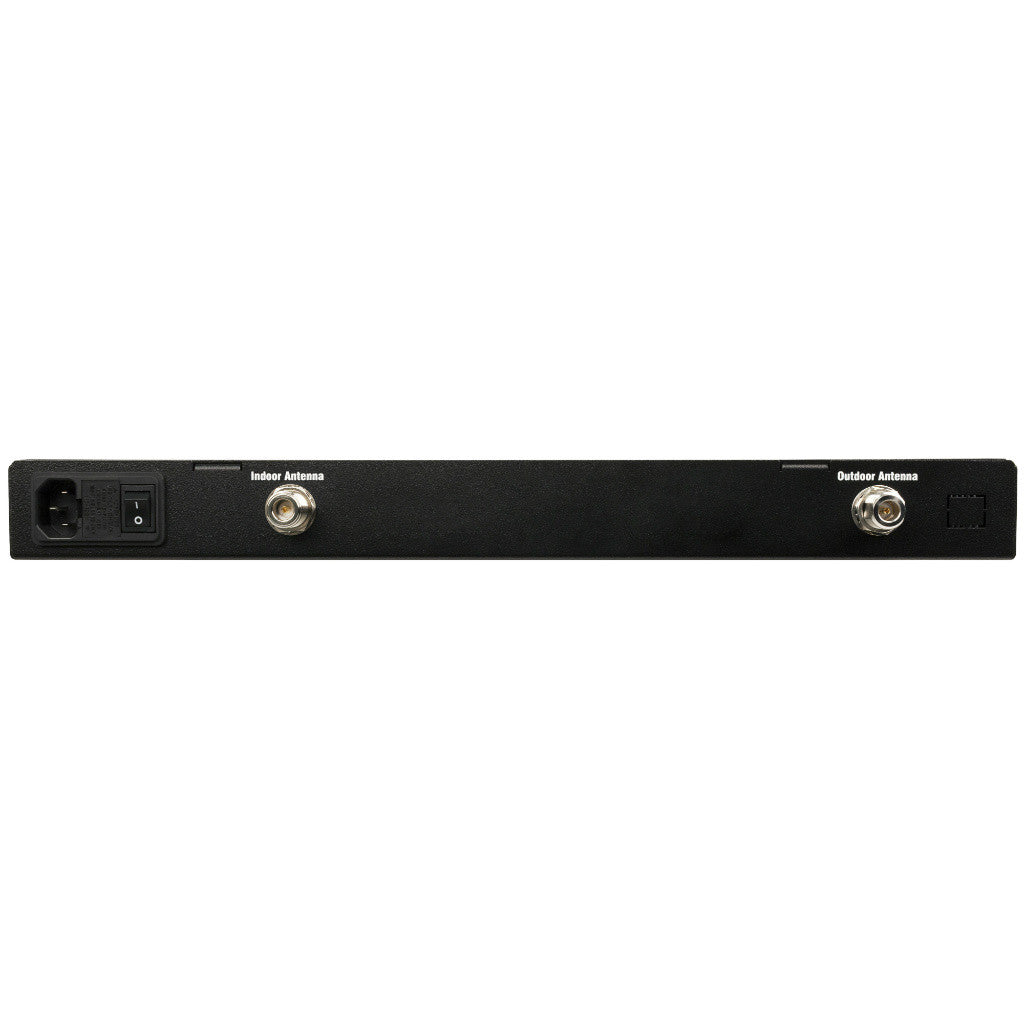

The WilsonPro 1000R is a rack mounted cell booster system. It is an enterprise-level all-bands multi-carrier signal booster that amplifies and improves voice calls, 2G, 3G, and 4G LTE data on all US and Canadian carriers.
The WilsonPro 1000R is very installation-friendly. The rack mounted design will fit into an existing server rack, leaving the unit easily accessible. The color LCD screen with four-way navigation gives integrators easy control of the unit.
Like other WilsonPro boosters, the Automatic Gain Control is always monitoring signal levels and making instant adjustments as required, allowing the booster to operate at maximum gain consistently. The Extended Dynamic Range (XDR) feature lets the 1000R system work with an incoming signal up to 10 dB stronger than any competing booster can tolerate, before overloading and shutting down.
5 Critical Tips for the WilsonPro 1000R:
1. Take signal measurements before you buy
The WilsonPro 1000R can cover up to an area of up to 30,000 square feet, but only if your outdoor signal is strong enough. This isn't true for just the Pro 1000R, but across the board for all signal boosters.
We strongly recommend measuring your outdoor signal and speaking to our team of Signal Experts before you purchase. Our Signal Experts can help guide you to the best solution based on your signal conditions.
2. Getting your outdoor antenna positioned correctly is critical
As we explain in our Signal Booster Guide, the bars on your phone are more than just signal strength. Signal quality is absolutely critical.
The only way to improve the signal quality coming into your booster is getting the outdoor antenna positioned correctly. Our team of Signal Experts can help guide you as you install the Pro 1000R.
3. Consider the WilsonPro 1000C and WilsonPro 1000
In early 2019 Wilson released the WilsonPro 1000C, which is near-identical to the WilsonPro 1000, except that it offers built-in cloud monitoring. If you'd like to be able to set up alarms in case of any issues, the Pro 1000C is worth considering.
The WilsonPro 1000 is identical to the Pro 1000R, except that it comes in a wall-mount case.
4. Consider the Cel-Fi QUATRA 2000
The Cel-Fi QUATRA 2000 targets a similar market to the WilsonPro line, however it is a carrier-specific system that the FCC allows to utilize up to 100 decibels gain. The extra gain means the QUATRA works better in remote areas with very weak outdoor signal. The QUATRA also uses ethernet cable in place of coaxial cable.
It's not all upside, though. The QUATRA 2000 has both benefits and disadvantages. For example, each unit only works with 2 carriers at a time, so you need two sets for 4-carrier coverage. Additionally, installation can be a little more complicated than the WilsonPro products.
5. The WilsonPro 1000R is designed to be part of a custom-designed system
There's a reason that Wilson doesn't allow these units to be sold online: they're supposed to be designed into a custom system, with multiple antennas, splitters, couplers, and custom-length cables.
We offer complimentary design services using the industry-standard iBwave in-building design software. Simply contact our Signal Specialists and we'll chat through your building and requirements and help put together a custom solution for you.
- Easy rack-mounted installation
- Onboard Software for Better Control
- Extended Dynamic Range (XDR) for continuous connectivity
- Color LCD
- Highest Uplink and Downlink Power
- Lower Overload and Shutdown Threshold
- Automatic Gain Control System
- Compatible with all North American cellular networks
- Three year warranty
- FCC and Industry Canada certified
- Faster, cleaner data transfers
- Strong, reliable connections even in weak signal areas
- Up to 100,000 sq ft coverage area
- Extends battery life of cellular devices
Purchase & Installation
The WilsonPro product line is available to be installed by custom professional installers. RepeaterStore has years of experience designing and supporting custom installations. We can provide all customers with custom design services.
The WilsonPro line is not available to purchase directly online, so please call us at (800) 761-3041 to discuss your in-building signal coverage needs and receive a free quote.
- Wilson 1000R rack mounted signal booster (460237)
- Wilson Wide-Band Directional Antenna (314411)
- Wilson Wideband Indoor Dome Antenna (304412)
- weBoost (Wilson) Lightning Surge Protector (859902)
- 2 ft Low-Loss Wilson400 Cable (952302)
- 75 ft Low-Loss Wilson400 Cable (952375)
- 100 ft Low-Loss Wilson400 Cable (952300)
- Installation manual

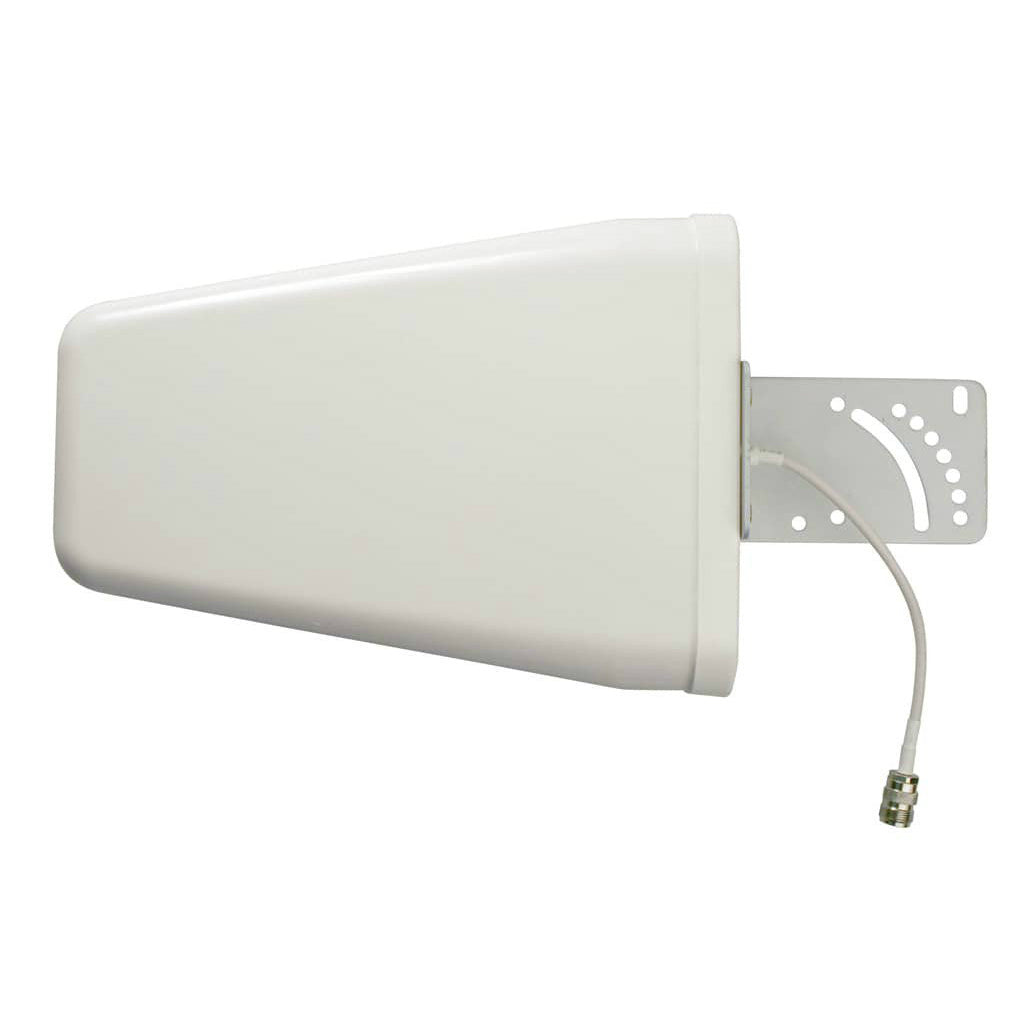

The Wilson Wide-Band Directional Antenna (314411) is a 700MHz - 2700MHz antenna with 8-10 dB of gain. It is a wide-band high performance antenna. The sealed housing is UV stabilized ABS plastic and is fully weather-proof. It has N-Female connectors.
It is a directional antenna. Directional antennas need to be pointed towards the nearest cell tower for the best results. It includes mounting equipment to attach to a pole up to 2in in diameter.
It connects easily to the included high quality Wilson400 low loss coax cable.
The Wilson Wideband Indoor Dome Antenna (304412) is an omni-directional antenna. Omni-directional antennas receive signal from all directions, so it needs to be installed in a vertical position in the area of strongest signal.
The 304412 is a 50 ohm antenna made of white ABS plastic and is suitable for indoor use only. Each antenna has 30mm cable attached with N-Female connectors.
Lightning Surge Protector
The kit includes a lightning surge protector. We recommend using a lightning surge protector in most cases, but particularly if you are in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.
WilsonPro warranties all of their products for 3 years and all of their amplifier and/or a complete approved bill-of-materials (BOM) for 5 years against any workmanship or material defects.
Read more about WilsonPro’s warranty policy here.
