WeBoost Connect 3G (472105)

by weBoost

Product no longer available

We are no longer selling WeBoost Connect 3G (472105).

A replacement is available here: WeBoost Connect 4G (470103)

Product Description

The weBoost Connect 3G (470101) with Omni Antenna is the perfect kit for creating strong signal in your home or office. The weBoost Connect 3G kit amplifies and improves voice calls, 2G data and 3G data on all US and Canadian carriers. The Connect 3G handles multiple simultaneous callers and data users with no drop in performance.

Installation of the weBoost Connect 3G is quick and easy and can be done with no specialized tools. A detailed guide will take you through the installation procedure, and tell you how to connect the two antennas to the main amplifier.


  • Strong cellular signal across 2 rooms
  • Reduce dropped calls and increase data speed - including 4G LTE
  • Increase the battery life of your devices with up to 2 hours longer talk time
  • Small device footprint with a modern, attractive design
  • Works with all smartphones and other data devices

Outdoor antenna

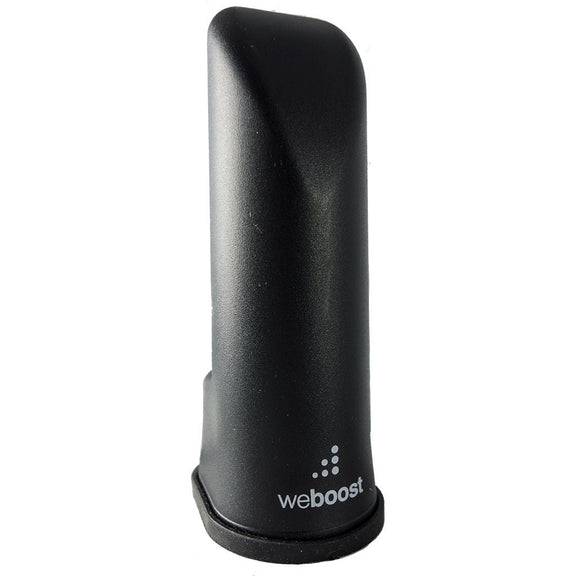

The outdoor antenna provided with the Connect 3G is an omni-directional antenna (311201). This antenna should be installed on an exterior wall or roof. The antenna sends the signal via a coaxial cable to the amplifier, which boosts the signal before sending it to the indoor antenna to be broadcast around your home or office.

Indoor antenna

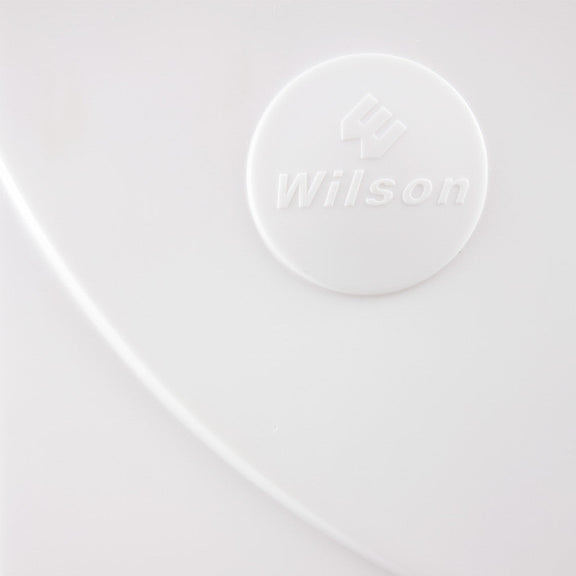

The indoor antenna included in this kit is the weBoost (311135-40060) panel antenna, which is accompanied by a wall mounting bracket. The panel antenna redistributes signal inside your building and collects signal from your cell phone to be sent to the cell tower.

Included cables

The kit comes with one 30’ RG6 Coax Cable (950630) and one 20’ RG6 Coax Cable (950620).

Kit contents

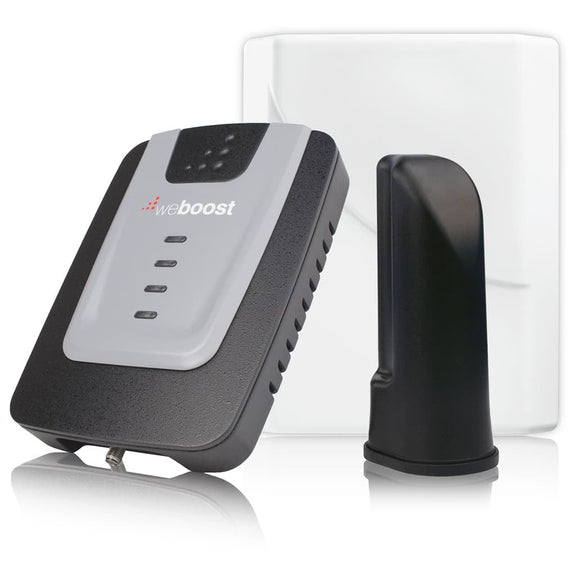

The weBoost Connect 3G (472105) contains the following:

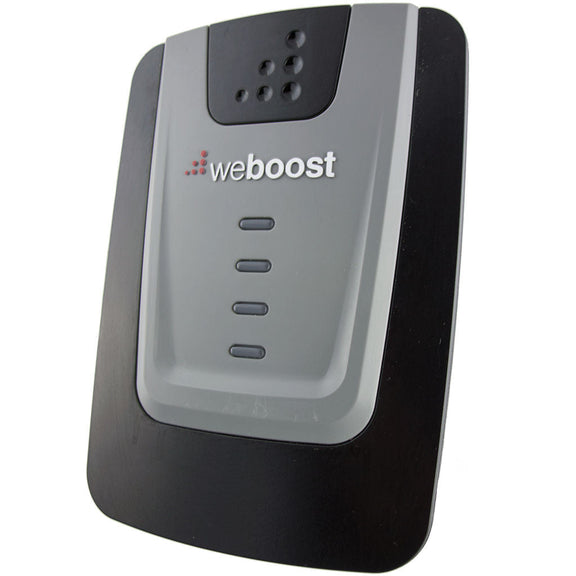

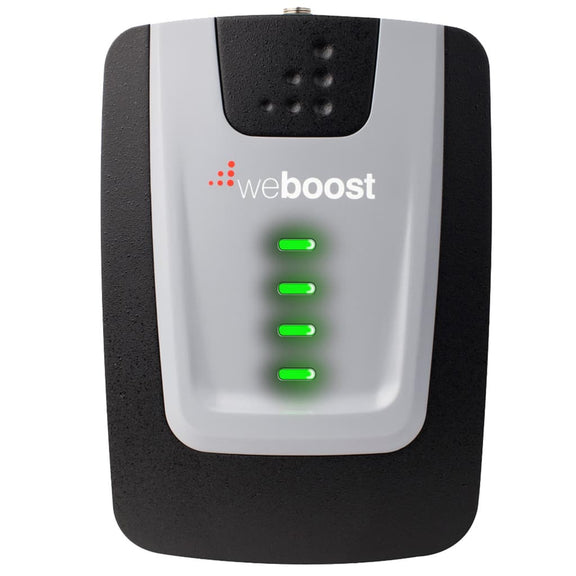

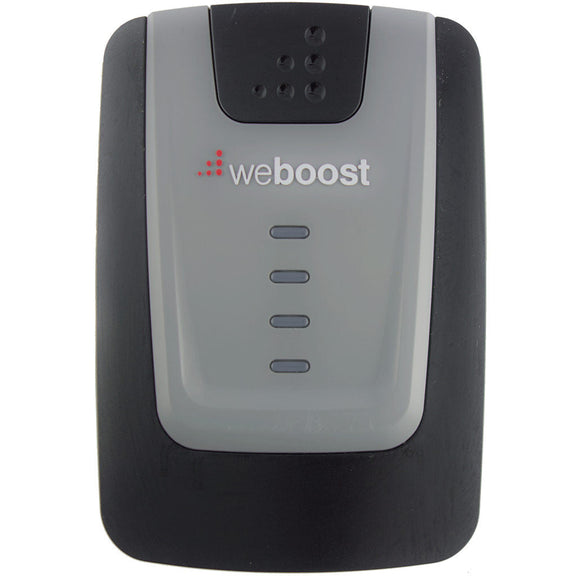

  • weBoost Connect 3G 65dB amplifier (472005)
  • weBoost Omni-Directional Outside Antenna (311201-0620)
  • Omni directional antenna mounting bracket
  • weBoost Panel Inside Antenna (311135-40060)
  • Wall mounting bracket for inside antenna
  • 30’ RG6 Coax Cable (950630)
  • 20’ RG6 Coax Cable (950620)
  • 6V / 2.5A, AC Power Supply (859912)
  • Installation Guide

Outdoor antenna mounting options

The Connect 3G includes an omnidirectional antenna mounting bracket for the outdoor antenna.

Lightning Surge Protector

We recommend using a lightning surge protector in most cases, but particularly if you'll be installing the kit in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.


The coverage area you can expect from any signal booster kit depends on the signal strength outside the building.

Outdoor Signal Estimated coverage area
Strong outdoor signal (5 bars) up to 5,000 sq. ft. coverage
Medium outdoor signal (3-4 bars) up to 2,500 sq. ft. coverage
Weak outdoor signal (1-2 bars) up to 1,500 sq. ft. coverage


The WeBoost Connect 3G (472105) is compatible with the following networks:

Carrier Supported services Unsupported services
Verizon 2G/3G Voice + Data 4G LTE
AT&T 2G/3G Voice + Data 4G LTE
Sprint 2G/3G Voice + Data 4G LTE
T-Mobile 2G/3G Voice + Data 4G LTE

The WeBoost Connect 3G (472105) kit is also compatible with Canadian networks, though they are not listed above. Check our international carriers page for more information.

Supported frequency bands (MHz): 824-849 / 869-894 / 1850-1910 / 1930-1990

Product video


SKU 472105
Dimensions 6.3 x 4.2 x 1.4 in / 11.0 x 5.2 x 14.3 cm
Frequency 824-849 / 869-894 / 1850-1910 / 1930-1990
Gain 65 dB
Impedance 50 Ohms
Noise 3 dB nominal (downlink) / 6 dB nominal (uplink)
Power supply AC / DC 6V, 2.5A, w/2.5x5.5mm Jack
Connector type F-Female
Cable length 30' and 20'
Cable type RG6
Coverage 1500 sq ft (1 coverage with weak signal)
2500 sq ft (2 coverage with medium signal)
5000 sq ft (3 coverage with strong signal)
