Wilson Pro 4000 4-Port Signal Booster Kit
by: Wilson



Product discontinued
The Wilson Pro 4000 4-Port Signal Booster Kit has been discontinued by the manufacturer.
A replacement is available here: WilsonPro Enterprise 4300 Signal Booster Kit (460152)
by: Wilson
Wilson Pro 4000 4-Port Signal Booster Kit
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
We're the leading online distributor of WilsonPro products and stock their entire lineup of amplifiers, antennas, and accessories.
No matter what WilsonPro part you need, you can rest assured that we carry it.
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Wilson products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

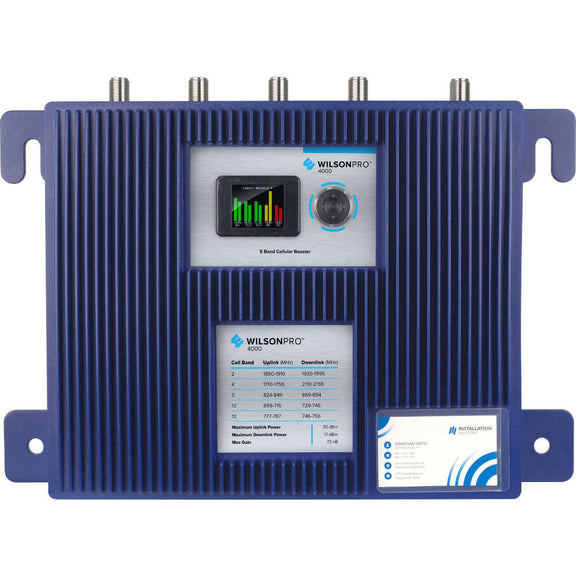

The WilsonPro 4000 is an extremely powerful signal amplifier that boosts coverage on all North American cell networks.
This is a commercial-grade signal booster suitable for large industrial applications. It incorporates four separate signal amplifiers in one unit that feeds four indoor antennas. This professional-grade all-bands multi-carrier signal booster amplifies and improves voice calls, 2G, 3G, and 4G LTE data. This powerful kit is ideally suited to large buildings like offices, hospitals, warehouses, apartment blocks, schools, hotels, underground car parks, and other large multi-storey spaces. It offers coverage up to 100,000 sq ft.
The Pro 4000 offers FCC-approved up to 12dB more downlink power than other boosters, allowing for stronger signal where the incoming signal is weak. It has the highest permitted uplink power, providing greater user capacity and increased range. Meanwhile, the lower overload and shutdown threshold makes the booster perform equally well in strong signal environments like cities or locations near cell towers. The low threshold allows the Pro 4000 to work with a stronger incoming signal before overloading and shutting down. The new Wilson Electronics XDR (Extended Dynamic Range) technology balances and compensates for strong incoming signal to prevent system shutdowns.
A color LCD screen with four-way navigation gives easy control of the unit. A rack-mounted version of this booster is also available, the Wilson Pro 4000R.
5 Critical Tips for the Wilson Pro 4000:
1. Take signal measurements before you buy
The Wilson Pro 4000 can cover up to an area of up to 100,000 square feet, but only if your outdoor signal is strong enough. This isn't true for just the Pro 4000, but across the board for all signal boosters.
We strongly recommend measuring your outdoor signal and speaking to our team of Signal Experts before you purchase. Our Signal Experts can help guide you to the best solution based on your signal conditions.
2. Getting your outdoor antenna positioned correctly is critical
As we explain in our Signal Booster Guide, the bars on your phone are more than just signal strength. Signal quality is absolutely critical.
The only way to improve the signal quality coming into your booster is getting the outdoor antenna positioned correctly. Our team of Signal Experts can help guide you as you install the Pro 4000.
3. Consider the Wilson Pro 1000C and Wilson Pro 4000
In early 2019 Wilson released the Wilson Pro 1000C, which offers built-in cloud monitoring. If you'd like to be able to set up alarms in case of any issues, the Pro 1000C is worth considering - however it does not have 4 ports as the 4000 does.
The Wilson Pro 4000R is identical to the Pro 4000, except that it is wall-mountable instead of rack-mountable.
4. Consider the Cel-Fi QUATRA 2000
The Cel-Fi QUATRA 2000 targets a similar market to the Wilson Pro line, however it is a carrier-specific system that the FCC allows to utilize up to 100 decibels gain. The extra gain means the QUATRA works better in remote areas with very weak outdoor signal. The QUATRA also uses ethernet cable in place of coaxial cable.
It's not all upside, though. The QUATRA 2000 has both benefits and disadvantages. For example, each unit only works with 2 carriers at a time, so you need two sets for 4-carrier coverage. Additionally, installation can be a little more complicated than the Wilson Pro products.
5. The Wilson Pro 4000 is designed to be part of a custom-designed system
There's a reason that Wilson doesn't allow these units to be sold online: they're supposed to be designed into a custom system, with multiple antennas, splitters, couplers, and custom-length cables.
We offer complimentary design services using the industry-standard iBwave in-building design software. Simply contact our Signal Specialists and we'll chat through your building and requirements and help put together a custom solution for you.
Benefits
- Onboard Software for Better Control
- Extended Dynamic Range (XDR) for continuous connectivity
- Color LCD
- Highest Uplink and Downlink Power
- Lower Overload and Shutdown Threshold
- Automatic Gain Control System
- Compatible with all North American cellular networks
- Three year warranty
- FCC and Industry Canada certified
- Faster, cleaner data transfers
- Strong, reliable connections even in weak signal areas
- Up to 100,000 sq ft coverage area
- Extends battery life of cellular devices
Purchase & Installation
The Wilson Pro product line is available to be installed by custom professional installers. RepeaterStore has years of experience designing and supporting custom installations. We can provide all customers with custom design services.
The Wilson Pro line is not available to purchase directly online, so please call us at (800) 761-3041 to discuss your in-building signal coverage needs and receive a free quote.
Kit Contents
- Wilson 4000R rack mounted signal booster (460223)
- Wilson Wide-Band Directional Yagi Antenna (314411)
- 4 x Wilson Wideband Indoor Dome Antenna (304412)
- 1x2' , 1x75' , 4x100' low loss 400-type coaxial cable
- Lightning Surge Protector (859902)
Outside Antenna

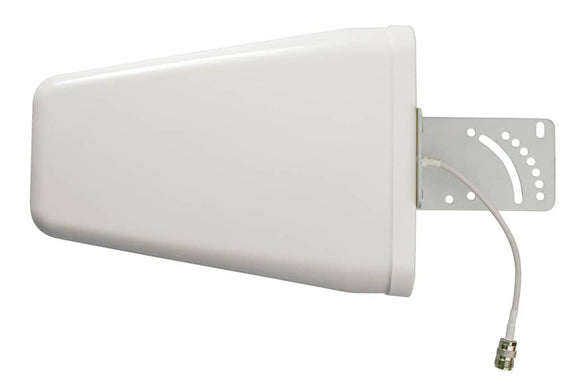

The Wilson 314411 multi-band yagi antenna is a 700MHz - 2700MHz antenna with 8-10 dB of gain. It is a wide-band high performance antenna. The sealed housing is UV stabilized ABS plastic and is fully weather-proof.
It is a directional antenna. Directional antennas need to be pointed towards the nearest cell tower for the best results. It includes mounting equipment to attach to a pole up to 2in in diameter.
It connects easily to the included high quality 400 low loss coax cable.
Indoor Antenna

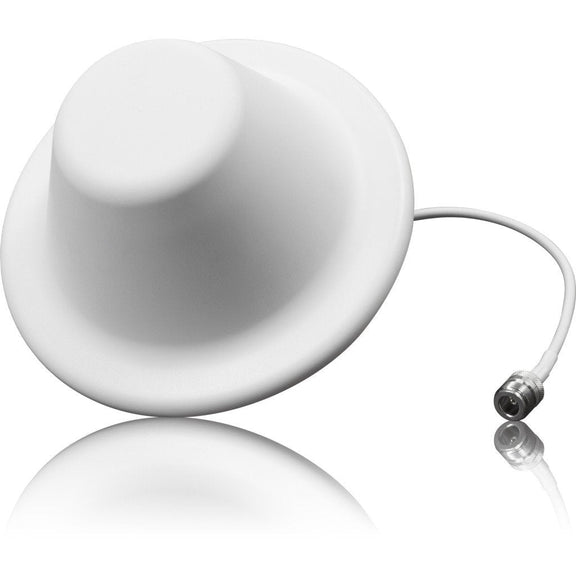

Four Wilson Wideband Indoor Dome Antennas are included with the Wilson Pro 4000. They are omni-directional antennas. Omni-directional antennas receive signal from all directions, so they need to be installed in a vertical position in the area of strongest signal.
The 304412 is a 50 ohm antenna made of white ABS plastic and is suitable for indoor use only. Each antenna has 30mm cable attached with N Female connectors.
Lightning Surge Protector
The kit includes a lightning surge protector. We recommend using a lightning surge protector in most cases, but particularly if you are in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.
Specifications, Guides, and Downloads
SKU |
|
---|---|
UPC |
|
FCC notice |
Read full notice Collapse notice
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and
have your provider's consent. Most wireless providers consent to the use of signal boosters. Some
providers may not consent to the use of this device on their network. If you are unsure, contact your
provider. You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease
operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using
this device. Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and
more than 90 regional carriers have given blanket consent for use of all boosters certified to the new
FCC standards.
|
CA Prop 65 Warning |
Read full warning Collapse warning |
