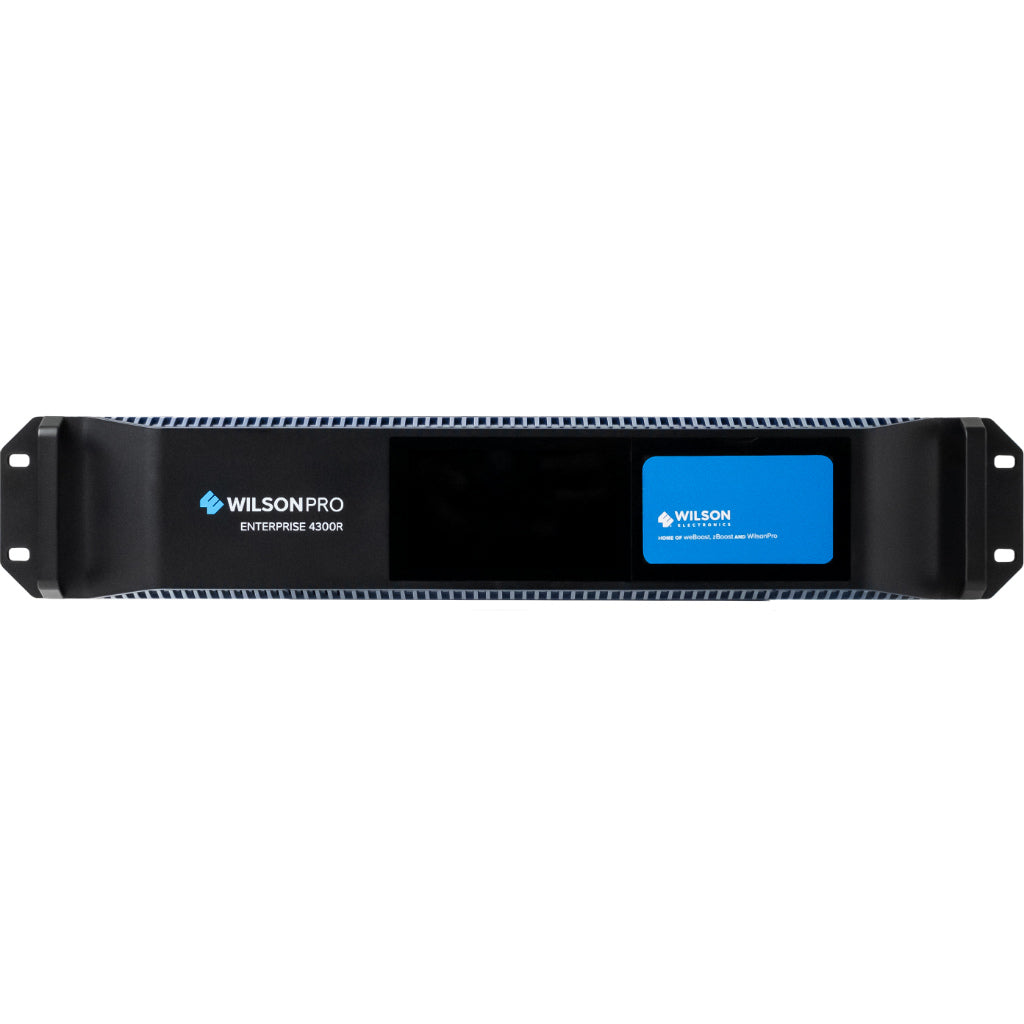

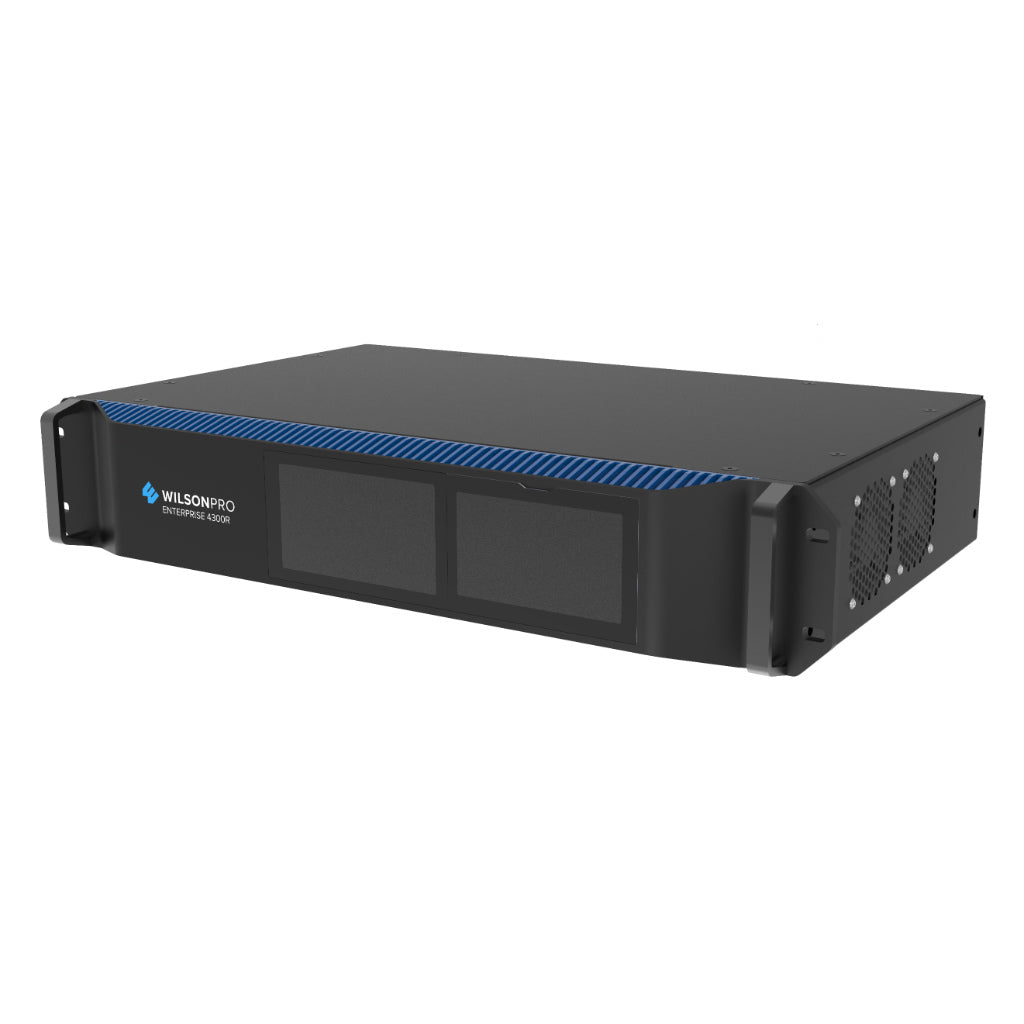

The WilsonPro Enterprise 4300R is a powerful commercial-grade rack-mounted signal booster system with three outdoor antenna ports and four indoor antenna ports. It boosts 2G/3G/4G/LTE signal on all major North American carriers.
The Pro Enterprise 4300R can cover up to 100,000 square feet, depending on existing outside signal strength. The amplifier unit has up to 26 dBm in uplink power and 17 dBm in downlink power. It uses Wilson Electronics XDR (Extended Dynamic Range) technology to balance and compensate for strong incoming signal to prevent system shutdowns. It has a 4.3-inch LCD touchscreen.

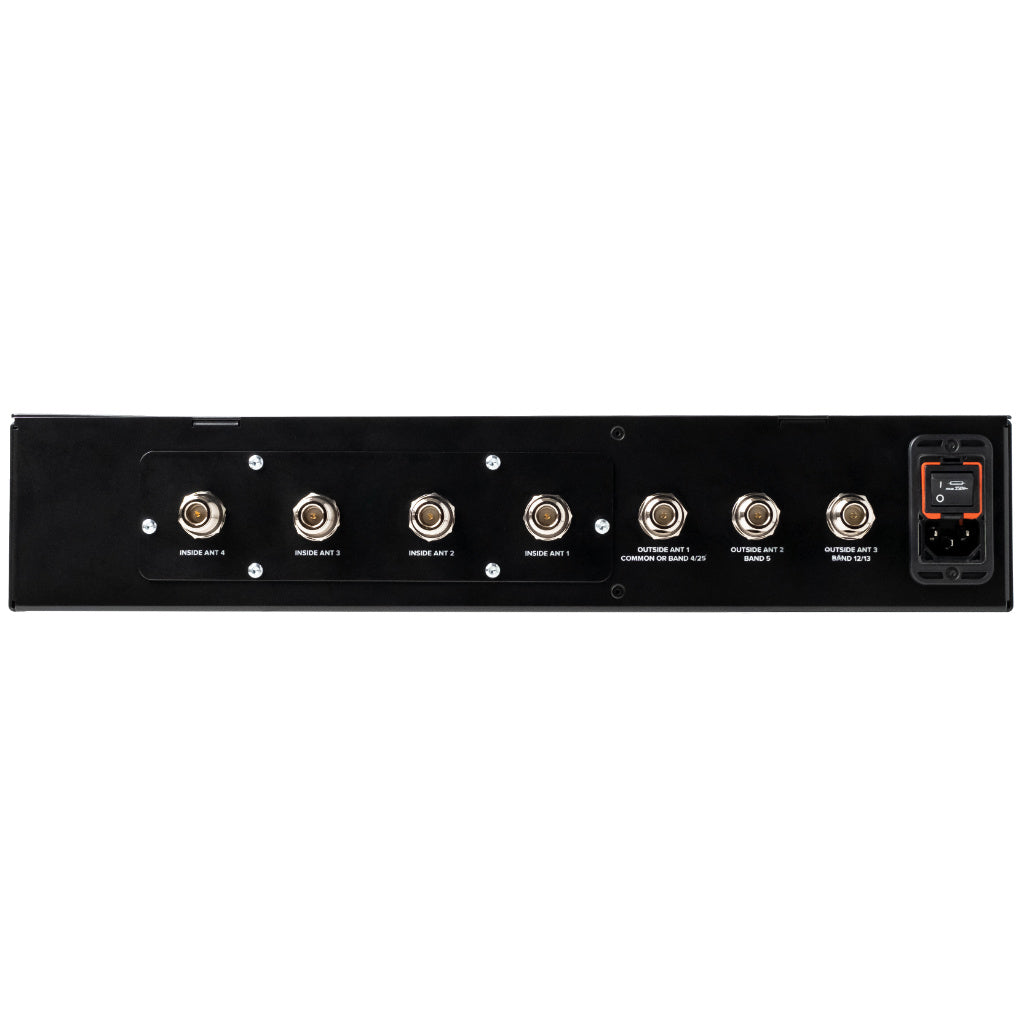

The three outdoor antenna ports allow the WilsonPro Enterprise 4300R to target multiple cell towers, in different directions, at once. This Multi-Tower Targeting (MTT) means that users can install up to three different outside antennas to capture existing cell signal. In challenging signal environments, different carriers may give the strongest signal from different directions, depending on cell tower locations.
The Pro 4300R allows installers to point antennas in different directions to maximize signal quality. The 4300R also has four indoor antenna ports, all of which are equipped with up to 17 dBm downlink power of their own. In situations that don’t require multiple outdoor and/or indoor antennas, the booster can use a default “common mode” to maximize indoor coverage with a single outdoor antenna and a single indoor antenna.
The WilsonPro Enterprise 4300R also connects to the WilsonPro Cloud service.
WilsonPro Cloud Service
The WilsonPro Cloud Service allows users to remotely control and monitor the Enterprise 4300R. Users can:
- Remotely reset the amplifier
- Enable and disable specific frequency bands
- Generate reports & view performance histories
- Organize monitored amplifiers by location
- Use the antenna tuning tool to optimize outdoor antenna location and direction
Additionally, the WilsonPro Cloud Service allows users to set up customizable email and SMS text alert notifications for these events:
- Amplifier offline or unable to communicate with Cloud Service
- Oscillation (feedback) detected
- Weak or no signal detected
5 Critical Tips for the WilsonPro Enterprise 4300R:
1. Take signal measurements before you buy
The WilsonPro 4300R can cover up to an area of up to 100,000 square feet, but only if your outdoor signal is strong enough. This isn't true for just the Enterprise 4300R, but across the board for all signal boosters.
We strongly recommend measuring your outdoor signal and speaking to our team of Signal Experts before you purchase. Our Signal Experts can help guide you to the best solution based on your signal conditions.
2. Getting your outdoor antenna positioned correctly is critical
As we explain in our Signal Booster Guide, the bars on your phone are more than just signal strength. Signal quality is absolutely critical.
The only way to improve the signal quality coming into your booster is getting the outdoor antenna positioned correctly. Our team of Signal Experts can help guide you as you install the Enterprise 4300R.
3. Consider the WilsonPro 4300 and the WilsonPro 1300R
The WilsonPro Enterprise 1300R only covers up to 40,000 square feet. Like the 4300R, it comes with three outdoor antenna ports, but only one indoor antenna port. It's a great contender if you only need a smaller area covered.
The WilsonPro Enterprise 4300 is identical to the Enterprise 4300R, except that it comes in a wall-mount case.
4. Consider the Cel-Fi QUATRA 2000
The Cel-Fi QUATRA 2000 targets a similar market to the WilsonPro line, however it is a carrier-specific system that the FCC allows to utilize up to 100 decibels gain. The extra gain means the QUATRA works better in remote areas with very weak outdoor signal. The QUATRA also uses ethernet cable in place of coaxial cable.
It's not all upside, though. The QUATRA 2000 has both benefits and disadvantages. For example, each unit only works with 2 carriers at a time, so you need two sets for 4-carrier coverage. Additionally, installation can be a little more complicated than the WilsonPro products.
5. The WilsonPro Enterprise 4300R is designed to be part of a custom-designed system
There's a reason that Wilson doesn't allow these units to be sold online: they're supposed to be designed into a custom system, with multiple antennas, splitters, couplers, and custom-length cables.
We offer complimentary design services using the industry-standard iBwave in-building design software. Simply contact our Signal Specialists and we'll chat through your building and requirements and help put together a custom solution for you.
The WilsonPro Enterprise 4300R is best when customized for a specific building. Our signal experts can create a design from scratch for any building to make sure the amplifier delivers the best possible performance.
Get in touch with one of our Signal Specialists by clicking the live chat button in the bottom right of the screen, calling us at 1-800-761-3041, or using our contact form.

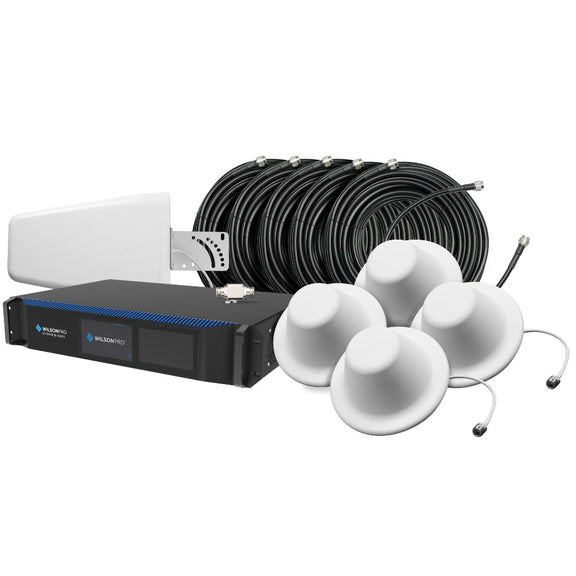

Standard Kit Contents
The standard WilsonPro Enterprise 4300R kit includes the following components:
- Enterprise 4300R (460153) Amplifier
- Wilson Directional Outside Antenna (314411)
- Wilson Indoor Dome Antenna (304412)
- weBoost (Wilson) Lightning Surge Protector (859902)
- 2 ft Low-Loss Wilson400 Cable (952302)
- 5x 100 ft Low-Loss Wilson400 Cable (952300)
- Installation manual
WilsonPro warranties all of their products for 3 years and all of their amplifier and/or a complete approved bill-of-materials (BOM) for 5 years against any workmanship or material defects.
Read more about WilsonPro’s warranty policy here.
